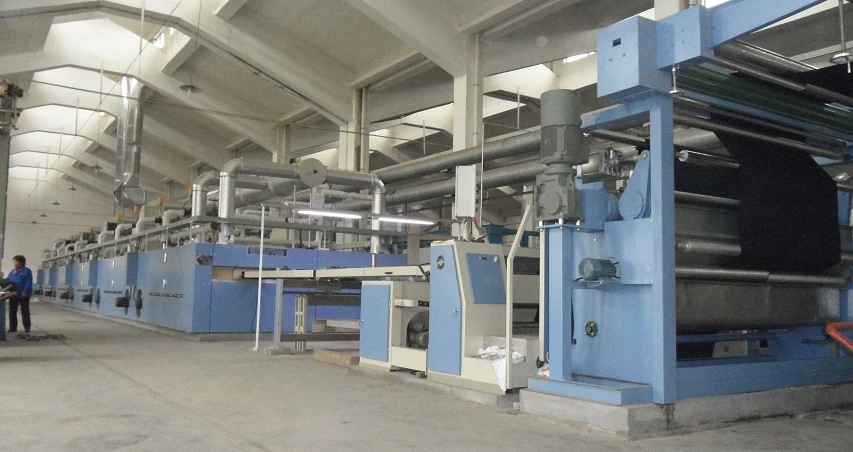

Heat Setting Stenter Machine





Heat Setting Stenter Machine is mainly used for the cotton, polyester, wool, hemp of setting process for the open width fabrics, after worked by the machine, you can get stable size of the fabric







Machine techncial flow chart:



Horizontal infeeding fabrics tentingInfra-red expanding and centering two roll padderTension synchronous control system two roll padderPhotoelectric weftstraigtner (customer provide)lower overfeedingscrew expandingscrew expandingupper overfeedingedge spreaderinfra-red inspectoroverfeeding and pin ontenting and settingCoolant airPin offExitplaiter or rolling

Machine details:

Fabrics feeding:

l Tension adjusting frame

l Upper and lower roller spreader,

l Infra-red centering device, machine body,

l Slider type rectifying roller

l Rectifying executive device

Padder

Horizontal structure,

The two roller is parellel when in a free state



Overfeeding pin on system

l This system means the completely machine head system,

l main operation area,wholly machine main operation is on right and left panel(or operation beam),

l The operator stand on padal,left side is manual panel,right is HMI.

Heating area fabrics infeeding

Air curtain protection system,pin off inspection device,breathadjust device,steam box,wool brush fabrics pressing device,fabrics clip closing device,fabrics edge gumming device.



Guie rail and chains

Horizontal tenting frame,steel rail,alloy slide rail,High manganese steel chain,copper pin plate,Nickel plated steel needle



Heating chamber:

  hot air blowers, chambers, heating system, filter net, exhaust moisture system,  machine body, and insulation boards,hot air motor 2X11KW/chamber,exhaust moisture motor 2X5.5KW/set

Exit

This section include: cool air system,clip opening system,edge cutting and sucking system,main pin off system,main active plaiting system,static electric removal device,HMI touching screen.



Instant monitoring system

l The machine is equipped with real-time monitoring system.

l The camera is mounted in the fabrics exit area, and show the fabrics exit state. is taken out.

l Main screen is on the right side of the operating area.

l The operators can observe the cloth immediately, and can communicate with each other through the front and back intercom.

Electric system

l PLC programmed,control all main driven motor inverters,the motor speed adjusted by inverter,speed will be synchronized by encoder signal.

l Each chambere hot blower controlled by double inverter,adjust the upper and lower air volume.

l Each machine has four paralleling electrical cabinet.

l Machine main speed shown on the big screen

l  Large screen display table for host speed

l Machine faulty will show on main screen.

l

Pneumatic system:

Air-water apart device, filter device, decompress device, electric controls direction changing valve. Air pipe, cylinder.
