Комплект солнечной системы на сетке 1 кВт
- Категории: >>>
- Поставщик: Rosen,Solar,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
System Show

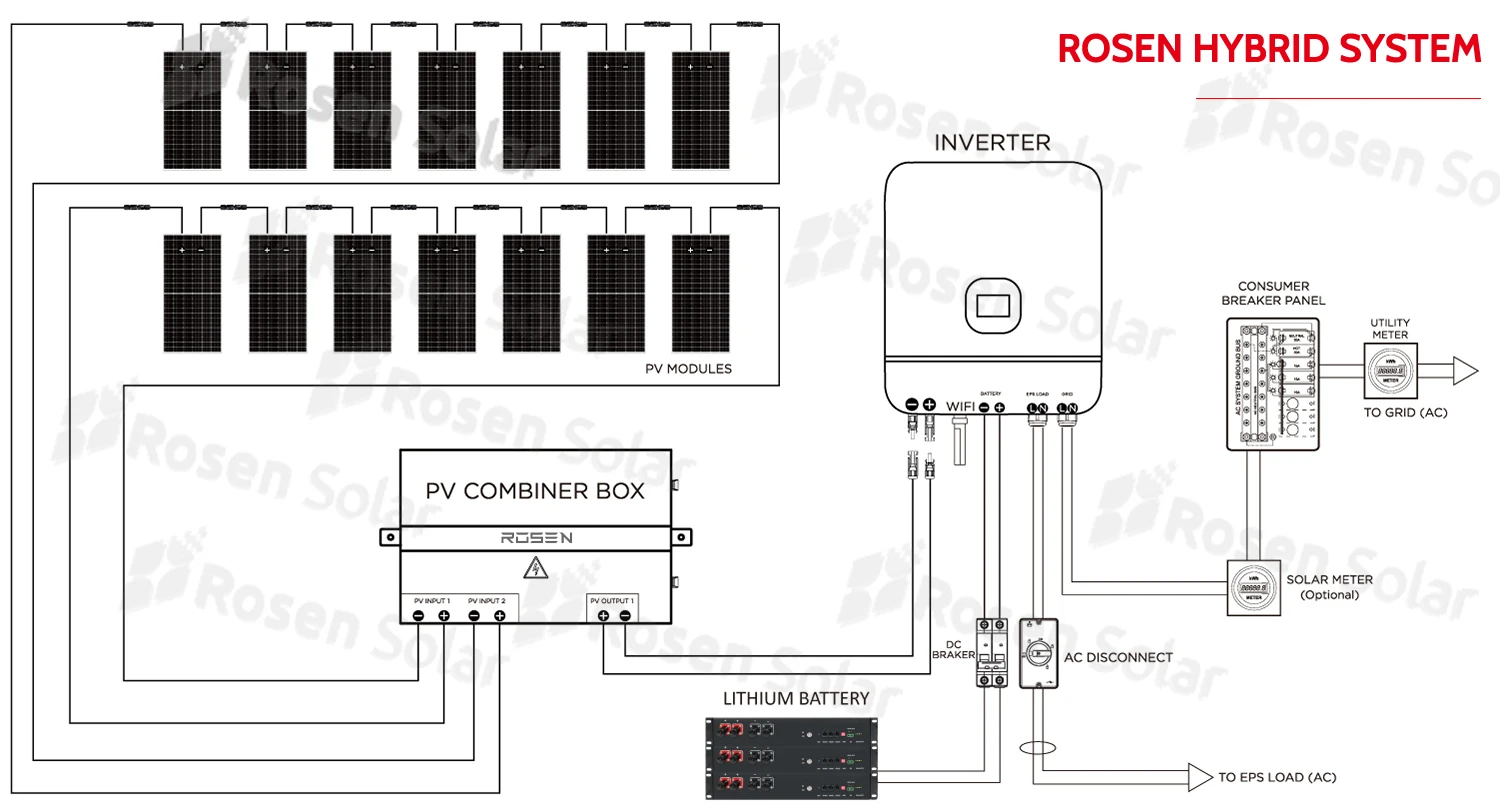

System Configuration
5KW Off Grid Solar System
Solar Panels | 14 Pieces ; Mono Half Cell Modules 400W/430W Optional | |
DC Combiner Box | 1 set; 4inputs 1output(Switches, Breaker, SPD) | |
Hybrid Inverter Built in MPPT Controller | ||
Solar Battery | 4pcs; 12V GEL/AGM or Lithium ion Powerwall 48V Battery | |
PV Cable | 2 rolls; 4m㎡ 6 m㎡ | |
MC4 Connector | 20 pairs; MC4; 30A/1000Vdc | |
Installation Brackets | 1 set; Aluminum/Galvanized steel;Customized | |
Installation Tools | MC4 spanner, Crimping pliers, wire stripper | |
Technical Specification, Installation Manual, Quotation List: 00-86 159-55104975 (Tel/Whatsapp/Skype/FB) | ||
Product Exhibition
Solar Panels
Optional Mono/Poly Blue/Black Panels
High Efficiency with PERC panels available
25 years warranty with 80% power output
PID Resistant,High salt and ammonia resistance
Inverter
Pure SineWave Inverter
Input Voltage from 12V to 1000V
Single phase and Three phase UE/US standard
Charger Controller
LCD Display
MPPT/PWM types optional
Battery
2V/12V gel/agm batteries optional
48V 50Ah Li battery
Mounting Bracket
Customized design with CAD drawing
Flat/pitched roof, soil/cement ground installation
PV Combiner Box&Installation Tools
PV Array Combiner Box
SPD surge protection etc
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
PV Cables
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
30A/1000V compatible MC4
Packing & Delivery
Packing Details : PACKAGES in Carton or Wooden box
Delivery Details : 5-7days
1. Inverter
2. Panels
3. Brackets
4. In wooden box
5. Professional package
6. Loading
Our Projects
South Sudan
Haiti
Costa Rica
Argentina
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
