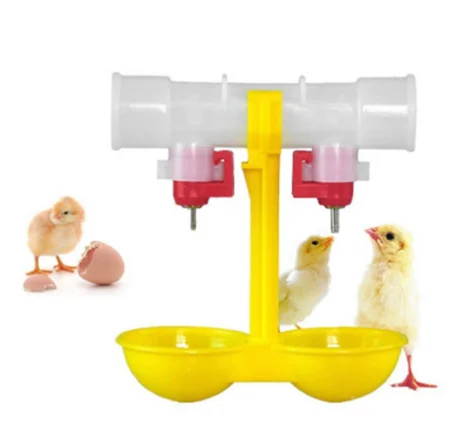

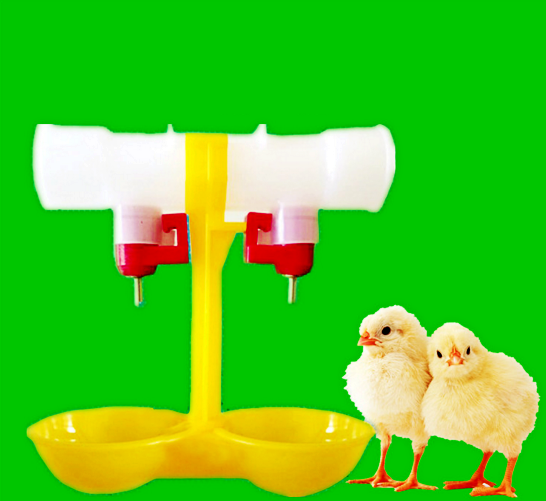

Автоматическая поилка для птицы с двойной головкой
- Категории: Animal Feeders >>>
- Поставщик: Yutian,Futai,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
(1)Parameters:
* Height:12cm

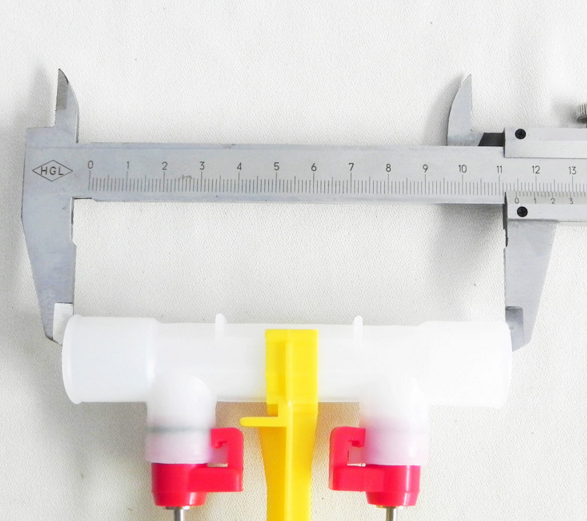

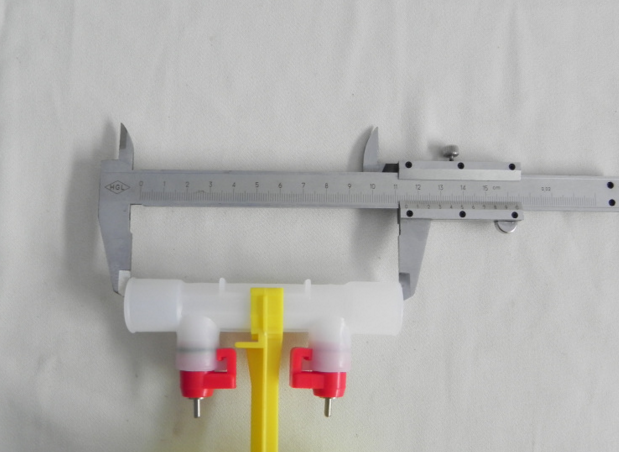

* Connecting pipe length:11.50cm
* Thread: 3/4 (25mm)

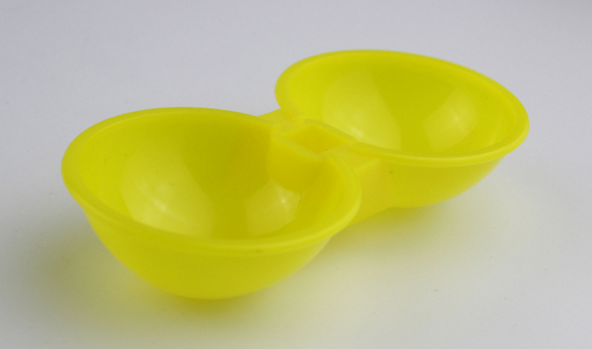

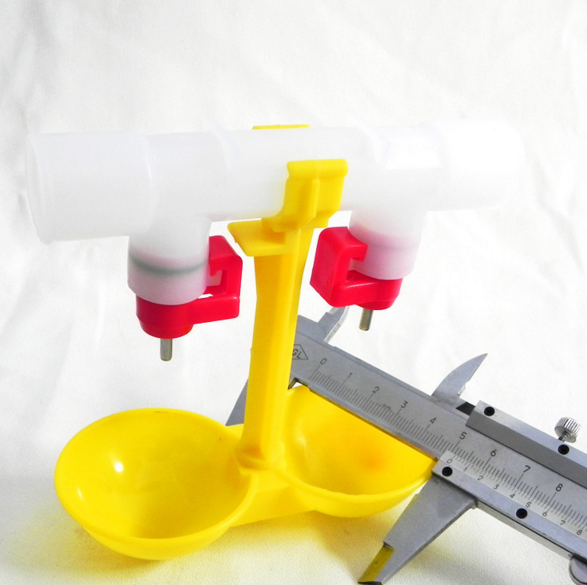

* The 2 cups Length: 5cm
* Material:APS +stainless steel ball
* Weight /1 piece:45g
* Characteristic:Rotate 360 Degree
* Birds in Cage: 12 Birds/Nipple
* Lifespan:15-20 Years
* Nipple drinking system composed of water front parts ,medicine dosing device, drinking system ,hanging system ,regulator and water end parts .
| Water front parts | 1.Including filter , water meter ,and dose . 2.Function and features: a. Supply water, dose medicine. Wash sediment and dirt effectively with its large diameter clean tube. b. The front part is the beginning of the water source, most of this part put in operation room for more convenient operation by changing the valve handle. |
| Medicine dosing device | Medicine dosing device can deliver the water soluble medicine into the drinking system to prevent chicken fall ill. ose Technical data Flow rate:10 L / h - 2.5 m3/h Working pressure :0.3bar-6bar Dosing rate:0.02L / h - 50 L/ h Maximum working temperature :40ºC Adjustment ratio:0.2% to 2%(1:500-1:50) Connecting size:external thread G3/4 Water flow: 0.45L every other 'kata'click sound |
| Water pipe and nipple drinkers and drip cup | 1. Water pipe : transparent PVC material 2. Nipple drinker: a. double-sealing structure, good seal performance and never leak water b. Chicken could freely drink from 360 degree. c. outer engineering plastic and inner stainless steel 3.drip cup :single-arm drip cup with a reasonable structure |
| Regulator and indicating tube | 1. The device of regulator can adjust the pressure to realize sufficient and even water supply all through the whole drinking line, the water line is keeping clean, time and water saving. 2. The indicating tube is made of high-intensity and anti-resistance plastics, which can observe the water level, and also convenient to clean. Poultry Days Water Level Height(mm) 1~ 7 days 50~80mm 8~14 days 80~200mm ≥ 15 days 200~350mm |
| Hanging system | Easy to adjust height of this drinking system in different poultry growth. It is very important to keep a right and appropriate height for poultry in different growth period |
| Seamless G.I. Water Line Supporting Pipe | more rust-resistant and longer service life compared with welded pipe |
| feeding capacity | broiler:8-12 birds/nipple birds in cage:12 birds/nipple turkey:20 birds/nipple duck:10 birds/nipple Breeder 10 birds/nipple |

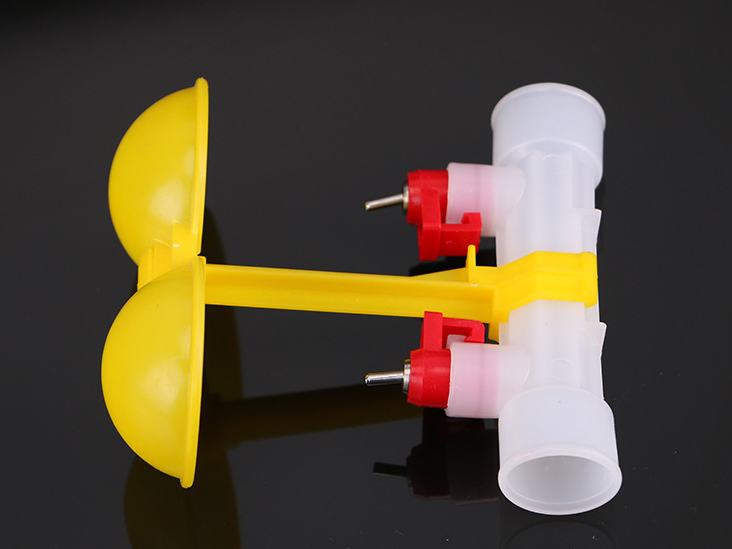

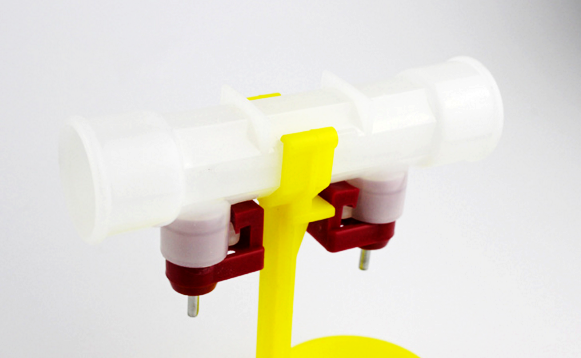

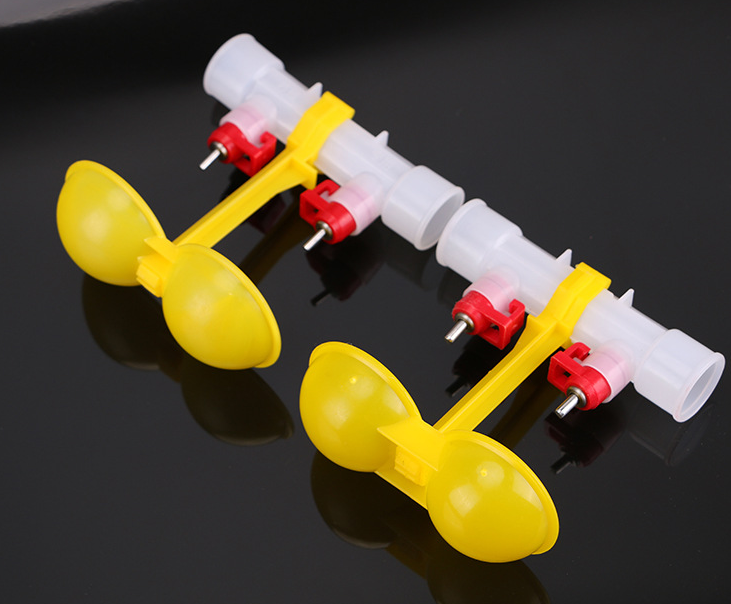

(2)Each parts details:
(3)Features and advantages:
-Multiple flow options: 10-150 ml / min (3KPa or 30 cm high hydrostatic pressure), and with the increasing water pressure flow can increase, the water pressure under wide (pressure from a few centimeters to several meters above), with excellent sealing performance (and the opening force change very small);
-The utility model has the advantages of sanitation and cleanness, water saving, feed saving, chicken manure drying, no cleaning, labor saving, feed cost improvement, and improvement of the chicken farm management level;
-The reduction of disease due to nipple type drinking for nipple type drinking water apparatus piping system has good sealing performance, water is not directly exposed in the henhouse, avoid dust and bacteria in the water, but also to avoid the chicken cross infection caused by drinking water, is conducive to the prevention of chickens, reduce the spread of the disease;
-Reducing the labor intensity: use the nipple type water fountain, omit the work of the artificial rinse basin, and also facilitate manual feeding, and improve the labor productivity;
-Saving feeds: according to the Shanghai Agricultural Machinery Research Institute test, compared with the sink water supply, l million feather egg coop can save about 8 tons per day, saving 45.2 kg of feed, every 10 thousand feather chicken 1 years can save USD3090
-The outer shell is made of the best synthetic PP, POM and ABS, with excellent toughness, oxidation resistance and molecular stability. Stainless steel parts are all three stainless steel, anti magnetic, rust, corrosion resistance, high molecular plasticity of austenitic stainless steel

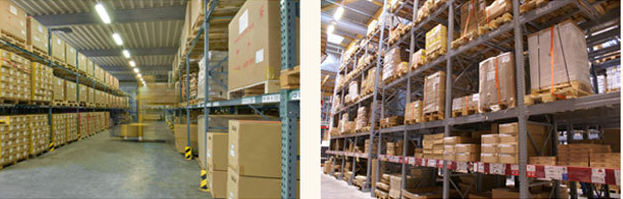

Packaging & Shipping
*Package: 50 pcs /1 inner plastic bag, 500 pcs/1 outer carton
*Shipping:By sea and by air
Our Services
*Supply all poutry feeder,drinker,cage and all other poutry equipments
*Automatic main feeding system
The main feeding system consists:Drive Motor,Feed tube;Feed box with hopper;Feed sensor.
*Automatic Pan feeding system(Deputy feeding system)
Consists:Hopper;Delivery tube and auger;Feeder pan;Automatic feeding controller and drive;Lifting system;Electric system.
*Automatic nipple drinking system
Consists:Water front parts;drinking system;hanging system;regulator;water end parts.Working life more than 10 years.
*Ventilation system
The system including ventilation fan (Exhaust fan) and air inlets.
*Cooling pad system
A. When the air goes through the pad,the heat will be took down by the evaporation of water,so the air will be cooled before going into the chicken farm.
B. The cooling pad and the ventilation fan combination is the most economical and effective to decrease the temperature in summer.
C. Reasonably design and installed the cooling pads can control the temperature in the poultry house to 30 degree or under.
*Environment control system
A.The system saves labor and resources under the condition of assuring the optimum growth environment of chickens.
B.It is imported from Israel can set an optimum working mode according to the local climate and raising environment.
*Spraying and disinfecting system
It's effective tool for cooling, damping, dedusting and disinfecting the house.(the temperature is quickly reduced by 3-8 degrees centigrade within a few minutes).
*Heating system(heater)
Proper temperature is critical to chickens, especially day-old chicks, we have different kinds, they fire coal, diesel, gas or use electricity, 4 kinds for your option.
Company Information
Yutian Futai International Trade Co., Ltd. is a manufacturer with self-independent import-export rights, and is a private enterprise. Yutain Futai specializes in producing animal,veterinary,husbandry, poutry, pet,sea animal,inset products, l farming raising apparatus, laboratory instrument,Such as:pig equipments;sheep/goat equipments;horse equipments;cattle equipments;pet equipments;Poutry equipments. Yutain Futai has established close business relationships with foreign institutions in China and domestic manufacturers.
Yutain Futai has taken the lead in obtaining ISO9001:2000 quality management system certificate among other domestic manufactures. Our company is a member unit of the State Agricultural Ministry's Veterinary Apparatus Sector. Our company has independently researched Farrowing stall/crate/pen,Drinker and feeder system equipemts,Temperature control equipments,Ear marking equipments,Medical care equipments,Artificial insemination equipments,Slaughtering equipments,Incubation equipments,Medical care equipments,Farm construction equipments,Fishing yatch and other all animal equipments. Our main product’s brand is are "Futai" brand,which were both entitled as "Famous Brand Products" of International Agro Exhibition in China in 1999.
* The price: It is the lowest;
*The quality: good and even the best;
* Professional Sea and air forwarders:
(1) Customers clearance: easy and fast
(2)Freight cost: : the lowest
*Services: Supply best after-sell services and tech services, Sure,our good service attitudes will be forever.
*Business mode: Direcly and friendly.
(1)Directly: Means that directly tell each others opinions, whatever some unsatisfied or difficult problems, try together;
(2)Friendly: Means that our business bases on our friendships: We should Mutual trust, empathy for each other's ideas,freely share with each others thoughts,treat each others as our family member.
Yutain Futai International Trade Co., Ltd. depends on "Credibility, High Activity, Creation, and Development" to keep improvement on the quality, supplying best service.
Yutain Futai International Trade Co., Ltd. sincerely welcomes all clients for your patronage and cooperation.
One time co-operation with my company, business and friendship will be forever.
FAQ
Q: Why don't person reply to me?A: Our person is 24hours on-line. If nobody reply you , maybe he has other bussinesses temporarily. So please leave your requirements on e-mail or chat tool, we will reply you as soon as possible.
Q:Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q:How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture.You will get lower price and better quality, if you choose us.
