G4012 OEM aluminum cutting saw machine metal band saw
Feature
Heavey duty casting iron body reduces vibration during operation.
Dirven by extra powerful single phase motor for effortless cutting.
Three speeds of blade are available for cutting different material.
The casting iron saw head can be swivelled from right 45 degree to left 60 degree.
Equiped with a quick-release vise for easy change the workpiece.
Unique hydraulic down feed control system,which makes the fall-down speed of saw head so slow or quick as you want.
Easy access wheel for quick blade changes and blade speed changes.
Automatic shut-off the power after finishing the cut for safe operating.
Oil bath gear box for long-life operation.
All ball bearing guided blade for straight and precision cut.
Formed and welded steel stand with rolling wheels for stable operation and easy transportion.
Specifications:
Model No: | G40121 |
Motor | 120V~60Hz / 230V~50Hz |
Power | 550W |
Motor No-load speed | 1750rpm / 1450rpm |
Blade No-load speed | 3 speed,27,40,68m/min |
Blade Size: |
|
Length XWidth | 64-1/2''×1/2''(1640×13mm) |
TPI | 14 |
Cutting Capacity |
|
Rectangular | 4''×6''(100×150mm) |
Round | 5''(125mm) |
Angle Cuts | 00-450 |
Packing Size | 1007×382×385mm |
Gross/Net Weight | 63/60kg |
Loading Amount |
|
20'container | 200pcs |
40'container | 400pcs |

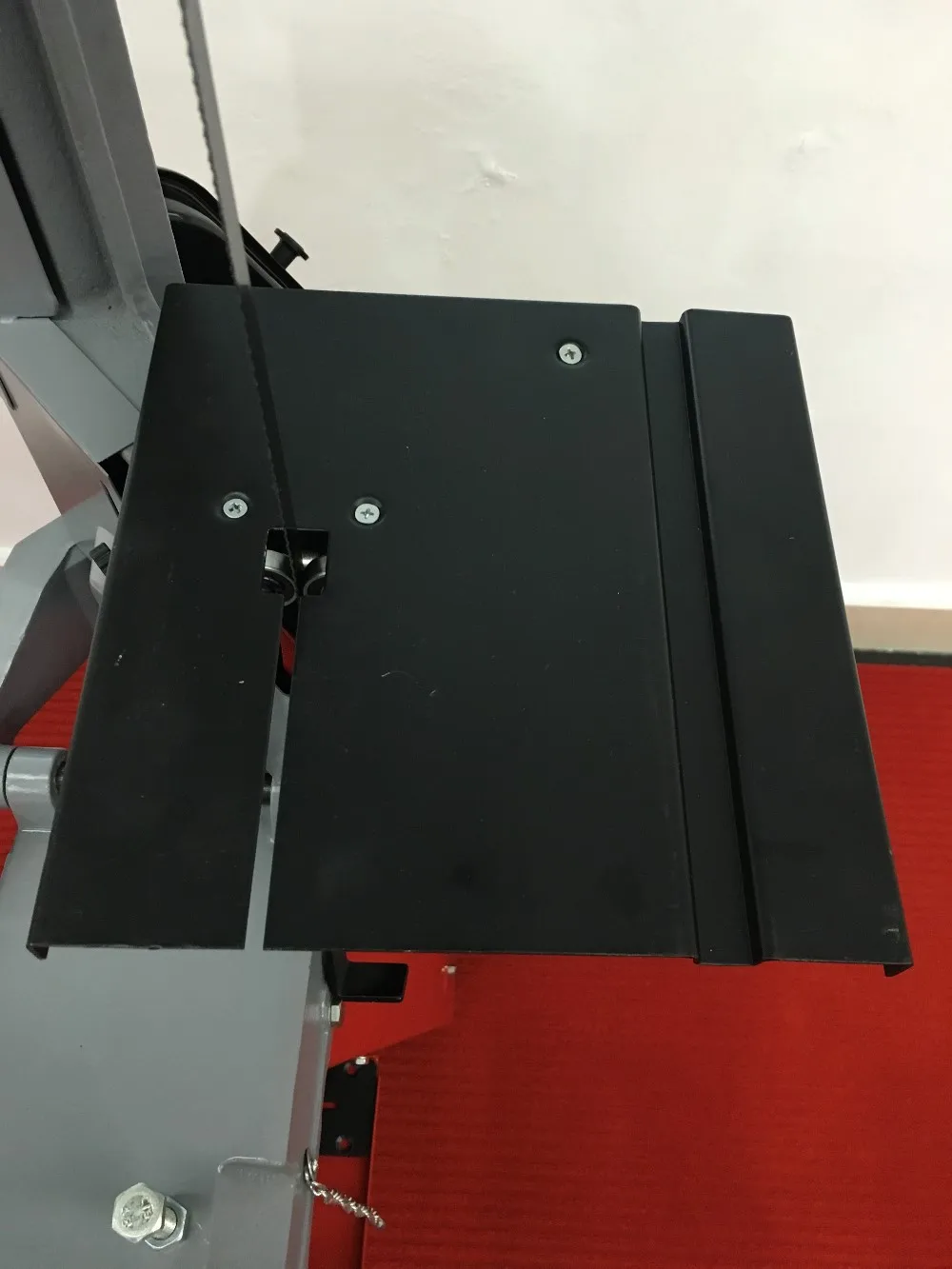

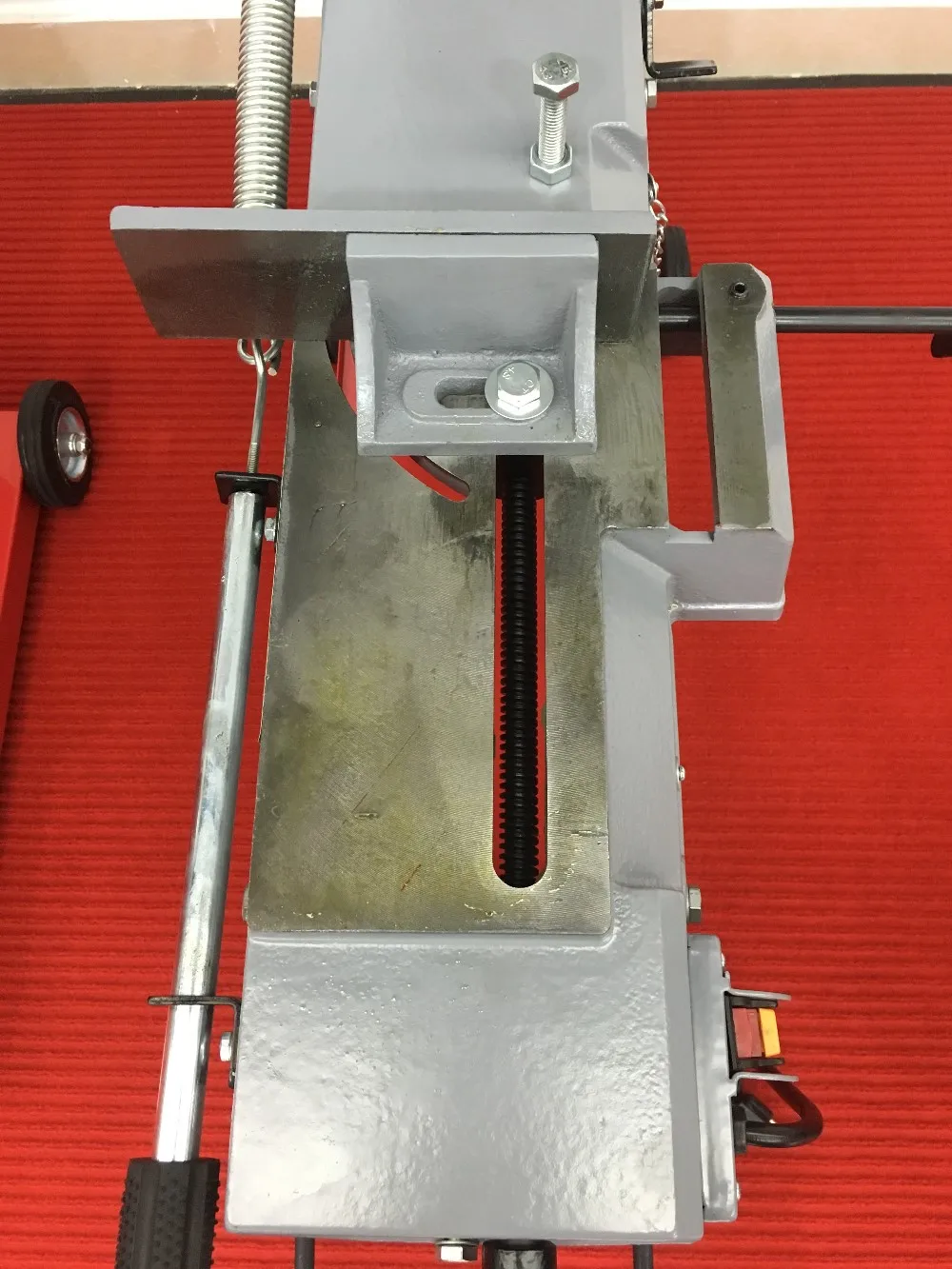

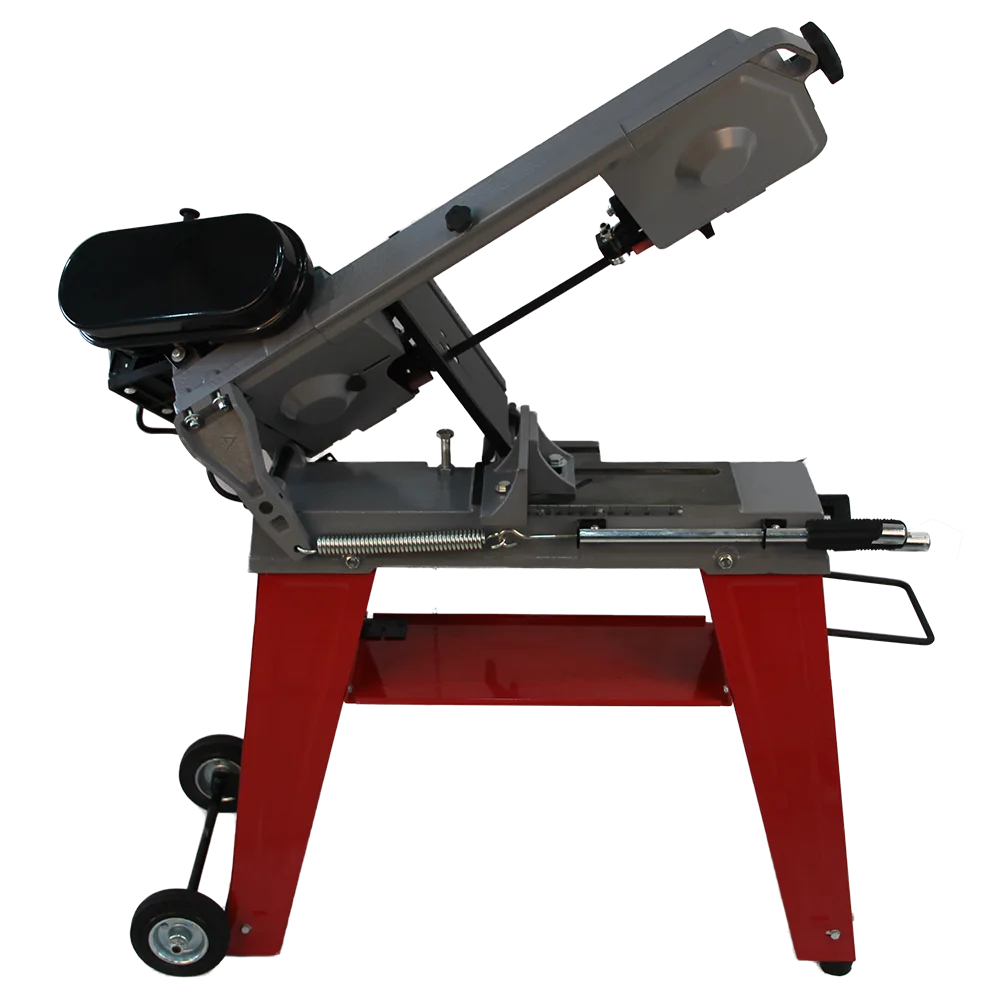

Product picture
Customer Sample

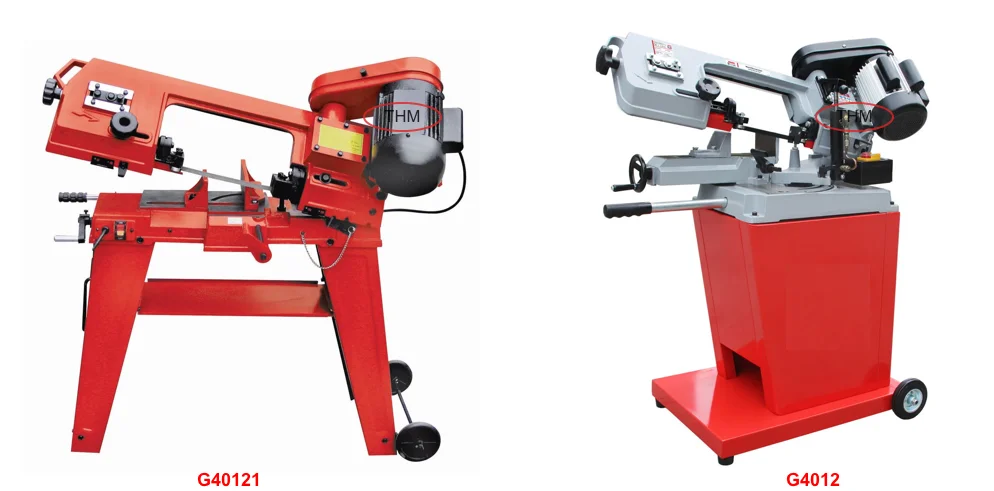

Different Model
Metal Cutting Band Saw Items List | |||||
Item | Motor | Power(W) | Length x With | TPI | Cutting Capacity |
G4012 | 230v-50Hz | 3/4 HP | 64-1/2" X 1/2" | 14 | Rectangular @ 0degree 4''×6''(100×150mm) Rectangular @ 45degree R 3-3/4''×3''(95×76mm) Rectangular @ 60degree L 2''×2-3/16''(50×56mm) Round @ 0degree 5''(125mm) Round @ 45degree R 3-3/4''(95mm) Round @ 60degree L 2''(50mm) Angle Cuts Right 45-Left 60 Degree |
G40121 | 120v-60Hz | 3/4~1 HP | 64-1/2" X 1/2" | 14 | Rectangular 4''×6''(100×150mm) Round 5''(125mm) Angle Cuts 0°-45° |
