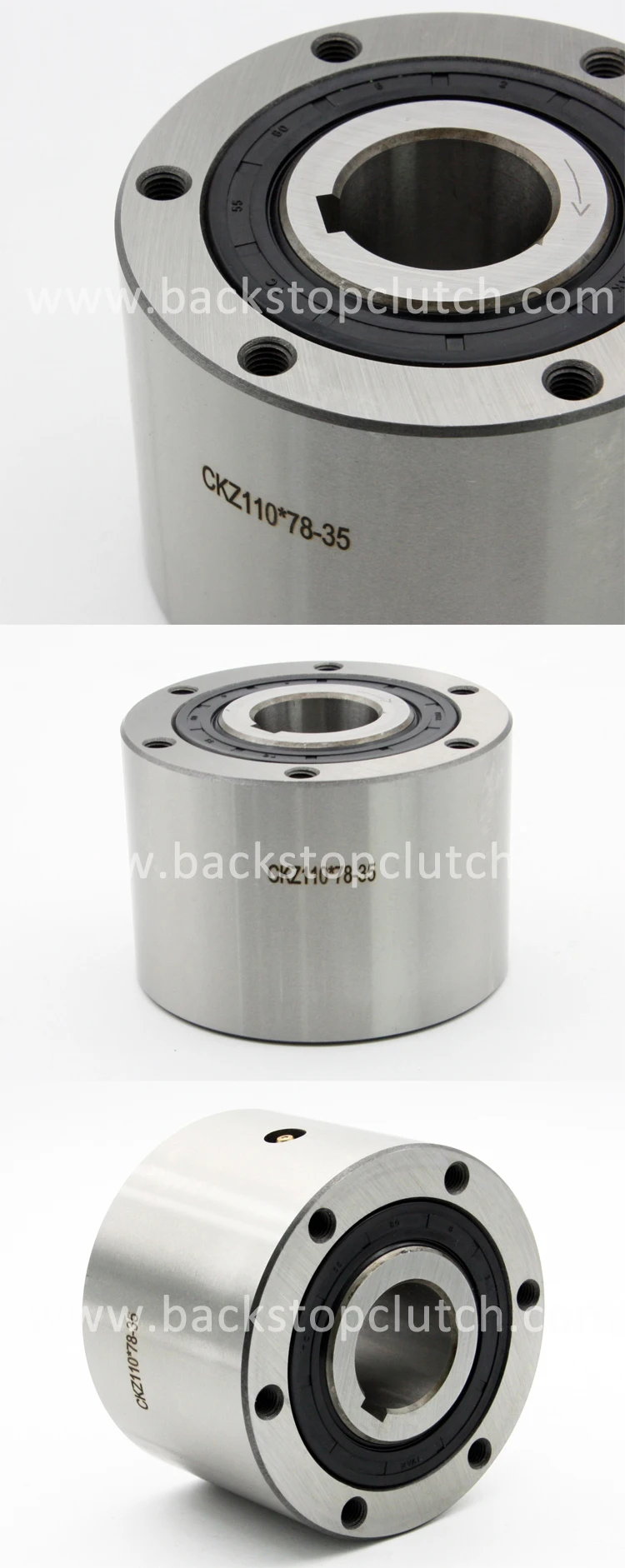

CKZ обгонная муфта
- Категории: Bearings >>>
- Поставщик: Changzhou,Tianniu,Transmission,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Technical Datas
| Item | CKZ Series |
| Material | GCr15 |
| Bore dia. | 14-110 mm |
| Outer dia. | 75-300 mm |
| Width | 47-160 mm |
| Torque capacity | 180-8000 N.m |
| Overunning limiting speed | 600-1500 r/min |
| Weight | 1.35-65.32 kg |
| Package | Carton box, wooden box or as your requirements |
Brief Introduction
1.Type CKZ is sprag type overrunning clutch with bearing supported;
2.Limit speed is 600-1500r/min;
3.Nominal torque:180-8000N.m;
4.Applications: packing machine, goisting and conveying machinery, metallurgy machinery, mining machinery, petroleum machinery, chemical machinery, tubular cooler, power plant,etc.
5.CKZ overrunning clutch is also named as backstop, which is primarily used as a backstop and the dual power speed starter.

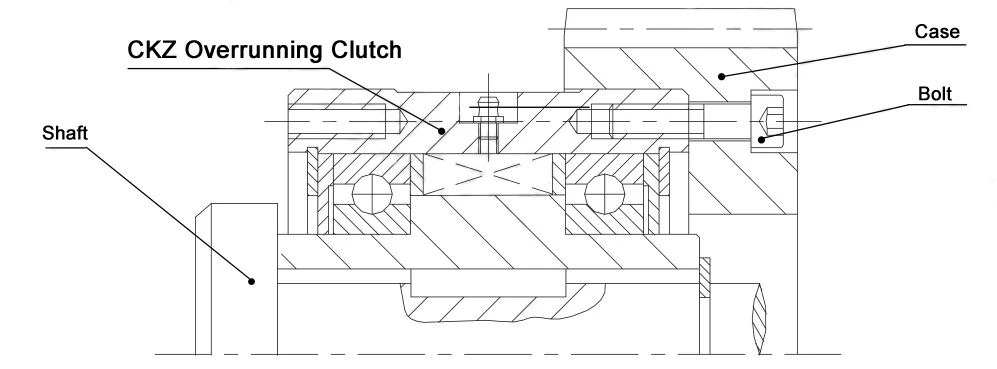

Dimensions and Capacities

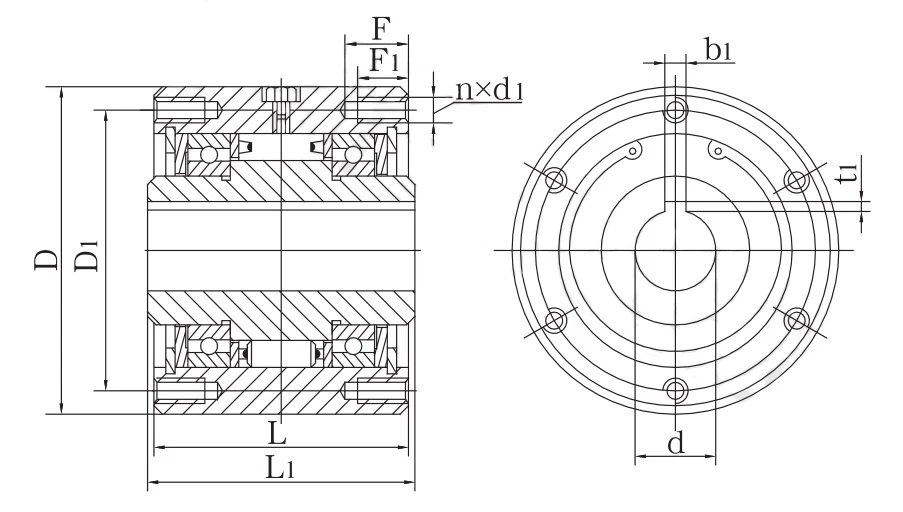

No. | Type | Nominal Torque Tn(Nm) | overrunning speed n(r/min) inner ring | D×L d×L1 | n-d F | Diameter | keyway b1×t1 | Weight m (kg) |
1 | CKZ75×47-14 | 180 | 1500 | 75×47 14×47 | 4-M6 depth 12, 15, uniform | 61 | 5×2.3 | 1.35 |
2 | CKZ77×63-19 | 180 | 1500 | 77×60 19×63 | 4-M6depth12, 15, uniform | 66 | 5×2.0 | 1.50 |
3 | CKZ80×61-20 | 200 | 1500 | 80×62 20×64 | 4-M6 depth 12, 15, uniform | 68 | 5×2.4 | 1.95 |
4 | CKZ80×62-30 | 200 | 1500 | 80×62 30×62 | keyway8×4.0(L=40) |
| 8×3.3 | 1.60 |
5 | CKZ89×70-18 | 200 | 1300 | 89×68 18×70 | 4-M8 depth 20, 20, uniform | 73 | 6×2.8 | 2.00 |
6 | CKZ100×64-20 | 260 | 1200 | 100×64 20×64 | 6-M8 depth 15, 20, uniform | 88 | 8×3.3 | 2.50 |
7 | CKZ100×64-24 | 260 | 1200 | 100×64 20×64 | 6-M8 depth 15, 20, uniform | 88 | 8×3.3 | 2.40 |
8 | CKZ100×70-25 | 260 | 1200 | 100×68 25×70 | 6-M8 depth 12, 18, uniform | 88 | 7×2.7 | 3.00 |
9 | CKZ100×64-30 | 315 | 1200 | 100×64 30×64 | 6-M8 depth 12, 15, uniform | 88 | 8×3.3 | 2.85 |
10 | CKZ100×70-30 | 315 | 1200 | 100×68 30×70 | 6-M8 depth 12, 14, uniform | 88 | 8×3.3 | 3.04 |
11 | CKZ100×70-30F2 | 315 | 1200 | 100×68 30×70 | keyway10×5(L=25) |
| 8×3.3 | 3.20 |
12 | CKZ100×82-30 | 315 | 1200 | 100×80 30×62 | 6-M8 depth 15, 20, uniform | 88 | 10×3.3 | 3.30 |
13 | CKZ100×82-30F2(oil seal) | 315 | 1200 | 100×68 30×82 | 6-M10 depth 20, 15, uniform | 88 | 10×3.3 | 4.54 |
14 | CKZ105×34-25 | 315 | 1200 | 105×26 25×34 | 6-Φ7 | 90 | 8×3.3 | 1.67 |
15 | CKZ105×51-28 | 315 | 1200 | 105×27 28×51 | 6-M8 | 88 | 8×3.3 | 2.80 |
16 | CKZ108×89-31.5 | 500 | 1200 | 108×86 31.5×89 | 4-M8 depth 15, 18, uniform | 92 | 10×3.3 | 4.97 |
Type | Nominal Torque Tn(Nm) | overrunning speed n(r/min) inner ring | D×L d×L1 | n-d F | Diameter | keyway b1×t1 | Weight m (kg) | |
17 | CKZ110×78-35 | 500 | 1200 | 110×76 35×78 | 6-M8 depth 16, 20, uniform | 95 | 10×3.3 | 5.23 |
18 | CKZ120×92-38 | 630 | 1200 | 120×90 38×92 | 8-M8,depth20, 25, uniform | 105 | 10×3.3 | 7.35 |
19 | CKZ120×55-40 | 630 | 1200 | 120×26 40×55 | 6-M8 uniform | 102 | 12×2.5 | 7.35 |
20 | CKZ120×92-40 | 630 | 1200 | 120×90 40×92 | 8-M8, depth20 | 105 | 10×3.3 | 5.55 |
21 | CKZ120×92-42 | 630 | 1200 | 120×90 42×92 | 8-M8 depth 20, 25, uniform | 105 | 12×3.3 | 5.96 |
22 | CKZ120×92-42F4 | 630 | 1200 | 120×90 42×92 | keyway12×5 |
| 12×3.3 | 6.09 |
23 | CKZ125×92-28 | 630 | 1200 | 125×90 28×92 | 6-Φ9, uniform | 110 | 8×3.3 | 6.55 |
24 | CKZ125×80-30 | 630 | 1200 | 125×78 30×80 | 6-M8 depth 18, 20, uniform | 110 | 10×3.3 | 5.10 |
25 | CKZ125×92-38 | 1000 | 1200 | 125×90 38×92 | 6-Φ9, uniform | 110 | 10×3.3 | 6.4 |
26 | CKZ125×80-40 | 1000 | 1200 | 125×78 40×80 | 6-M8 depth 18, 20, uniform | 110 | 12×3.7 | 6.38 |
27 | CKZ125×92-42 | 1000 | 1100 | 125×90 42×92 | 8-M8 depth 20, 205, uniform | 110 | 12×3.3 | 6.38 |
28 | CKZ125×92-45 | 1000 | 1100 | 125×90 45×92 | 8-M8 depth 20, 25, uniform | 110 | 14×3.8 | 6.13 |
29 | CKZ125×92-45F2 | 1000 | 1100 | 125×90 45×92 | keyway14×5(L=50) | 110 | 14×3.8 | 6.13 |
30 | CKZ130×92-38 | 1000 | 1100 | 130×90 38×92 | 4-Φ11, uniform | 110 | 10×3.3 | 8.77 |
31 | CKZ130×92-45 | 1200 | 1100 | 130×90 45×92 | 8-M8 depth 20, 25, uniform | 115 | 14×3.8 | 6.7 |
32 | CKZ130×63-48 | 1200 | 1100 | 130×63 48×63 | 6-M8 depth 20, 25, uniform | 115 | 14×3.8 | 6.55 |
33 | CKZ130×68-52 | 1200 | 1100 | 130×68 52×68 | keyway10×3.3(L=35) |
| 14×3.8 | 5.95 |
34 | CKZ136×95-35 | 1800 | 1100 | 136×92 35×95 | 6-M8 depth 20, 25, uniform | 120 | 10×3.3 | 8.42 |
35 | CKZ136×95-38 | 1800 | 1100 | 136×92 38×95 | 6-M8 depth 20, 25, uniform | 120 | 10×3.3 | 8.38 |
36 | CKZ136×95-45 | 1800 | 1000 | 136×92 45×95 | 6-M8 depth 20, 25, uniform | 120 | 12×3.3 | 8.09 |
37 | CKZ136×95-50 | 1800 | 1000 | 136×92 50×95 | 6-M8 depth 20, 25, uniform | 120 | 14×3.8 | 7.75 |
38 | CKZ136×95-50 F2 | 1800 | 1000 | 136×92 50×95 | 6-Φ9, uniform | 120 | 14×3.8 | 7.55 |
39 | CKZ136.5×95-45 | 1800 | 1000 | 136.5×92 45×95 | 6-M8 depth 20, 25, uniform | 121 | 14×3.8 | 8.15 |
40 | CKZ136.5×95.5-50.8 | 1800 | 1000 | 136.5×92.8 50.8×95.5 | 6-M8 depth 20, 25, uniform | 120.6 | 12.6×4.5 | 9.45 |
41 | CKZ150×110-48 | 2000 | 1000 | 150×100 48×110 | 8-M8 depth 20, 25, uniform | 130 | 14×3.8 | 12.7 |
42 | CKZ150×102-50 | 2000 | 1000 | 150×100 50×102 | 8-M8 depth 20, 25, uniform | 130 | 14×3.8 | 12.57 |
43 | CKZ150×102-55 | 2000 | 1000 | 150×100 55×102 | 8-M8 depth 20, 25, uniform | 130 | 16×4.3 | 12.25 |
44 | CKZ150×102-60 | 2000 | 1000 | 150×100 60×102 | 8-M8 depth 20, 25, uniform | 130 | 18×4.4 | 11.88 |
Product Display
Production Flow
Packaging & Shipping
Certifications
Company Information
FAQ
Q: Why do we choose your company?
A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.
Q: What is the delivery time?
A: For small quality or samll size of clutches, we can deliver upon receiving advance.
For large quantity or large size, we have to produce 10-15 working days.
Q: Can you supply with sample clutch?
Of course! We can provide with a sample to your checking quality.
Q: What is the warranty period of the clutches?
One-year Guarantee.
