Однофазный 220 кВт в JQT2200C Электрический регенеративный кольцевой воздуходувка высокого давления кольцевые воздуходувки вихревой воздуходув для

1. Specifications

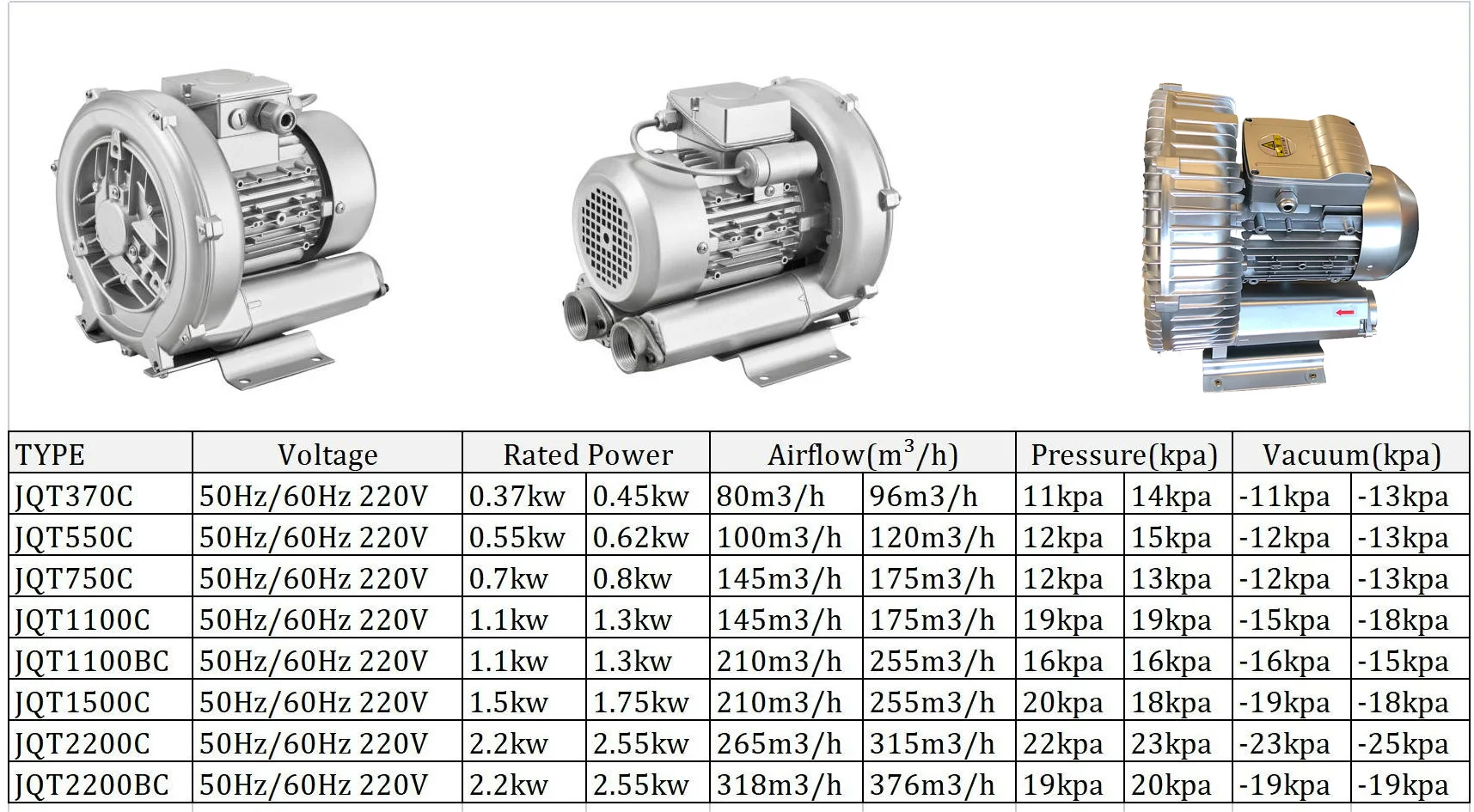

Single-Phase Side Channel Blower

Three-Phase Ring Blower

Double Stage Ring Blower

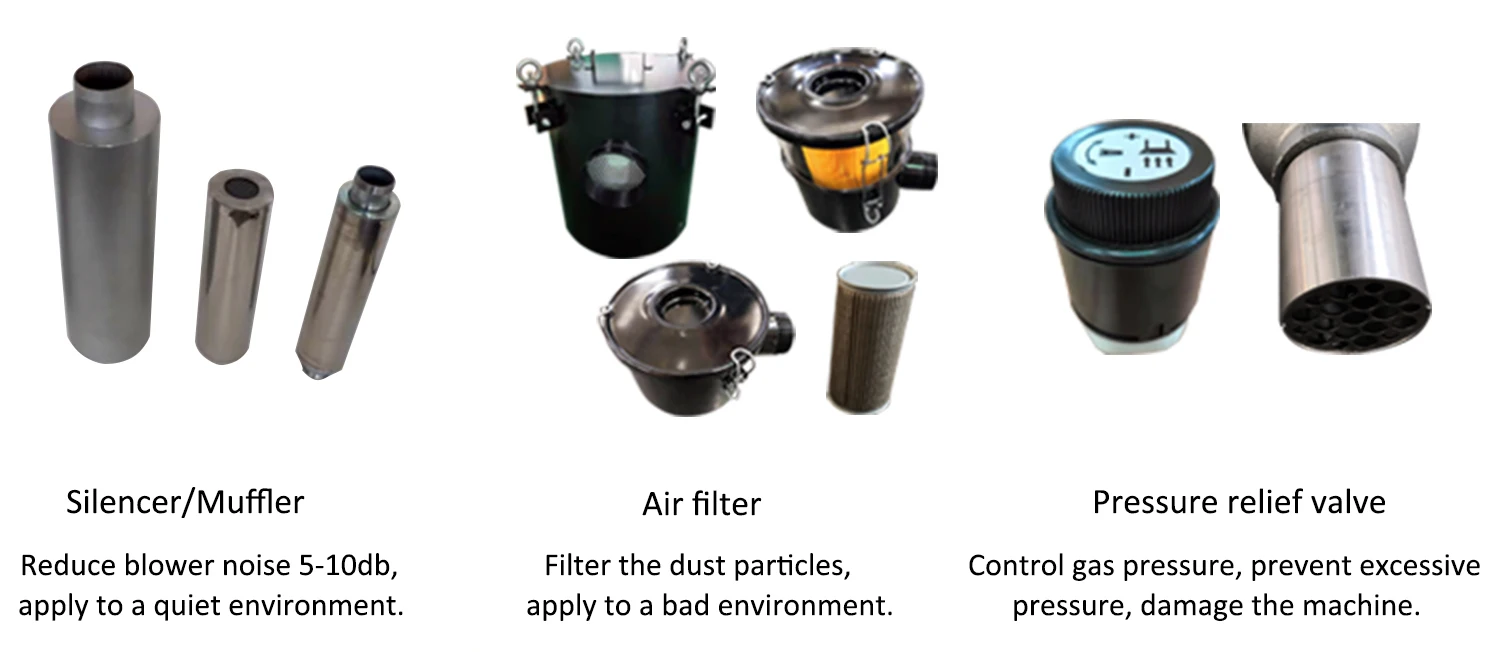

2. Machine Accessories

Single Stage blower

Double stage blower

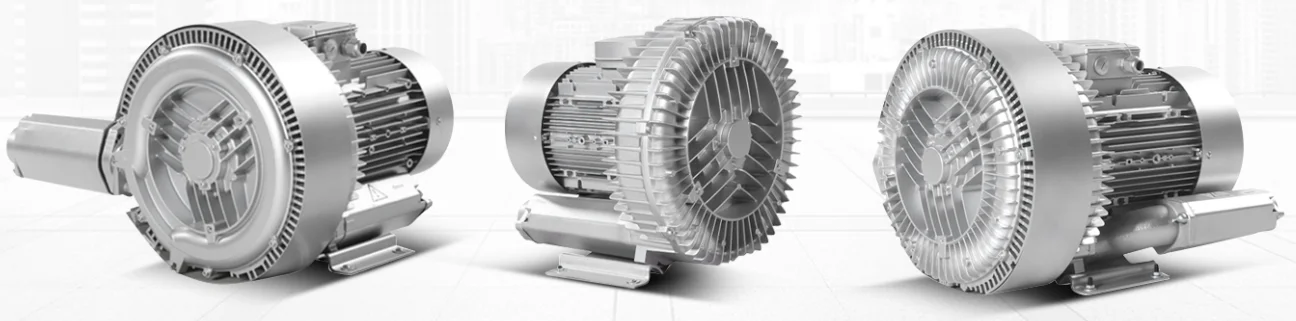

3.  Blower parts

4. Feature
I. Oil-free
II. Dual-usage
III. Owns low noise
IV. Run constantly for 24 hours
V. 50Hz and 60Hz are available.
VI. Maintenance-free.
VII. Easy installation
VIII. Protection class is IP54 and the Insulation class is F.

5. Operation
If the rated current of the motor is exceeded during operation, the voltage and frequency of the power supply should be checked and compared with data on the unit rating plate. Some blowers can’t be operated over the whole range of the performance curve. Overload of the motor may occur due to excessive system back-pressure. In applications where over-pressure conditions may occur, a relief valve must be installed. The ring blower must not be subjected to shock or vibration loads.

6. Maintenance
The ring blower has a non-contact operation and does not normally require maintenance. Wearing parts are subject to the recommended maintenance intervals and are a constituent part of the applicable warranty claims. The service life of bearing parts depends on the operating hours, load, and other Influences such as temperature and operating pressure.

7. Installation
A. Transportation
Check all parts from damage during transport.

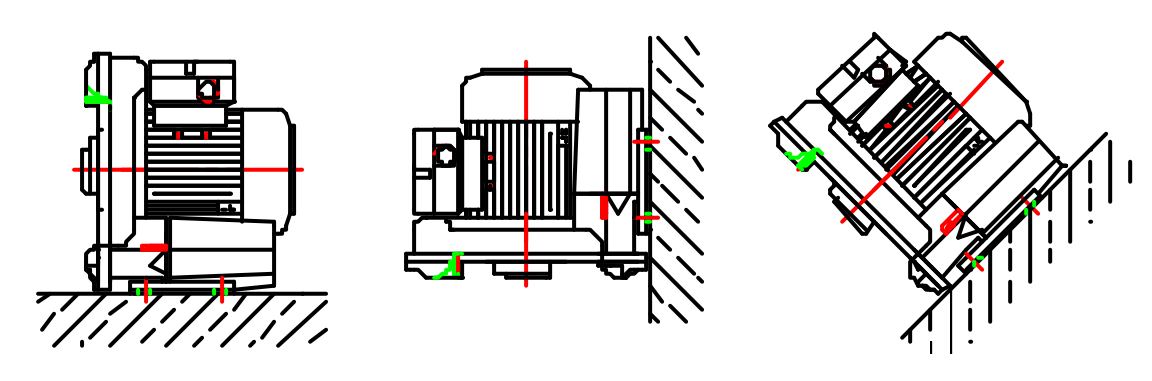

B. Installation assembly
The blowers are to be installed weather protected and are not to be stored outdoors unprotected. When the blowers are installed outdoors they must be covered. Install ring blower horizontally or vertically. Do not subject blowers to vibrations or shocks. Blower with base should be secured tightly at the site of operation on solid, even ground. The Ring Compressors can be installed in any direction, but when mounted vertically, the motor side should be upward.

C. Electrical connection
Note! Work described here must be executed by a qualified electrician only. Connect the motor in accordance with the wiring diagram to be found in the terminal box. The blower has a single or three-phase motor as described on the motor plate. The motor should be protected with an overload switch.
D. Control of rotation direction
Startup the blower for a short moment, Check the rotation direction. The rotation direction on the impeller must be in accordance with the arrows on the motor. If incorrect rotation is experienced, then check the wiring circuit in the terminal box.

1) About Us

Since established in 1999, adhering to the enterprise culture of " Efficient, Pragmatic, Precise, Innovative", we have been committed to the development and innovation of national industry and devoted to creating the most qualified products in factory automation. So far, we have possessed advanced machining types of equipment such as imported machining centers, CNC lathes, NC milling machines, CNC cutting machines, etc. Our products, with an excellent reputation, have been not only used by many domestic famous enterprises, but also exported to Europe, America, Africa, the Middle East, and Asian countries, etc.

2) Certificate

Q1: How long can I get the feedback after we sent the inquiry?

We will reply to you within 12 hours of the working day.

Q2: Are you a direct manufacturer or trading company?

We have our own factory and international department.

 We produce and sell all by ourselves.

Q3: How to guarantee the quality and after-sales service of your goods?

1, Strict detection during production.

2, Strict sampling inspection of products before shipment and intact product packaging are insured.

3, Follow up and adopt customers' feedback in a timely manner after sales.

Q4: What is your warranty term?
There is a 12-month warranty for our export products from the date of shipment.
If the warranty has run out, our customer should pay for the replacement parts.

Q5: Is the sample available?

Yes, Usually we send our samples by DHL, TNT, FedEx, or UPS, it will take around 3 or 4 days for our customers to receive them, but the customer will charge all costs related to the samples, such as sample cost and air freight. We will refund our customer the sample cost after receiving the order.
