Product Description

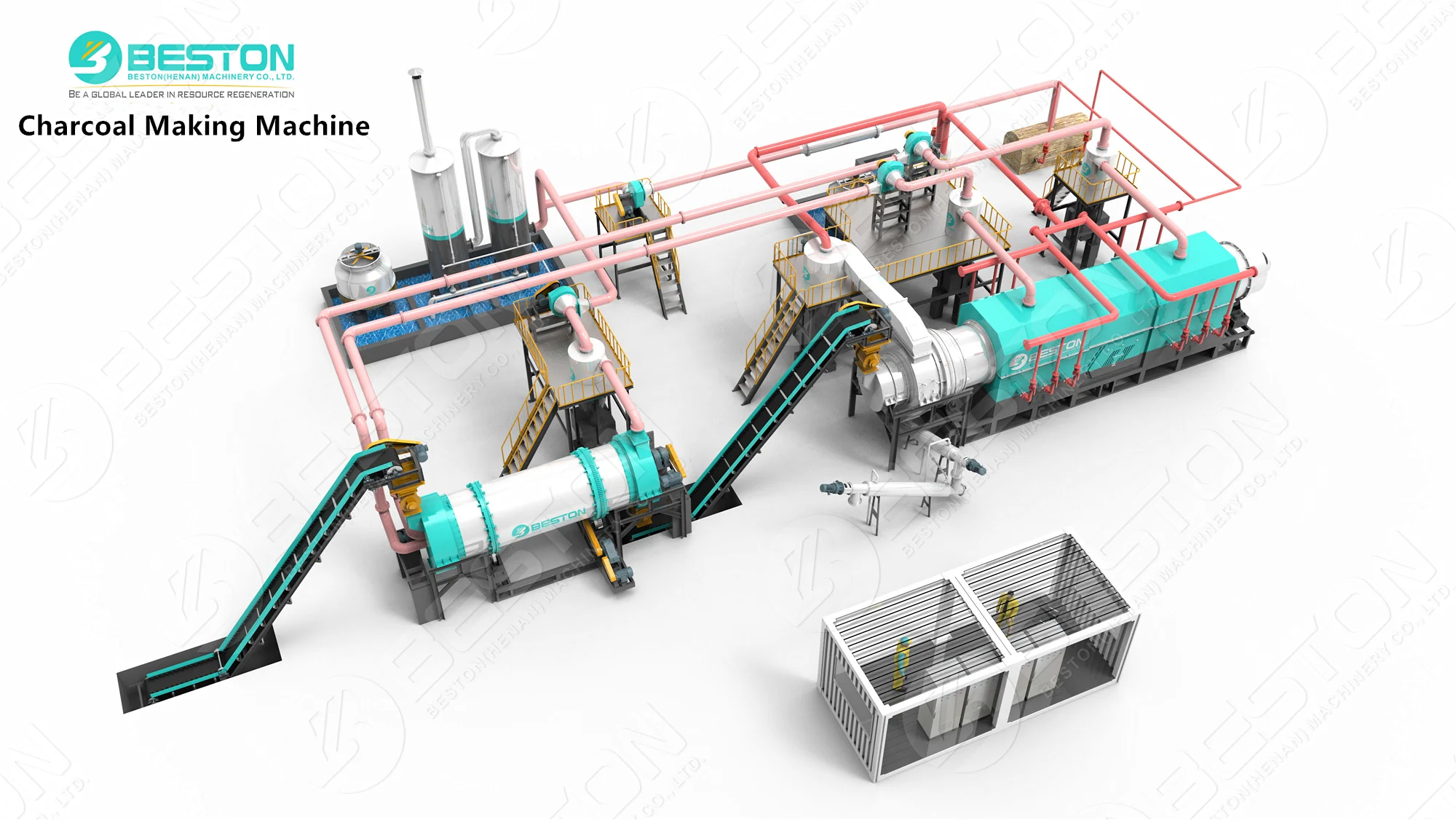

The charcoal making machine is a machine that converts biomass such as coconut shell, sawdust, wood, palm kernel shell, rice husk,as well as domestic garbage and sludge into biochar in an oxygen-free atmosphere.
Model | BST-J12 | BST-J18 | BST-J40 | BST-30 | BST-50 | |||
Input Capacity | 12m³ | 18m³ | 40m³ | 2.5-3t/h | 4.5-5t/h | |||
Reactor size | Φ1900mm*L4500mm | Φ1900mm*L6600mm | Φ2800mm*L7100mm | Φ1700mm*L14180mm | Φ2000mm*L14260mm | |||
Installation Area Requst (L*W*H) | 9m*6m*6m | 12m*6m*7m | 15m*18m*7m | 30m*15m*8m | 35m*15m*9m | |||
Weight | 18T | 22T | 34T | 35T | 49T | |||
Working Method | Batch | Fully continuous | ||||||

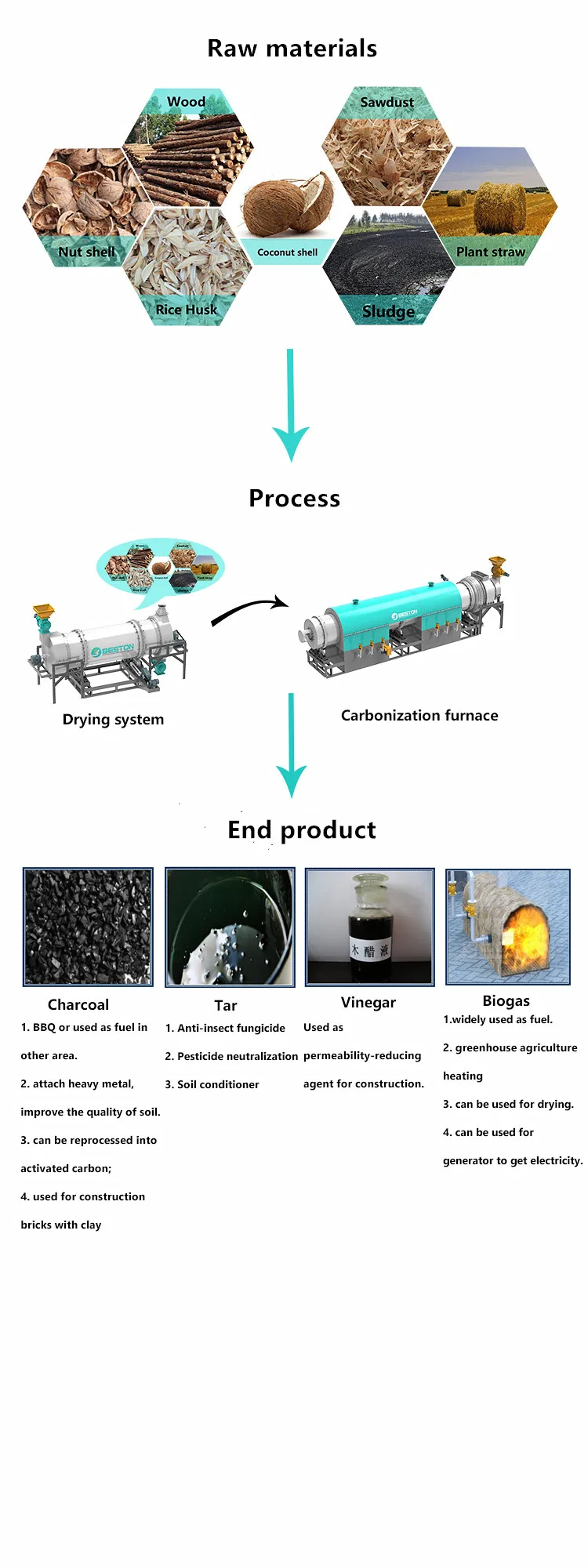

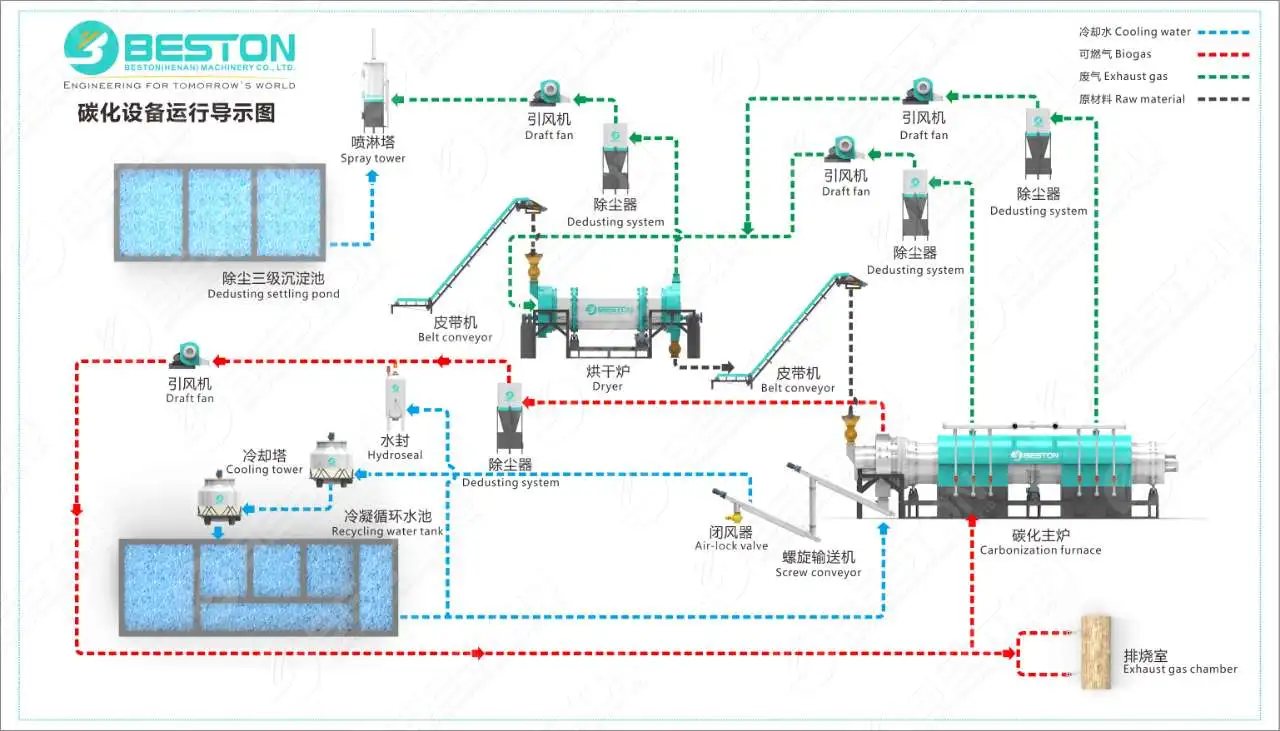

Production Process
Details Images

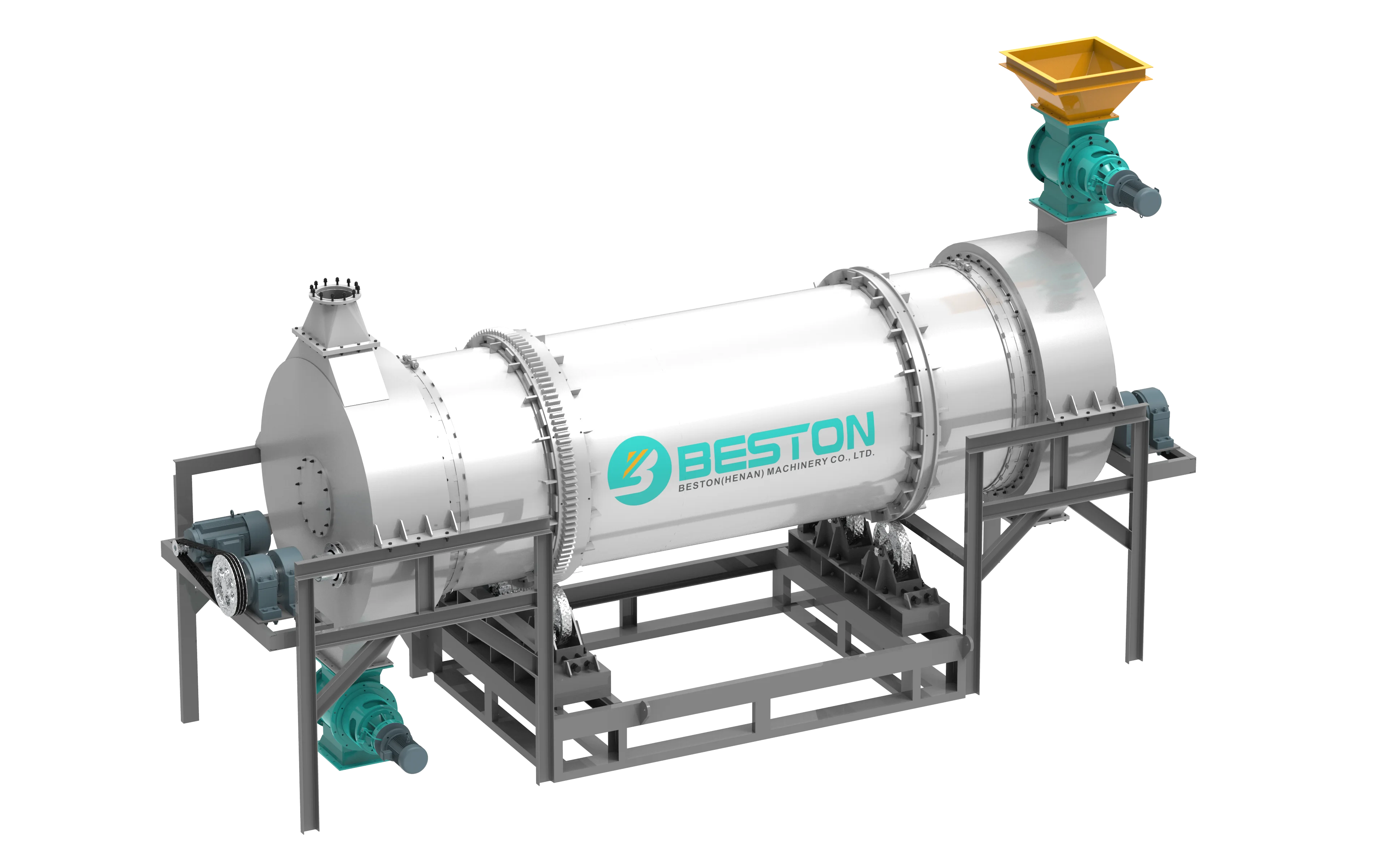

Name:Dryer system
Brand: Beston
Original:China
The wood chips are fully in contact with the hot air and then discharged from the output air locker to the carbonization machine

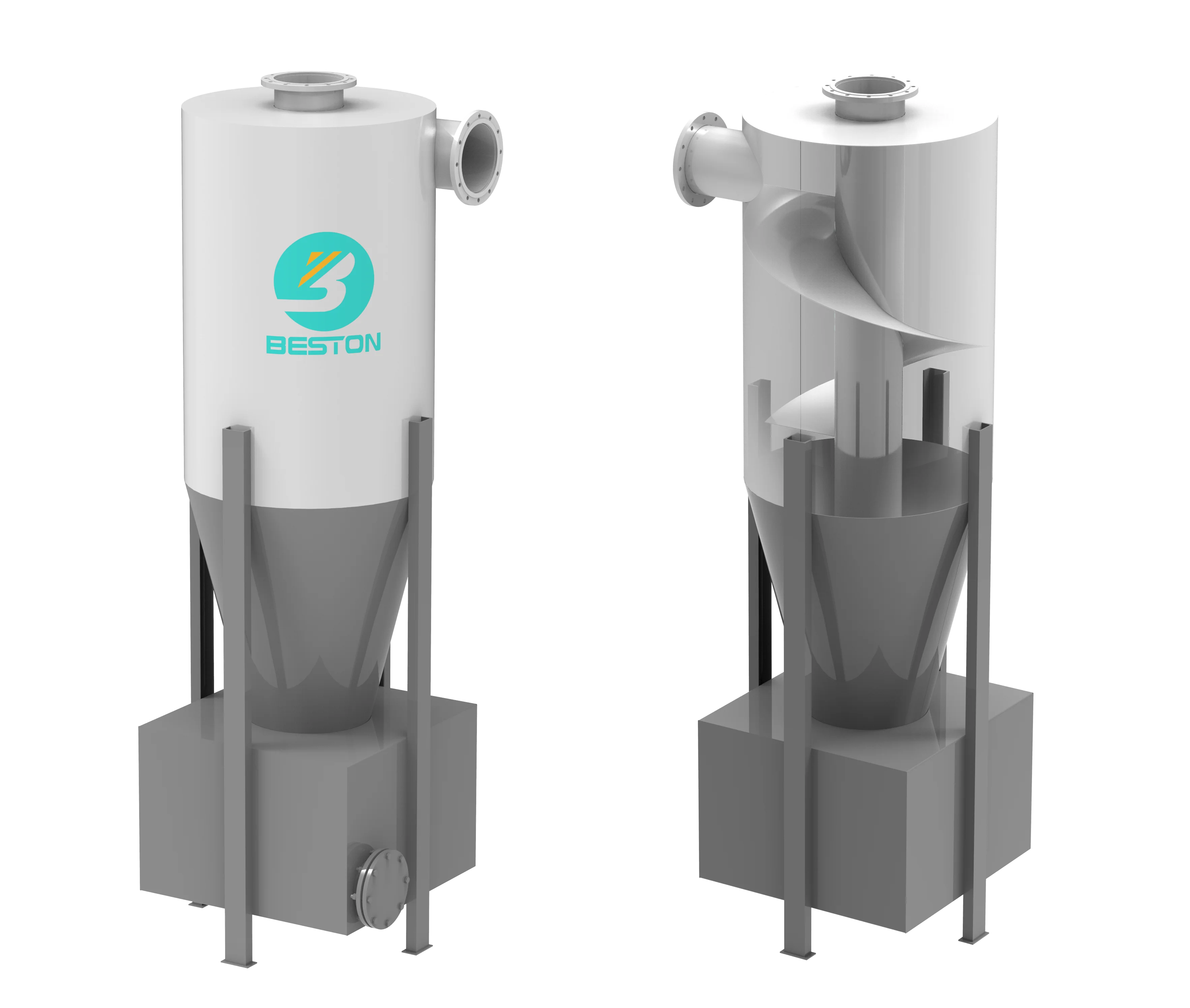

Name: Dust collector
Brand: Beston
Original: China
Using advanced dust removal technology, dust removal and desulfurization.

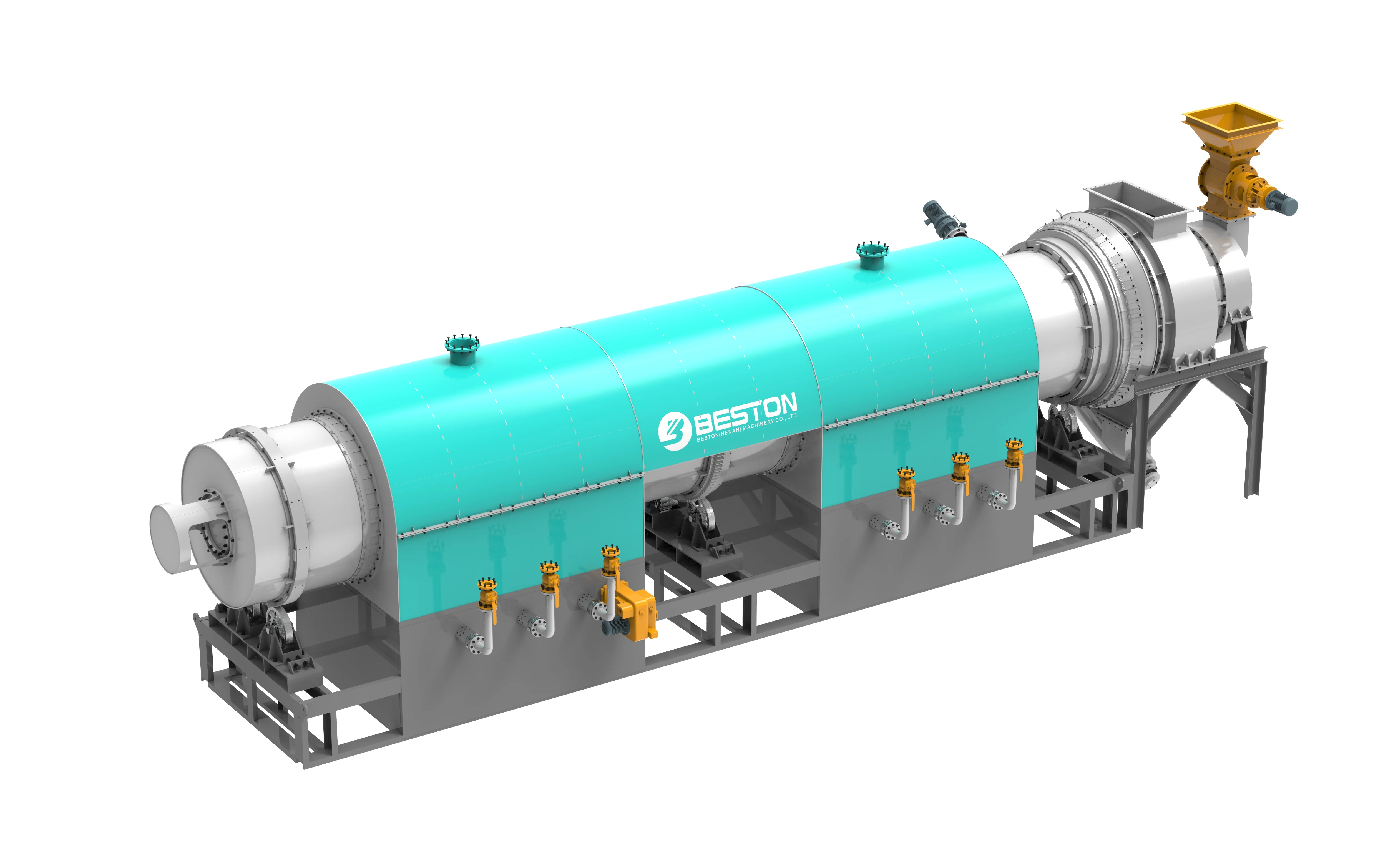

Name: Carbonization host
Brand: Beston
Original: China
The material completes the carbonization reaction in this equipment.
Φ1700×12300 mm, Main Roller Made of Q235, 245R, 310s Stainless Steel
10 years service life.

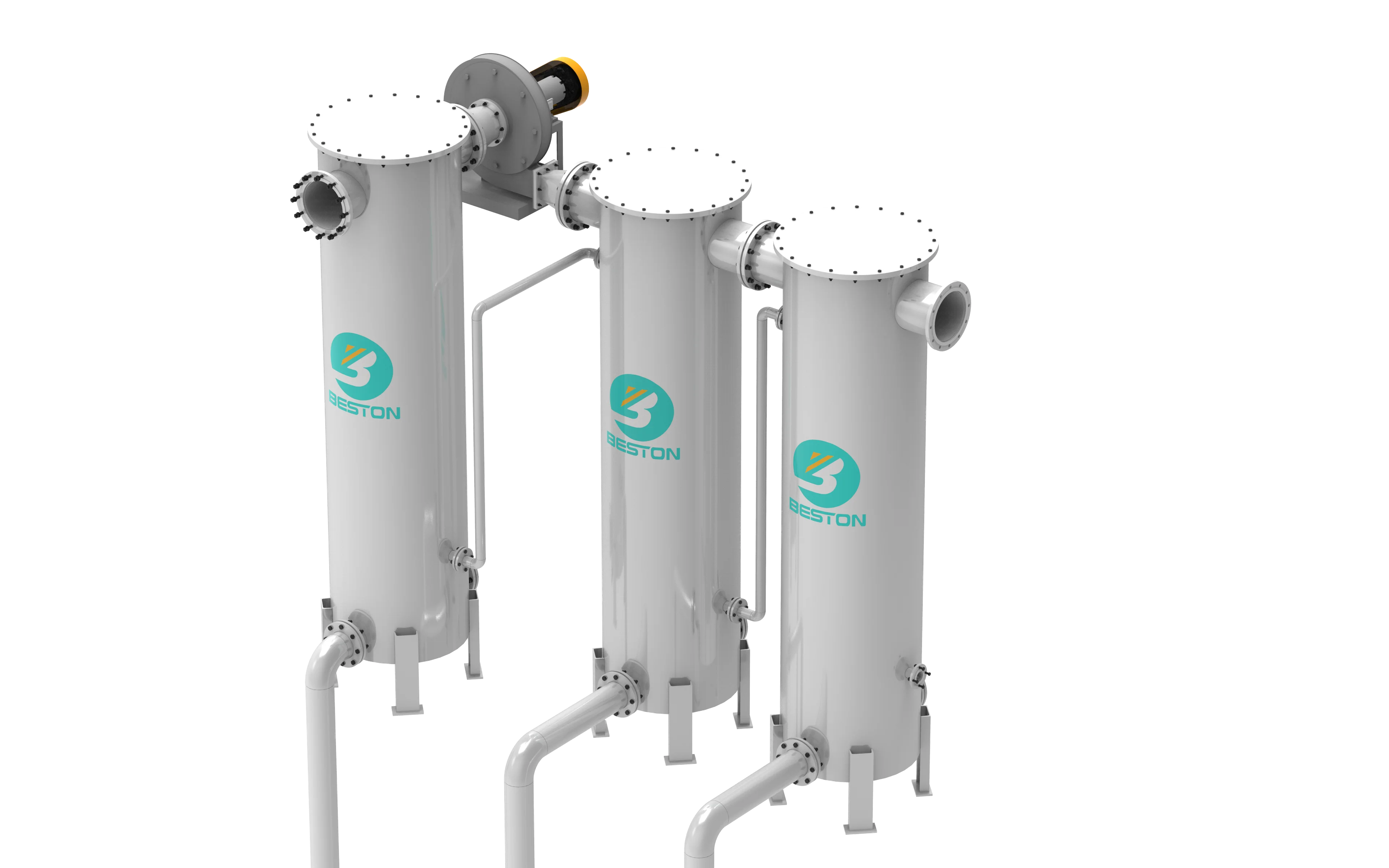

Name: Condenser system
Brand: Beston
Original: China
The gas treated in the flue gas condenser was cooled for 2 times and purified.

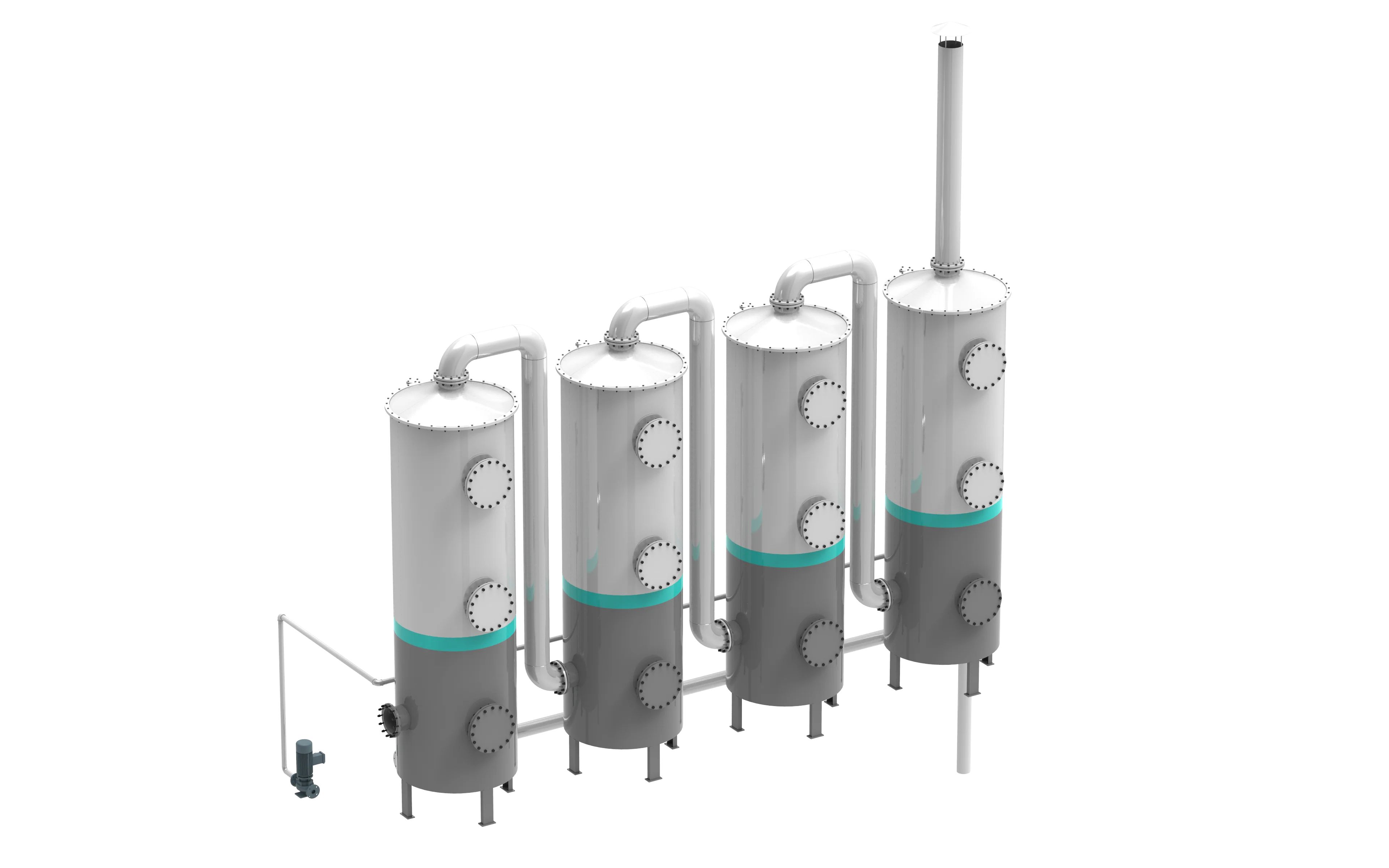

Name: De-dusting tower
Brand: Beston
Original: China
smoke scruber - purify the hot smoke before releasing to air meeting emission standard
About Beston
Beston Group Co., Ltd. was founded in 2013. We are professional in manufacturing all kinds of waste recycling equipment. In 2018, the branch of Beston Machinery was founded in Romania. Now we have 8 overseas branches and more than 60 overseas after-sales services personnel. All the plants we supply has the certification of ISO and CE. We promise the quality of all plants we sell to every customer and welcome people from all over the world who have the intention to change the world by waste recycling to contact us.

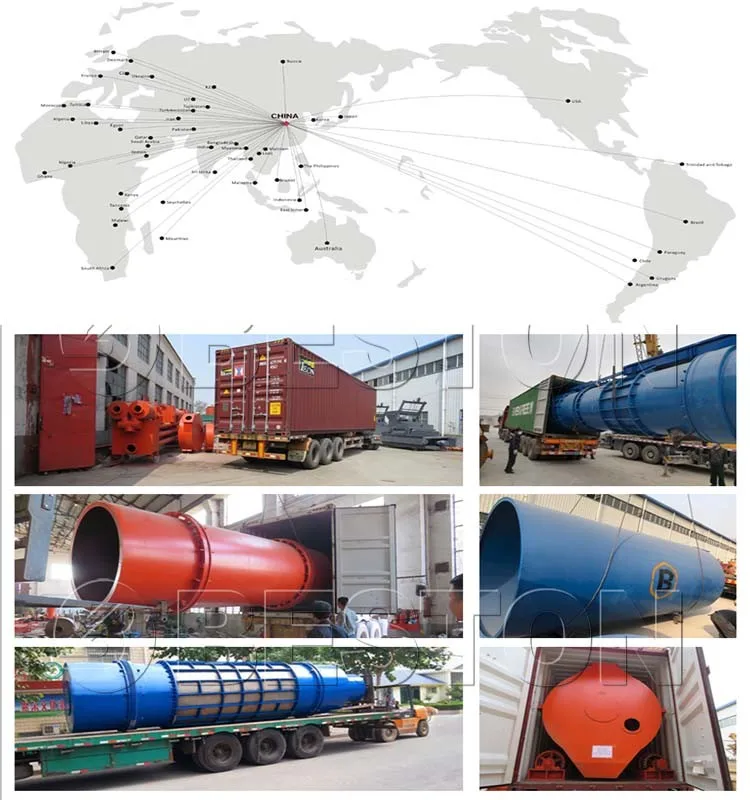

Packaging & Delivery
Our Services
1.Delivery time- It will be 30 days after we receive the deposit.
2.24 hours online service.
3.One year warranty from the date of receiving. The warranty equipment within warranty time, facilities failure is freely repaired or replaced by our company.
4.According to users' needs, after deliver equipment, we can send technical personnel to train operation, maintenance.
5.After the expiration, seller provide spare parts at cost price.
6.Seller provide free lifetime technical services.
7.Whether it is within the warranty period, once receiving a notification service, maintenance personnel to reach the user site in 48 hours.
8.Regular visits, listen to users' comments and suggestions on the service quality and product quality.
2.24 hours online service.
3.One year warranty from the date of receiving. The warranty equipment within warranty time, facilities failure is freely repaired or replaced by our company.
4.According to users' needs, after deliver equipment, we can send technical personnel to train operation, maintenance.
5.After the expiration, seller provide spare parts at cost price.
6.Seller provide free lifetime technical services.
7.Whether it is within the warranty period, once receiving a notification service, maintenance personnel to reach the user site in 48 hours.
8.Regular visits, listen to users' comments and suggestions on the service quality and product quality.

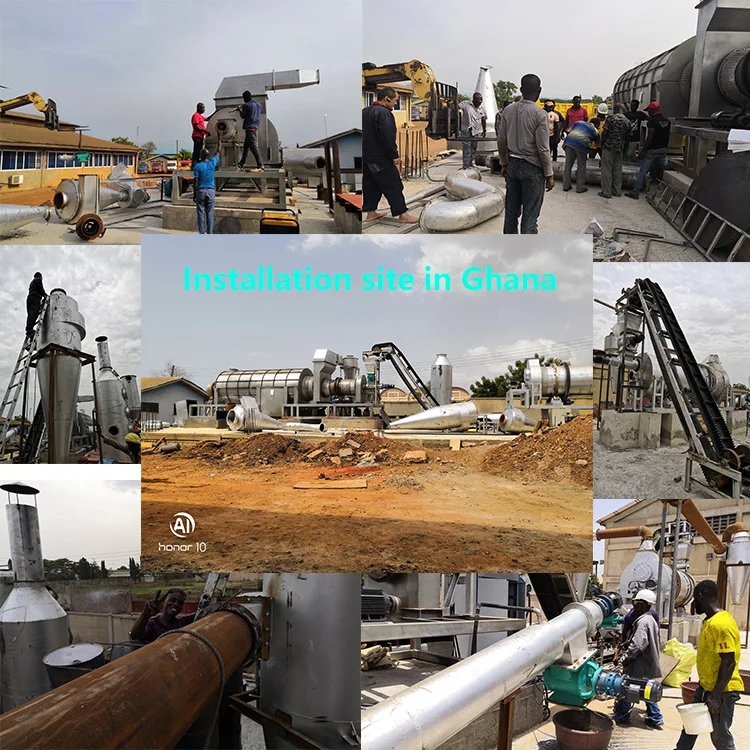

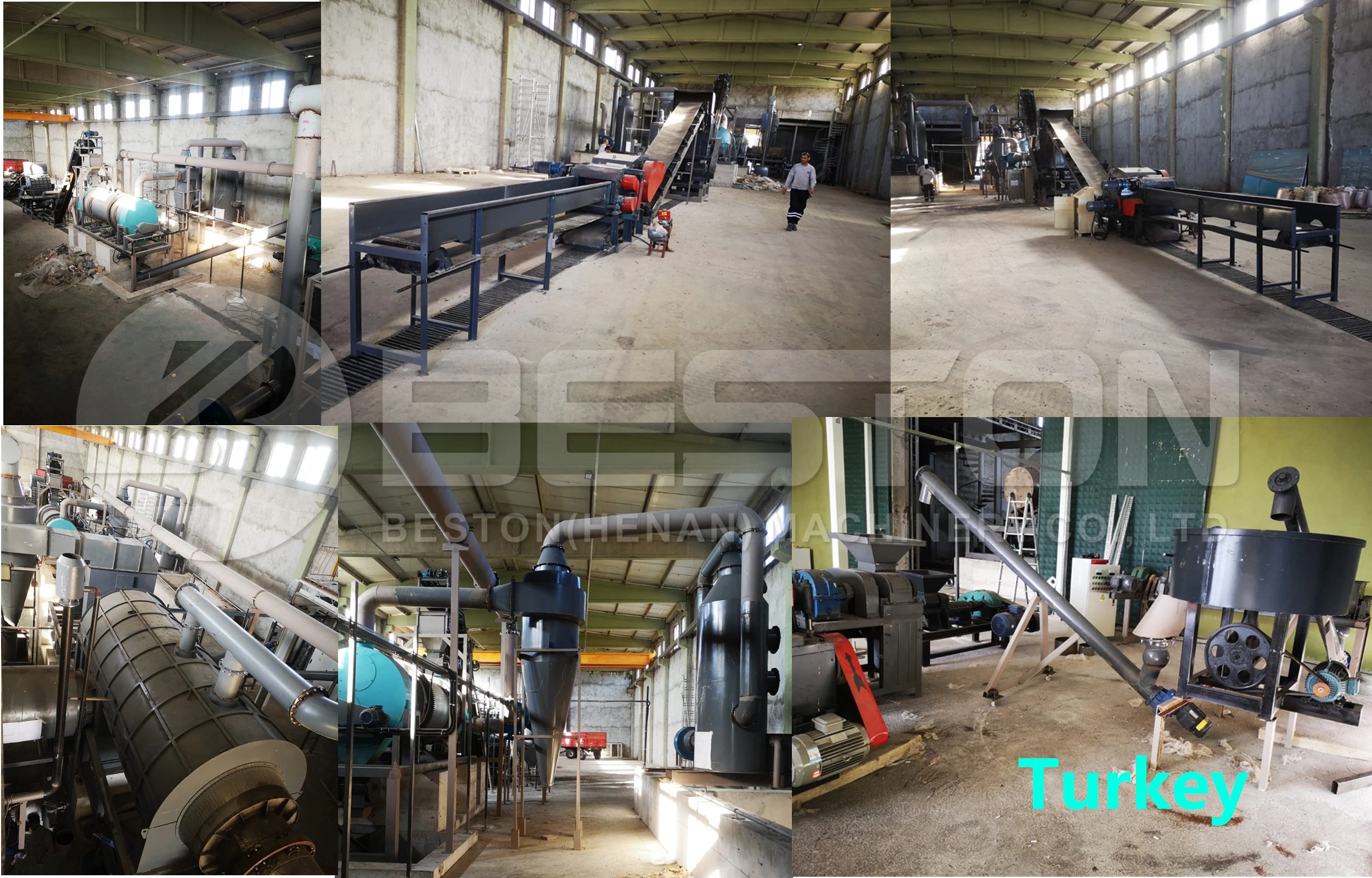

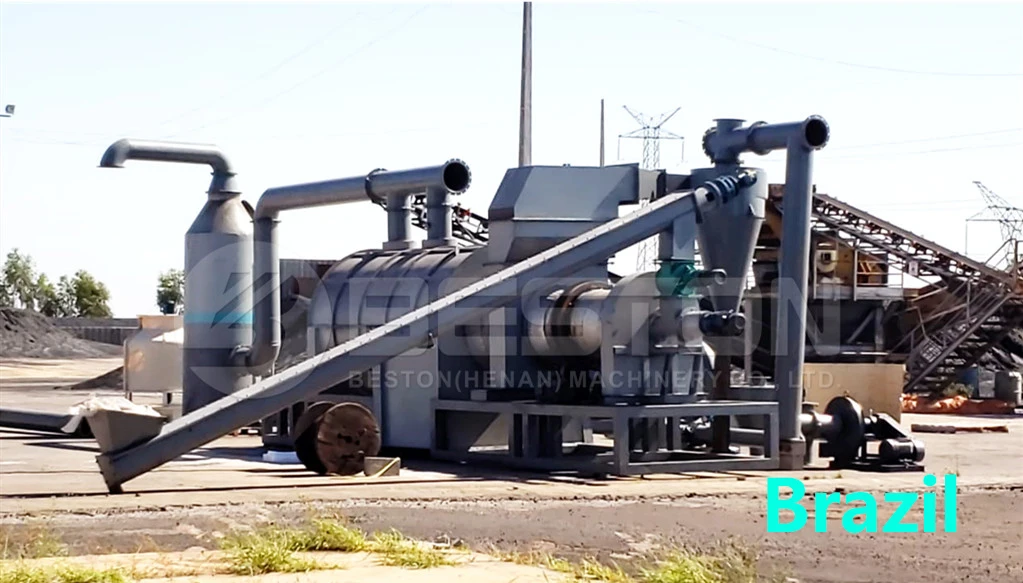

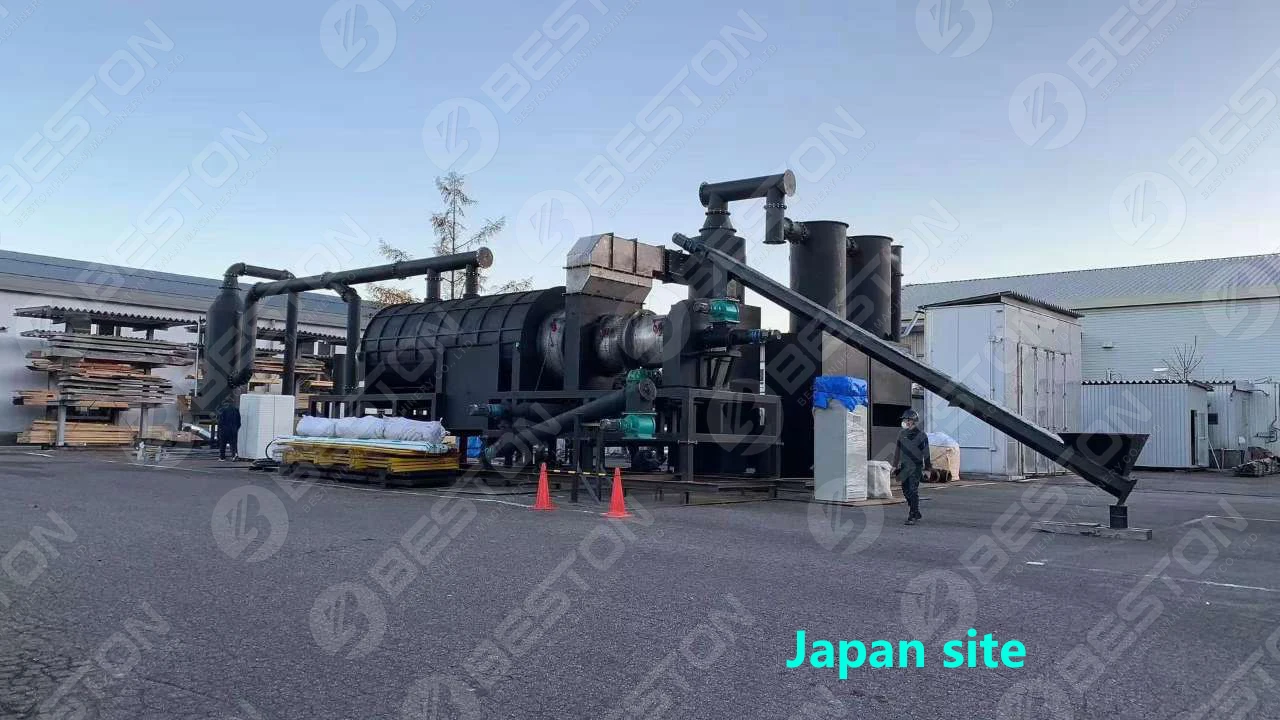

Successful Case
We have helped customers in Ghana, UAE, Turkey, Brazil, France and many other countries solve charcoal making problems. With its environmentally friendly and efficient system, investors can make a significant profit from the final high-quality charcoal.
Customers Visit
Q1. Where have you installed working plants?
A1: Place installed working plants:Vietnam, India, Malaysia, Turkey, nearby our factory, etc.
Q2. How many MSW carbonized we can get/day?
A2: 15:1 is an estimate, not the absolute value. The composition of garbage is different each time, the ratios will be different,exactly, there is no standard value.
Q3. So what will be the output yield%?
Q4. Can you replace your rotator reactor by the viberator reactor?
A4: After discussion with our engineers, the conclusion is our rotator could not replace by viberator reactor. But our engineer will design another plan to achieve the same effect.
Q5. what is the dedusting system?
A5: In order to meet the emission standards, our dust removal system mainly includes activated carbon adsorption, water spray, ocean ball adsorption and so on.
A1: Place installed working plants:Vietnam, India, Malaysia, Turkey, nearby our factory, etc.
Q2. How many MSW carbonized we can get/day?
A2: 15:1 is an estimate, not the absolute value. The composition of garbage is different each time, the ratios will be different,exactly, there is no standard value.
Q3. So what will be the output yield%?
A3: Usually it's 3:1
Q4. Can you replace your rotator reactor by the viberator reactor?
A4: After discussion with our engineers, the conclusion is our rotator could not replace by viberator reactor. But our engineer will design another plan to achieve the same effect.
Q5. what is the dedusting system?
A5: In order to meet the emission standards, our dust removal system mainly includes activated carbon adsorption, water spray, ocean ball adsorption and so on.
