 1

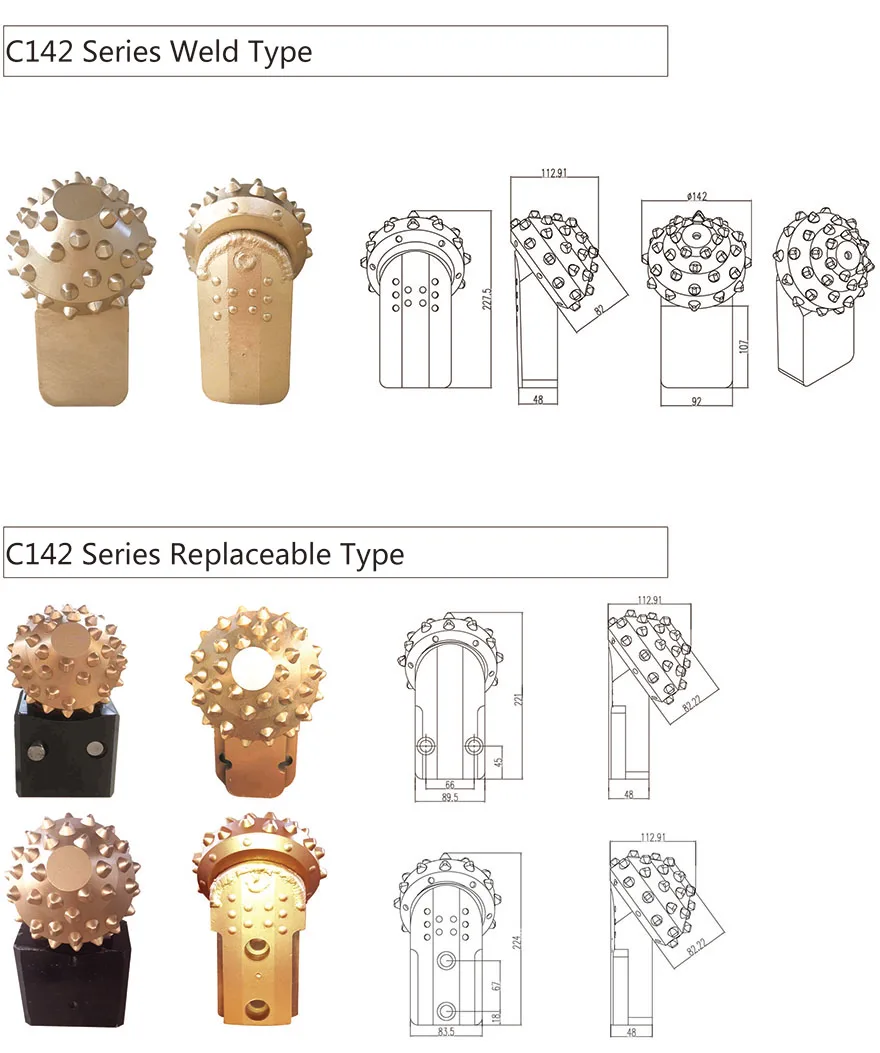

Technical specification of roller cone bit C142

                          Raw Material
Cone 20CrNiMo
Arm 20CrNiMo
Tooth Tungsten Carbide Inserts
                       Tooth Type
Tooth Qty.&Diameter 45 PCS / 15mm
Tooth Height

Total height: 18.5mm,

inside height: 10.5mm,

outside height: 8mm
 Bearing and Lubrication

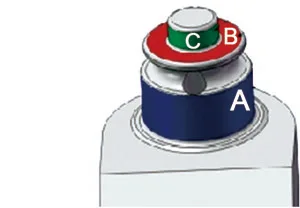

Tungsten carbide enhanced on bearing
A Yes   1.jpg
B Yes
C No
Grease Lubrication & Bearing Seal

O-ring Seal.

Inject grease NOT by vacuum machine.

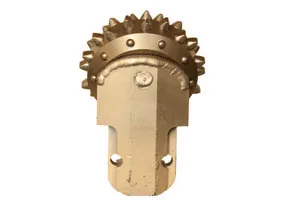

Roller Cone ExcelNG2

Technical specification of roller cone bit NG2

                          Raw Material
Cone 15CrNiMo
Arm 15CrNiMo
Tooth Tungsten Carbide Inserts
                       Tooth Type
Tooth Qty.&Diameter
49 PCS/14mm 56 PCS/14mm
Tooth Height

Total height: 19mm,

inside height: 11.3mm,

outside height: 7.7mm

Total height: 20.3mm,

inside height: 11.3mm,

outside height: 9mm
 Bearing and Lubrication
Tungsten carbide enhanced on bearing
A Yes   1.png
B Yes
C Yes
Grease Lubrication & Bearing Seal

Inject grease by vacuum machine,

O-ring seal.

 .png

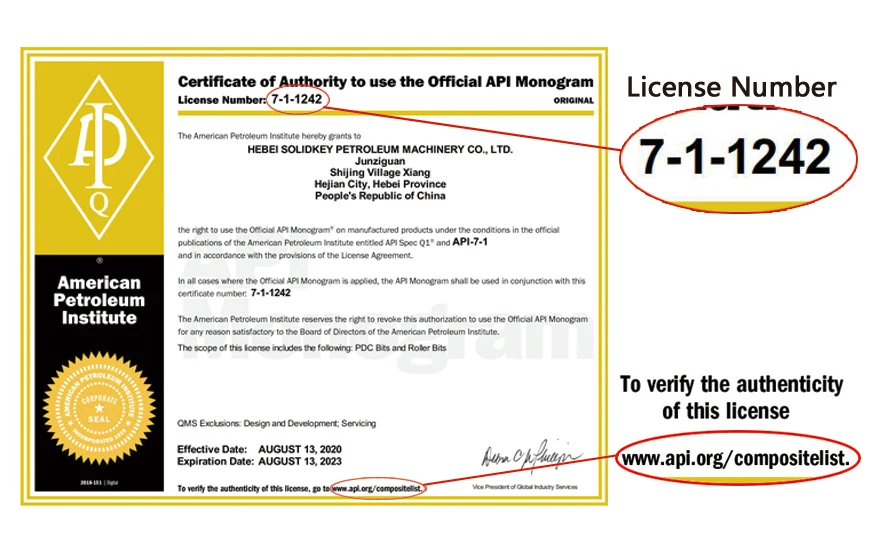

API Certified factory of Tricone Bits and PDC bits
API is American Petroleum Institute, it is Authoritative in the world.
All products are produced in lines of API specifications.

Exhibition
We May Meet In Below Exhibitions

.jpg

Applications

Oil/Gas Well Drilling-Water Well Drilling-HDD(Trenchless)-Foundation Piling


Our Mission:

Lower the cost of Drilling-Per-Meter.



Who we are:
To exploit energy resources underground.
To exploit water underground.
To install pipelines underground with No-Dig.
To pile foundation for constructions.


We are one of the people who makes above easier.
Let’s work together and enjoy this job.
