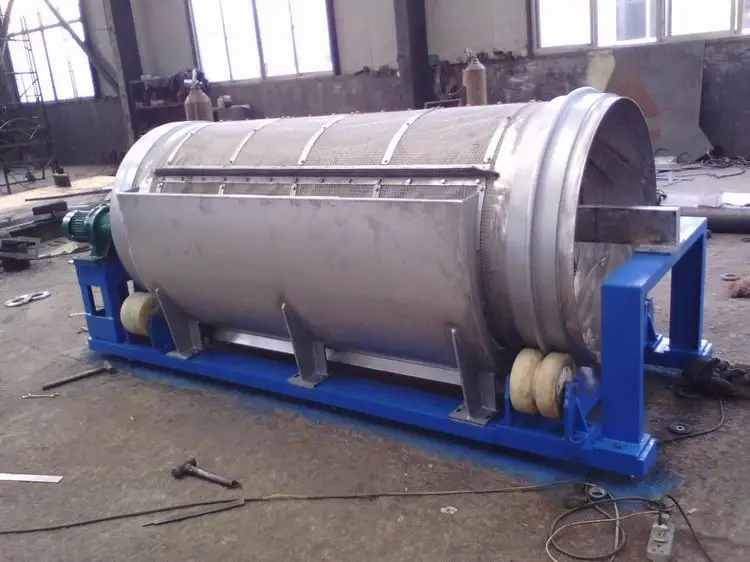

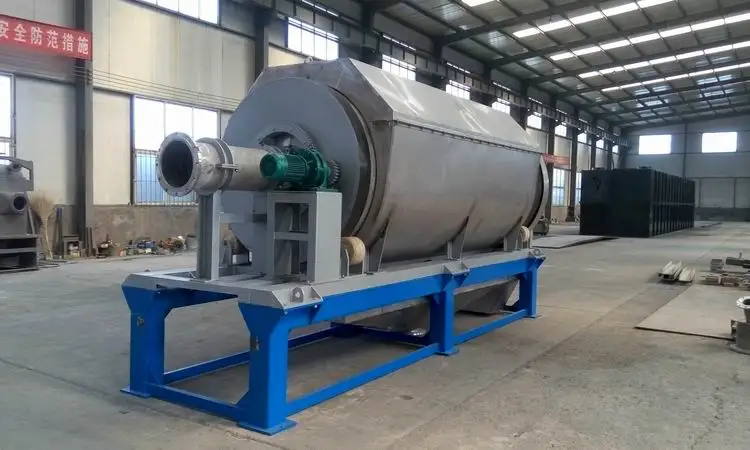

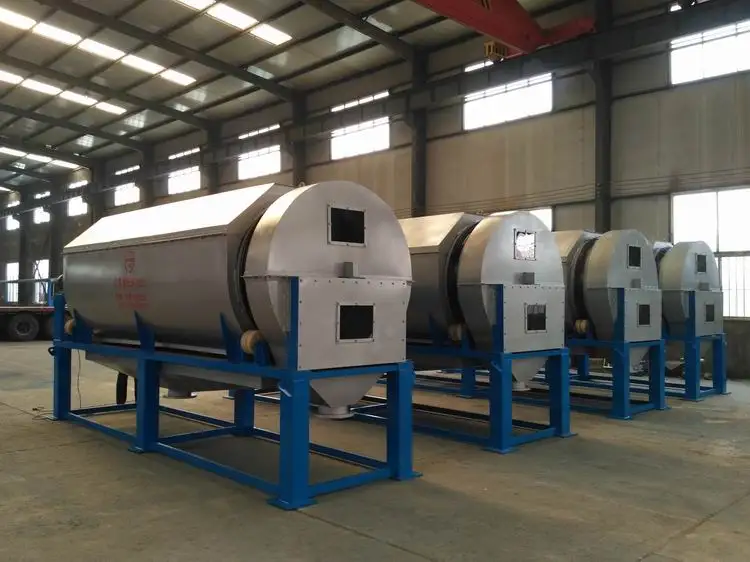

Rotary drum screen filter









Function & application



The machines adopt 15-20 micron holes to filter, a mechanical filtration. They can separate the tiny suspended material from the liquid as far as possible,

and make the solid and liquid individual completely.

They are widely used in the occasions, such as paper making, textile, printing and dyeing, chemical industry, food industry. Especially for the clear water treatment, so it can be used canned cycle.







Application

1. Be used for separating the small and light matters in waste water treatment system.

2. Slaughtering house, printing waste water, dyeing waste water, paper making waste water, domestic waste water, animal feeding waste water.







Feature & advantage



1.Double SS filter nets
2.Be Suitable for solid-liquid separation
3.Be widely used in waste water treatment

4. National patent no.: 200730016533.X







Technical specification



Model	XWN1	XWN2	XWN3	XWN4	XWN5	XWN6	XWN7	XWN8
Filter area (m2 )	6	7	9	11	14	16	24	30
Mesh	60-250	60-250	60-250	60-250	60-250	60-250	60-250	60-250
Water treatment (m3 /h)	50-100	80-150	100-200	120-240	150-300	170-350	240-400	300-500
Power of motor (kw)	1.1	1.1	1.5	2.2	3	4	5.5	7.5
Filter diameter (mm)	1000	1250	1250	1500	1500	1500	1780	1780
Filter effective length (mm)	1500	1800	2300	2370	2870	3370	4300	5500



01. We are a manufacturer and we have import and export rights.

02. We produce wonderful environmental protection machines and solutions, pulp and paper making machines and solutions as well as tissue paper converting machinery and solutions,

03. Our main manufacturing facility which spans nearly 30,000m2.

04. We have achieved a total of 32 patents over the past few years.

05. Each year the output value of our products can reach up to 150 million RMB, to domestic and overseas.
06. We are in very close proximity to a very famous port city – Qingdao in northern China, and this location provides us with a plethora of logistics advantages, including: easy and cost effective transport by both air and sea,also.















 1. Detailed installation manual and maintenance guideline are provided with the equipment.

  2. Technical training and site-commissioning are available for you.

  3. Any equipment issue, we will stand by. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.









 1. How to buy your idea products?

  A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).

2. How to pay?

  A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

3. What is the delivery time?

  A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.

4. How to pack the products?

  A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.

5. How to keep your equipments from corrosion?

  A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard process.

6. How do you manufacture your equipment ?

  A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.

7. How to install after the equipments arriving destination?

  A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
