Product Description
vegetables restaurant food container heavy duty crate plastic turnover box
Technical Data,
| Structure | Mesh base + Mesh sides | Item No.: DL-XX9 |
| Material | HDPE/PP | |
| Ext.Dim | 608*423*248mm | |
| Int.Dim | 570*380*239mm | |
| Color | Blue / More | |
| Load Capacity ≤20kg | Stacking Load ≤80kg | |
| 20'GP About 450 PCS | 40'GP About 1000 PCS | |
| Operating Environment -25°C~+60°C | Nesting type 1 | |

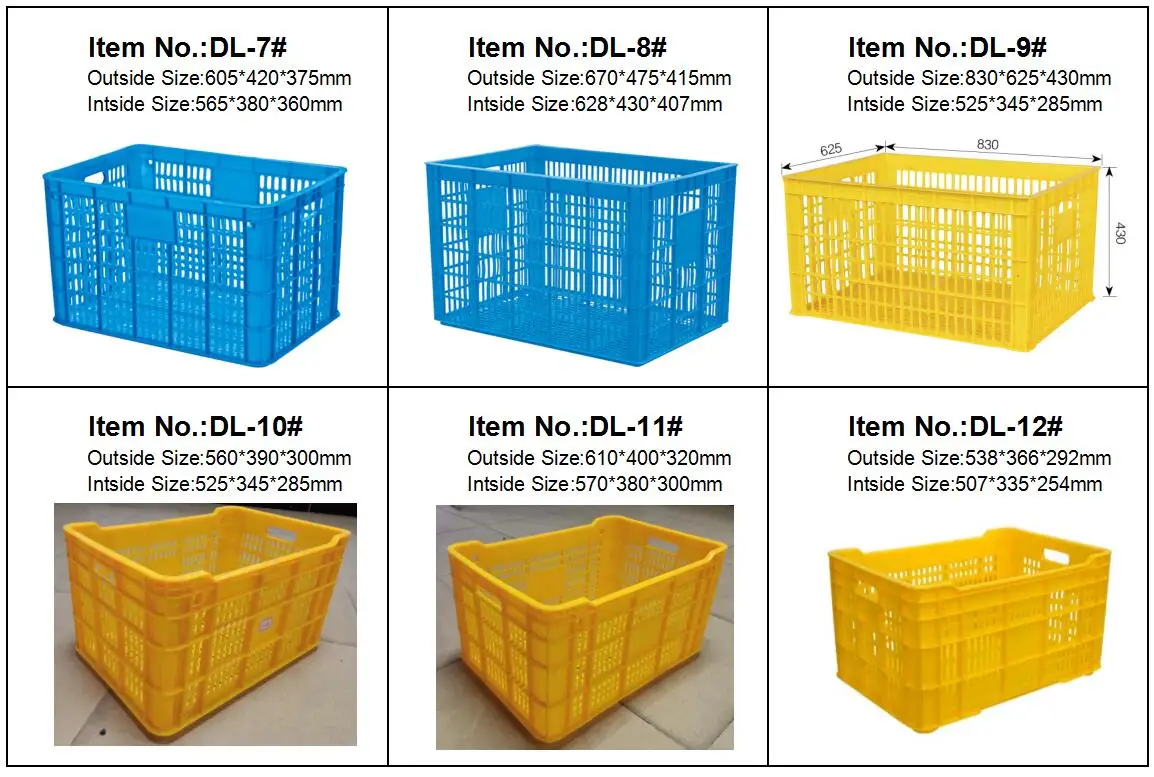

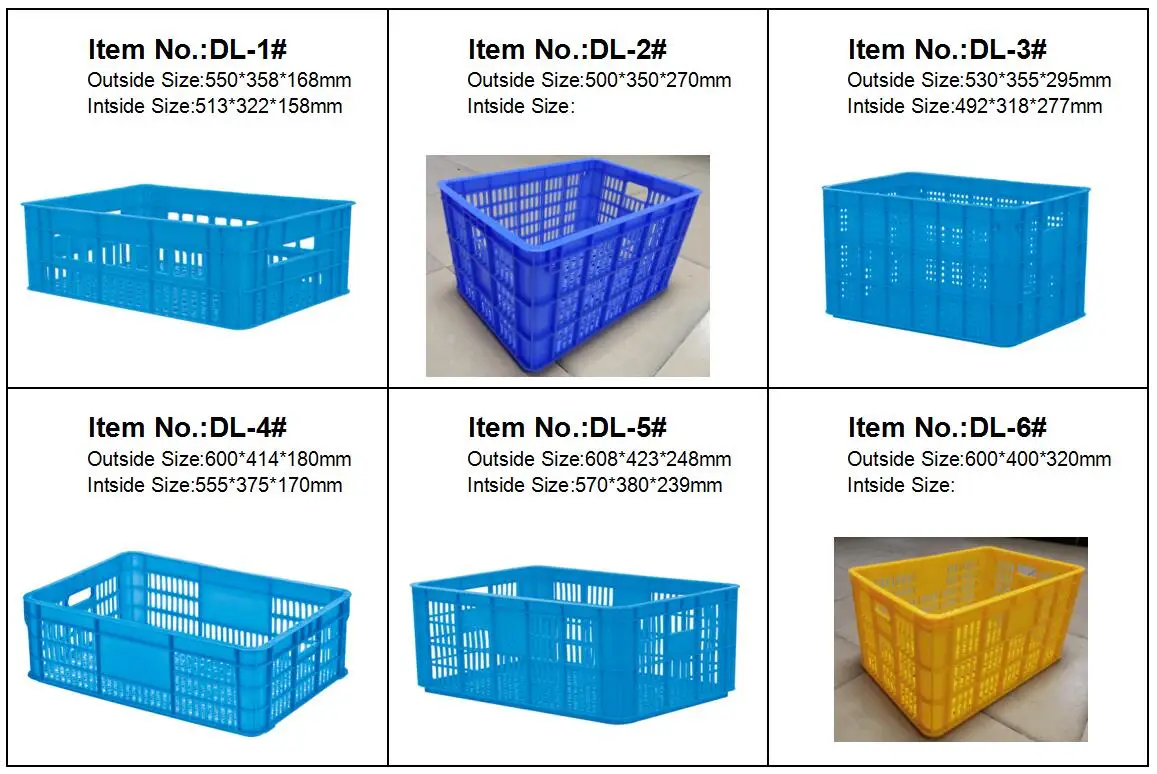

| Different Size of Plastic Crate | ||||||
| Item No. | Outside Dimension(mm) | Intside Dimension(mm) | Item No. | Outside Dimension(mm) | Intside Dimension(mm) | |
| DL-XX1 | 550*358*168 | 513*322*158 | DL-XX16 | 613*434*352 | 575*395*333 | |
| DL-XX3 | 605*425*315 | 565*385*300 | DL-XX17 | 530*355*295 | 492*318*277 | |
| DL-XX4 | 670*475*415 | 628*430*407 | DL-XX18 | 675*375*315 | 635*335*300 | |
| DL-XX6 | 495*355*275 | 460*320*260 | DL-XX19 | 430*342*200 | 395*305*190 | |
| DL-XX7 | 600*410*180 | 555*375*170 | DL-XX20 | 388*308*111 | 355*275*104 | |
| DL-XX8 | 560*375*262 | 521*342*257 | DL-XX21 | 600*420*345 | 550*370*325 | |
| DL-XX9 | 608*423*248 | 570*380*239 | DL-XX22 | 580*380*210 | 480*345*205 | |
| DL-XX10 | 830*625*435 | 778*578*413 | DL-XX23 | 630*415*185 | 585*370*170 | |
| DL-XX11 | 605*420*375 | 565*380*360 | DL-XX24 | 600*420*110 | 560*380*95 | |
| DL-XX14 | 1040*745*530 | 985*690*505 | DL-XX27 | 830*630*510 | 780*580*485 | |
| DL-XX15 | 970*680*480 | 910*630*460 | DL-XX28 | 610*420*170 | 570*380*155 | |
Related Products-3
Packing and shipping
1.Lid is attached for preventing from dust and contamination.
2.EU crates are designed with European Standard size to meet the EU pallet.These crates all meet to TOYATO’s internal distribution logistic standard.
3.Foldable design helps to save 3/4 space when not in use,and for return journeys if used for transportation.
4.Ventilated base and walls provide good air movement for contents if required.
5.The sides can be hot stamped and screen printed with customer’s logo.
6.Vingin HDPE/PP Material is more environmental protection,recyclable,long service life,especially suitable for storage and distribution.
Production
Company Information
Guangzhou Bidifu Plastic Co., Ltd. was built in October 2006, 10years in injection business,Covers an area of 30000 square meters.The top companies in the world have cooperation with our company, such as Panasonic, Canon, Hitachi, LG, Toshiba, Midea, Procter&Gamble, Honda, Toyota, Nissan and so on.
Our Services
More Crate Products
FAQ
1. How can I know which crate suits my use ?
1) Pls tell us the size Length *Width *height
2) If you have pictures, pls send us for reference
2. How can I get a sample to check the quality?
We can send you the samples by DHL/TNT/FEDEX, by air or by your sea containers.
3.How long does the delivery time?
In general, about 15days once received advance payment. If you place a formal order. we will give you a production plan to guarantee the delivery time.
4. Can you make our color or logo pallet?
We can help you to customize color if you give us Pan tone Number, and we can print the logo by your artworks.
5. What is the material of the products?
BIDIFU’s products are always made by 100% virgin HDPE or PP material.
