Высококачественные детали для велосипеда chromoly #4130 bmx-вилка рама U-тормоза фристайл
- Категории: Вилка для велосипедов >>>
- Поставщик: Guangzhou,Racer,Cycle,Limited
Поделиться:
Описание и отзывы
Характеристики

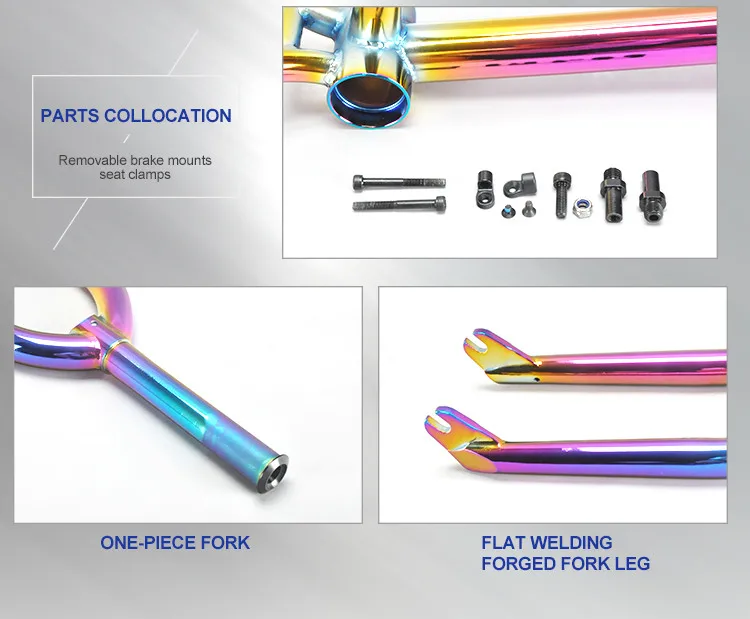

Product Description

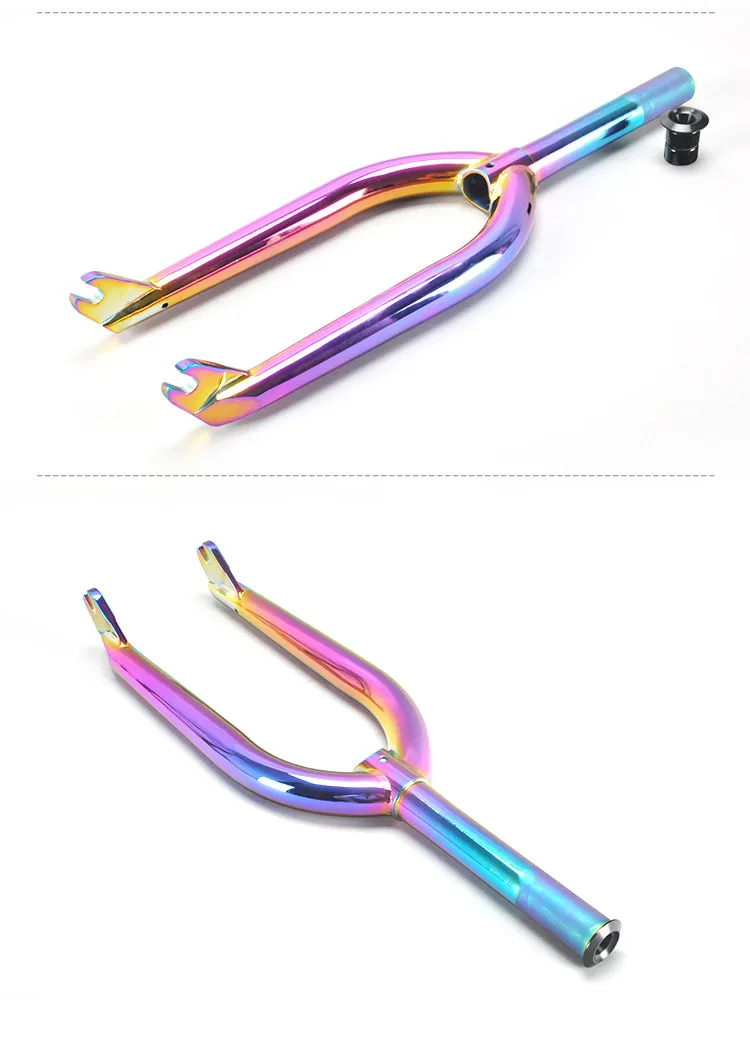

Model No. | AS-09-806 bmx fork |
Material | Full chromoly |
Dropout | Cast dropout |
Legs | 31.8 X 1.4T legs |
Top cap | 24 X 1.5P thread with top cap |
Shaft | 165mm length |
N.W | 1.3KGS |
FOB | USD28.90 |
Carton size | 530 X 180 X 70MM |
Packing | |
Normal carton packing. |

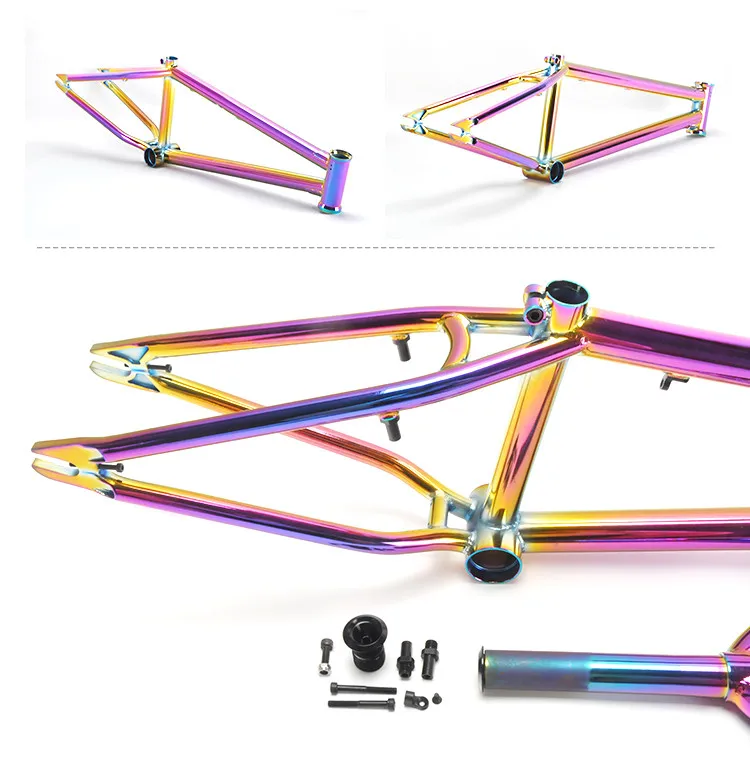

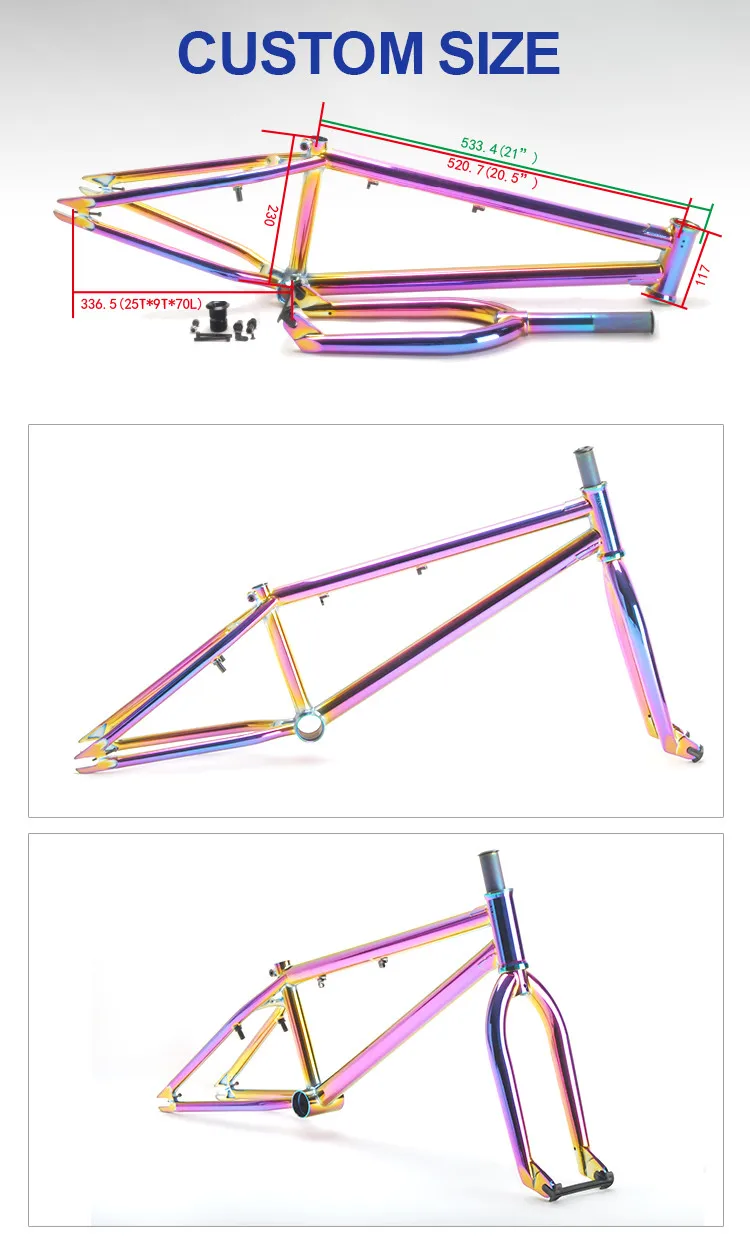

Model No. | AS-09-806 bmx frame |
Top tube | 31.8 X 1.6T X 1.2T X 1.6T #4130 chromoly |
TT | 533.4 (21") |

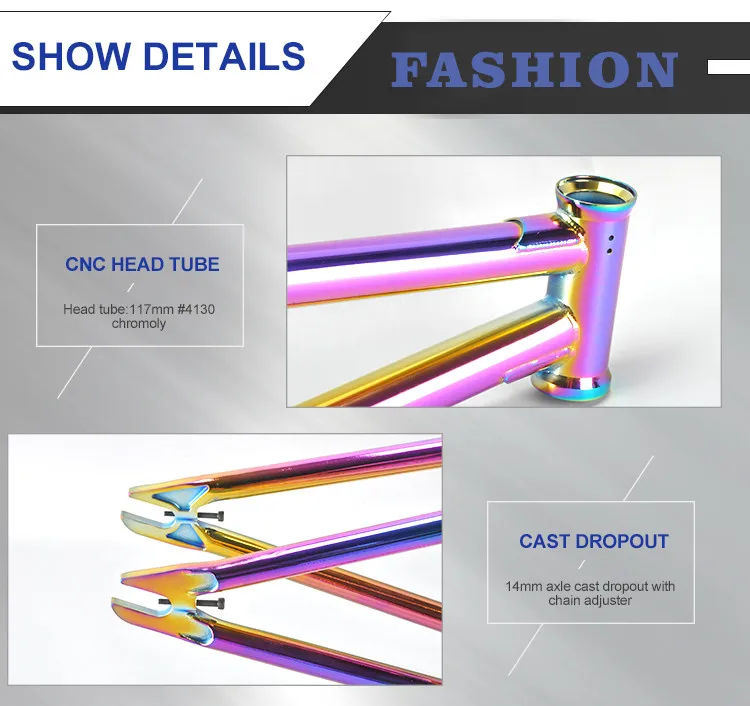

Head tube | 117mm #4130 chromoly |
Down tube | 34.9 X 1.5T X 1.2T X 1.5T #4130 chromoly |
Seat tube | 230mm (from BB centre to top of seat tube,1.4T of #4130 chromoly |
Seat stay | 19 X 1.2T with removable pivot |
Chain stay | 19 X 1.2T with 336.5mm RC |
chain adjuster | 14mm axle cast dropout with chain adjuster |
BB | MID |
N.W | 2.70 KGS |
Carton size | 940 x 170 x 320mm |
Other | Accessary of Brake/cable/lever per photos up charge +USD8.27 |
Packing | Normal carton packing. |
OEM/ODM Service | YES |

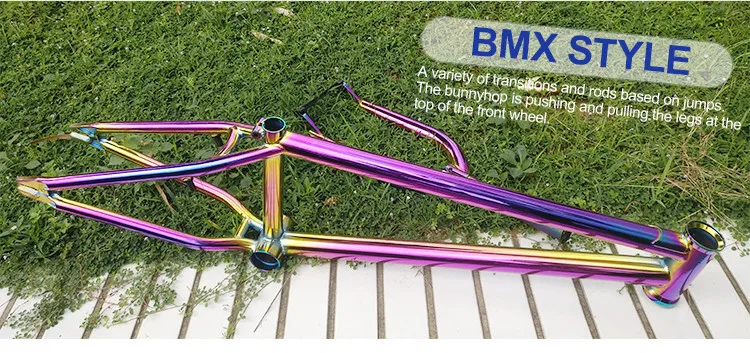

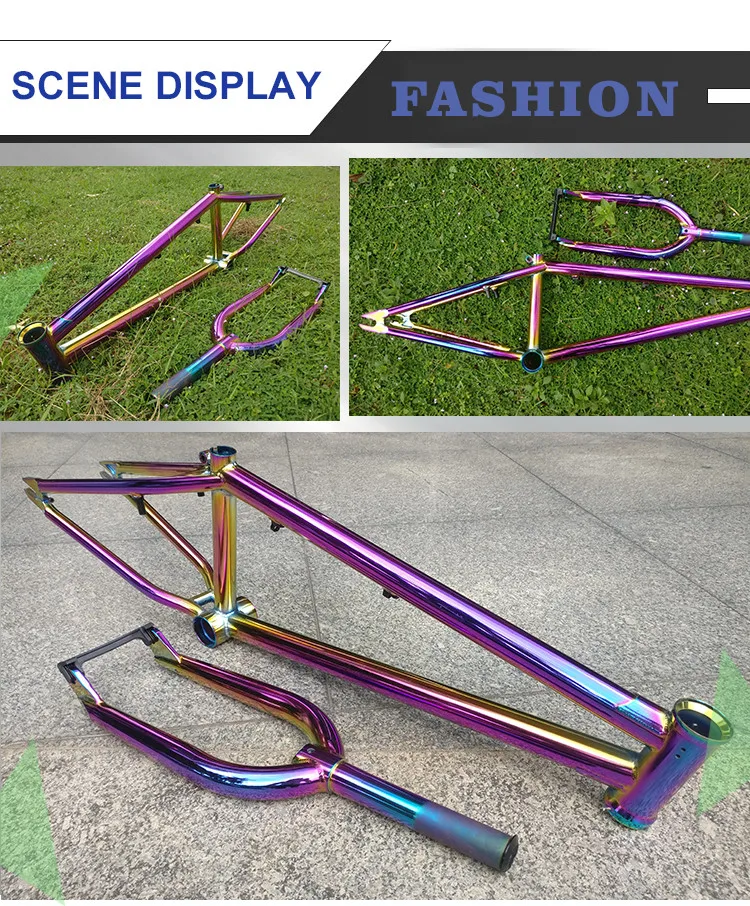

Detailed Images

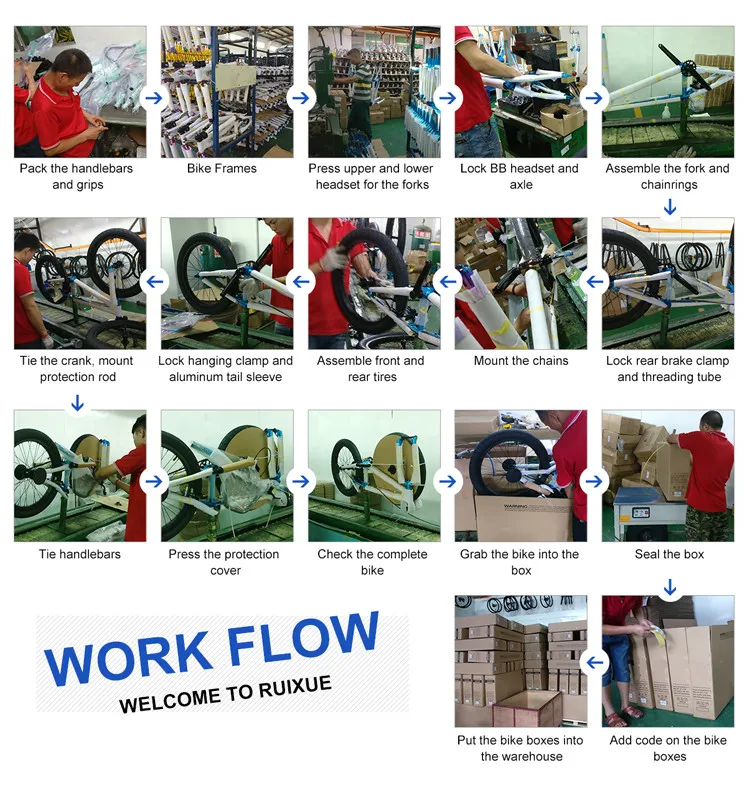

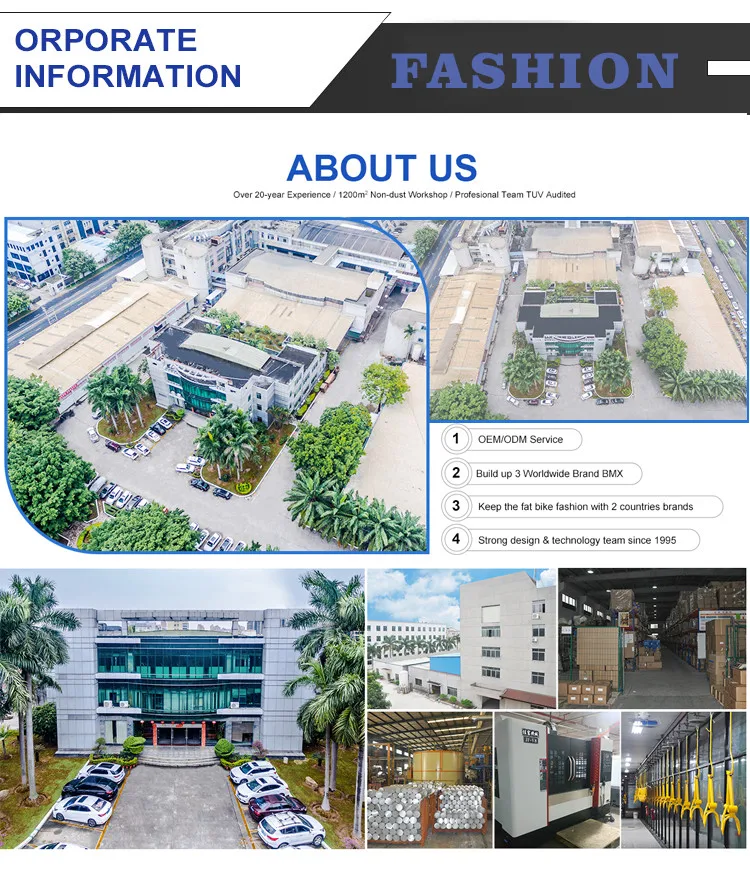

Our Company
