WP-370B DC micro water pump 12V high pressure household self-priming large flow small motor for Water

WP-370B DC micro water pump 12V high pressure household self-priming large flow small motor for Water

Цена:228,93 ₽*

Стоимость в USD (на сегодня):Узнать

Количество:

WP-370B 12V DC Motor Air Pump

Product Description

1.Standard Operating Conditions:
1-1 Rated Voltage:	6VDC 12VDC constant between motor terminals
1-2 Direction of Rotation:	CW when viewed from output shaft side
1-3 Operating Temperature and Humidity	Temperature range of -10℃~+50℃, Humidity range of 30%~80% temperature range of -10℃~+50℃
1-4 Storage Temperature	Temperature range of -20℃~+60℃
2.Measuring Conditions:
2.Measuring Conditions:
2-1 Motor Position:	To be place t horizontally when measuring
2-2 Power Supply:	Regulated DC power supply
2-3 Environmental Temperature and Humidity:	Temperature range of 15℃ to 30℃
	Relative humidity 30%and 70%
2-4Power Supply:	Regulated DC power supply
2-5 Application:	--Robotics, Small Appliance, Fanner, Electric Curtain;
	--Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device
2-6 Character:	--Electric motor,low noise,low current and no spark.
	--High quantity ,small body

Model : WP-370B

Ratled volt: DC12.0V

Working volt Range: DC9.6V~14.4V

Loading current: ≤350mA

No-loading air flow: 0.5~1.5L/min

No-loading water flow: 1.1~1.3L/min

Operating temperature range : -20 ~60oC

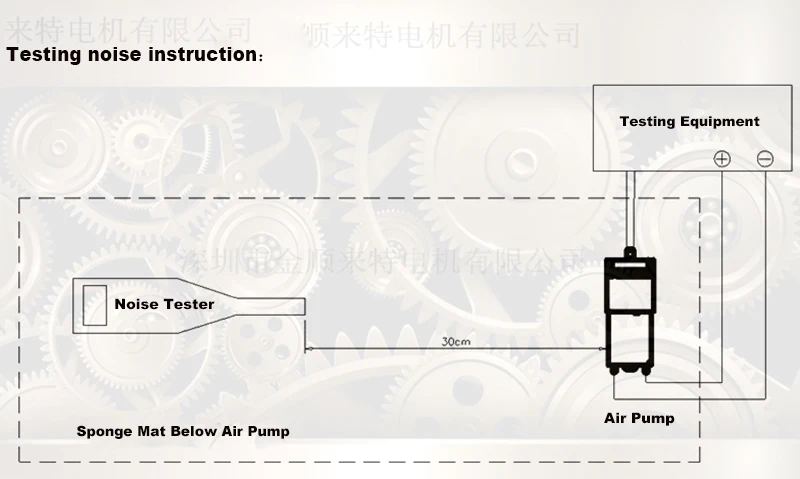

Noise : ≤60dB

Maximum inflation pressure : ≥60KPa

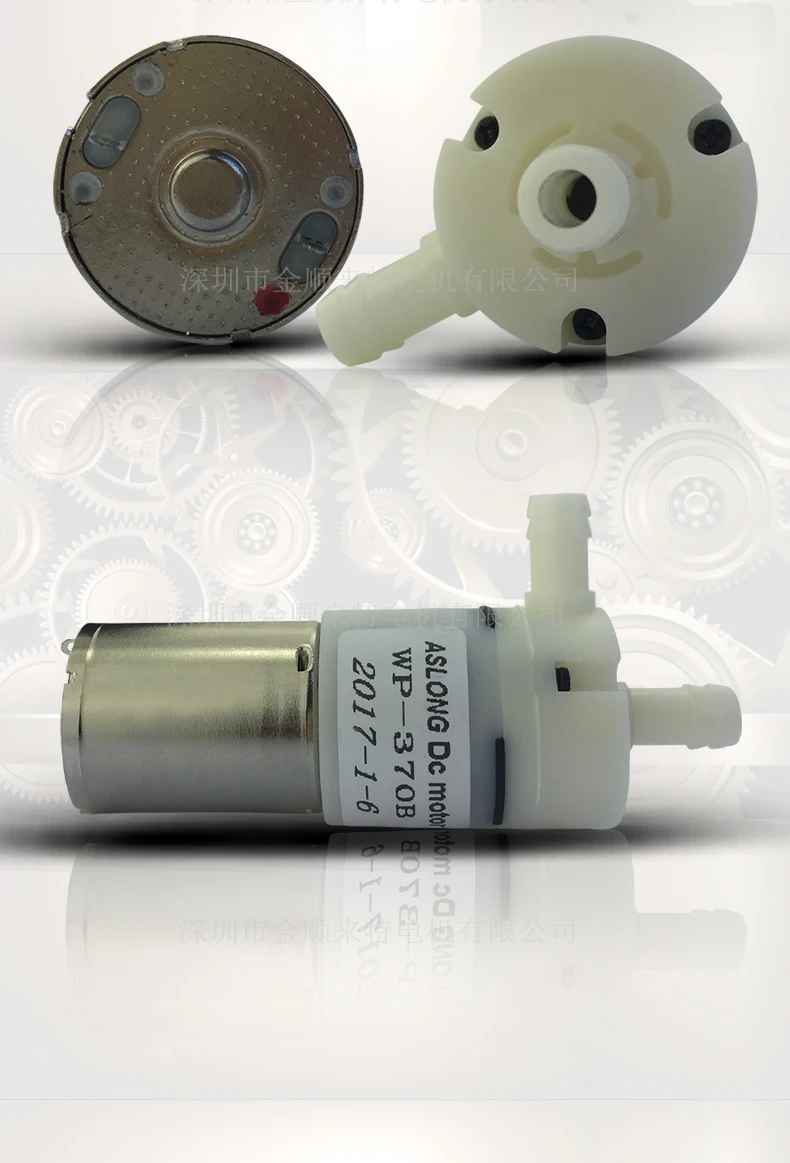

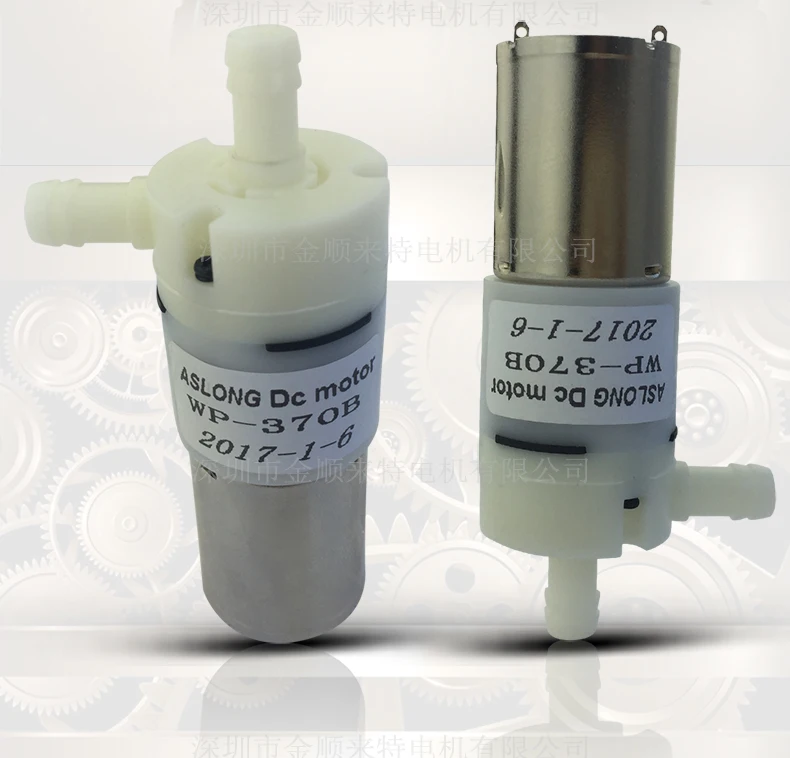

WP-370B MINI MOTOR (13).jpg WP-370B MINI MOTOR (15).jpg

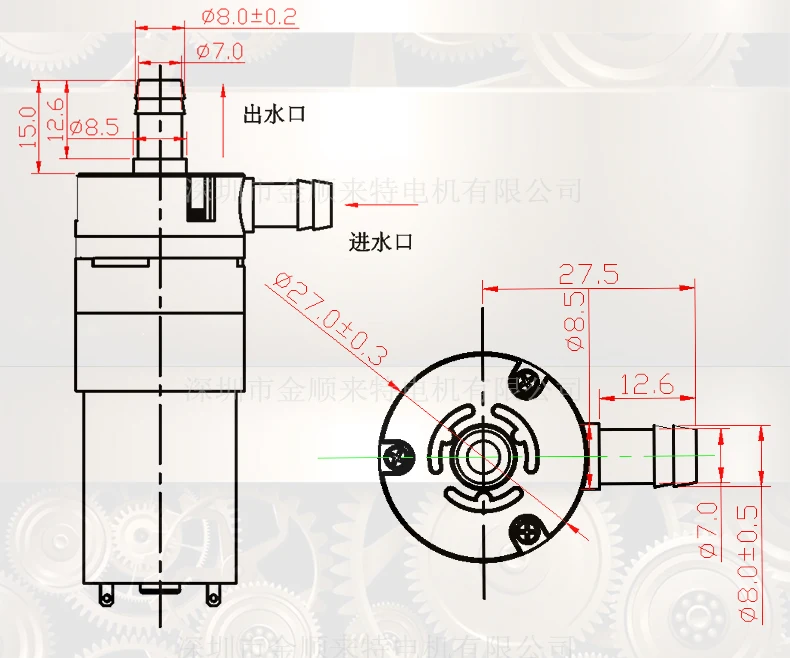

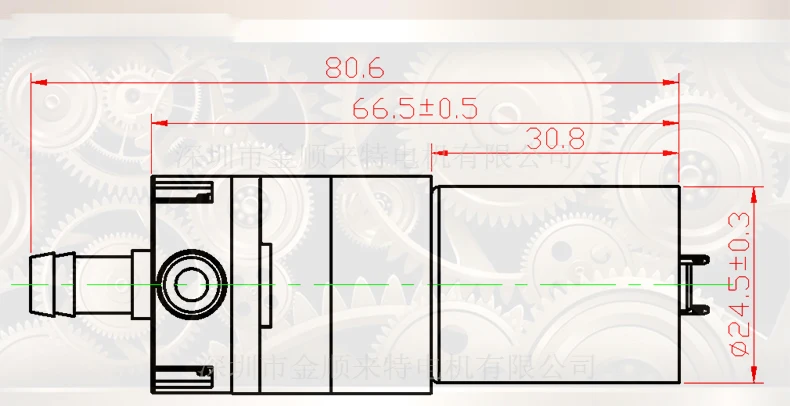

Product parameters:

WP-370B MINI MOTOR (9).jpg WP-370B MINI MOTOR (12).jpg WP-370B MINI MOTOR (14).jpg
