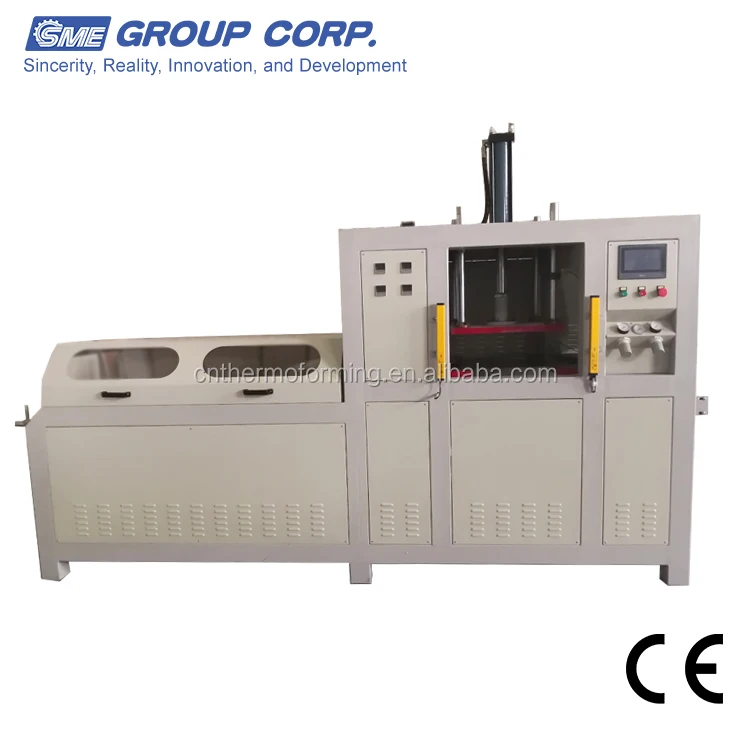

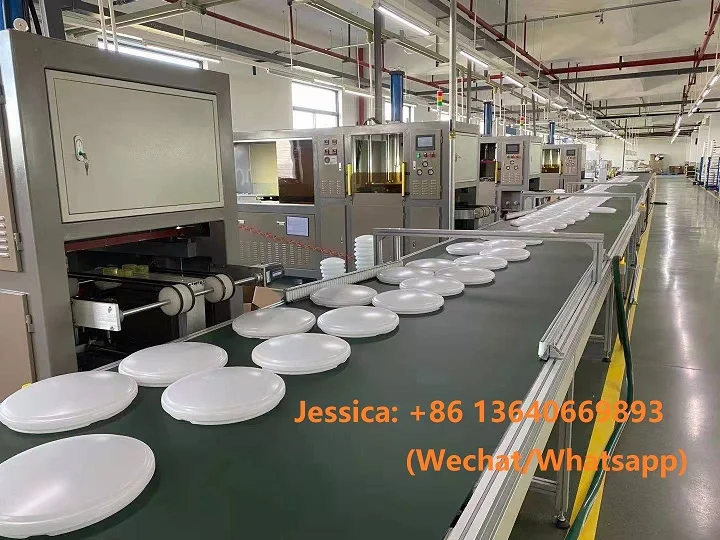

Automatic Led acrylic lampshade shell round blowing forming machine for Restaurant Lights Living room

Описание и отзывы

Характеристики



Description

This machine is based on infrared radiation heating, positive pressure blow up molding equipment, and through the specialized design, elaborate, make you simple operation, easy to use which is a simple chimney or light box production equipment.





The machine data of forming part

Model	LSFA-600
Forming Dia.	≤600mm for the lampshade
Forming height	≤200mm
Forming Thickness	1-3.5mm
Color	As the client’s requirement
Power supply	380VAC/3phase/50HZ
Upper mold	Hydraulic pressure + Hinge
Air pressure	0.5-0.8Mpa
Suggest air compressor	15HP
PLC	"Mitsubishi" Japan
Touch screen	"WeinView" Taiwan
Safety device	Safety curtain
Material moving	Servo motor
Switch	"DELIXI" or "CHNT" China
Air Cylinder	"Zhicheng" China or "Airtac" Taiwan
Electromagnetic Valve	"Airtac" Taiwan
Consumption	30KW
Machine size(L×W×H)	3500*1600*2200mm
Machine weight	1500KG

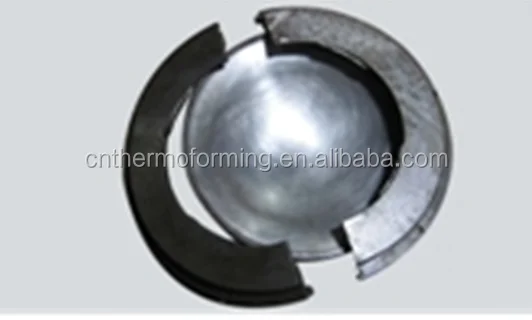

The mold



Spare part list

No.	Spare part	QTY	Remark
1	Infrared ceramic heater	10pcs	China
2	High temperature resistant flannelette	4pcs
3	Switch	2pcs
4	Solenoid valve	2pcs
5	Contactor	2pcs
6	Thermal probe	2pcs







Payment Terms: T/T 40% deposit before production, 60% balance due before delivery date;

Delivery time: 25-35 business days after deposit;

Validity: 30 days after quotation.

Departure Port: Guangzhou Huangpu port

Packing: wooden block (The EXW price is just simple packing. Not the wooden block.)

Warranty: We guarantee these machines for one year. And we supply some spare parts with the machine.

Service: We will send engineer who install and train in your company for approximately 7 to 10 days, after machine is arrived your place. And the flight tickets, visa and accommodation of engineer will be arranged by buyer, also the buyer need pay 100 USD/day for training cost.
