Manufacturer Optical fiber sc male to lc femela hybrid adapter ,sc apc simplex fiber flange fiber coupler,fiber optic adapter
Foclink's Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
Product Description
Feature
1. Fiber optic adapter LC 2. Apply for CATV, LAN, Telecom network, test equipment, LC connectors 3. Multimode or Single Mode, OM3,OM4 available 4. Quad 5. Ceramic sleeve, ABS housing 6. Insertion Loss≤ 0.2dB, Return Loss≥ 45dB (pc), ≥ 60dB (apc) 7. Operating temp.: -40° C~+85° C 8. Standard plugging force: 2~6N 9. Durability > 1000 times 10. Color: Blue (pc/SM), Green (apc), Beige (pc/MM), Acid blue (OM3),Purple(OM4)
Local Area Network CATV System Telecommunication Networks Equipment Test
Product Specification
Parameter
Unit
LC, SC, FC, ST
SM
MM
PC
UPC
APC
PC
Insertion Loss (Typical)
dB
≤0.2
≤0.2
≤0.2
≤0.2
Return Loss
dB
≥45
≥50
≥60
≥30
Exchangeability
dB
≤0.2
Repeatability
dB
≤0.2
Durability
Time
>1000
Operating Temperature
°C
-40~75
Storage Temperature
°C
-45~85

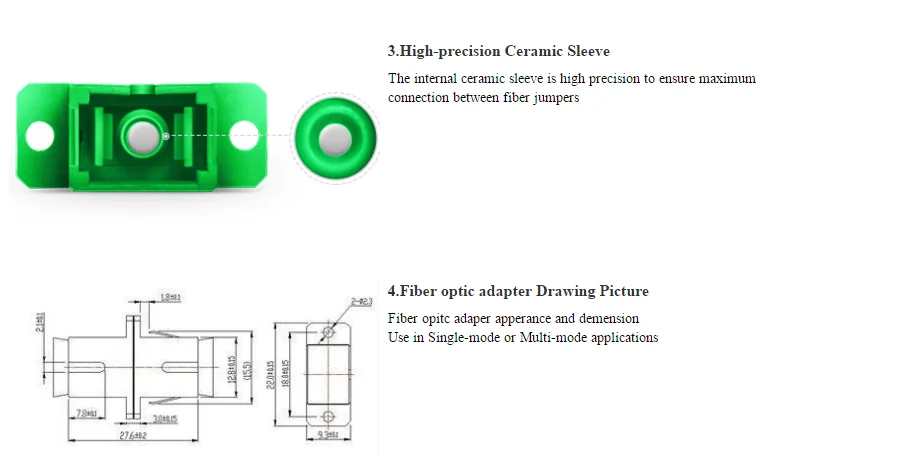

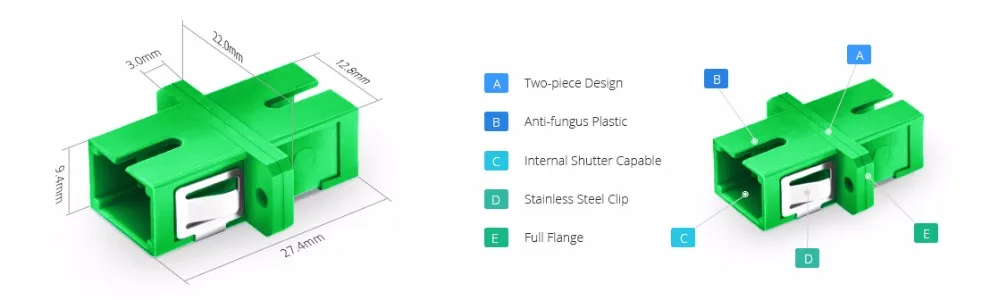

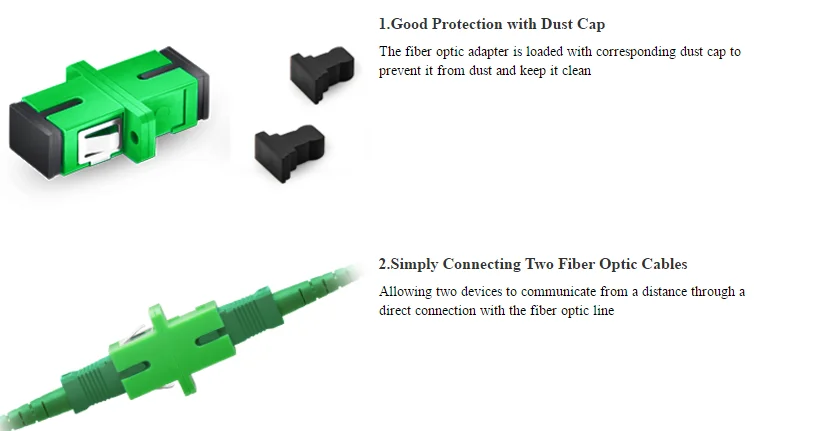

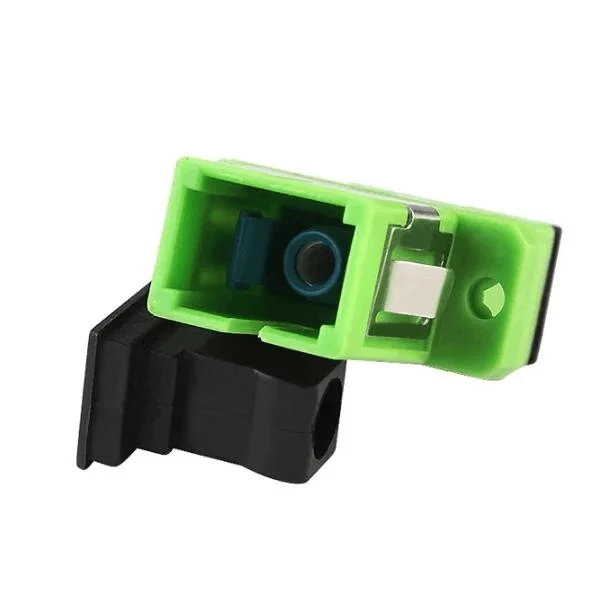

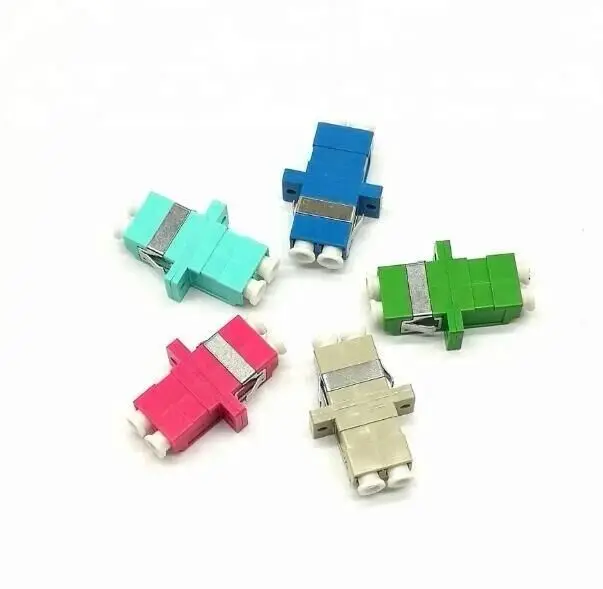

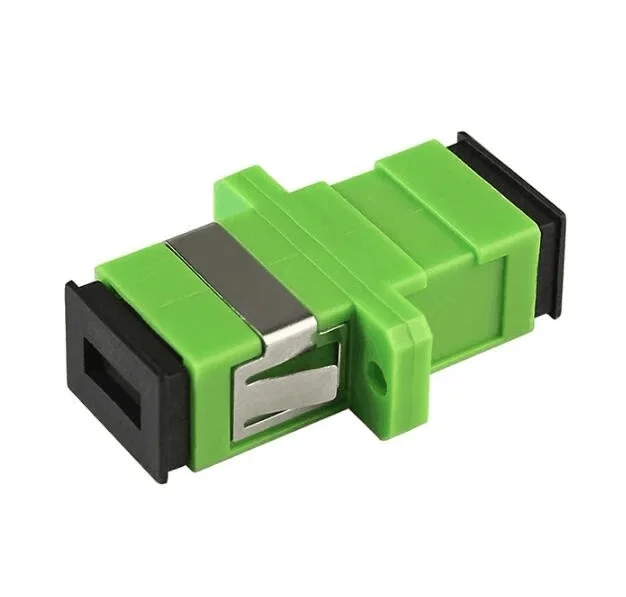

Detail Image Picture
Company Information
1).Lead time With more than 200 employees in my company,at least 10,000 connectors can be produced. 2).Research Department With our separate research team,so we are albe to have products made according to your requirements. 3).Qulity assurance Every product will be tested to be of good quality.Meanwhile free samples can be supplied for your test. The guarantee period is 10 years.So if there are problems with the goods,replacement will be available.
Packaging & Shipping

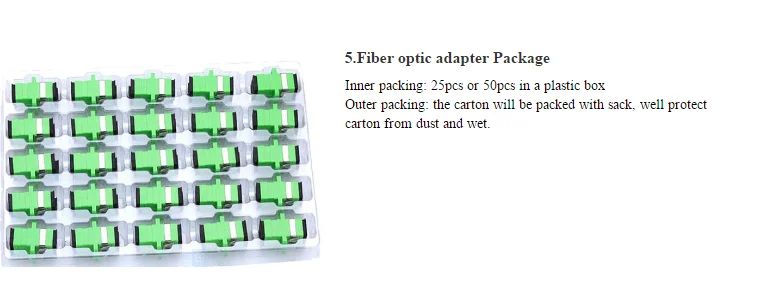

The package will be packed according to standard export requirements, customer satisfication is our target. Label printing : Customer logo or Foclink brand are available Inner packing: 25pcs or 50pcs in a plastic box Outer packing: the carton will be packed with sack, well protect carton from dust and wet. The transportation : By air ,by sea ,by DHL ,Fedex ,TNT ,UPS ...
FAQ
1.What is your MOQ? Foclink: Normally is 1pcs/item,could be coordinated if you have detail requirements. 2.How about your delivery date? Foclink: Delivery date is about 3-5days, it depends on the order quantity. 3.Can you supply sample for customers? Foclink: of course, however the delivery cost will be charged on customer's account 4.How about your price? Foclink: We are supplying products with very competitive price based on good performance. 5.Do you offer OEM Service ? Foclink: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce according to your requirment and description;
Main Product
Foclink Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments. The main products of Foclink include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry
