High Speed Automatic Machine To Make Disposable Cup Machine Factory

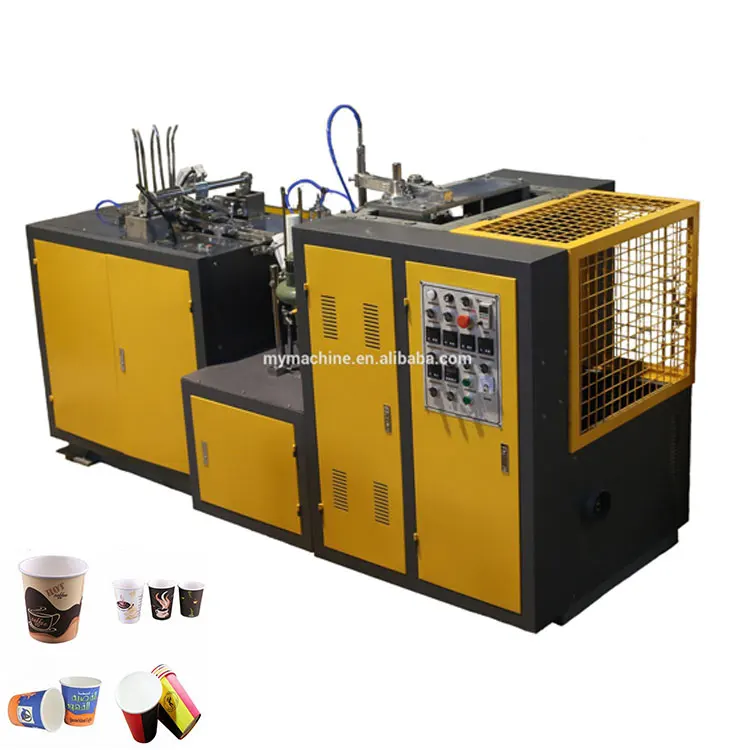

Product Picture
Product Description
Model
JBZ-H12
Copper Heater
JBZ-H12
Ultrasonic Heater
Paper Cup Size
2 ~12 OZ (50ml~330ml Mould exchangeable)
Raw Material
Only one-side PE coatedpaper( Popular for Hot drink cups )
One or Two side PE coated Paper
(Popular for Hot and Cold drink Cups)
Suitable Paper Weight
140gsm—280 GSM
140gsm—400 GSM
Rated Productivity
45-60 pcs/min
Total Power
4.8 KW
6 KW
Power Source
50/60HZ, 380V/220V ( better use 380V, 3 Phase ) or special Power requirement.
Weight
GW/NW: 1600KG/1500KG
Working Air Source:
No need provide Air
Air pressure:0.4Mpa; Air Out-put:0.6m³/minute Need to buy Air Compressor(by user)
Package Size(L * W * H)
2750*1300*1700mm
Cup Side Welding
Copper Heater
Ultrasonic Heater
Cup Bottom Knurling:
Heater Knurling
1side PE paper by heater knurling; 2side PE paper by cool device (circle water) knurling
OEM ( Show Client Company Name in Machine Panel ) is welcome in our factory
Option for the Paper fan sealing collector:
Normal Type Iron Tube( picture 1)
New Mingyuan design JBZ-H12 VS. Normal machine design
We using Divided box is 125 type, which has two years warranty.
Other company use 100 type divided box.
125 type is much bigger than 100 type, is stronger.
100 TYPE GEAR BOX AFTER ONE YEAR WILL FACE GEAR WORM PROBLEM
And BEARING PROBLEMS WHICH WERE NOT TRACED IN OUR GEAR BOX
2) New design use 4 heaters & 1 Curling equipment, Normal machine design only 3 heaters & 1 Curling equipment,
New design keep sure cup will not any leakage problem.
Application

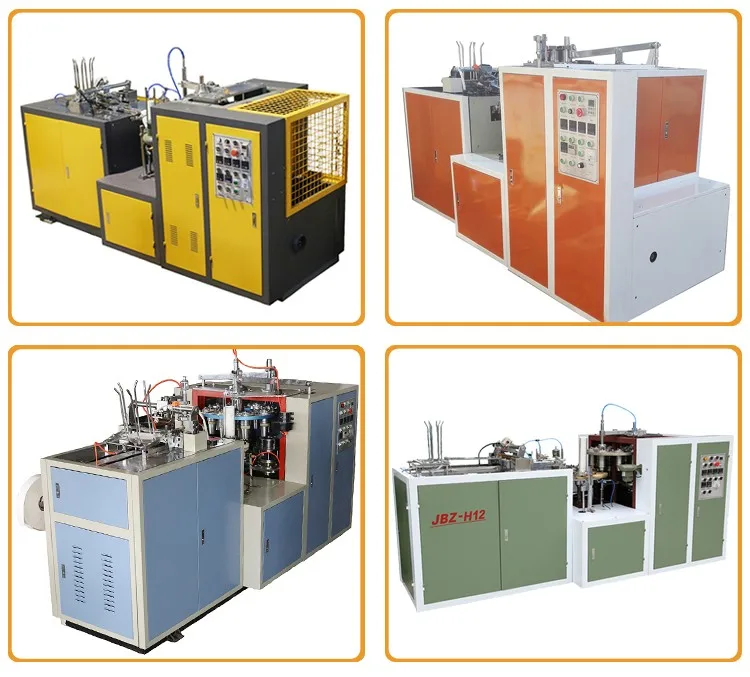

Related Products
Company Information
Packaging & Shipping
FAQ
Q1. Are you trading company or manufacturer? A:we are one of the leading manufacturer of the paper cup machine, Plastic lid machine, paper plate machine etc paper product machinery in China.
Q2. Do you have quality certificate? A:we have got the ce certificate for our machine.
Q3. What's the delivery time? A:Around 20~30 days, however, based on order.
Q4. where is your factory location? A:we are locate in Henghe industrial zone, feiyun street, ruian city, zhejiang province, china. our nearest high way exit is feiyun, our nearest train station is ruian station, our nearest airport is wenzhou airport.
Q5.How does your factory do regarding quality control? A:Quality is priority. Our Factory always attach great importance to quality controlling from the very beginning to the very end: 1).Skilful workers care every details in handling the producing and packing processes; 2).Quality Control Department specially responsible for quality checking in each process.
Q6. What terms of payment you usually use? A:T/T 30% deposit and 70% against document, Western Union, L/C at sight
