Product Description
MBBR Biocarrier Media MBBR Bio Packing Media
MBBR Biocarrier Media MBBR Bio Packing Media, used in Integrated Fixed-lm Activated Sludge (IFAS) and moving bed biofilm reaction (MBBR) system.
The wastewater goes through suspending media of MBBR reactor, forming biological membrane on the surface of media gradually. With the action of microbial on the biological membrane, wastewater is purified. MBBR media can move freely in the reactor with the mixing of the water. For the aerobic reactor, the aeration will make the media move; for the anaerobic reactor, mechanic mixing will make the media move. Our MBBR media is new-developed media, has better treatment effect compared with traditional media.
The wastewater goes through suspending media of MBBR reactor, forming biological membrane on the surface of media gradually. With the action of microbial on the biological membrane, wastewater is purified. MBBR media can move freely in the reactor with the mixing of the water. For the aerobic reactor, the aeration will make the media move; for the anaerobic reactor, mechanic mixing will make the media move. Our MBBR media is new-developed media, has better treatment effect compared with traditional media.

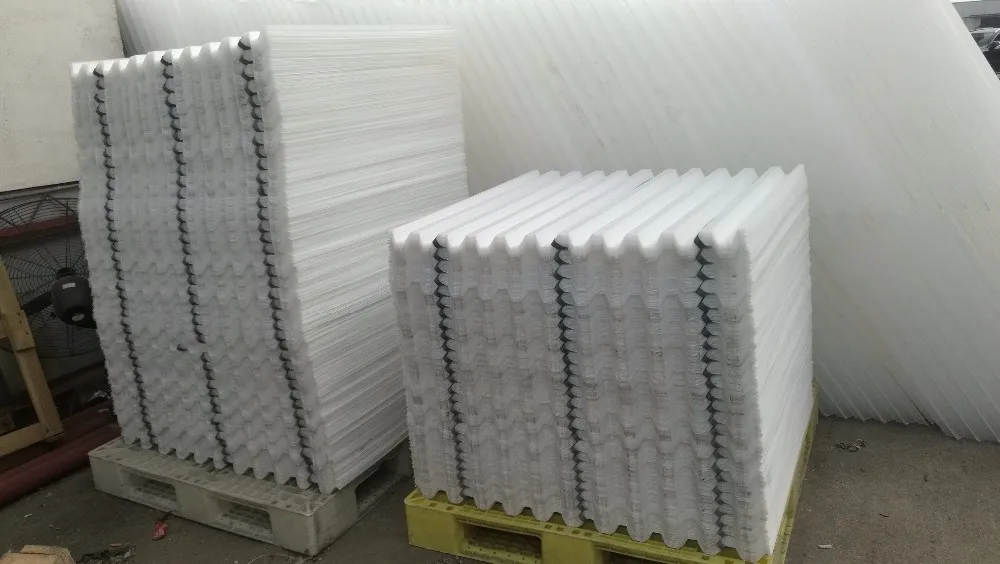

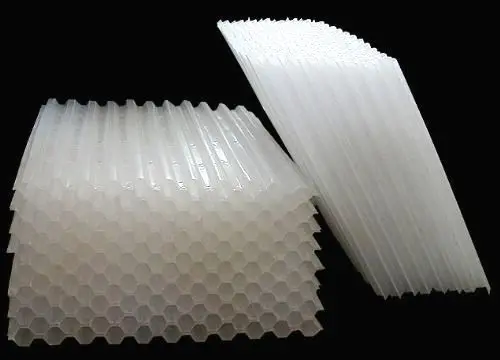

PP PVC lamella clarifier plate/tube settlers
PP PVC lamella clarifier plate/tube settlers for waste water treatment is very suitable in all different clarifiers and removing sand. It is regarded as universal water treatment equipment in water supply and drainage engineering. It has wide application, high handling efficiency, small area, etc. It is suitable in removing sand in inlet, industry and drinking water precipitation, separation in oil & water.
The modular and cubical self-supporting settler design of Honeycombed Inclined Tube Settlers aids handling during installation and any subsequent maintenance.PP PVC lamella clarifier plate/tube settlers for waste water treatment design avoids thin wall membranes and utilizes forming techniques to minimize component stress and subsequent environmental stress cracking fatigue.
PP PVC lamella clarifier plate/tube settlers offers an inexpensive method of upgrading existing water treatment plant clarifiers and sedimentation basins to improve performance. They can also reduce the tankage/footprint required in new installations or improve the performance of existing settling basins by reducing the solids loading on downstream filters.
Technical parameters

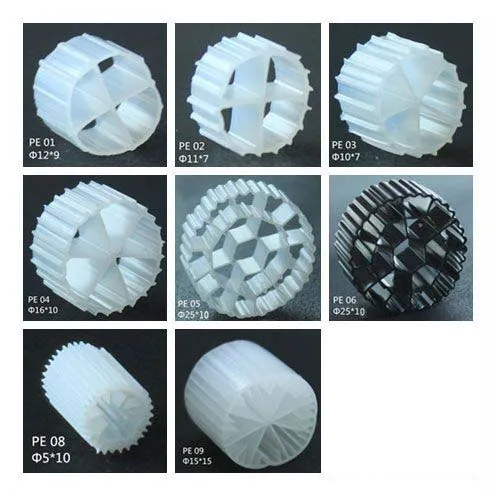

Technical Parameters of MBBR Biocarrier Media MBBR Bio Packing Media
Model | PE01 | PE02 | PE03 | PE04 | PE05 | PE06 | PE08 | PE09 | |
Spec. | mm | Φ12*9 | Φ11*7 | Φ10*7 | Φ16*10 | Φ25*10 | Φ25*10 | Φ5*10 | Φ15*15 |
Hole Numbers | pcs | 4 | 4 | 5 | 6 | 19 | 19 | 8 | 40 |
Efficient Surface | m2/m3 | >800 | >900 | >1000 | >800 | >500 | >500 | >3500 | >900 |
Density | g/cm3 | 0.96-0.98 | 0.96-0.98 | 0.96-0.98 | 0.96-0.98 | 0.96-0.98 | 1.02-1.05 | 1.02-1.05 | 0.96-0.98 |
Packing Numbers | pcs/m3 | >630000 | >830000 | >850000 | >360000 | >97000 | >97000 | >2000000 | >230000 |
Dosing Ratio | % | 15-67 | 15-68 | 15-70 | 15-67 | 15-65 | 15-65 | 15-70 | 15-65 |
Membrane-forming Time | days | 3-15 | 3-15 | 3-15 | 3-15 | 3-15 | 3-15 | 3-15 | 3-15 |
Life-span | year | >15 | >15 | >15 | >15 | >15 | >15 | >15 | >15 |

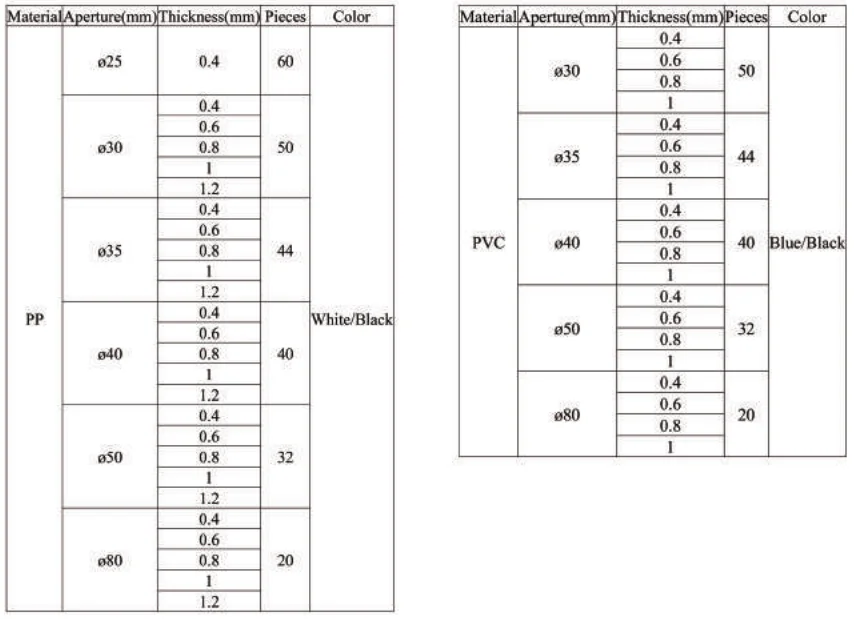

Technical parameters of PP PVC lamella clarifier plate/tube settlers
Main Features
♦ Geometric configuration based on hydrodynamics to strengthen the surface adhesive ability. it is polymer material, having high shock resistance.
♦ Large specific surface aera, many adhesive biologia.It not only provides the room for heterotrophic bacteria growing but also create the condition for autotrophic bacteria growing. Meanwhile, it is beneficial for the biologia to denitrification and dephosphorization.
♦ No need of bracket, easy to fluidify, save energy consumption.The suitable specific weight makes the filler in suspended fluidization state, reducing the eneray consumption and increasing the shock and cutting of bubbles. In the same condition, the aeration amount can be lowered by above 10%.

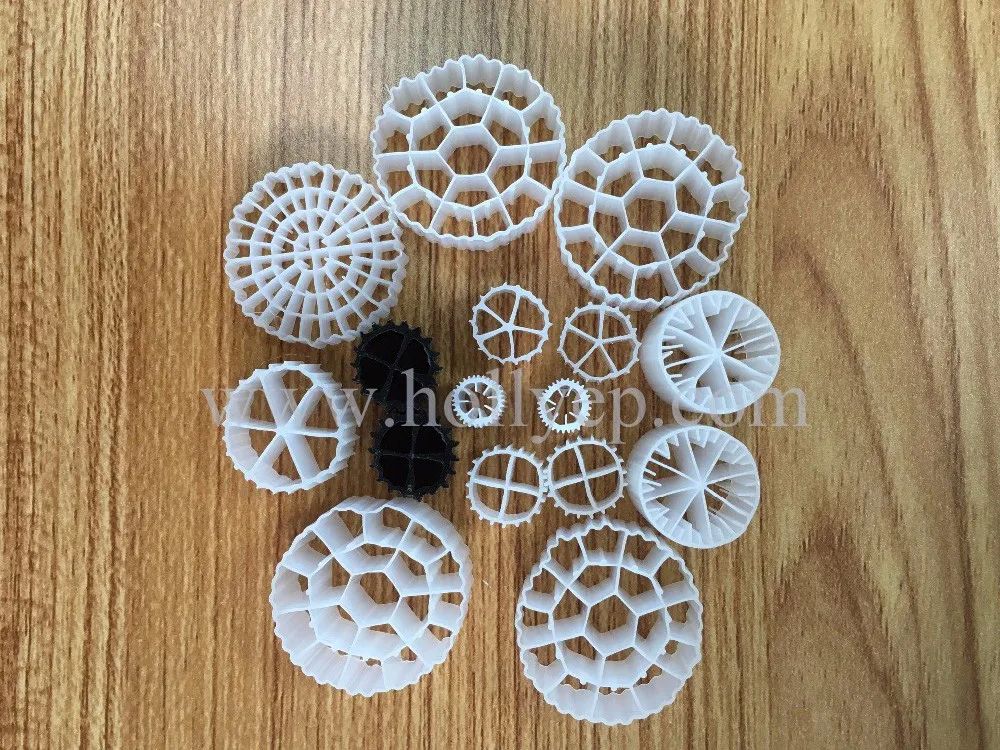

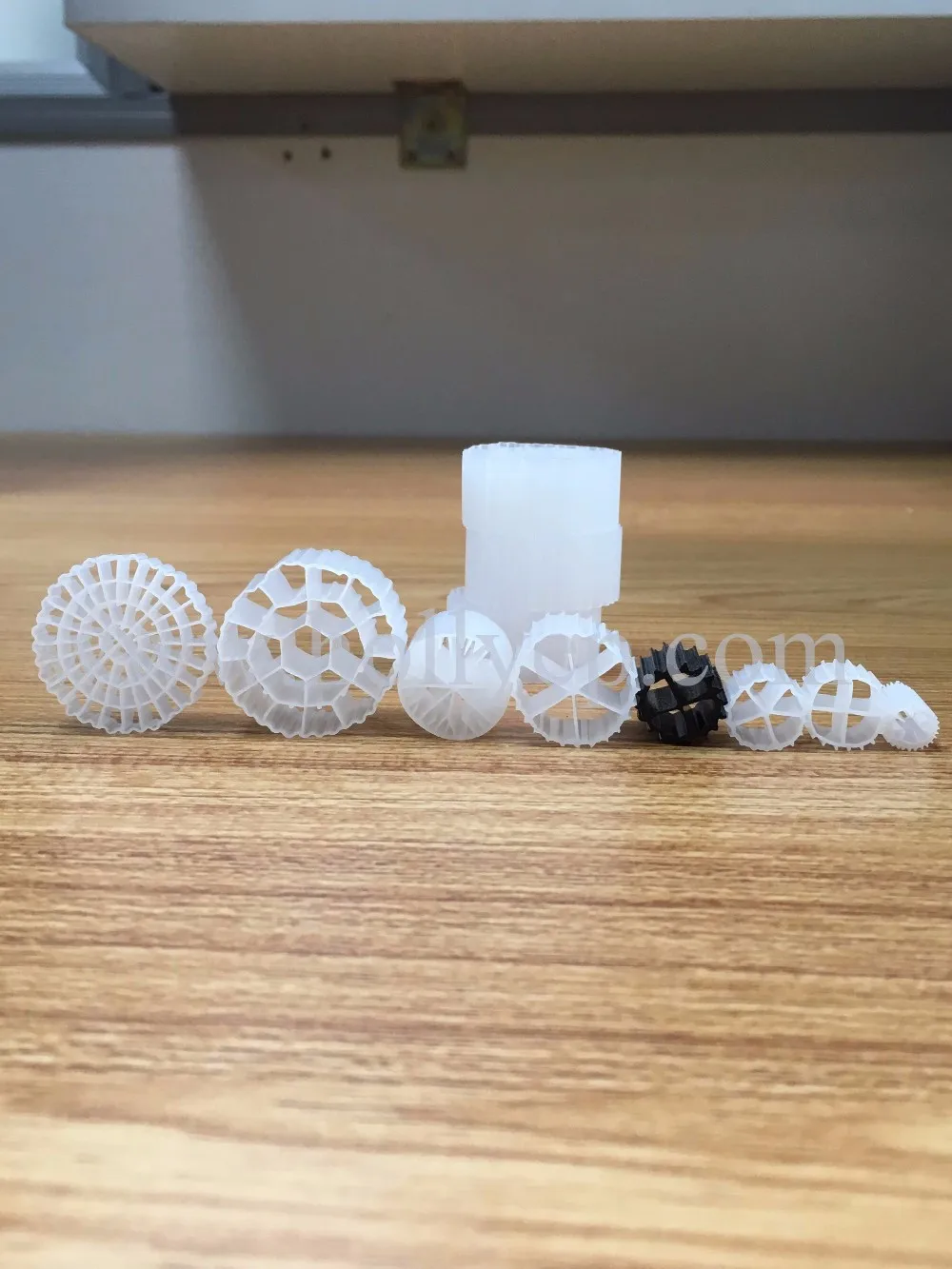

Products Display
Packing
The best quality depends on the imported raw materials and excellent production teams.
Related Products
Certificate
About Us
Yixing Holly Technology Co., Ltd
Yixing Holly Technology Co., Ltd is located in Yixing, Jiangsu Province, China. Established in 2007, Holly Technology is a domestic forerunner in producing environmental equipments and parts used for sewage treatment.
Nowadays, our company has developed into a comprehensive enterprise integrating production, trading, design and installation service of sewage treatment equipments.
