Product Description

Gongyi XiaoYi LiCheng Machinery is always consistent with national development trend, and are committing to the research and development  of new energy pure electric car, electric tricycle, electric four wheels car, electric mini dumper.At present, all of our products have been widely used in different fileds, like construction, metallurgical, chemical, machinery, ore and coal mine,etc.The electric products are driven by electric power, which are the ideal transportation tools for brick factory, refractory materials factory, mine, ore area, flour mill, steel-making plant, mining plants, sanitation and cleaning, etc, New Energy electric tricycle is the necessary products of materials' transportation.


Technical Specifications

\t
Model
\t
LCM155
\t
Battery Qty. PCS)
\t
4
\t
Loading Capacity(KGS)
\t
1000
\t
Each Battery Capacity(Ah)
\t
168
\t
Weight(KGS)
\t
520
\t
Each Battery Voltage(V)
\t
12
\t
Voltage (V)
\t
48V
\t
Lifting Motor Power(W)
\t
1000
\t
Battery Model
\t
6DGA-12V-168
\t
Operating Speed(KM/H)
\t
15-20
\t
Driving Motor Power (W)
\t
1000
\t
Gradeability(Degree)
\t
25
\t
Box Size(mm)
\t
1500x900x500
\t
First Time Charing Time (H)
\t
12
\t
Overall Size(mm)
\t
2600x900x1200
\t
Charging Time(H)
\t
8

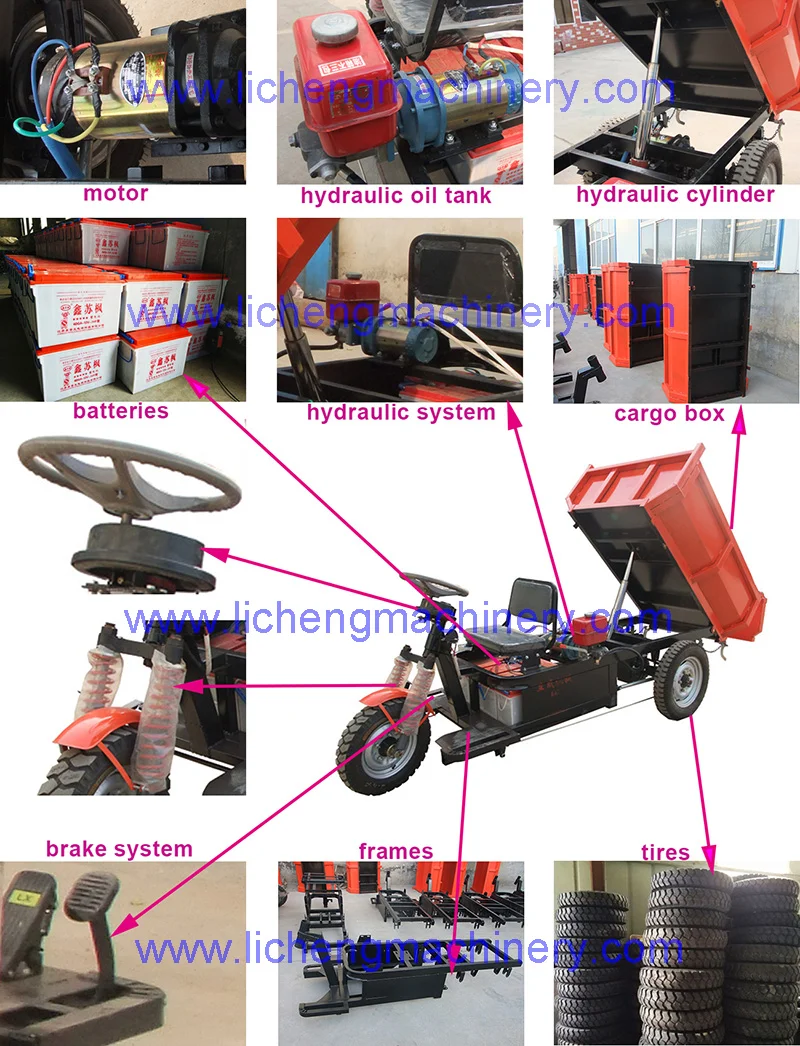

Detailed Images

Lead-Acid Batteries

Powered by a total of 48V battery group, equipped with high-performance traction batteries, the first charging time is 12 hours, then, the charging time is 8 hours each time, can be charged continuously, normally working time is 10-12 hours, The operating products is 1/4 of the steam transport vehicle.


Battery:capacity:168Ah/48v.

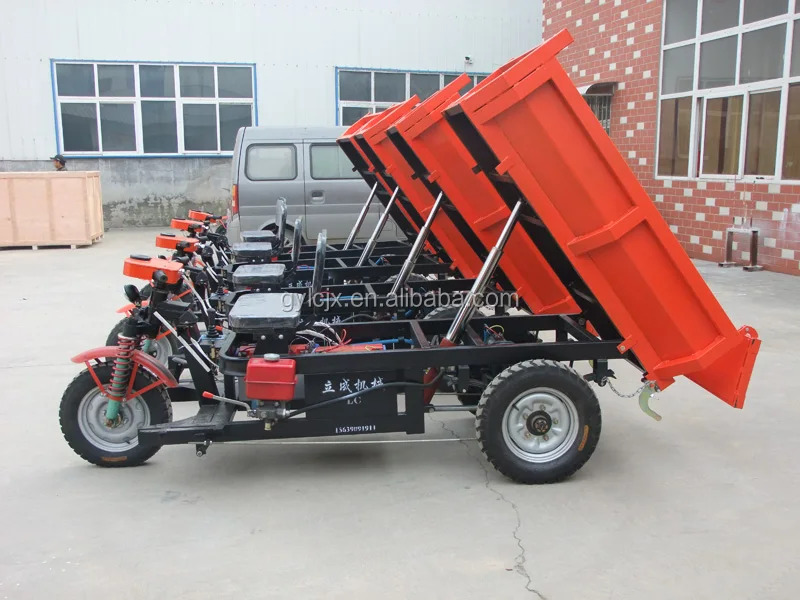

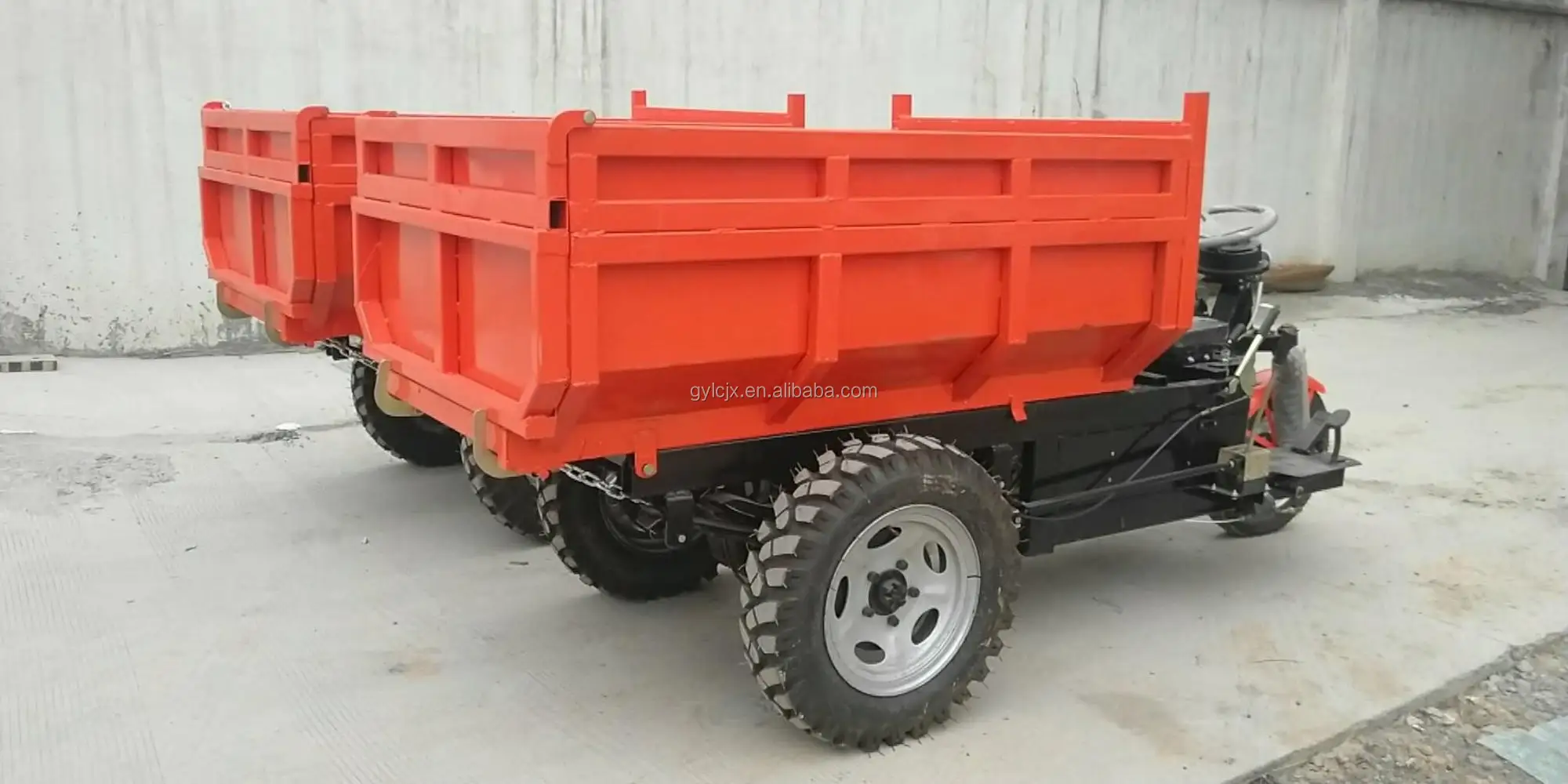

Cargo Box i ( Square Box )


The cargo box has two types, one is square box, the other is U shape box.
The cargo box can be customized according to each client's actual requirements and the goods' shape.
The cargo box has the characteristis of following points:
1. Suitable for regular goods, like bagged cement;
2. Large storing space;
3. The box space can be take full advantages of us

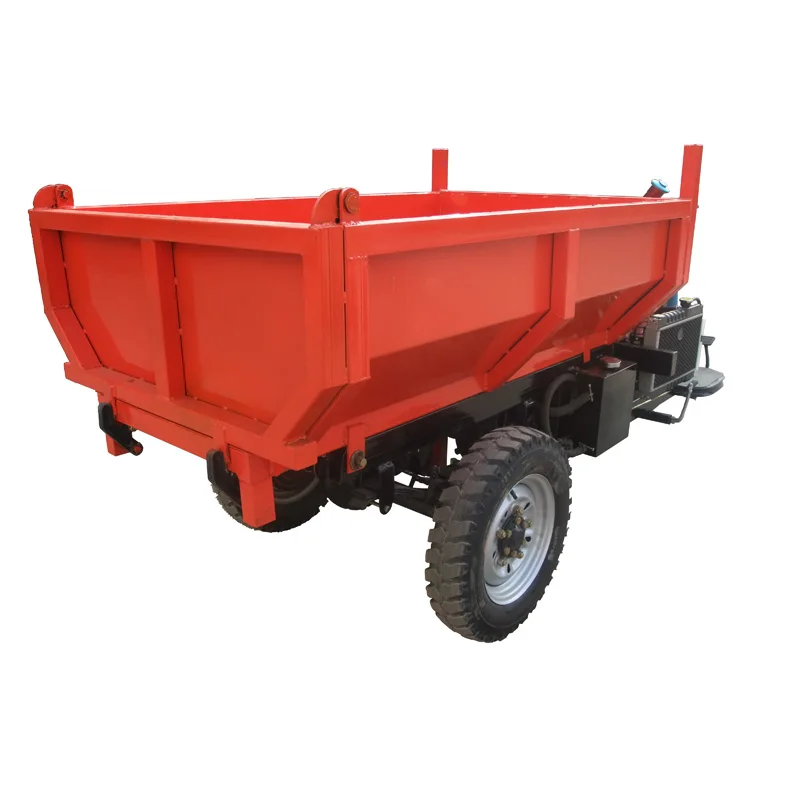

Cargo Box II ( U Shape Box )


The cargo box can be customized according to each client's actual requirements and the goods' shape.

The cargo box has the characteristis of following points:
1. Suitable for irregular goods, like cement, sand,stone;
2. Small storing space;
3. Easy to load and unload.

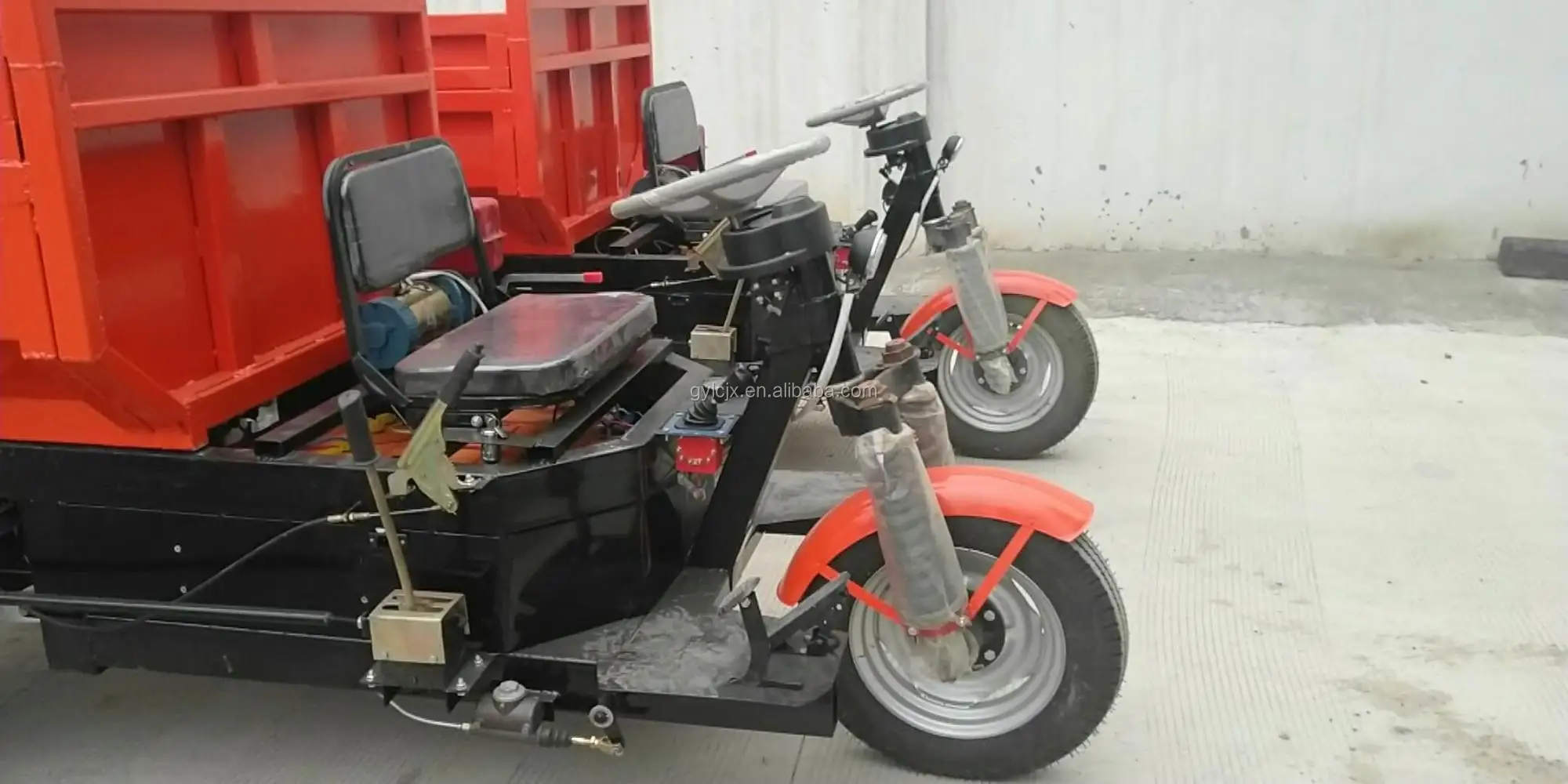

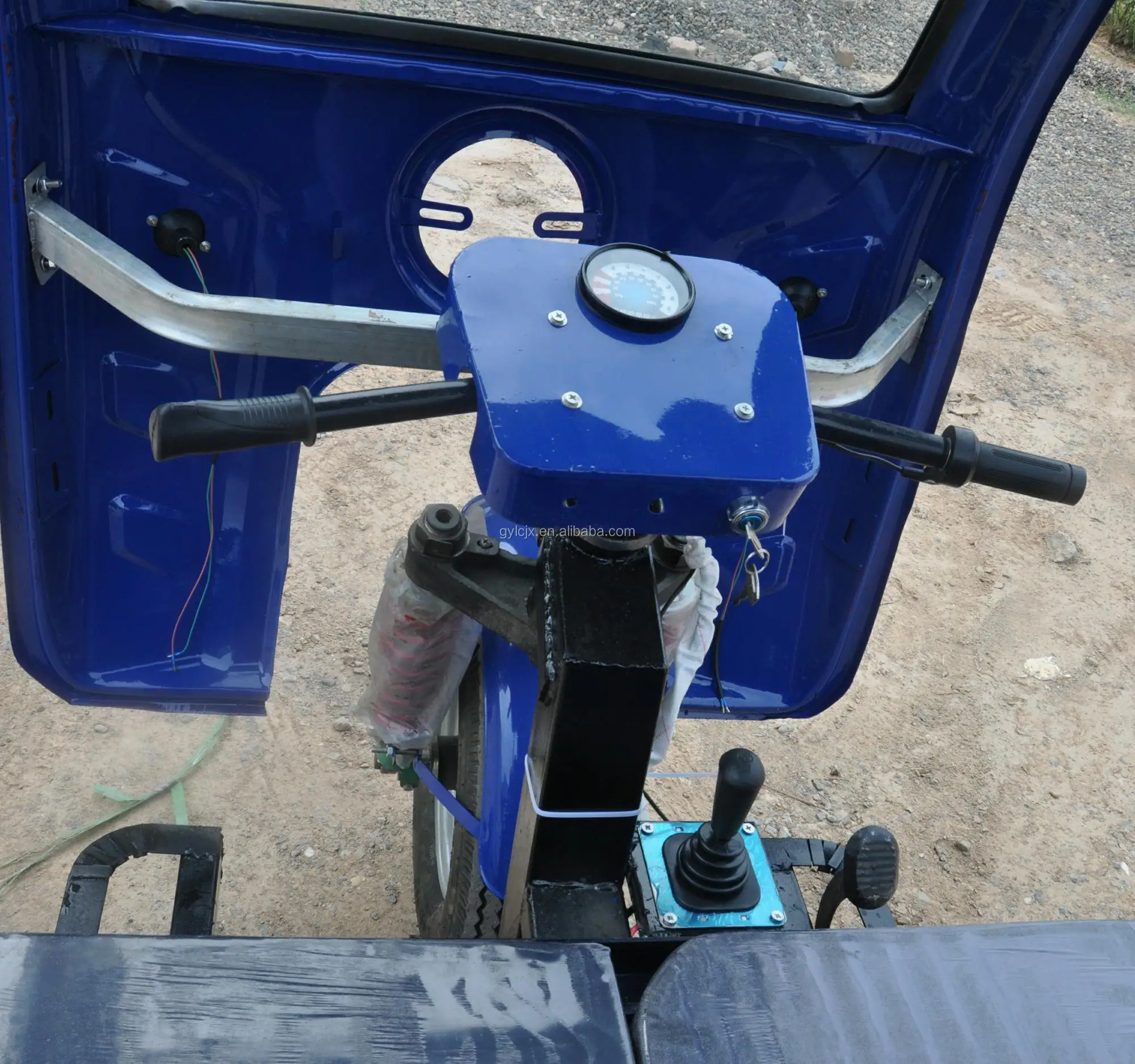

Handle Type Steering Device

                                                   The steering device is optional

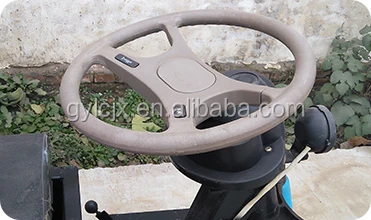

Steering Wheel Steering Device

according to each client's actual requirements

 Front Tire 400-12

Front tire 400-12, Rear tire 450-14, thicker off-road tires,very

Rear Tire: 450-14

suitable for driving on the rough and mountain road

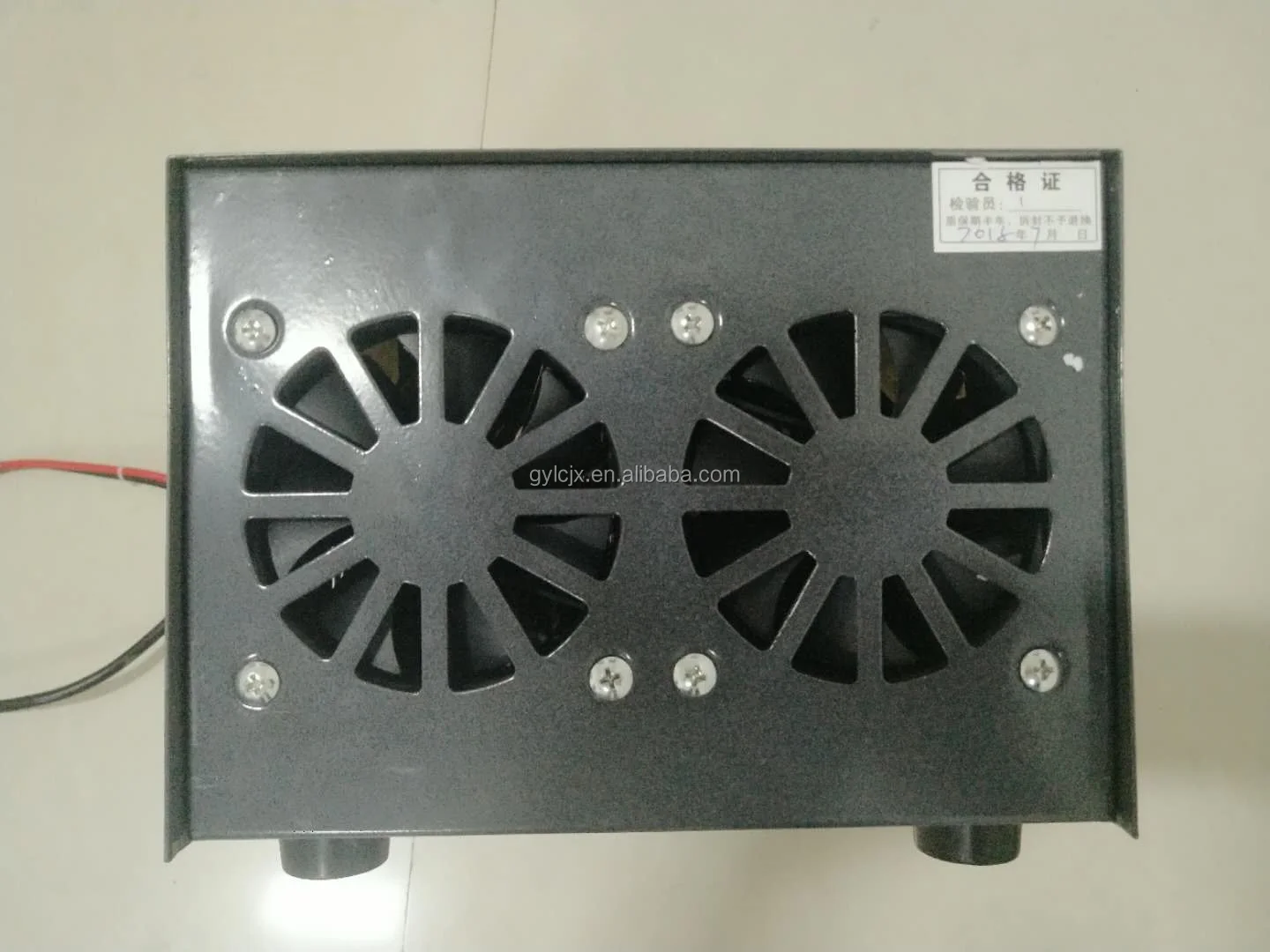

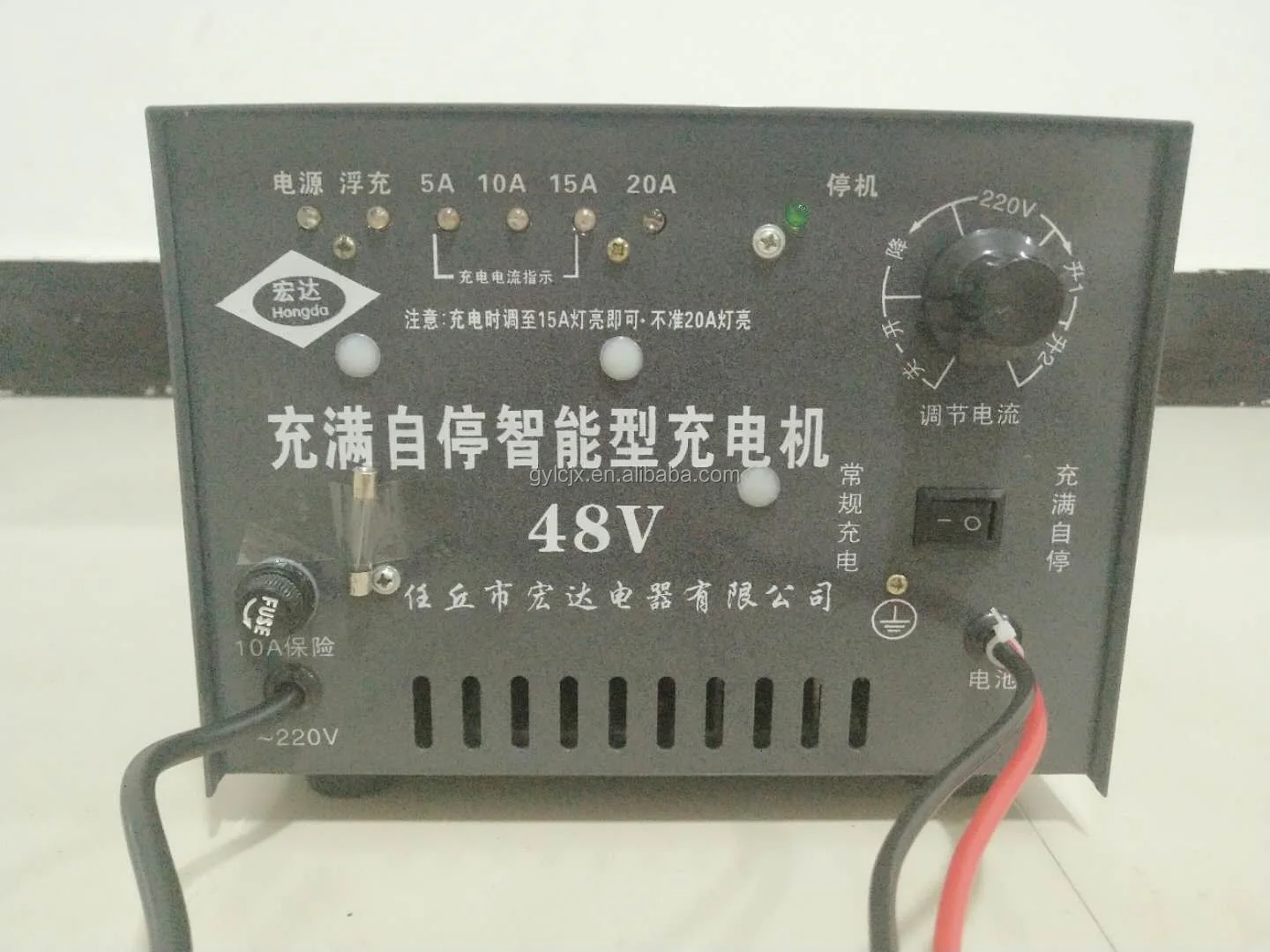

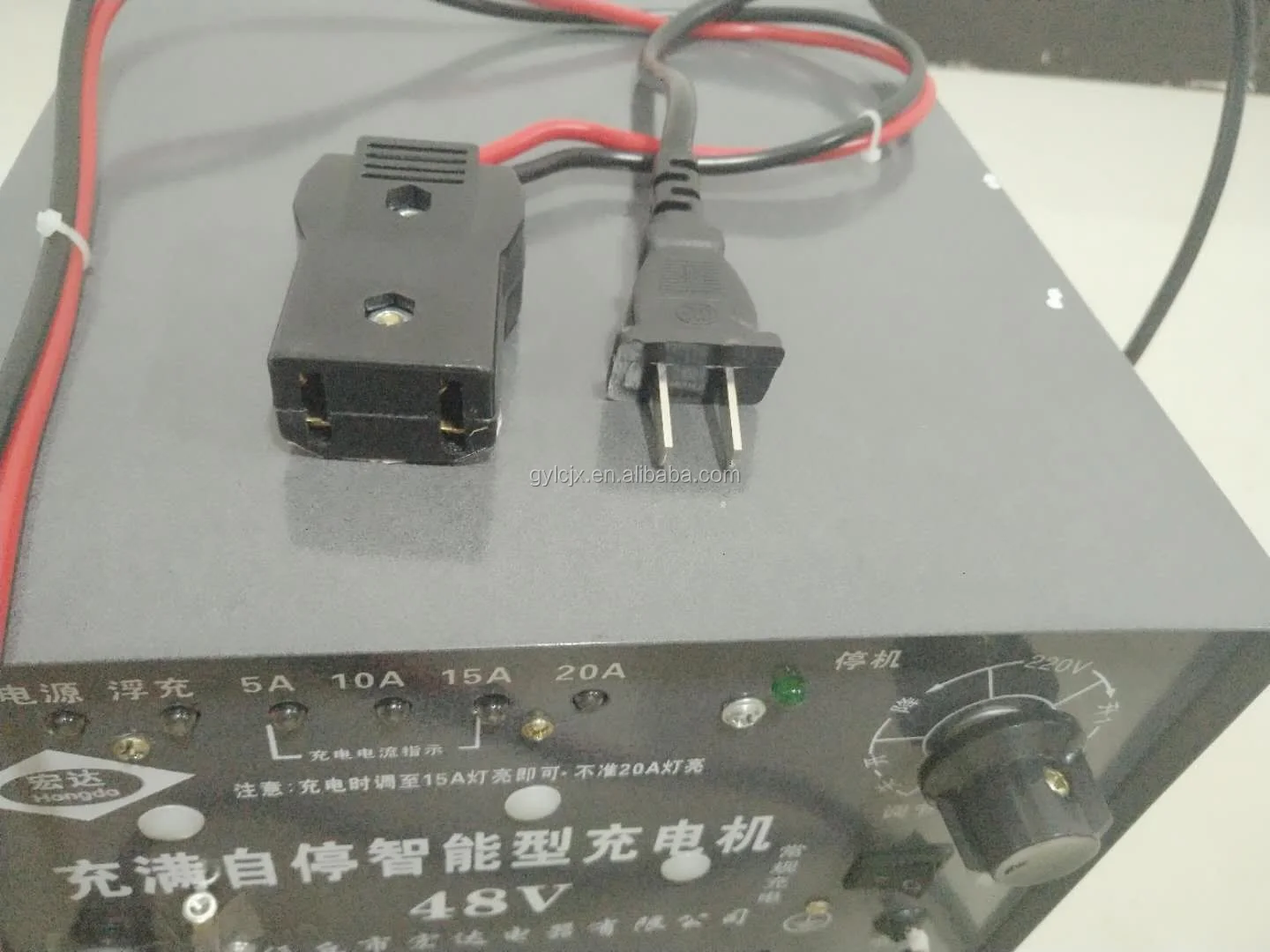

Battery Quick Charger

The charger can use the civil electricity 110v or 220v to charge directly. Charger jack is Chinese two pin plug, it can be customized the standard US or European plug.

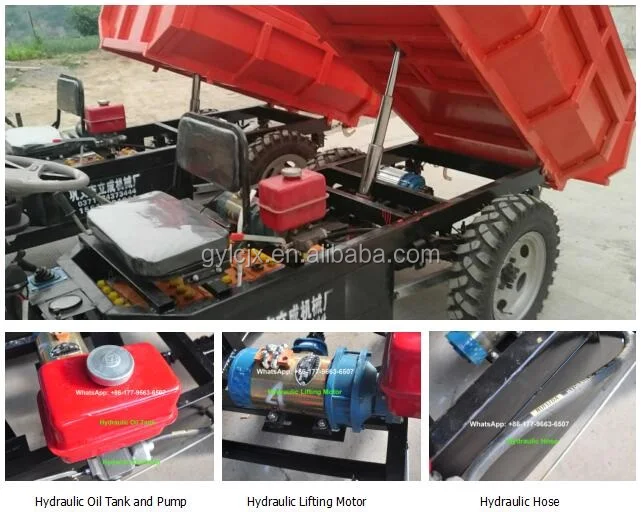

Hydraulic Control and Lifting System

The whole hydraulic controlling and lifting system consists of hydraulic oil tank, hydraulic motor, hydraulic pump, hydraulic hose, hydraulic cylinder, which can make the hydraulic cylinder lift up and down to achieve the automatic dumping(self-loading).

Driving System and Operating System

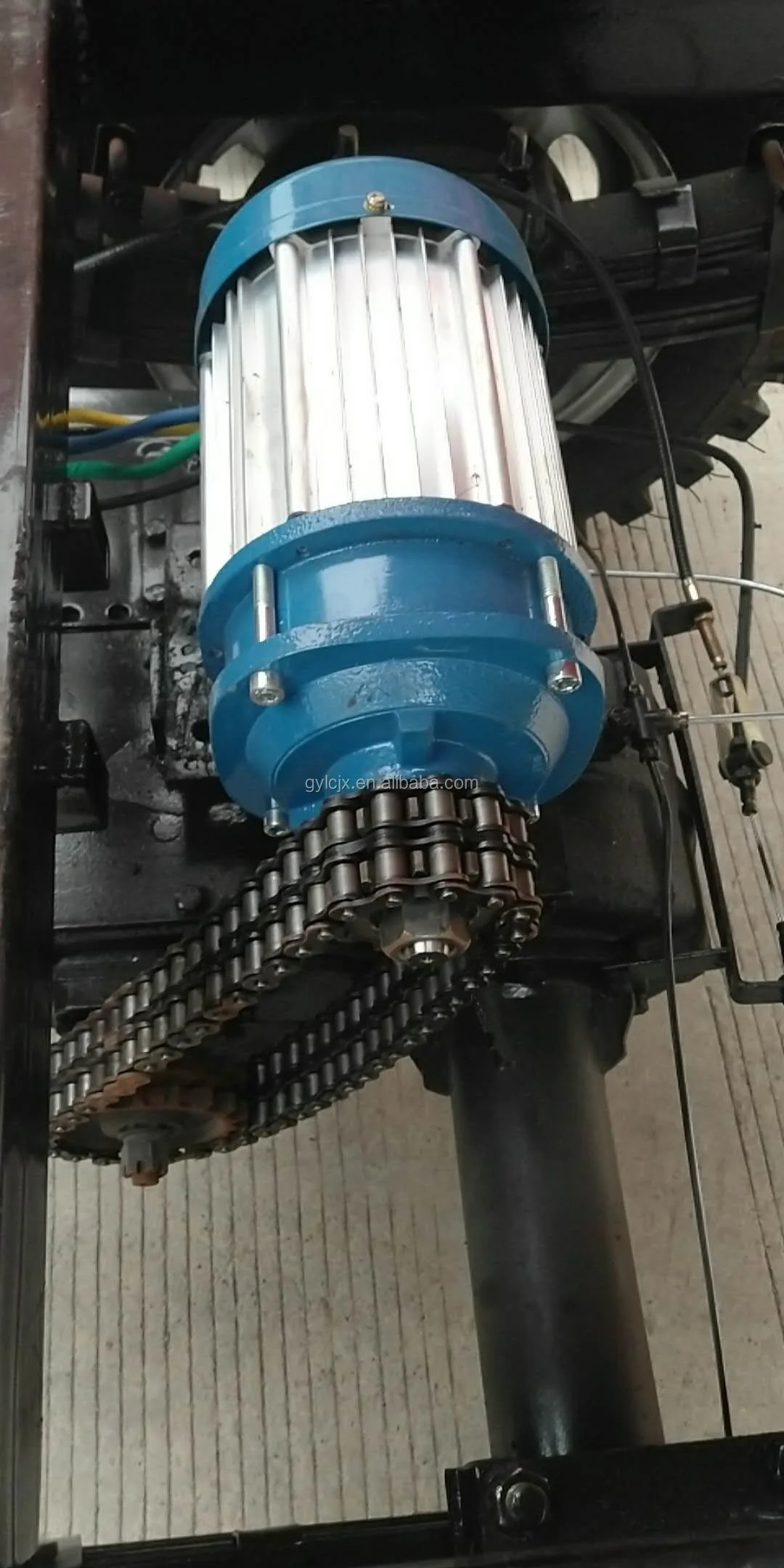

Driving Motor

Low speed high torque motor, the maximum speed is 25km/hr, so driving very steady, very suit driving on bumpy, potholed, sloping road.

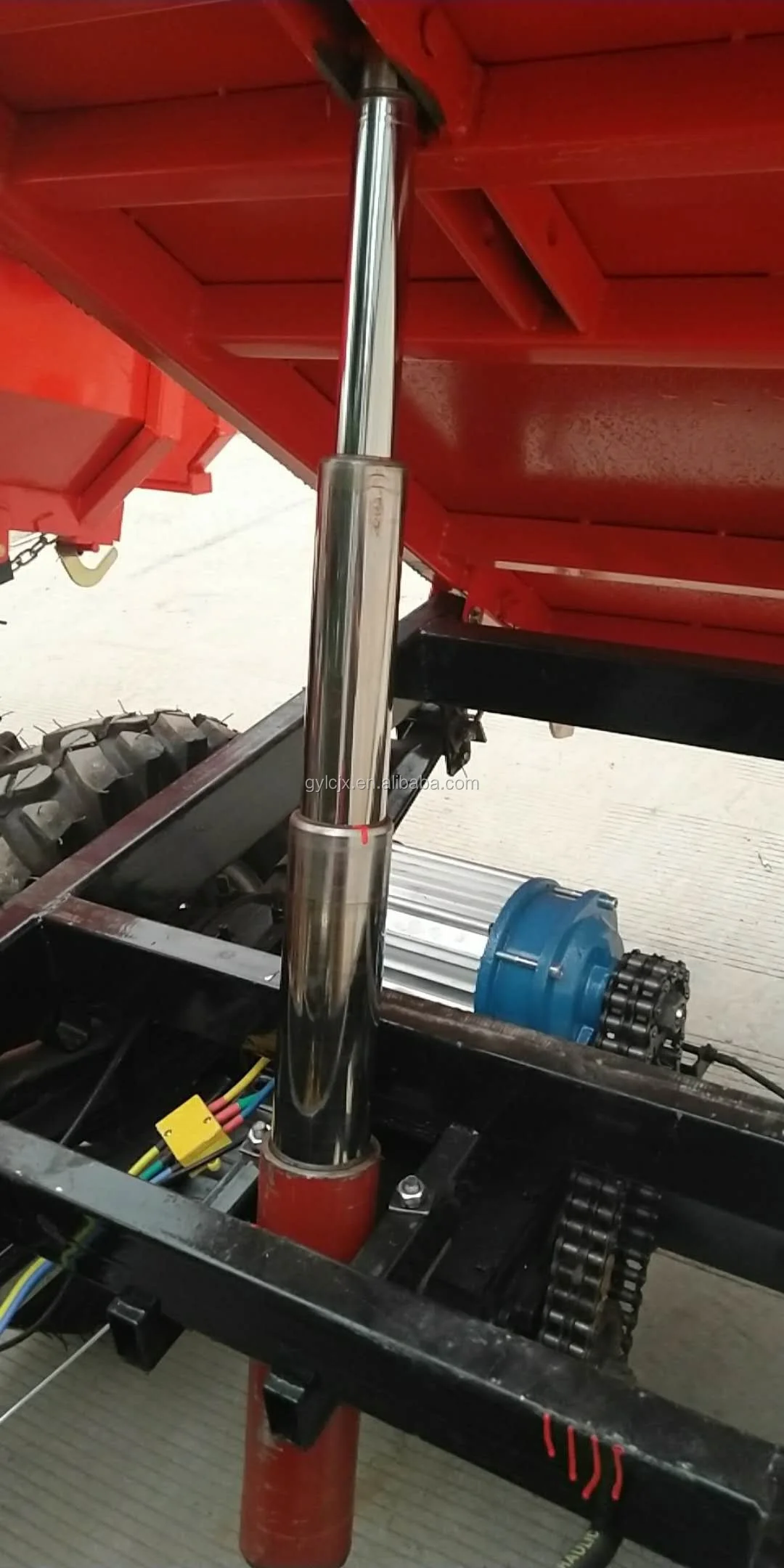

3 Section Hydraulic Cylinder

Maximum lifting height can reach 45
degree.

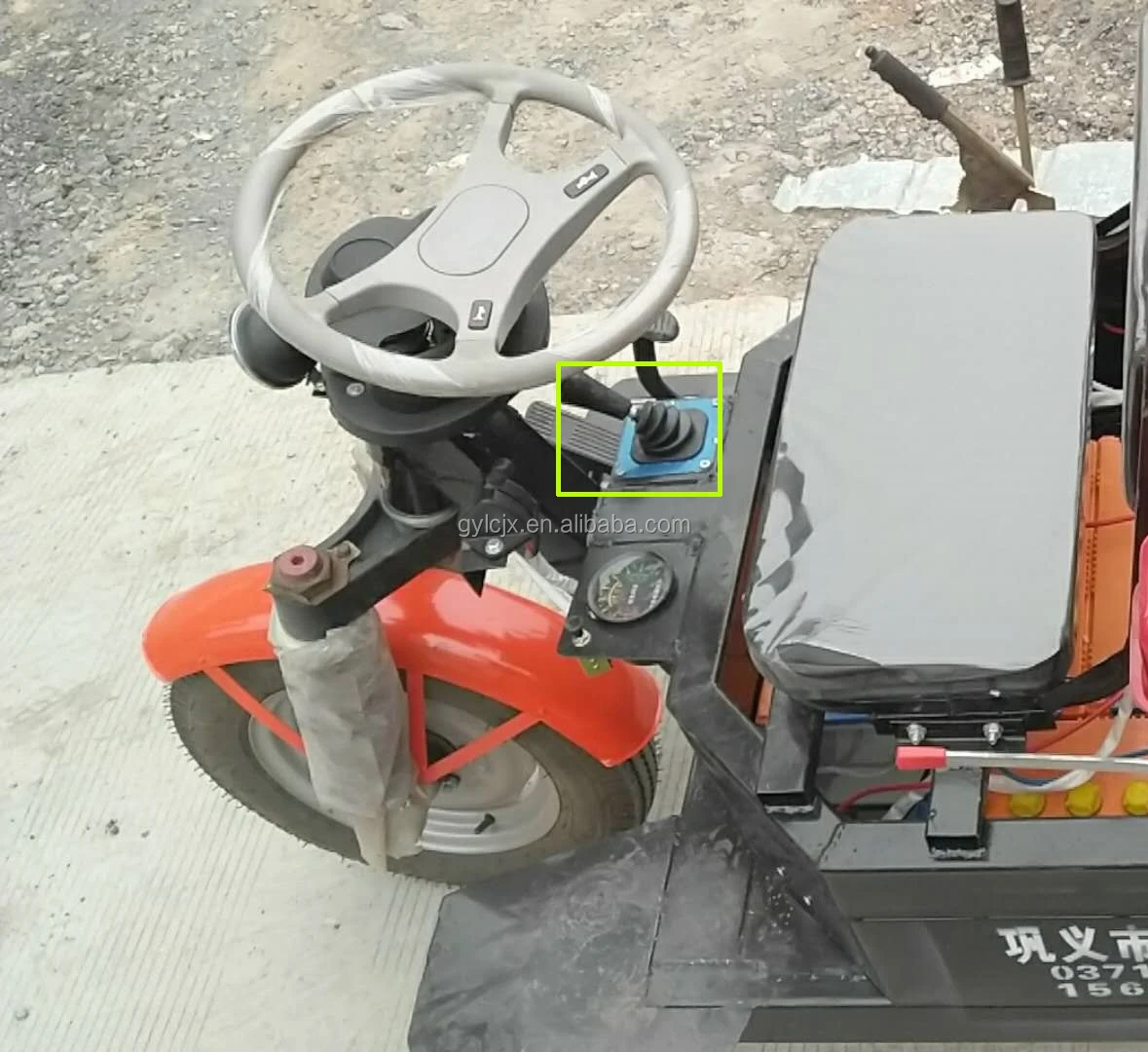

Forward or Backwards control Handle ( see circled part )

The handle can make the tricycle forward and backward while driving.
Packing & Delivery

1. LCL : Usually the exported goods will be packed in wooden case if the quantity could not load one full container;

2. FCL : Assuming the purchasing quantity is large, we will adopt the full container;

3. Before loading the container, all the goods must be processed by water-proof and moisture proof.

4. If needed, the packaging method could be customized as per each client's actual requirements.

Certifications
FAQ

Before requesting for official quotation and much more detailed information about this products, please kindly clarify the following information:


1. Which model do you want ? ( electric, diesel, gasoline );

2. Where will the tricycle dumper be used ? ( cargo transport on the ROAD, cargo transport in the Factory or used in the mine ( ore, coal, etc );
3. What is the characteristics of raw materials to be transported ? ( powder, block, etc);
4. What is the loading capacity ? ( 1 Ton, 2 Ton or 3 Ton )
5. Other requirments ?
Our Service


1. Offer FREE spare parts with your order.OEM Manufacturing welcome: Product, Package...
2. Professional technical team provide 24 hours services of various product questions for your and your end-user customers.
3. According to your local market, customized solution & marketing plan for you expand your local market
4. Provide training service online and offline
5. Powerful R&D teams to satisfy customized demand,eg.: style, color, steering-wheel position etc
6. Show process of your order by photo, video, whatsApp or Email in every 2 ~ 3 days

7. After delivery, we will track the products for you once every two days, until you get the products. When you got the

     goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
     the solve way for you.
