Fused silica quartz ceramic roller for float glass production line



1. Discription of Fused silica quartz ceramic roller for float glass production line

The Fused silica quartz ceramic roller for float glass production line is composed of ceramic body, bearing, shaft and plastic labyrinth seal ring. The Fused silica quartz ceramic roller for float glass production line is a key component used for carrying and transmitting glass in horizontal glass tempering furnace and  horizontal glass tempering furnace. The Fused silica quartz ceramic roller for float glass production line adopts high purity fused quartz as raw material so it has high volume density, high strength, low thermal expansion, good thermal shock stability, high dimensional accuracy, no deformation at high temperature, long service life and no pollution to glass.

1. The roller surface is smooth, delicate, with small radial runout, and the machining accuracy is better than the similar imported products, with no scratches on the glass

2. Anti-loose steel head has the roller get longer service life

3. The roller body is moulded by innovative slip casting technology, with the features of high density, high strength, high temperature non-deformation, wear resistance and
long service life.



4. High economic efficiency can reduce the comprehensive cost of belt conveyor and reduce maintenance time.



2. Technical data of Fused silica quartz ceramic roller for float glass production line



Item	Data
Fused silica	≥99.8%
Bulk density (g/cm3)	>1.95
Apparent porosity (%)	7-11
Compression strength (MPa)	≥60
Transverse strength (MPa)	≥30
Expansion cofficient (10-6/℃)	<0.6
Surface Roughness (um)	≤1.6
Radial Beat (mm)	≤0.15

3. Advantages of Fused silica quartz ceramic roller for float glass production line

High precision

Light weight, low radial runout, high accuracy, greatly reducing the running resistance coefficient and the moment of inertia



Stable performance

It can improve the running stability of main engine and reduce the slipping of material

Service life

It is very wear-resistant and the service life of the tape can be extended by more than 2-3 times



Safety performance

It can reduce various accident hidden dangers,improving safety performance

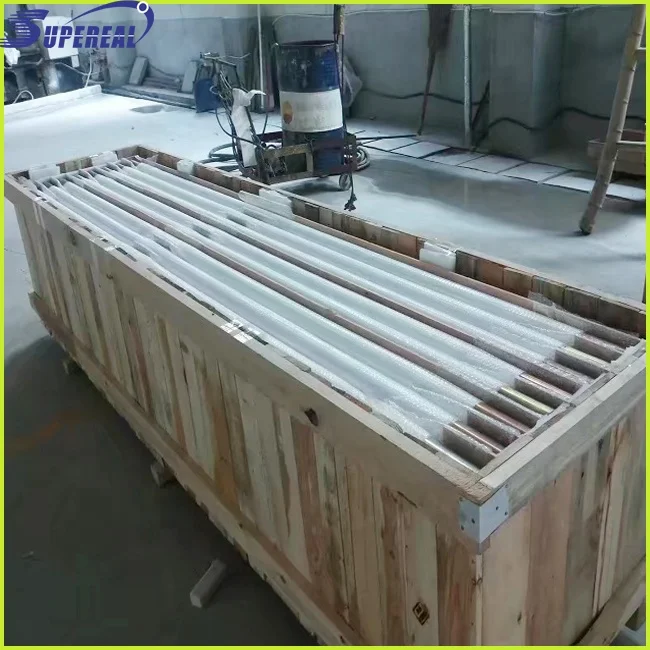

4. Package of Fused silica quartz ceramic roller for float glass production line



5. Company introduction

Zibo Supereal Industrial Co., Ltd, located in Zhangdian Economic Development Zone in Zibo city is focusing on high alumina ceramic products, here you can realize an one-stop shopping for complete wear and erosion protection solutions in wide range of industries including Power Sector, Mining, Cement, Metallurgy, Coal Washing, Steel& Iron Plant, Railway, Port and so on.

Along with the business development and the strong support of factory, we have just introduced and added fused silica quartz ceramic roller for tempering flat glass as our major sales products too.

Our company has a rigorous quality control system to guarantee stable performance and proven quality, our professional inspection team will carry out full course tracking from raw material selection, batching, production process management to semi and finished products test. Based on the strict adherence to ISO9001-2008 or Industry Standard or other International Standard, our products have been approved and accepted by clients and users from Vietnam, South Korea, India, Russia, Italy, Poland, USA and etc.

Besides the superior quality, Zibo Supereal Industrial Co., Ltd also earned a good reputation for fast deliveries, competitive pricing and outstanding customer service.

 6.  Contact information

Contact us for more about Fused silica quartz ceramic roller for float glass production line !
