Портативный подкожный тестер желтуха/подкожный измеритель

Rechargebale Neonatal percutaneous bilirubin Light Jaundice Tester price, Portable Pediatric Jaundice meter Detect

MSLJM06 percutaneous jaundice meter is used for dynamic monitoring of neonatal jaundice and screening for hyperbilirubinemia. In addition to being non-invasive, safe, and convenient, the instrument performs ultraviolet light treatment on the strong light emitted from the internal xenon arc lamp so that the fiber that is injected into the skin of the baby's forehead does not contain ultraviolet rays, thus avoiding damage to the skin caused by ultraviolet rays. This is unmatched by similar products.

Principle of Rechargebale Neonatal percutaneous bilirubin Light Jaundice Tester price, Portable Pediatric Jaundice meter Detect

MSLJM06 Percutaneous Epidemiology uses a difference in the absorption of blue light (460 nm) and green light (550 nm) in the skin tissue to detect bilirubin concentration in the skin tissue of newborn infants.

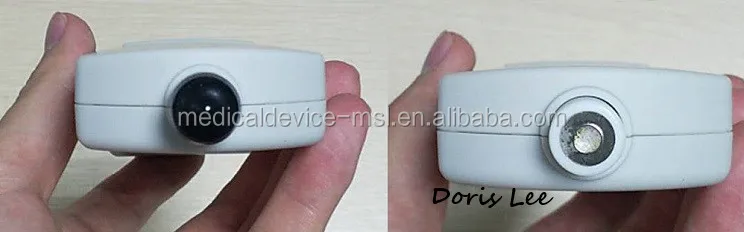

After the probe is placed on the baby's forehead and activated, the light emitted by the xenon arc lamp is guided to the skin surface via the optical fiber of the outer ring of the probe, and is directly under the skin. The light waves on the skin are repeatedly scattered and absorbed, eventually returning to the optical fiber of the inner ring of the probe and transmitting it to the corresponding photodiode. By calculating the optical density differences of the two light waves of 460 mm and 550 nm, the measured value (also called transcutaneous value) of the percutaneous jaundice meter was obtained.

Clinical trials have shown that there is a good linear correlation between transcutaneous values and neonatal serum bilirubin concentrations, that is, a certain transdermal value corresponds to a certain concentration of serum bilirubin. Therefore, according to the size and change of the transcutaneous value can determine the size and changes of serum bilirubin concentration, in particular, can accurately reflect the changes in serum bilirubin concentration, so as to effectively monitor neonatal jaundice.

Specification of Rechargebale Neonatal percutaneous bilirubin Light Jaundice Tester price, Portable Pediatric Jaundice meter Detect

Detection method: Comparison of blue and green light

Display method: LCD display

Indication error: 00-15± 1   16-25 ±1.5

Light source:xenon flash

Power Supply: Ni-MH Battery Rechargeable Battery Pack

Approximately 1000 times per full power detection

Weight (g): about 168g (including battery pack)

Size (mm): 154 (length) × 55 (width) × 28 (thickness)

Charger: Input 200v 50Hz 3w

Output 4.8V 05A DC

Verification plate: display 00.0 or 00.1 for white color screen

20.0 persons 1 displayed on a yellow screen

I. use of the environment

Temperature range: 10-30°C

Relative range: ≤80%

Atmospheric pressure range: 75kPa-106kPa

II. MSLJM06 percutaneous jaundice product structure composition and function of various parts

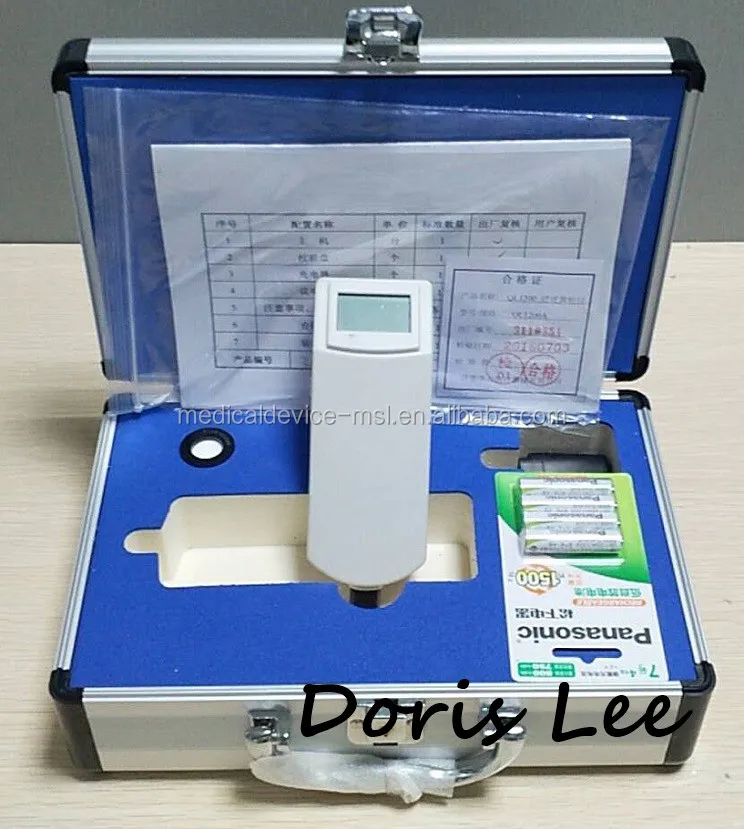

The MSLJM06percutaneous jaundice meter (hereinafter referred to as the jaundice meter) is composed of a host computer, a verification disk, and a charger.
