Product Description

Our factory produces three types of barbed wire machines in . They are double strands barbed wire machine, single strand barbed wire machine and double strands reverse and twist barbed wire machine.Barbed wire machine is used to make barbed wire which can be used on the airport, miltary, railway, highway, agriculture, animal husbandry and so on

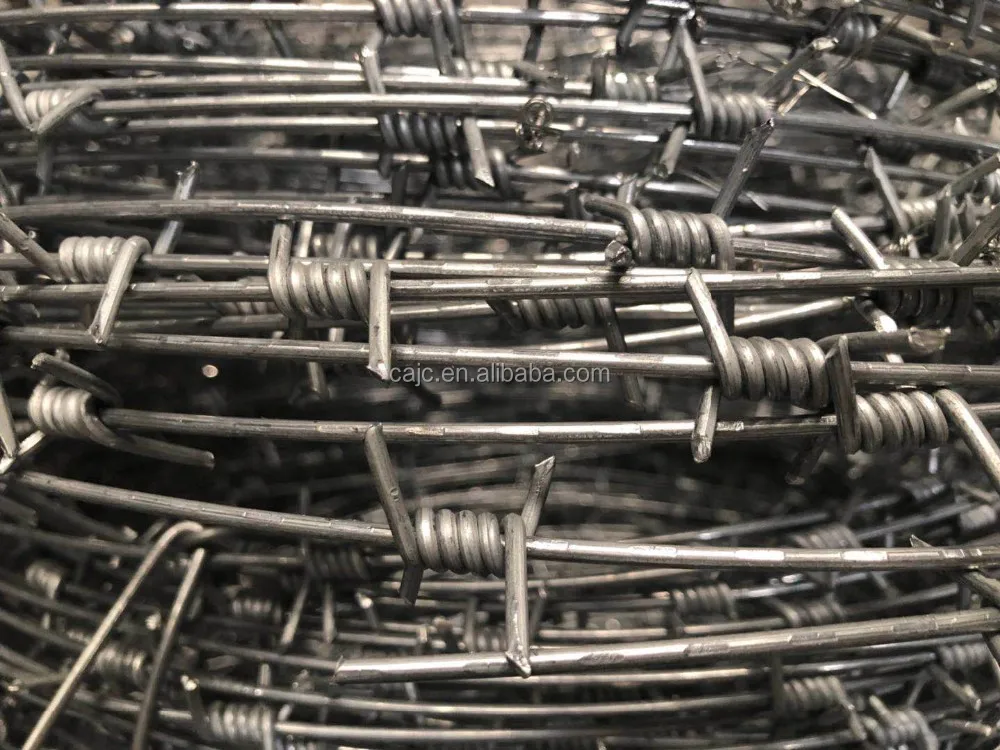

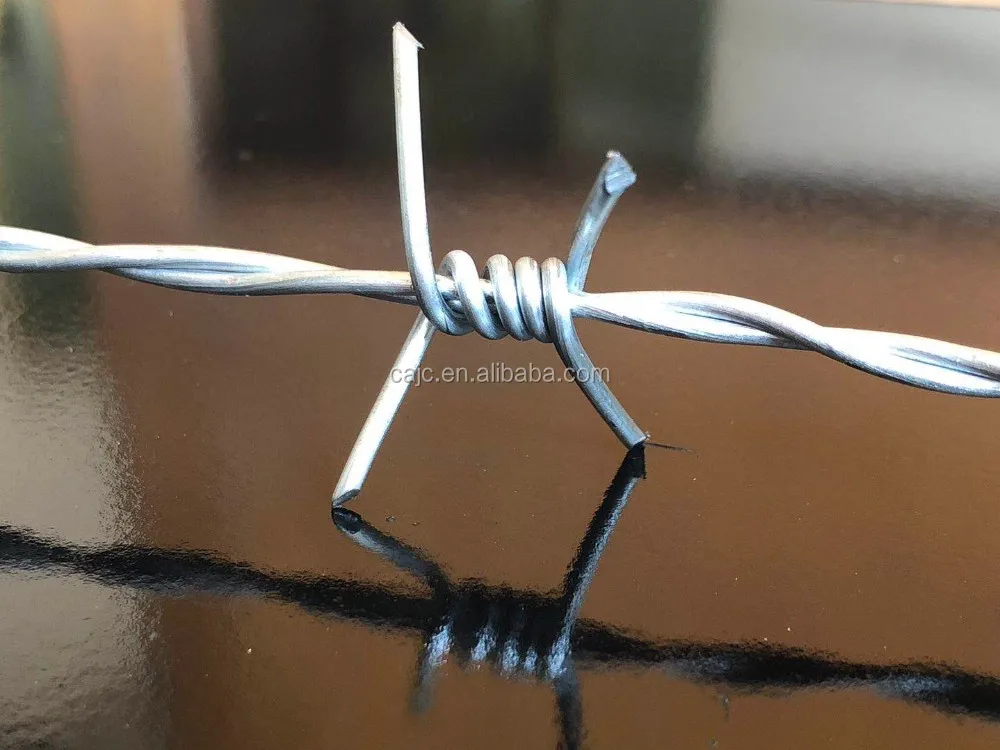

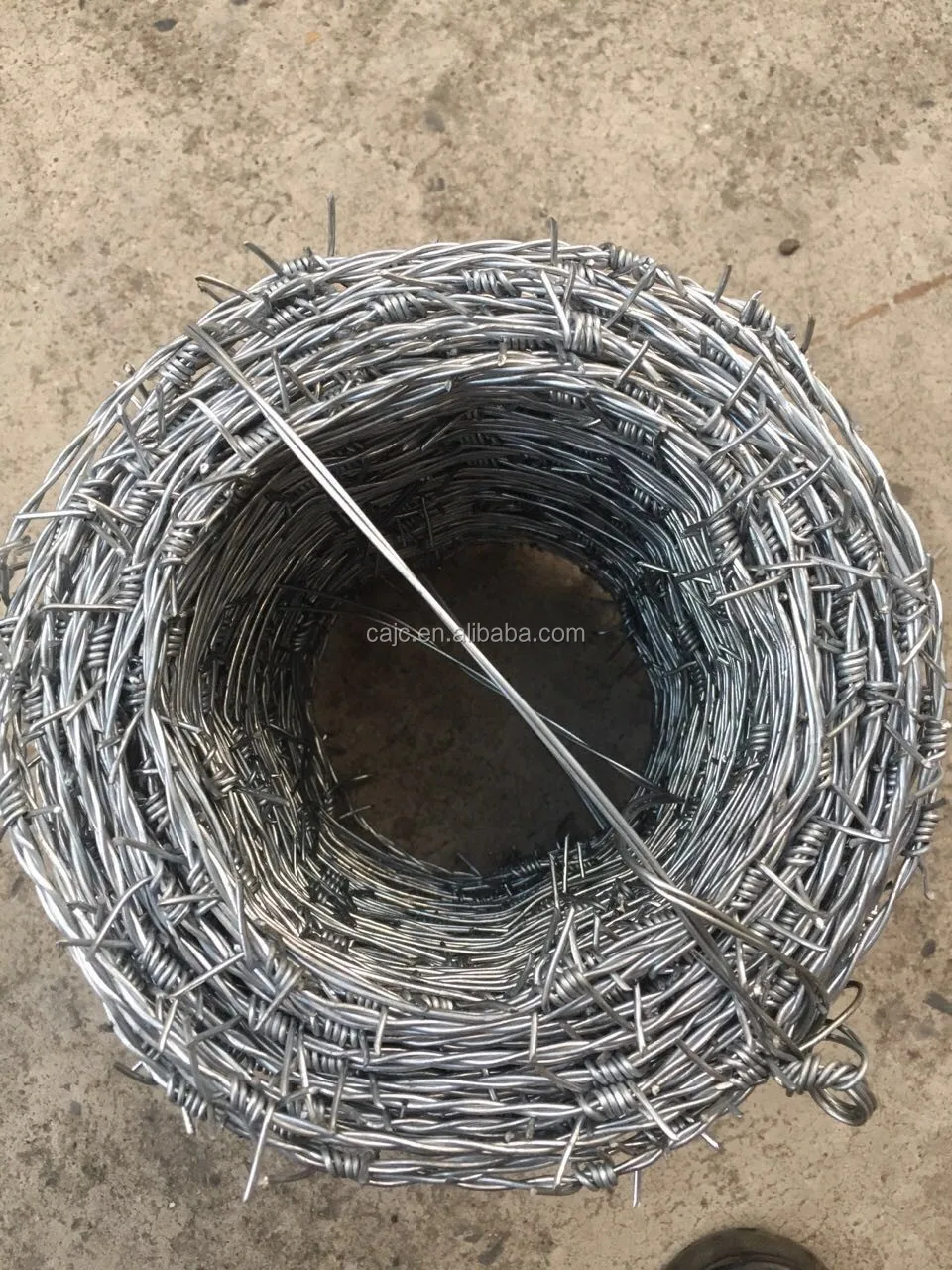

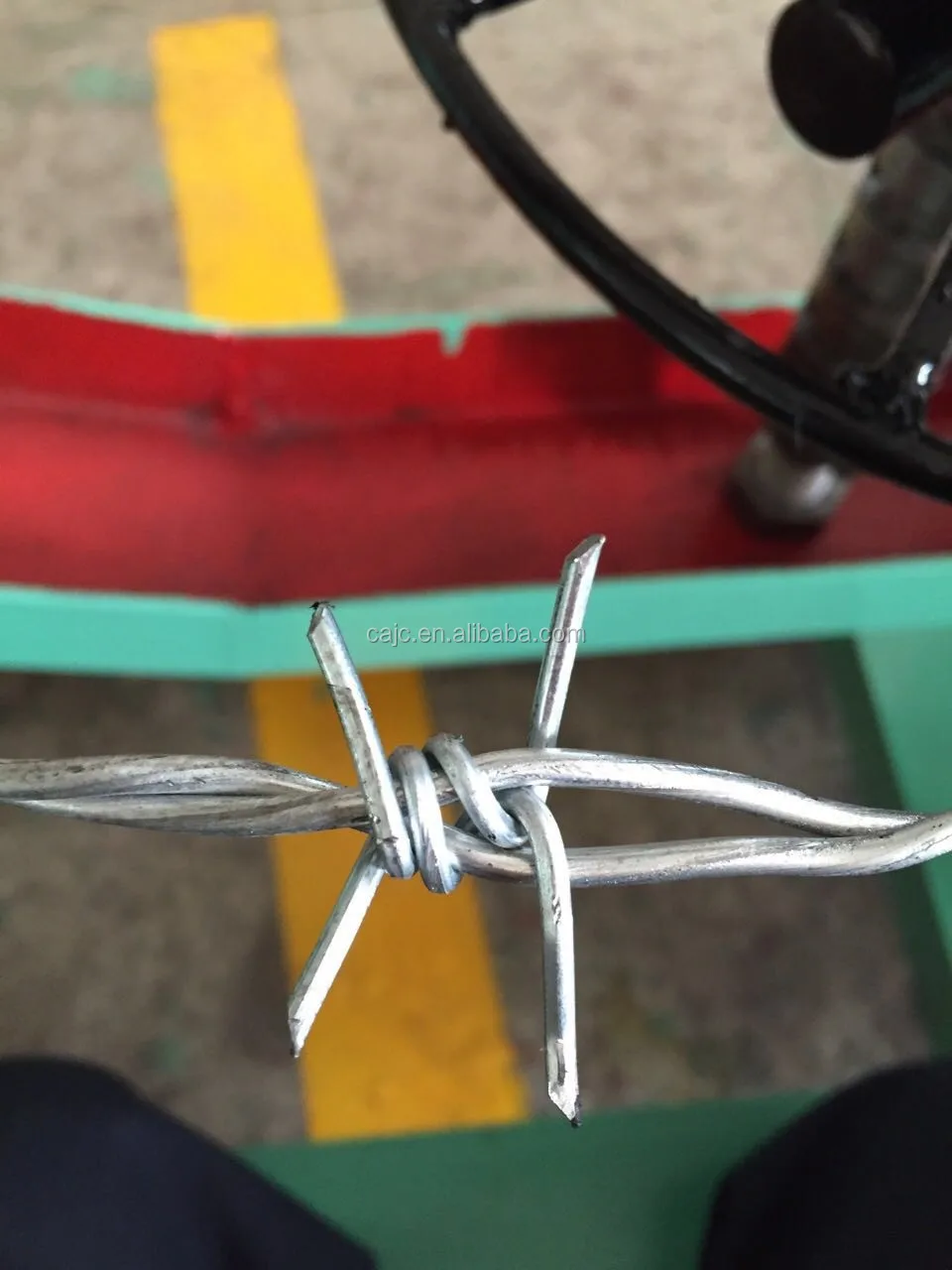

The materials of barbed wire usually hot dipped galvanized wire, electric galvanized wire and PVC coated wire etc
.

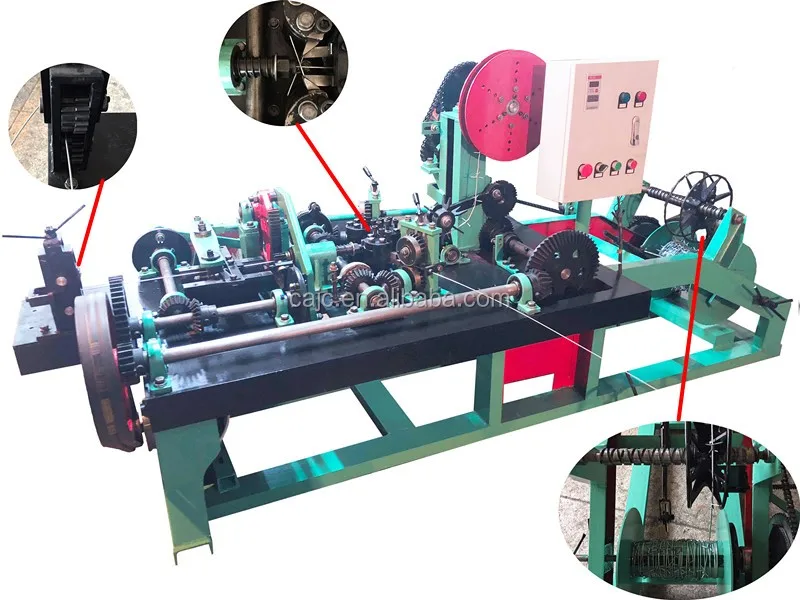

CS-A High Speed Double Twiste Barbed Wire Machine

1.It produces  double-strand barbed steel wire.

2.It is safe to operate and produces high quality products.

\t
Items
\t
Units
\t
Parameters
\t
Motor
\t
kw
\t
3
\t
Main drive shaft speed
\t
r/min
\t
480
\t
wire diameter
\t
mm
\t
1.6-2.8
\t
Barbed wire diameter
\t
mm
\t
1.6-2.3
\t
Barb Space
\t
mm
\t
75-150
\t
Theoretical yield
\t
m/h
\t
680-1400
\t
Total weight
\t
kg
\t
1000
\t
Dimension
\t
mm
\t
Main :2000*1200*1400
Auxiliary:2000*650*800

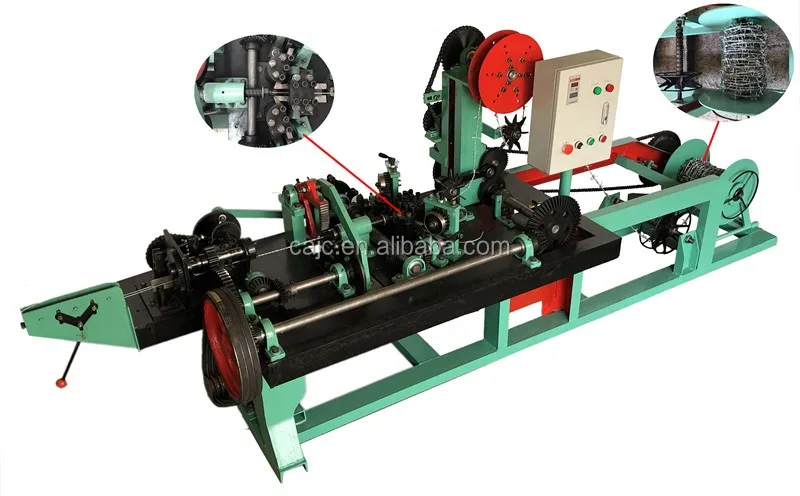

CS-C Reverse Twist Barbed Wire Machine
1.It could produce single strand  barbed wire.
2.This way is easy to operate and install .

\t
Items
\t
Units
\t
Parameters
\t
Motor
\t
kw
\t
3
\t
Main drive shaft speed
\t
r/min
\t
400
\t
wire diameter
\t
mm
\t
2.0-3.2
\t
Barbed wire diameter
\t
mm
\t
1.6-2.4
\t
Barb Space
\t
mm
\t
75-150
\t
Theoretical yield
\t
m/h
\t
450-900
\t
Total weight
\t
kg
\t
800
\t
Dimension
\t
mm
\t
2700*1200*1500

CS-C Reverse Twist Barbed Wire Machine

1.It could produce double strands barbed wire.
2.This way is easy to operate and install .

\t
Items
\t
Units
\t
Parameters
\t
Motor
\t
kw
\t
3
\t
Main drive shaft speed
\t
r/min
\t
400
\t
wire diameter
\t
mm
\t
2.0-3.2
\t
Barbed wire diameter
\t
mm
\t
1.6-2.3
\t
Barb Space
\t
mm
\t
75-150
\t
Theoretical yield
\t
m/h
\t
450-900
\t
Total weight
\t
kg
\t
800
\t
Dimension
\t
mm
\t
2700*1200*1500

Note: Special types can be made according to customer requirements.

Packing & Delivery

Packaging: with wooden pallets, in plastic film or as  customers' requirements.
Shipping: within 15 days after receiving the prepayment .

Our Service

Guarantee and After-sale Service
1.Warranty: 24 Months.

2.Enough spare parts of machine could be supplied.
3.24 hours technical support by e-mail or calling service.
4.All machines were tested and adjusted before delivery.
5.We can send technician to buyer's factory for installation, debugging and training.

FAQ

1.MOQ: One Set.
2.Payment: 30% TT in advance
3. Machine Specifications: could be made as per your requirements.
4.Standard accessory:  4 UNITS/Set
5.All  Barbed Distance: could be adjustable.
