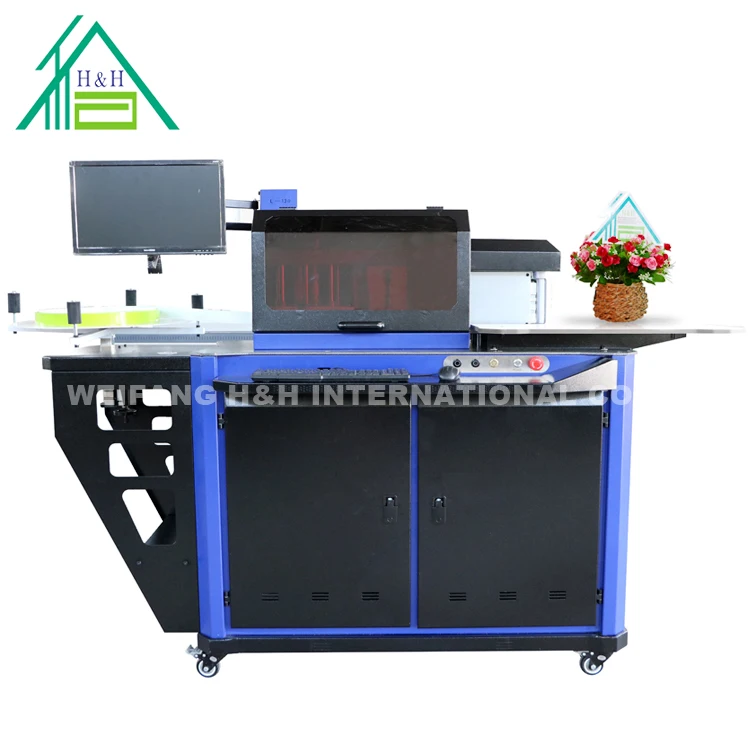

Алюминиевый гибочный станок для букв/инструмент изгиба букв/машина букв 3D

Описание и отзывы

Характеристики

Product Description

Technical Date:

Working Principle	High accuracy auto feeding, auto straightening, auto cutting, auto bending
Model	HH-AN130
Application Materials	Flat  aluminum,edge aluminum,rectangle/triangle aluminum,super aluminum,All kinds of aluminum materials
Slot Degree	45-135 Degree(no limit for flat materials)
Bending radius	≥3.5mm
Material Width	≤130mm
Material Thickness	0.3-1.2mm
Total Power	1000W
File format	dxf, ai,plt
Machine size	2000*900*1550mm
Weight	300KG
voltage	220V
Air pressure	0.3-0.8Mpa

 More details

Main Features

1. Small arc pat bending, more accurate for small letters;for large arc extrusion bending, more faster for big letters.no damage to the material,high arc molding accuracy.

2.Material width maximum 130mm,easily bend 130mm width,1.2mm aluminum material.
3.Imported side rails positioning cutting, to ensure the cutting stability.
4. With the closed loop selftest system, the device features high measuring precision in the long run , The whole error is less than 0.1mm comparing with the acrylic panel.
5.Curved arc is rebound coefficient intelligent compensation to ensure the accuracy of various materials formig

6.Pressing device development unit,to ensure the stability of the cutting.



Detailed Images

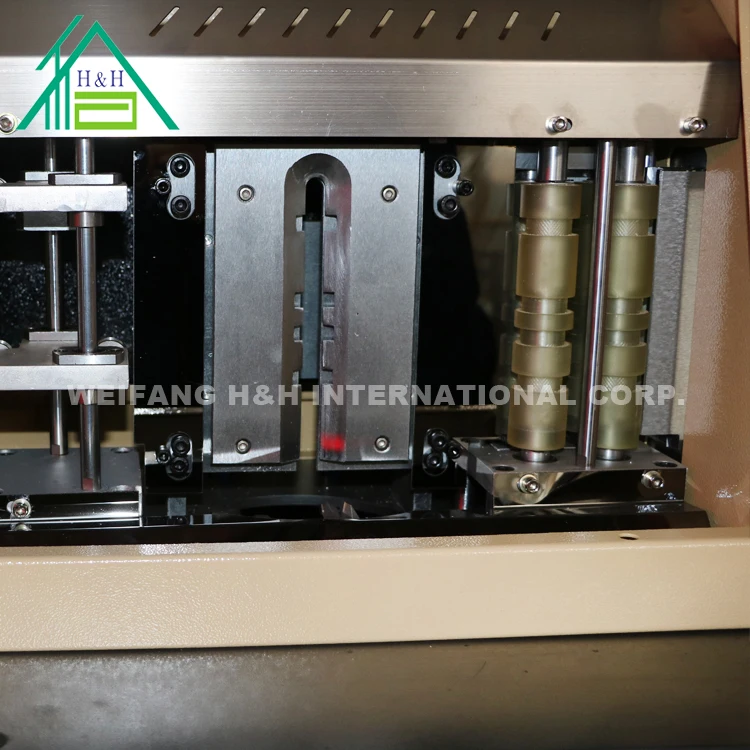

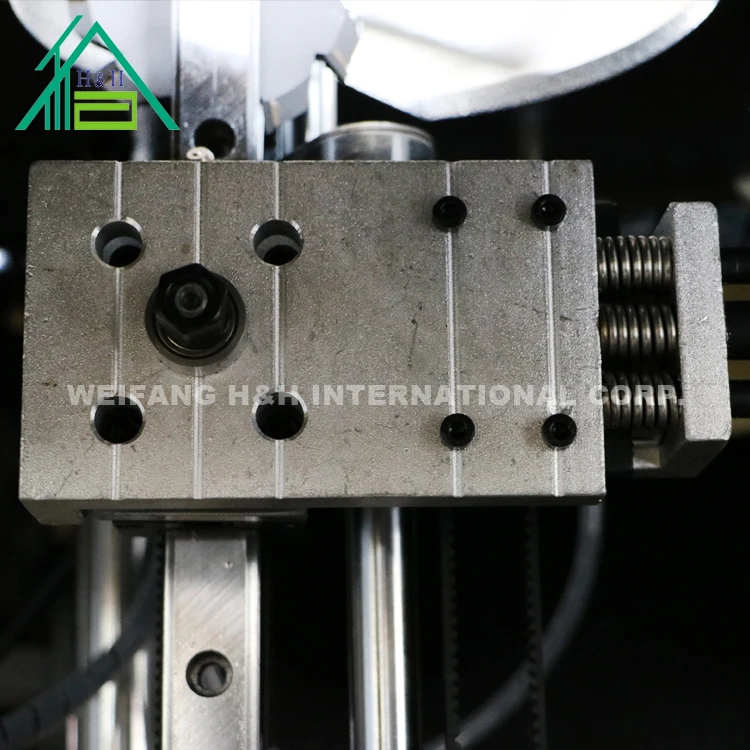

Auto feeding and slotting system

Five axis linkage,side rail positioning slotting.

with the unique closed loop self-test systerm, high measuring precision.

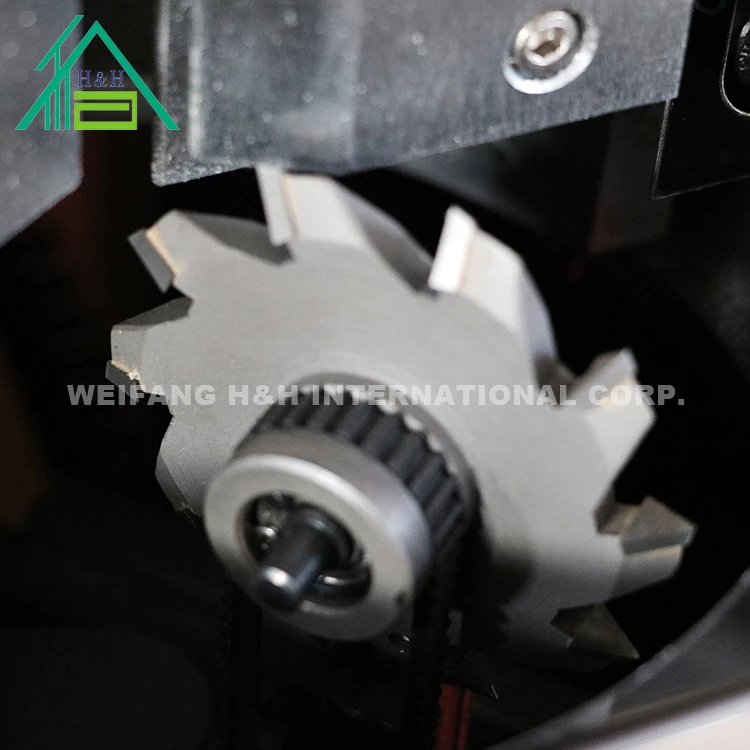

Aluminum milling cutter

High speed and imported side rails position cutting,to insure the cutting stability.And can Cut on both sides.

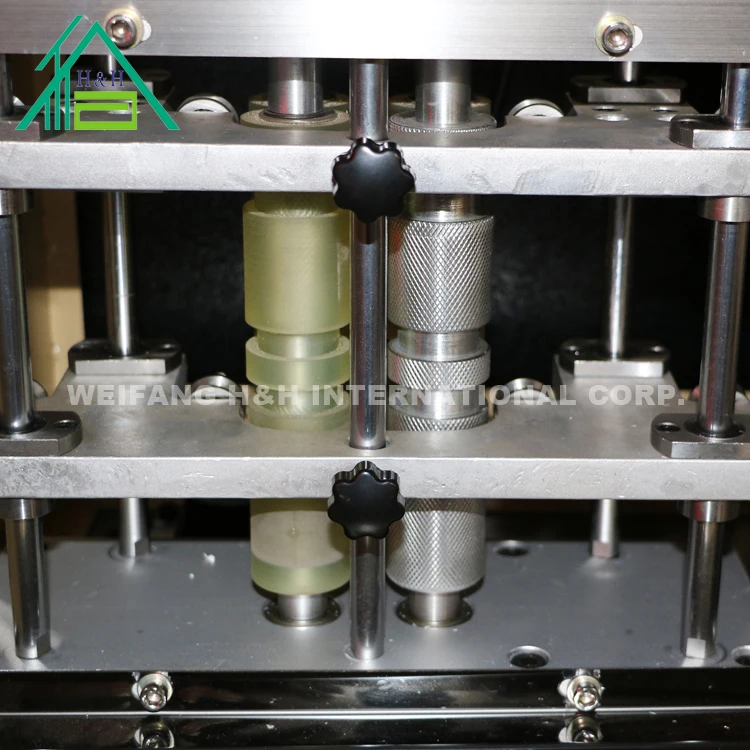

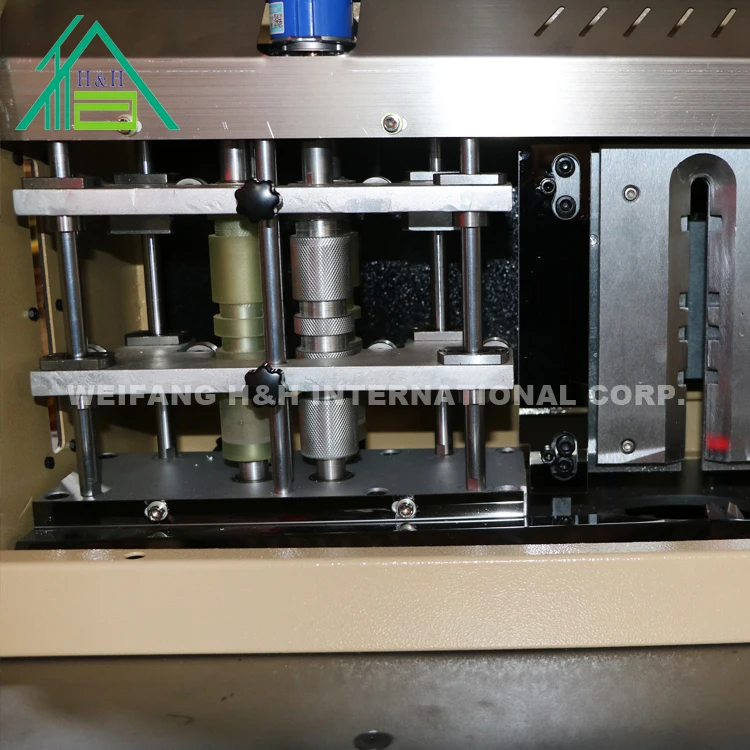

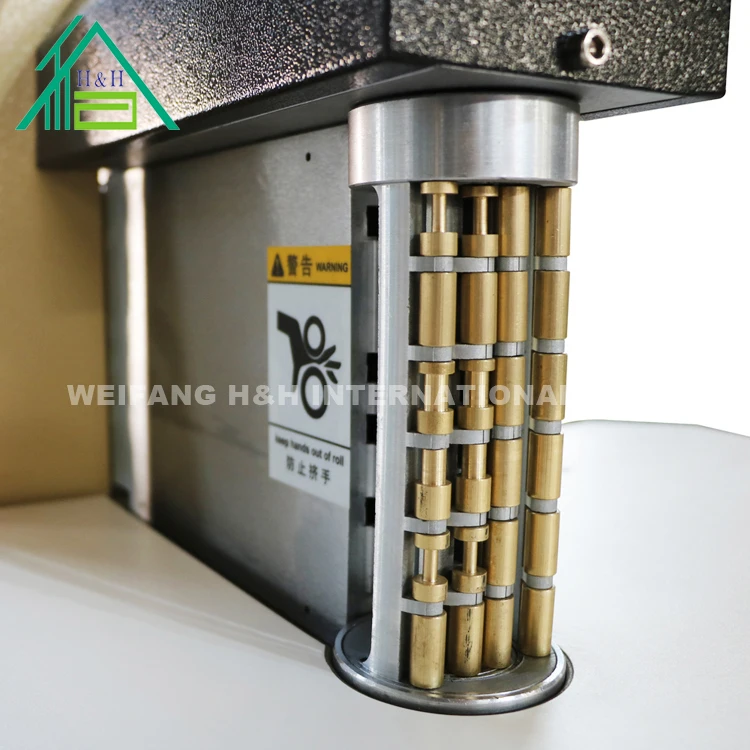

Bending System

Curved arc is rebound coefficient intelligent compensation to ensure the accuracy of various materials forming.(adapt all aluminum materials)

Control Panel

With brushless DC Cutting motor,Automatic control,easy to operate.

Packing&Our Service



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.



After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

*12months warranty and 36months for motor

*24hours full after sale service to solve your problem.

Exhibition











FAQ

1.what's the package?

we use  seaworthy packing,inside is a foam and PE film,outside is wooden case to protect it.



2.what's the warranty?

12months for all machines and 36months for motors.



3.How to install and run the machine?

we will send the install and  video and user's manual with the machine, most customers can learn by themselves. we also provide romote machine or overseas training sevice.



4.Do you have the any materials  for sale?

Yes,we have all kinds of materials such as aluminum coil and stainless steel.

If you have other questions, please feel free to contact us.We welcome everyone to contact us at any time...
