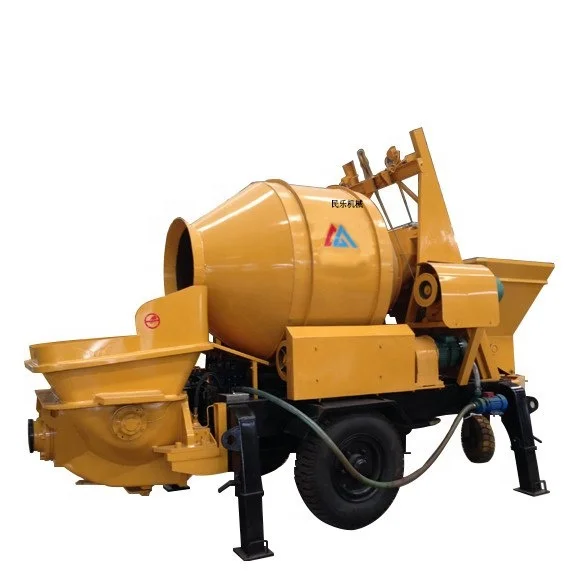

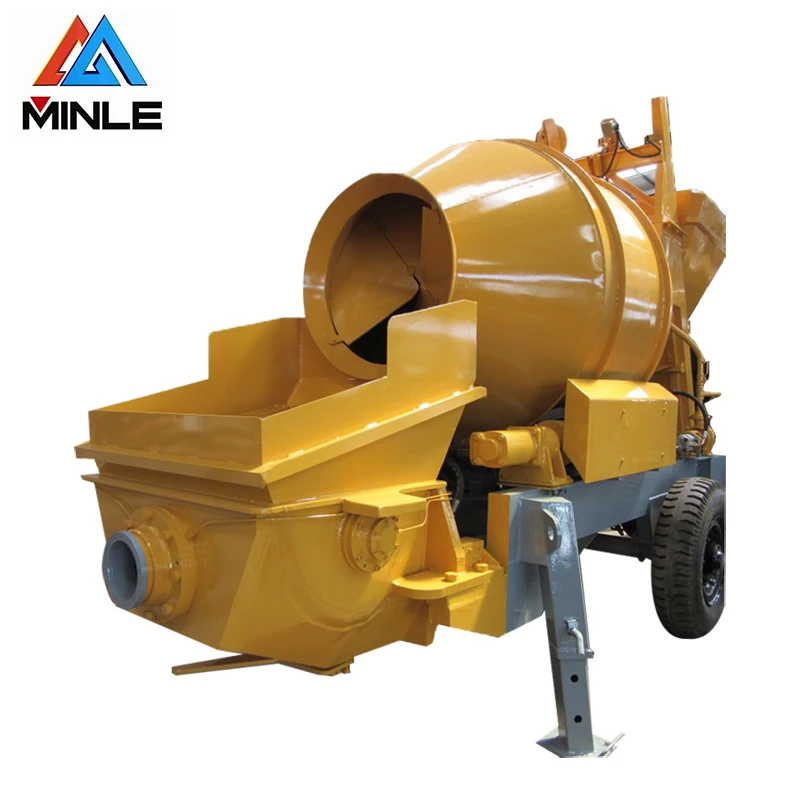

Philippines construction work JBT30.55S concrete mixer with pump

  →Service Hotline/WhatsApp: 008615066732025









Item	Unit	JBT30.55S
Theoretical concrete output	M3/h	30
Theoretical maximum pumping pressure	Mpa	10
The form of distribution valve		The S tube valve
Duct diameter	mm	125mm
Theoretical maximum transmission  distance horizontal / vertical	m	400/100
Concrete Bore × stroke	mm	170/1050
The hopper volume / Feeding height	L/mm	300L/1400
Maximum aggregate size	mm	30
The concrete slump degrees range	mm	120-230
Motor power	kw	55
Max. Mixing Speed	r/min	25-30
Main oil pump	KAWASAKI
Hydrauli valve	Bolseen
Rated speed	Rpm	2300
Color	Yellow	Yellow
Oil tank capacity	L	400
Cleaning method		High pressure water washing
Dimensions (L × W × H)	mm	4530*1550*2430
Weight	kg	3500

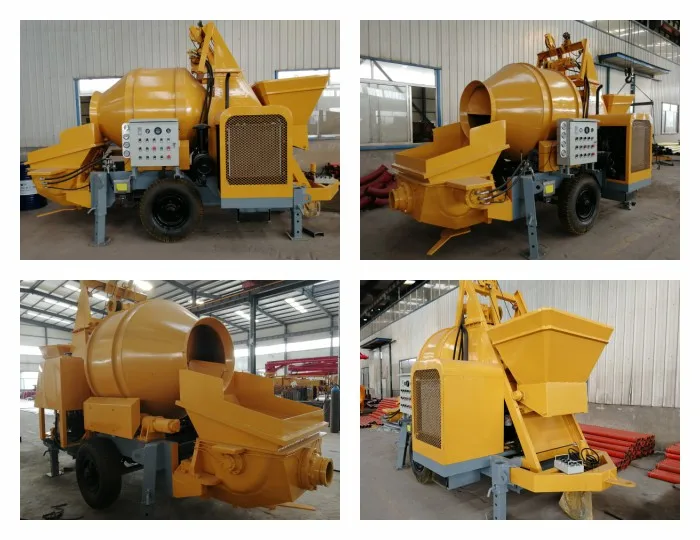

JBT30.45S trailed concrete pump machine with mixer/portable concrete mixer pump

JBT30.45S trailed concrete pump machine with mixer/portable concrete mixer pump

JBT30.45S trailed concrete pump machine with mixer/portable concrete mixer pump

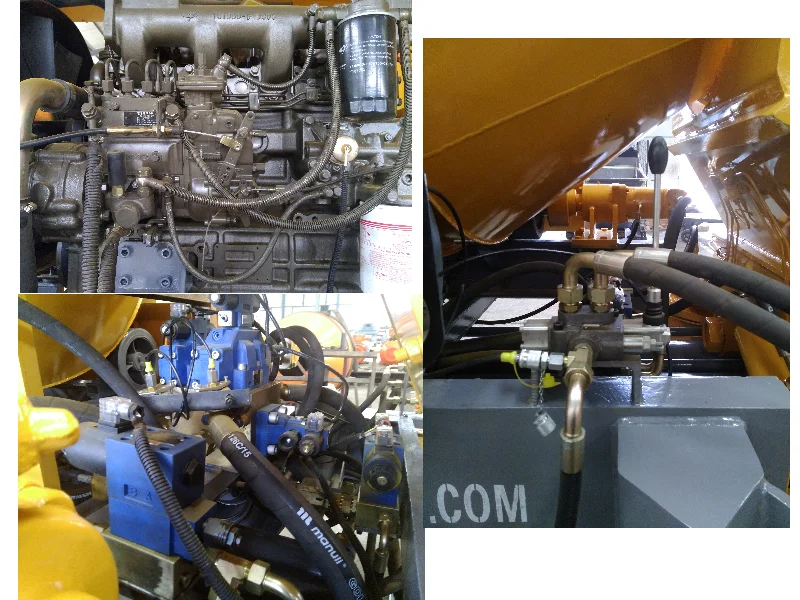

1.Power system concrete mixer with pump

Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.

Diesel power: Germany Deutz, Weichai, Cummins;

2.Main electric concrete mixer with pump

Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system. Main electric elements are imported original Schneider, Siemens, OMRON, LG etc. The control mode: manual operation and wireless remote control Humanity and intelligent electronic control system optimizes the person-machine interface.8-digital pumping time accumulation timer provides exact data for the user, Automatic anti-pump function and optimized program design. Automatic trouble monitoring function.

3.Hydraulic system concrete mixer with pump

The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed. The hydraulic pipeline selects the high performance seamless steel pipes and all pipe joints and high-pressure hoses are of the famous brands.

4.Pumping system concrete mixer with pump

Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition. Reducing design of the hopper could release the reducing pressure of the concrete into the delivery pipe maximally, and prolong the service life of the S pipe outlet.

5.Lubrication System concrete mixer with pump

The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.

6.Cooling System concrete mixer with pump

Compulsory aircooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system works at normal status.



JB30R trailer concrete pump machine with mixer for construction engineers



hot selling trailer concrete pump mixer building equipments



 JBT30.45S trailed concrete pump machine with mixer/portable concrete mixer pump ixer building equipments





1.Wire cables are used for fastening the machine on the trailer or inside the container.
2.Cork wood are placed infront or behind the machine to protect it.
3.Plastic film is covered on the machine as a rain-roof.
4.Crane is used during the whole course.



20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)





1. Help you to choose the most suitable concrete pump

2. Customize the best concrete pump according to your request.

3. We offer full set of easy-spoiled spare parts and tools for back up.

4. We can arrange our engineer abroad to training customers;

5. We can resolve the problem online with customers. If necessary, we can send engineer to your side

6. we promised you to delivery the goods in time.









Tai' an Minle Machine Manufacture Co., Ltd is a large construction engineering machine manufacturing company integrating scientific research, production, sales and after sales service. Our company Is mainly specialized in developing and manufacturing construction machines including all kinds of small, medium and large concrete pump machines such as coal mine explosion proof concrete pumps, metal mine special concrete pumps, fine aggregate concrete pumps,

They have also been exported to many countries and got an excellent reputation . Our products have passed BV and ISO9001 International Quality System Certification and the mining concrete pumps have passed the Safety Certificate of Approval for Mining Products.

















 Philippines construction wokrs diesel mixer with concrete pump JBT30.45S



Philippines construction wokrs diesel mixer with concrete pump JBT30.45S

Philippines construction wokrs diesel mixer with concrete pump JBT30.45SPhilippines construction wokrs diesel mixer with concrete pump JBT30.45S



 Philippines construction wokrs diesel mixer with concrete pump JBT30.45S



Philippines construction wokrs diesel mixer with concrete pump JBT30.45S

Philippines construction wokrs diesel mixer with concrete pump JBT30.45SPhilippines construction wokrs diesel mixer with concrete pump JBT30.45S













JB30R trailer concrete pump machine with mixer for construction engineers



Q: do you have diesel concrete pump?

A: yes, electric, diesel fuel both of them is our mainly products

Q: how can we choose the concrete type?

A: please advise me the vetcial heigh, our techniques will recommend you the suitable one

Q: How can we use the concrete pump?

A: Easy to operate, manual operation provided, we can send the technique for teaching

















---------------------------------
