China UFO high bay light 60w 100w 150w 200w with factory price from shenzhen lighting







Features of Warehouse ufo led liner high bay light:

1. Light and small UFO structure greatly shorten the packing space and save the freight;
2. A6063 die-casting aluminum radiator, with air duct design principle of both inside and outside ventilation,

    and better heat dissipation performance;
3. Waterproof IP65;

4. Use high quality LED and power supply, to ensure the product reliability and life expectancy;
5. Multiple-choices brand LED and power supply;
6. More cost-effective than similar products to meet customers various needs.



Specification for Warehouse ufo led liner high bay light:



Model	HB-UFO-80W	HB-UFO-100W	HB-UFO-150W	HB-UFO-200W	HB-UFO-240W
Power	80W	100W	150W	200W	240W
Input voltage	90-305VAC
Frequency	50-60HZ
Color	3000K ~ 6500K
Color temp.	4000/5000K
Luminous	7800lm	13000lm	19500lm	26000lm	31200lm
Efficacy	140lm/w
CRI	>80
Power Factor	>0.92
Life time	>50,000hrs
Housing Material	Aluminum
Beam Angle	60 / 90 / 120 Degree
Operating Temp.	-30 ~ +40℃
Warranty	5 years



Product Application Instructions
- Compared to traditional halogen high bay, LEDs will be more energy saving. (Figure 1).
- Reliable Inventronics & Meanwell Seriesofdriveroroption,andthedriverscanbe
0-10V,PWM Dimming.
- Installation Methods: Screw Lifting, Hanging chain, Bracket.All accessories will be
provided according to customers requirements.
- Optimum installation height : 8-15 meters.
- Waterproof IP65.

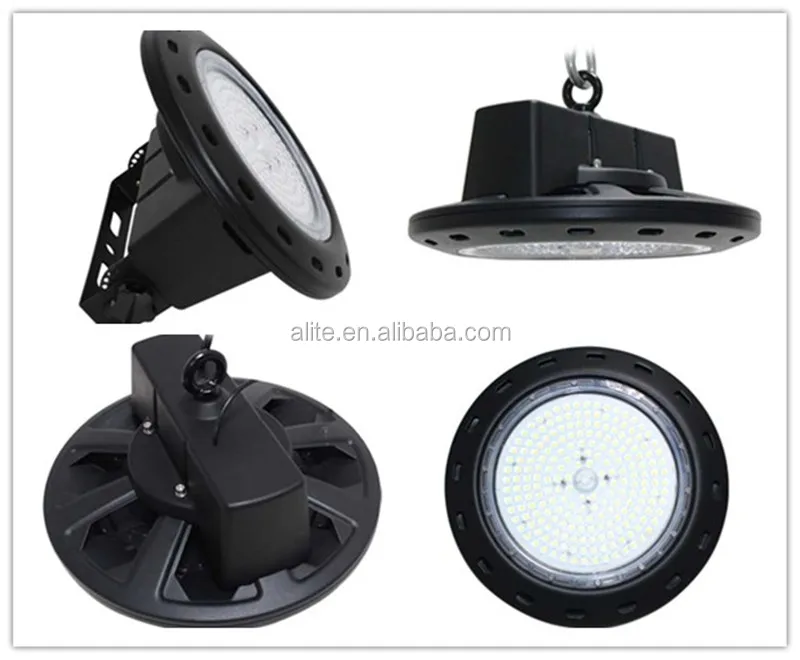

Pictures of Warehouse ufo led liner high bay light:

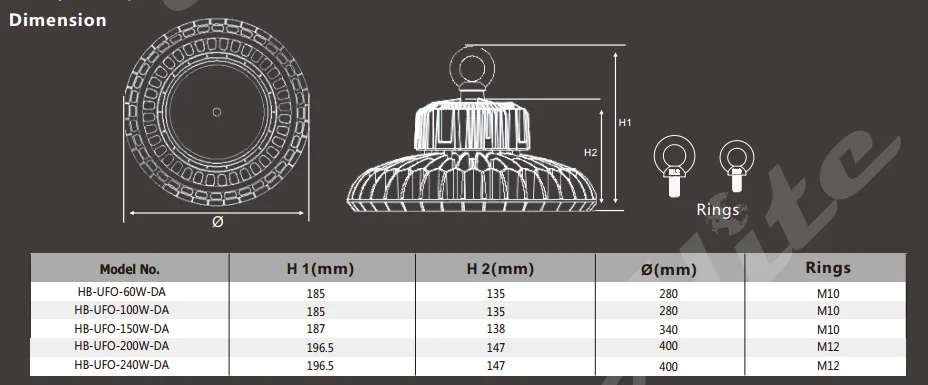

Dimension of Warehouse ufo led liner high bay light:

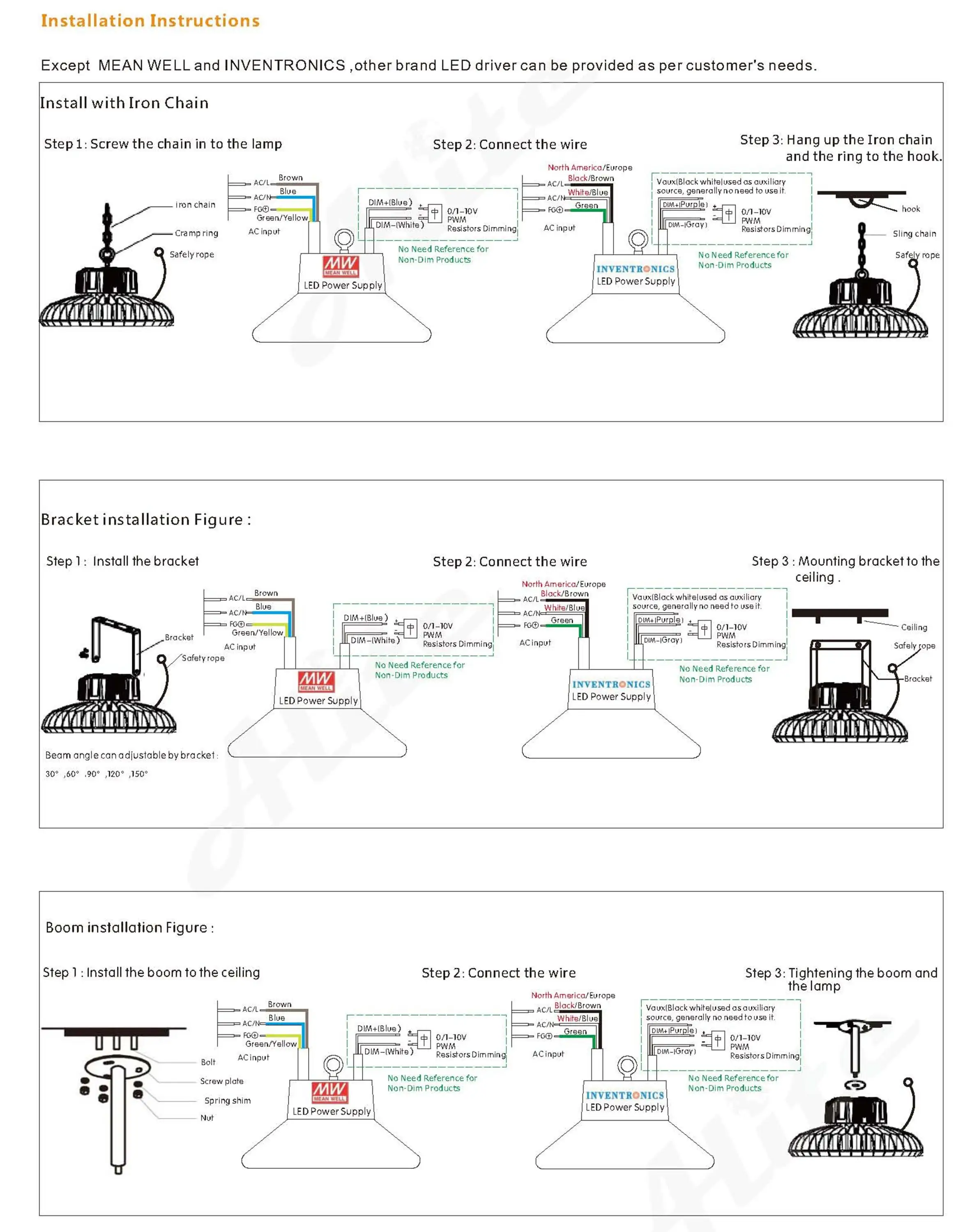

Installation Warehouse ufo led liner high bay light:

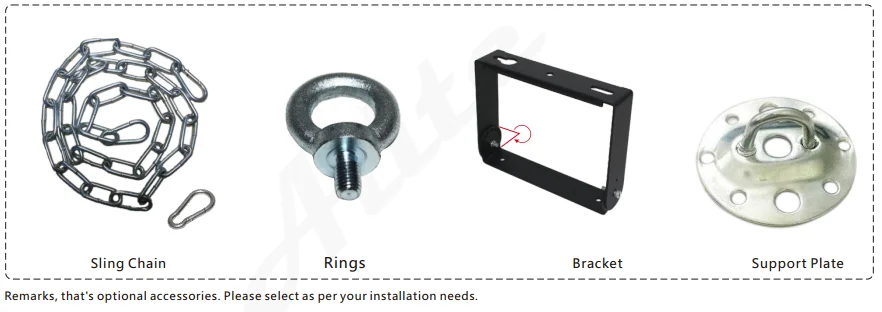

 Accessories

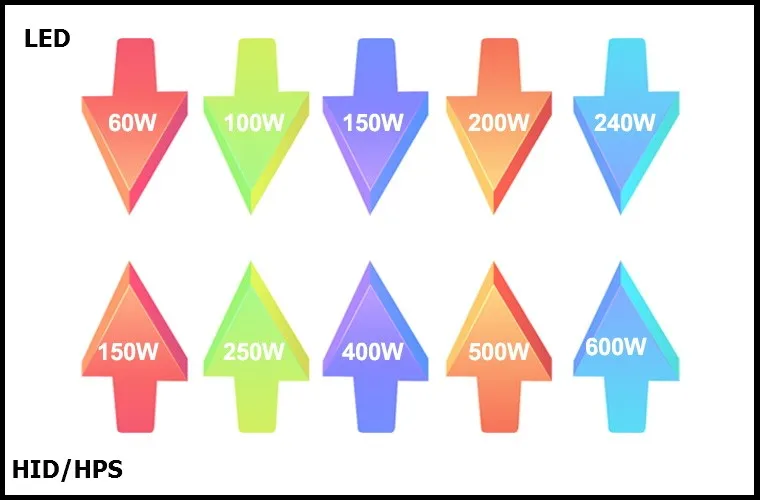

The interchange watts between HID/HPS and UFO LED High Bay Light:

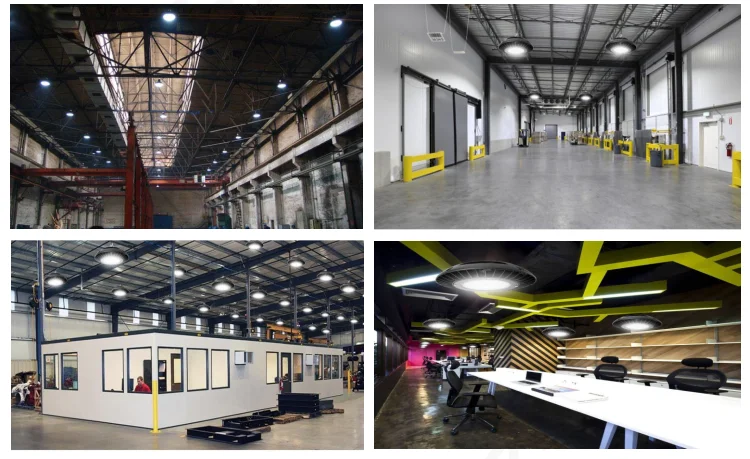

Application of led high bay light:

Widely used in industrial and commercial lighting like factory workshop, warehouse, logistic center, exhibition hall,
stadium, ore yard, toll station, gas station, supermarket &farmers'market.

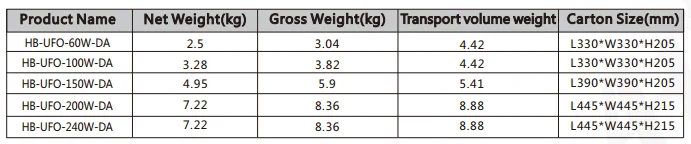

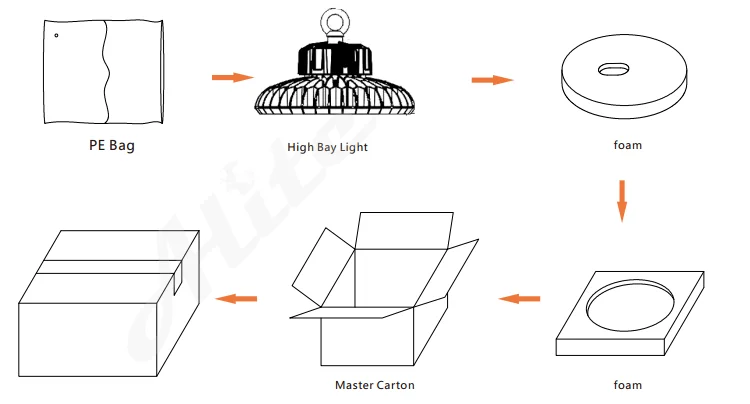

Packaging and Shipping:
