Алюминиевый сплав пользовательские радиатор экструзии
US $4.00-$10.00
Оптовая продажа с завода прошивка 125 мм теплоотвод для светодиодных
- Категории: Теплоотводы >>>
- Поставщик: Dongguan,Renxin-Seiko,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Description
Feature :
> Excellent thermal conductivity due to special aluminum pin fin heatsink feature improved
> Faster heat conduction due to their almost pure aluminum alloy (Al 99.5; 210-236 W/mK) and high material density
from forging.
> Heat evenly dissipates in the base and the pin material for free or forced convection.
> Streamlined omnidirectional fin geometries
> Suitable for free and forced convection, no direction bounded installation position
Splayed pin heatsinks are relatively new derivatives of the standard pin fin heatsinks. Unlike standard pin fin heatsinks, which contain an array of vertically oriented pins, splayed pin fins features pins that gradually bend outward. Curving the pins in this way increases the spacing between the pins and allows surrounding air streams to enter and exit the pin array more efficiently without sacrificing surface area.
The impact of increased pin spacing on heatsink performance is agnified at lower air speeds because weak air streams have less power to penetrate the array of pins. In low air speed environments and in natural convection, the increased spacing between the pins reduces the heatsinks’ thermal resistance by up to thirty percent versus a standard pin fin heatsink. As a result, splayed pin fins are recommended for low and moderate airspeed environments and for natural convection cooling

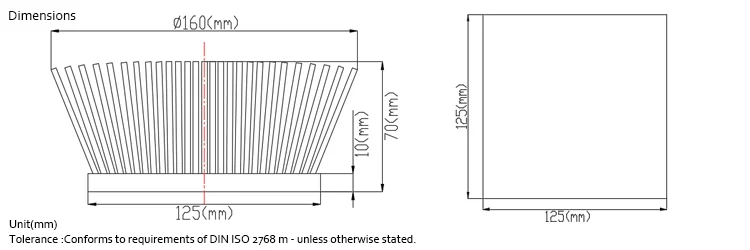

Dimensions and Drilled
A >Pre drilled for Cree CXB 3590 with Ideal Holder 50-2303CR+reflector adapter 50-2300AN and LEDiL F13838_ANGELINA-XW
B >Pre drilled for Cree CXB 3590 with Ideal Holder 50-2303CR + 100mm Glass lens with 112mm diagonal mounting positions
C >Pre drilled for Citizen CLU-048 with Ideal Holder 50-2204CT + reflector adapter 50-2100AN and LEDiL F13838_ANGELINA-XW
D > Pre drilled for Citizen CLU-048 with BJB Holder 47.319.2030.50+reflector adapter 50-2100AN and LEDiL F13838_ANGELINA-XW
E > Pre drilled for Bridgelux Vero 29 with reflector adapter LEDiL C13584_CLAMP-VERO29 and LEDiL F13838_ANGELINA-XW
F > Pre drilled for Bridgelux Vero 29 with 100mm Glass lens with 112mm diagonal mounting positions
Details:
How to Order the Pin Heatsink
Item | Part Number | Watts | L(mm)xW (mm) | Base Height (mm) | Finsih |
1 | RX613-125-A4 | 65-95Watts | 125*125 | 10 | Anodize Balcek |
2 | RX613-125-A7 | 65-95-Watts | 125*125 | 10 | Anodize Green |
3 | RX613-125-A8 | 65-95 Watts | 125*125 | 10 | Anodize Red |
4 | RX613-125-A9 | 65-95Watts | 125*125 | 10 | Anodize Blue |
Application
>: Easy to install. Our tutorials allow you to assemble perfect LED grow lights , a practice well loved by DIYers.
>: We provide standard products from 45W to 100W for you to choose from. our on-site thermal design engineers
will provide professional thermal analysis reports, CAD design, and free technical support
>: All the LED grow lighting accessories are made available in one-stop style to save your valuable time while
allowing you to have professionally assembled LED grow lighting products
> :Special aluminum brackets and fasteners are available to make the assembled light fittings into a professional
and perfect LED grow lighting system while saving you a lot of cost and time.
> :We are a Specialized manufacturer backed by a complete quality management system and provide all-round
after-sales service. We promise to offer a warranty of 5 years for all of our products,
Packaging & Shipping

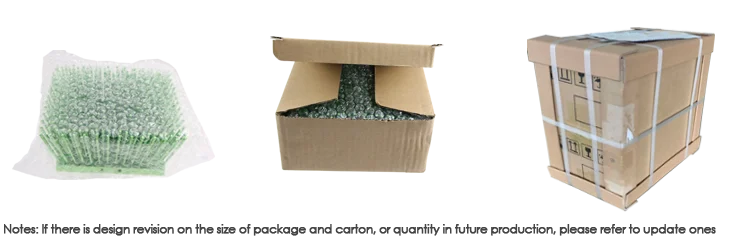

PACKAGE:
Our products come standard with double-package, minimizing the risk of damage in the transportation process. We provide logo customization service, too.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Company Information
Our Advantages
Certifications
Customer oriented is reflected in the most incisive, from design to production to sales of the enterprise process.
Contact Us
