Профессиональная Горизонтальная ленточная пила с ЧПУ для резки деревянной
- Категории: Wood Saw Machines >>>
- Поставщик: Qingdao,Allison,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

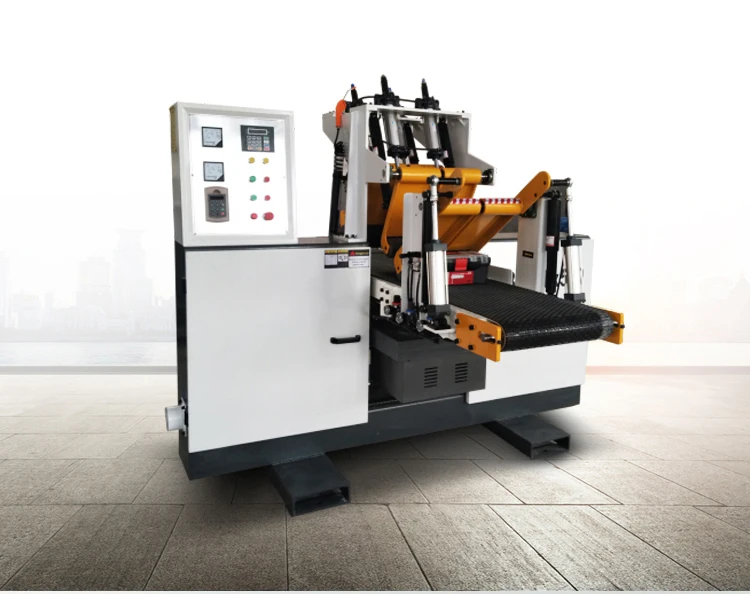

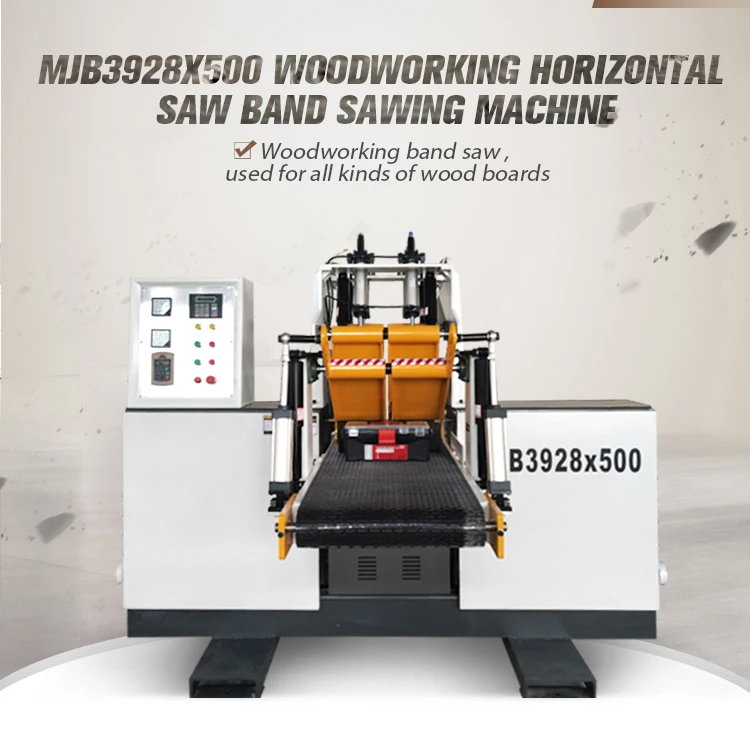

Professional CNC horizontal band saw for wood panel cutting
Product Description
MJB3928*500 Parameter | |
Cutting board width | 400mm |
Cutting board thickness | 3-140mm |
Cutting board length | >300mm |
Saw wheel diameter | 65mm |
Saw wheel speed | 720rpm/min |
Saw wheel thickness | 65mm |
Saw wheel length | 4330mm |
Feeding speed | 0-12m/min |
Conveyor size | 380*4860mm |
Motor power | 16.47kw |
Saw wheel motor power | 15kw |
Conveyor belt motor power | 1.1kw |
Worktable lift motor power | 0.37kw |
Working air pressure | 0.5-0.8mpa |
voltage | 380v,50hz,3phase |
Overall dimensions | 2300*2550*1950mm |
Net weight | 1700kg |
Square of wire | 10(16) |

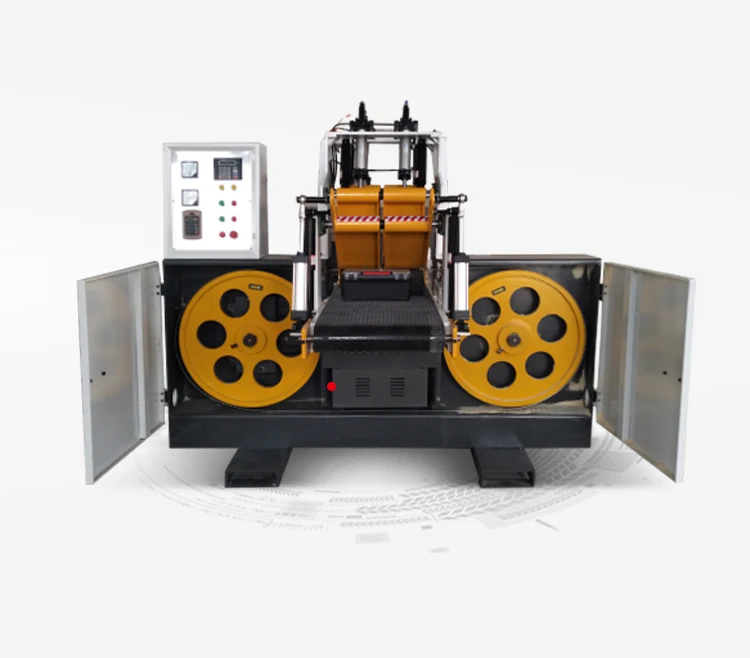

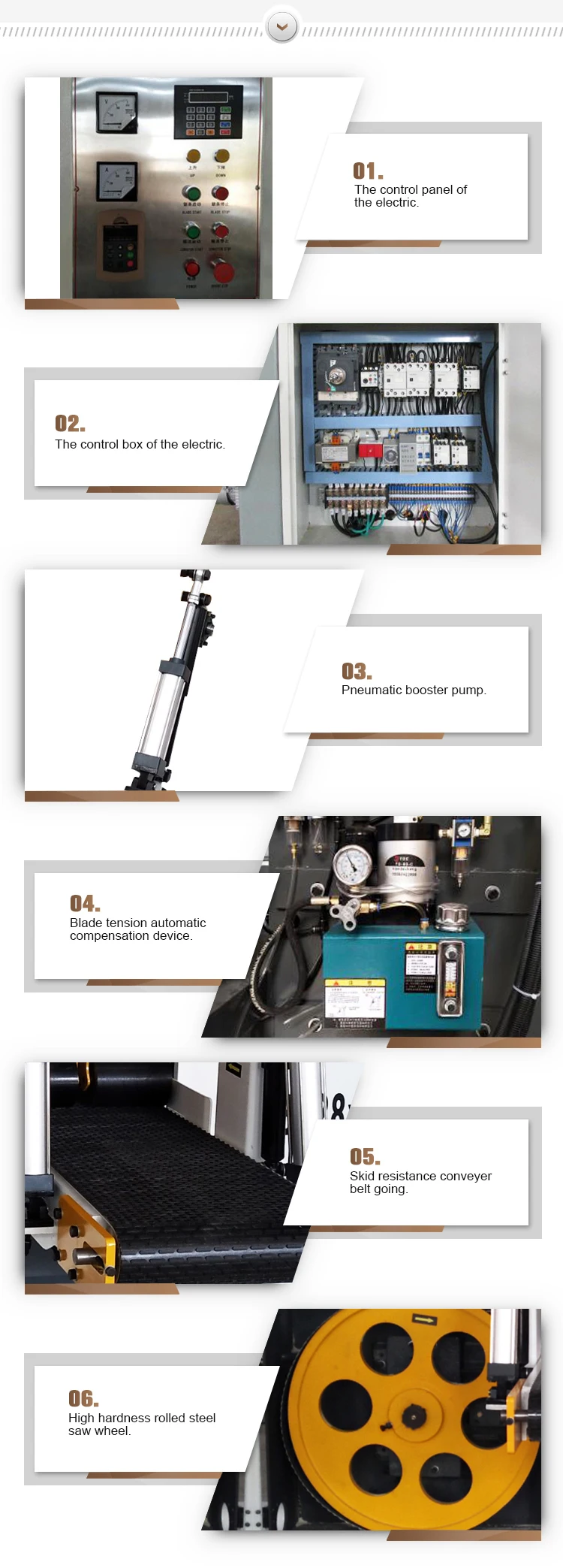

Product detail
machine operation
(1) .Open the air source switch , connect the air ;
(2) . Start the pneumatic booster pump, tension blade, tension pressure was maintained at 4.5-5.5MPa (45-55 kg)
(3) .Closed electrical box air switch, connect the electric to the machine ;
(4) .Adjust the required thickness, when initial use, should try to test cut, to confirm the thickness of display digital display instrument and the actual size difference, in order to make adjustments, thickness displayer adjustment method reference manual;
(5) .Start saw wheel motor button ;
(6) .Start conveyor belt motor button ;
(7) .Turn the belt speed control knob , determine the feeding speed, then can start cutting;
(8) .After cutting, the conveying motor, saw wheel motor, pneumatic booster pump and air source switch are closed in turn.

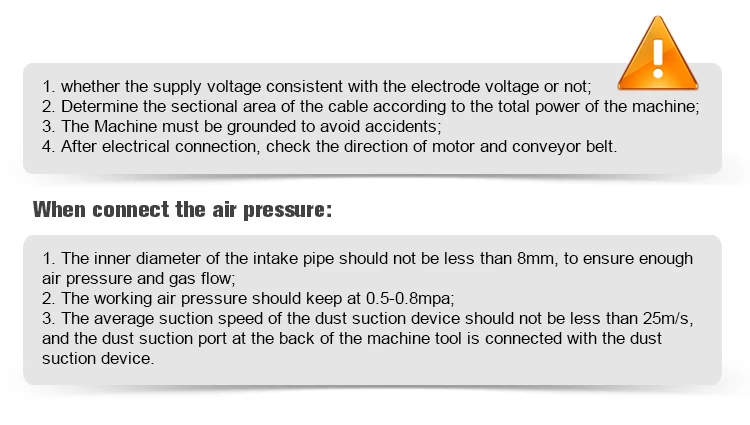

Precautions

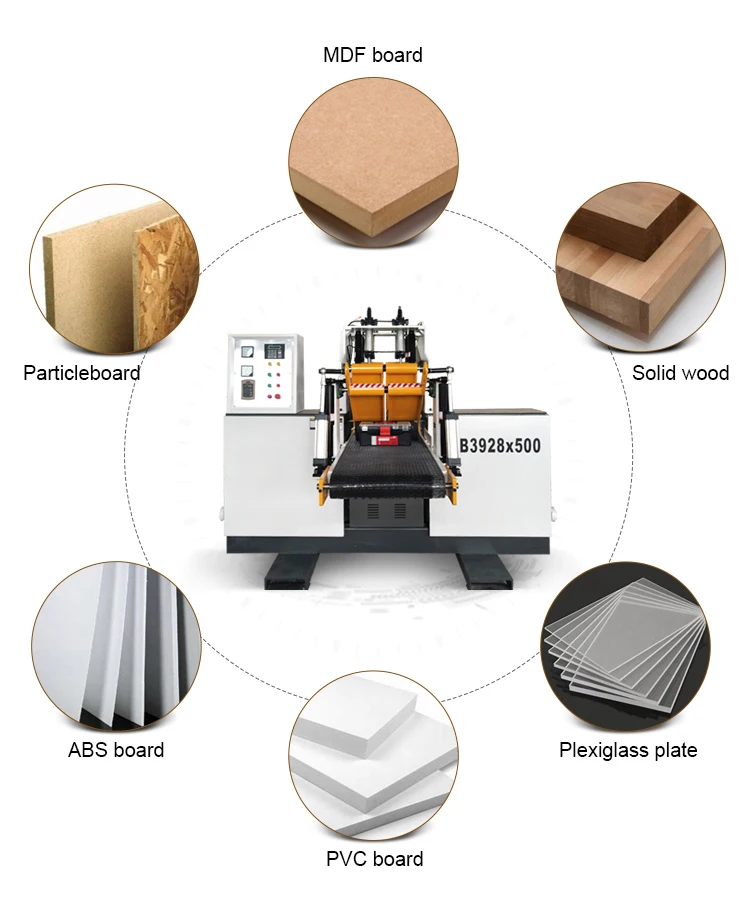

Product application
Packaging & Shipping

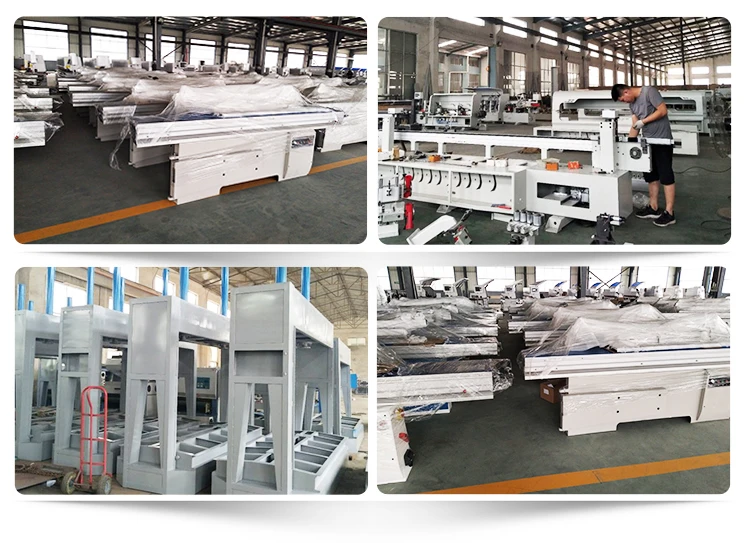

Company Information
Qingdao Allison Machinery Technology Co., Ltd is established in the city of Qingdao, the province of Shandong of China. As innovation and high quality products, the company developed into one of the biggest supplier of wood machinery in Chinese market.
There are experienced with well-equipped testing facilities and strength technical force more than 14 years, Allison are producing equipment for woodworking, always supply the innovative, reliable and durable. Such as Sliding Table Saw, Edge Banding machine, Drilling machine, Sanding Machine etc.
There are the certification of CE and ISO9001:2008 Quality System. Our products promise quality, innovation and safety.
Products are widely received and trusted by client and meet to develop into economic and social fields.
Welcome to contact us from the new and old customers of all around world for business and common success in future!
FAQ
Why to choose Allison?
1. As alibaba's star supplier, we have Alibaba Trade Assurance to make sure the buyer’s benefit. If can’t meet the details in the contract, 100% of your payment will be returned.
2. As a professional manufacturer, we have 13 years factory experience for woodworking machinery. from parts processing and production to the whole machine assembly and sales, professional, dedicated and efficient. providing customers with one-stop service.
3. With more than 10 R&D staff and senior engineers. Support equipment programming and function customization. meet different customer’s needs.
4. Adopt first-class processing equipment, advanced manufacturing technology. More and more customers are using our machines, and we receive good comments and feedback from many countries.
5. We have perfect after-sales service.
6.Excellent location,only one hour to Qingdao Port.
