Высокопроизводительный медный лист толщиной 0 5 мм для
- Категории: Листовая медь >>>
- Поставщик: Dongguan,Dechuang,Hardware,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

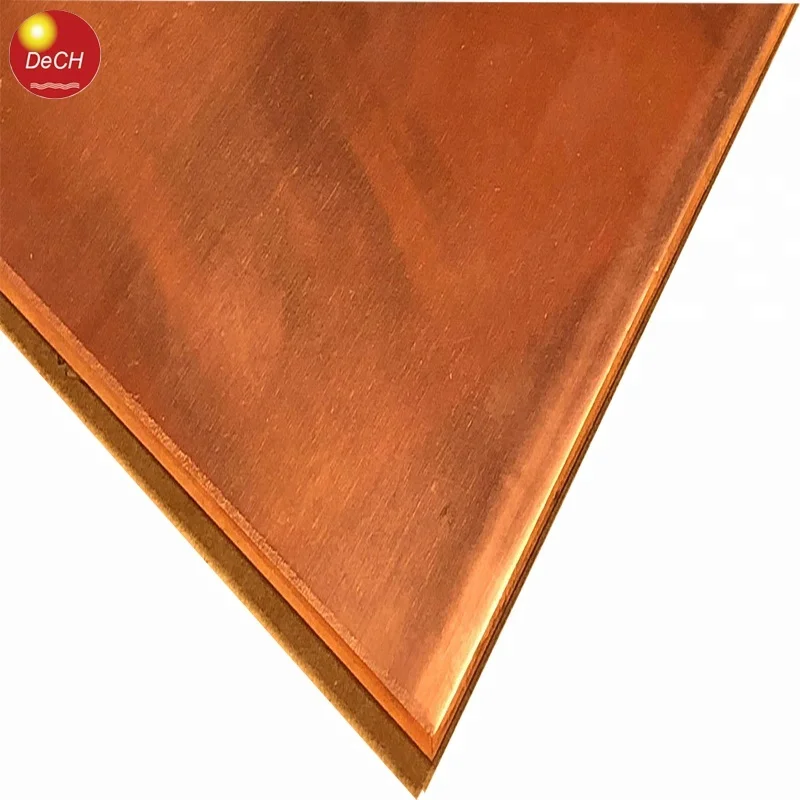

Detailed Images
Product Description
| Product Name | Best performance 0.5mm thick copper sheet for transformers made | |||||||
| Material | Pure copper sheet | |||||||
| Surface | Customized | |||||||
| Standard | ASTM,ROSH,AISI,DIN,EN,GB,JIS | |||||||
| Hardness | H12,H14,H16,H24,H26,H32,etc. | |||||||
| Width | Customized | |||||||
| Thickness | Customized | |||||||
| Length | Customized | |||||||
Copper Composition
GB | DIN | EN | ISO | UNS | JIS | ||
TU2 | OF-Cu | 2.0040 | Cu-OFE | CW009A | Cu-OF | ||
- | SE-Cu | 2.0070 | Cu-HCP | CW021A | - | C10100 | C1011 |
- | SE-Cu | 2.0070 | Cu-PHC | CW020A | - | C10300 | - |
T2 | E-Cu58 | 2.0065 | Cu-ETP | CW004A | Cu-ETP | C10300 | - |
TP2 | SF-Cu | 2.0090 | Cu-DHP | CW024A | Cu-DHP | C11000 | C1100 |
- | SF-Cu | 2.0090 | Cu-DHP | CW024A | Cu-DHP | C12200 | C1220 |
- | SF-Cu | 2.0090 | Cu-DHP | CW024A | Cu-DLP | C12200 | C1220 |
TP1 | SW-Cu | 2.0076 | Cu-DLP | CW023A | Cu-DLP | C12200 | C1220 |
H96 | CuZn5 | 2.0220 | CuZn5 | CE500L | CuZn5 | C12000 | C1201 |
| GB | Composition(%) | |||
| Cu | P | O | Other | |
| TU1 | 99.97 | 0.002 | less than 0.002 | balance |
| TU2 | 99.95 | 0.002 | less than 0.003 | balance |
| T2 | 99.9 | - | - | balance |
| TP1 | 99.9 | 0.004-0.012 | - | balance |
| TP2 | 99.9 | 0.015-0.040 | - | balance |
| C10200 | 99.95 | 0.001-0.005 | - | balance |
| C11000 | 99.9 | - | - | balance |
| C12000 | 99.9 | 0.004-0.012 | - | balance |
| C12200 | 99.9 | 0.015-0.040 | - | balance |
Mechanical Propertie
| Grade(China) | Grade(Japan) | Temper | External diameter(mm) | Tensile strength(Mpa) | Elongation(%) | |
| δ10 | δ5 | |||||
| More than | ||||||
| T2/T3/TP1/TP2 | C11000/C1201 C1220 | Y | more than 100 | 315 | - | - |
| more than 100-360 | 295 | - | - | |||
| Y2 | less than 100 | 235-345 | - | - | ||
| M | 3-360 | 205 | 35 | 40 | ||
Product Catalog
Contact Us

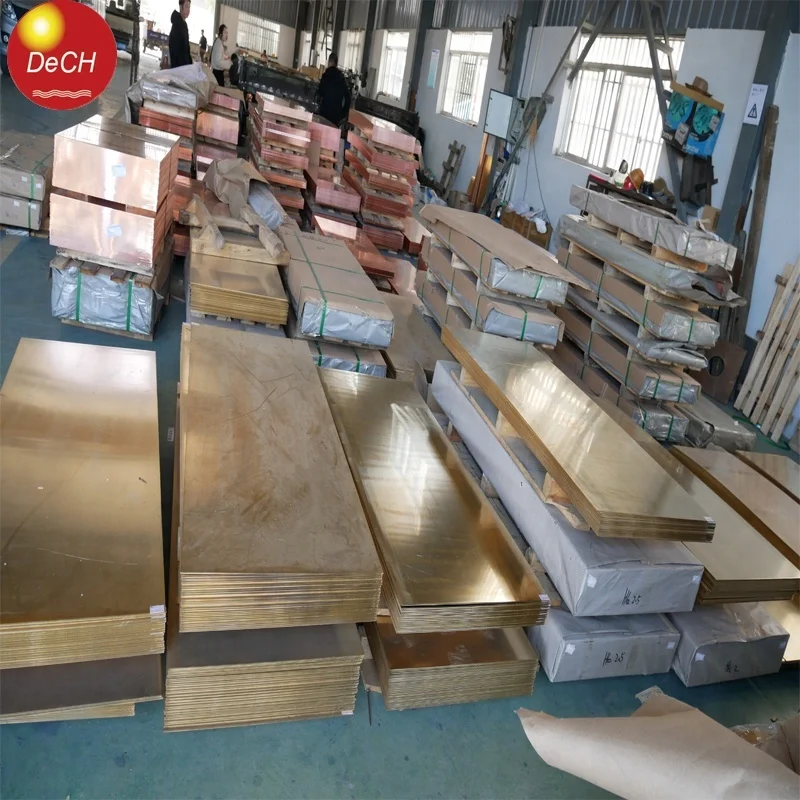

Company Show
Dongguan Dechuang Hardware Co., ltd
Since in 2003, located in Dongguan City Guangdong Province.
1. Abundant raw materials inventory for Fast Delivery time.
2. Low MOQ for all specifications.
3. Customize in various specifications( different surface/size/thick).
4. Specially strong in customize thin materials(0.01MIM-10MM).
5. Factory founded in 2003,already with 15 Years experience.
6. ISO 9001& ISO 14001.
7. Multi Certificates for all Markets: SGS,ROHS,REACH.
Product Packaging
