Poultry Chicken water nipple drinker poultry

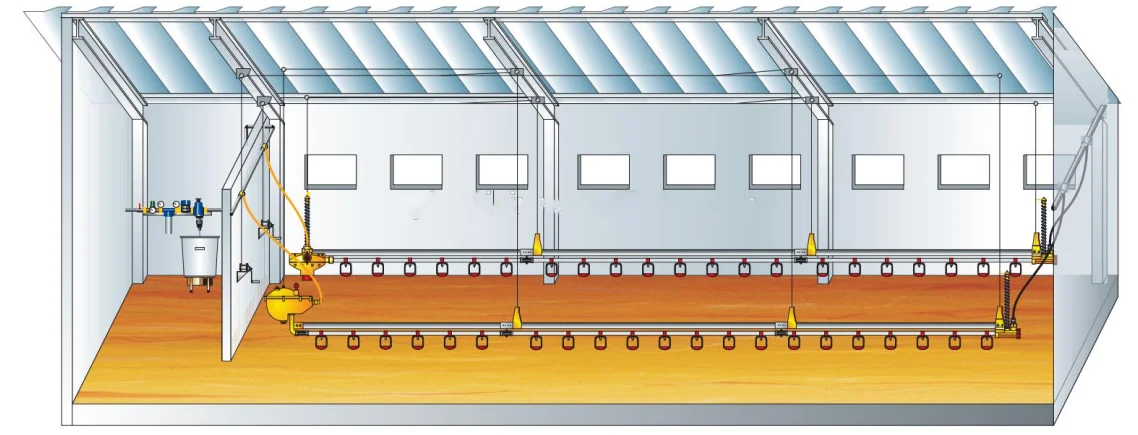

Main parts of automatic chicken nipple drinker system include:
Front part of drinking system, Nipple drinking Line, Lifting and suspension system
nipple drinker with drip cup, balance pipe , lifting and suspension system, anti-perching system,steel wire rope . etc.

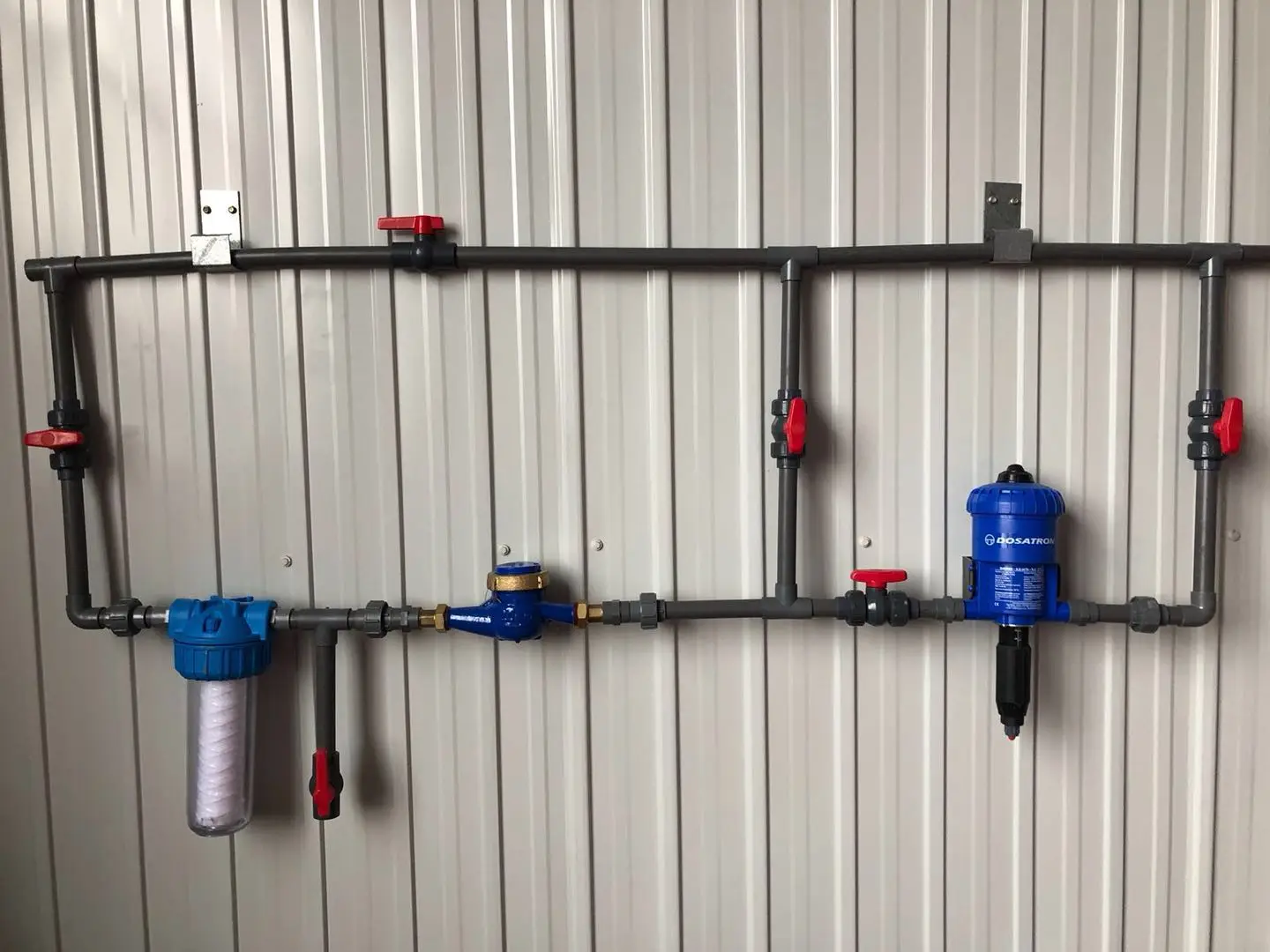

1. Front part of drinking system
Front part is controller of water, it's main function is to adjust water supplying pressure and stabilizing drinking volume.This part is usually installed in control room
| ||
|
|
|

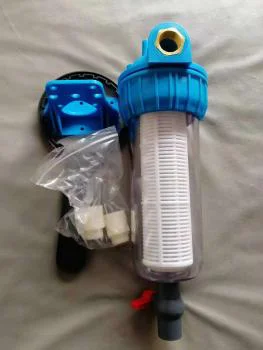

-Filter: clean water and avoid blocking nipples.
|
-Water meter: measure water usage volume.

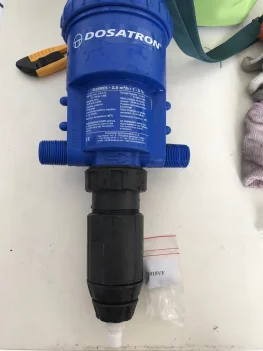

| -Doser: add medicine exactly and automatically to prevent disease. Injection rate:0.2%-2% Imported from FRANCE. Operating pressure:0.3-6bar Operating flow:10L/h to 2.5m^3/h. Concentrated additive injection:0.02 to 50L/h. |

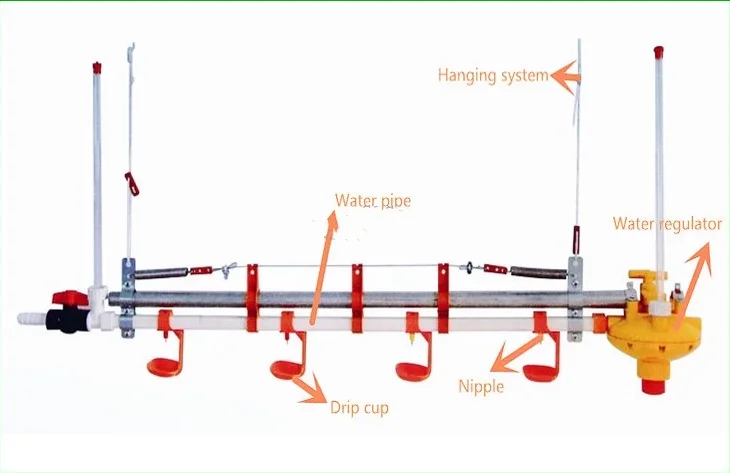

Nipple drinking Line (Poultry Chicken water nipple drinker poultry)
Drinking System Parameter | |
Specification | 8 nipple/3m; 10nipple/3m; 12nipple/3m & 15nipple/3m |
Max Work Length | 150m |
Diameter Of Drinking Pipe | 22mm , 25mm |
Drinking Line Distance | 2.5m-3.5m |
Nipple Drinking Distance | 20cm/25cm/30cm |
Hanging Point Distance | 3m |
No. Of Each Nipple Serves | 12-15 birds |
Standard Height | 3m |
The water output | 45-75ml/min |
Water Pipe type | 25mm round pipe , 22mm square pipe |
pipe length | 3m /pcs |
Balance pipe | hot dip galvanized material , 3m/pcs |
Raising Ability | Broiler: 12/nipple Breeder: 8-10/nipple Reserve turkey: 20/nipple Reserve layer:12/nipple Duck: 10/nipple |

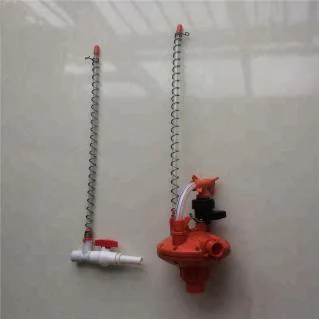

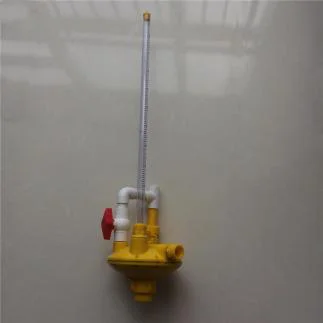

Pressure Regulator&Water display level tube | -High switching performance. -Sufficient water supply. -Good quality movable valve, easy to change -- double barreled with large flow capacity --convenient to watch water level | ||
|
| ||
Nipples Drinker( Poultry Chicken water nipple drinker poultry)
| The outside shell is made of high quality plastic, the inner rod is made of high quality stainless steel. Advantages: a. All nipples are anti-corrosion, service life over 10 years. b. Double-sealing structure, avoiding water leakage and its bad influence to chicken house. c. The nipple's rod can be movable in 360 degrees, easy to drink. Meeting drinking demand of different-period chickens. | ||
| | ||

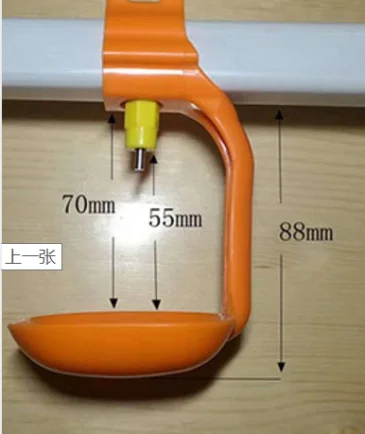

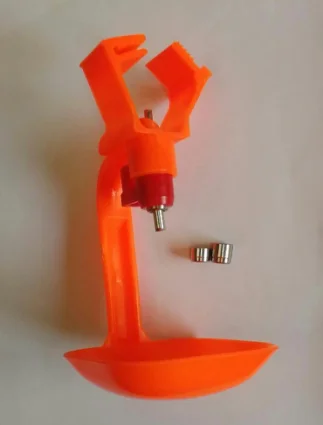

Drip cups | One-arm design is more suitable for modern raising idea. | ||

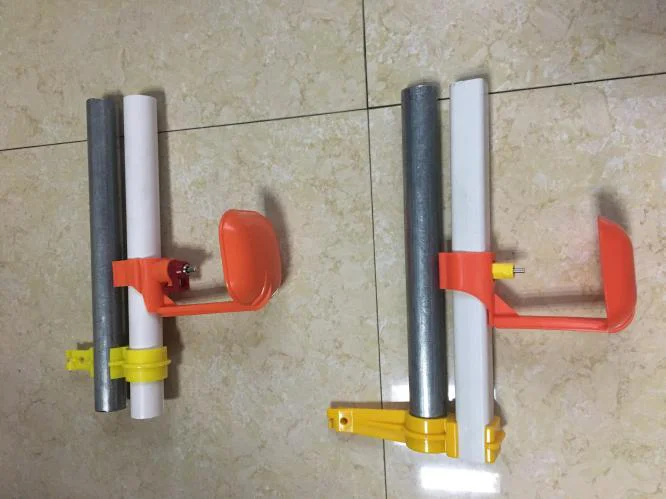

PVC square water pipes and galvanized supporting tube
|
Round water pipes:Easy to assemble and maintainance.
Square water pipes: have lager surface deposition, not easy to block. | ||

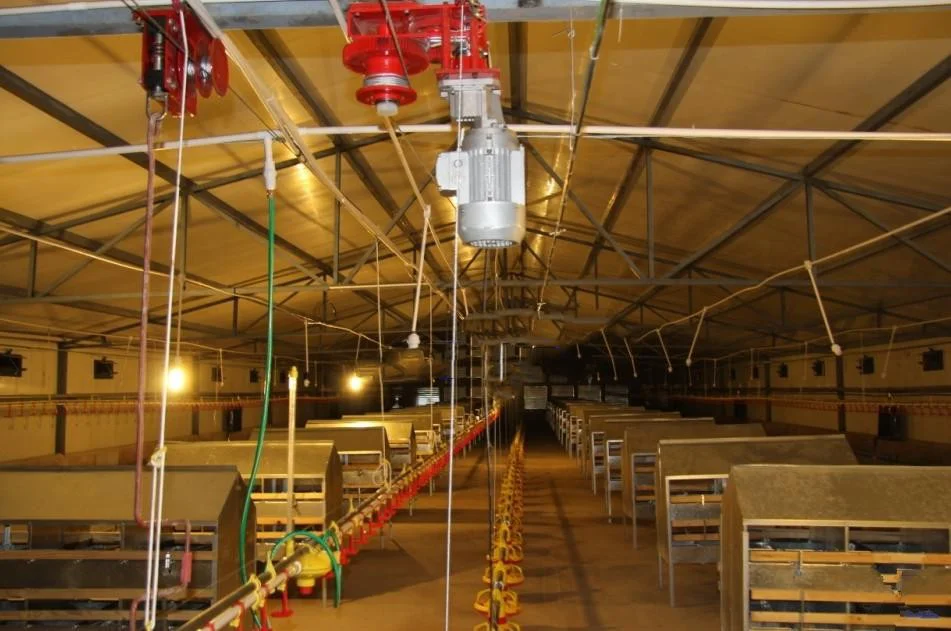

2. Suspension lifting device
The suspension lifting device mainly comprise a winch ,a pulley,a shaped hook ,a fix ing material and steel wire ropes.
The tray is adjusted to the optimum height by promptly adjusting the height of the stocking by the winch lifting system,and it is important to the growth of the poultry
