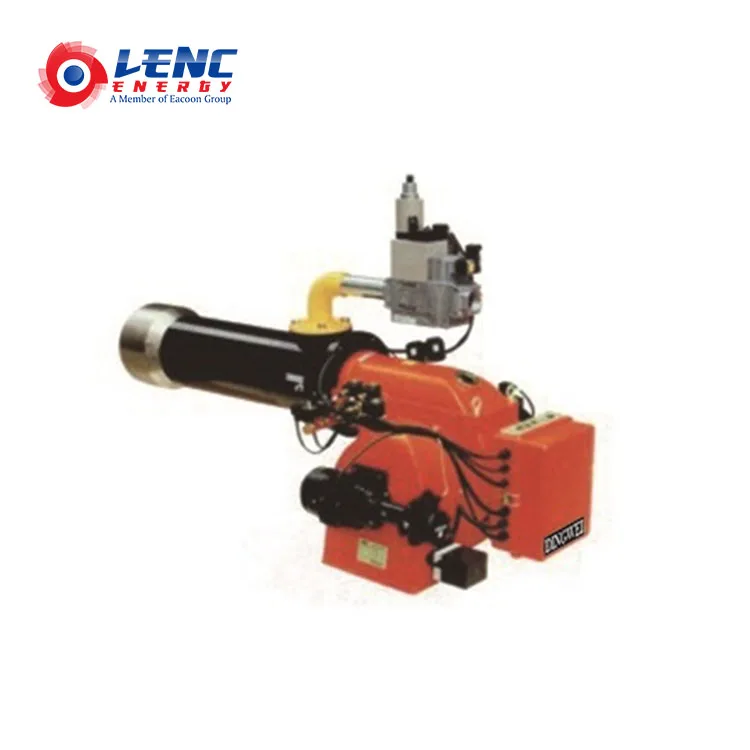

Горячая Распродажа электрическая дизельная масляная горелка LENC для отопительного

Model

OM-0NH

OM-0N

OM-1N(WM)

OM-2N(WM)

OM-3N(WM)

OM-4N(WM)

Output Power

10⁴ kcal/h

3-7

3-5

5-10

10-20

15-30

20-40

kw/h

35-80

35-80

58-116

116-233

174-349

233-465

Motor Power

kw

0.1

0.15

0.25

0.4

Power requirement

main power

AC 220v/50Hz/unidirectional

AC 380v/50HZ/3Φ

Control power supply

AC 220v/50HZ/1Φ

control mode

Fully automatic single-stage (double-stage)

Fuel requirements

Light diesel oil (International 0# Diesel)

Atomization pressure

Dynamic pressure 1.0- 1.2MPa (10 - 1 2kgf /cm²)

Model structure

Gun type

Flame monitoring method

Photoresistor monitoring

Damper adjustment method

Manual adjustment (automatic adjustment of the damper motor)

Install flange form

Fixed flange form

TYPE

 A

B

C

 D

E

 F

G

H

OM-ONH

Φ 76

150

398

300

325

8-Φ11

Φ135

184

OM- ON

Φ 76

150

325

314

359

8-Φ11

Φ135

159

OM- 1 N

Φ 88

150

429

384

358

4-Φ11

Φ150

226

OM- 2N

Φ114

150

458

426

404

4-Φ12

Φ190

242

OM- 3N

Φ140

150

664

524

468

4-Φ12

Φ240

291

OM- 4N

Φ140

150

664

524

468

4-Φ12

Φ240

291

OM-0NWM

Φ76

150

502

351

435

8-Φ11

Φ135

159

OM-1NWM

Φ 88

150

592

366

450

4-Φ11

Φ150

226

OM-2NWM

Φ114

150

700

425

496

4-Φ12

Φ190

242

OM-3NWM

Φ 140

150

700

425

550

4-Φ12

Φ240

291

OM-4NWM

Φ 140

150

731

407

550

4-Φ12

Φ240

291
