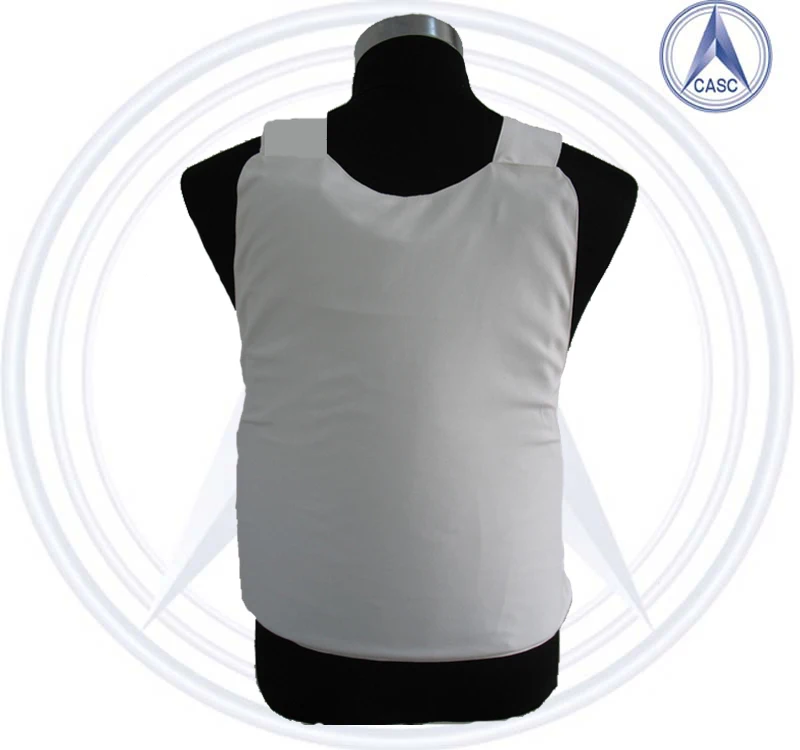

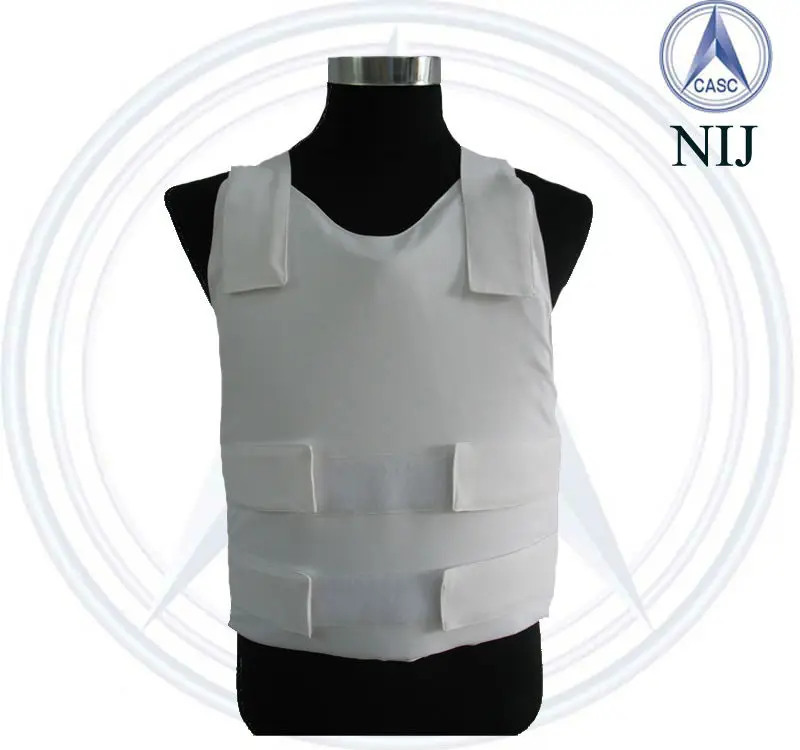

Our light weight bulletproof vests can used for all kinds of ballistic protection requirements; more than one hundred types for your choice: including full-protection bulletproof vest, general bulletproof vest, concealable bulletproof vest, outer bulletproof vest, floating bulletproof vest, fast-removable bulletproof vest and female bulletproof vest for women, etc. We also can design and manufacture the bulletproof vest for special use based on our clients’ actual demand. The main ballistic materials are Aramid UD fabric, Aramid woven fabric and PE fabric; the panel was made by special auto-cutting equipment and waterproof heat-seal equipment. It has waterproof , moisture proof, heat proof, UV resistance and high temperature resistance, According to the new standard requirement of GA141-2010 “Bulletproof Vest for Military”published by the Ministry of Public Security of China, Our products were tested by all kinds of quality testing and all passed.The Aramid bullet proof vest series products passed the NIJ test in international testing organizations---US White Laboratory according to NIJ 0101.06 testing standard, reached the international advanced level.
Item | Material | Protection Level | Size | Protection Area(m2) | Weight (kg) | |
Ballistic Panel | Outer Cover | |||||
LTBV-2 | Aramid UD fabric | Poly-cotton | NIJ level IIIA for .357SIG&.44Mag | M | 0.29 | 2.2 |
L | 0.31 | 2.4 | ||||
XL | 0.33 | 2.5 | ||||
XXL | 0.36 | 2.7 |
Properties
Different types of the body armor
Performance
Type III hard armor or plate inserts shall be tested in a conditioned state with 7.62 mm FMJ, steel jacketed bullets (U.S. Military designation M80) with a specified mass of 9.6 g (147gr) and a velocity of 847 m/s ± 9.1 m/s (2780 ft/s ± 30 ft/s).
Type IV hard armor or plate inserts shall be tested in a conditioned state with .30 caliber armor piercing (AP) bullets (U.S. Military designation M2 AP) with a specified mass of 10.8 g (166 gr) and a velocity of 878 m/s ± 9.1 m/s (2880 ft/s ± 30 ft/s).
Quality Assurance
This type of ballistic helmet use international superior fiber as material, supplemented by a special process technique. It can meet the level NIJ IIIA and GA-2, can defend .44Mag and Chinese 54 handgun bullet.

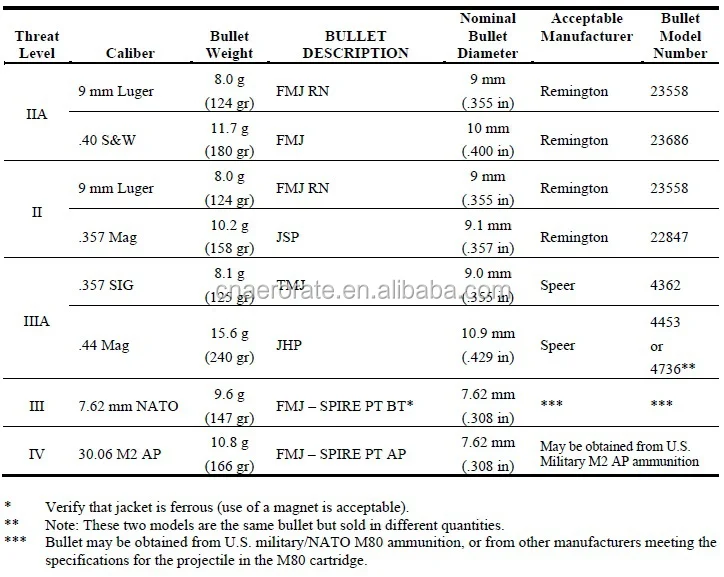

NIJ Standard 0101.06 performance test summary
NIJ 0101.06 Testing Report
The product external packing is carton packing.
To provide safe quality products, we always adhere to the goal.
Serve concept: Serve for honor, good faith is gold!
Led by the customer-oriented service soncept,
Beijing Aerospace Rate Mechanical & Electrical Engineering CO., LTD,
to beome the first class ballistic produts supplier.

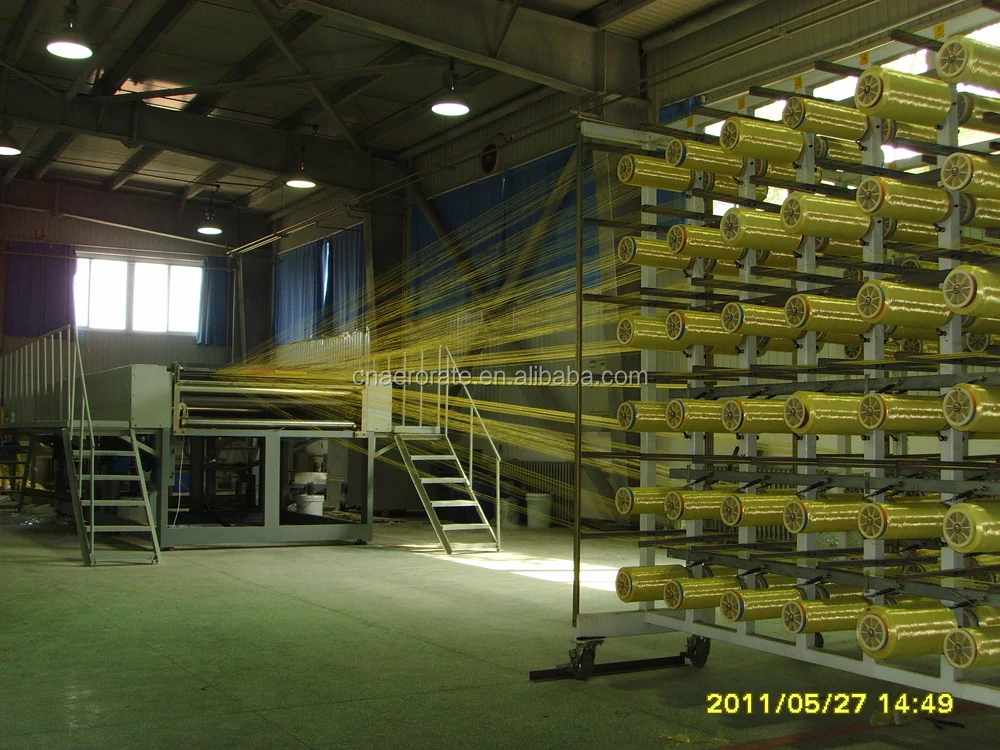

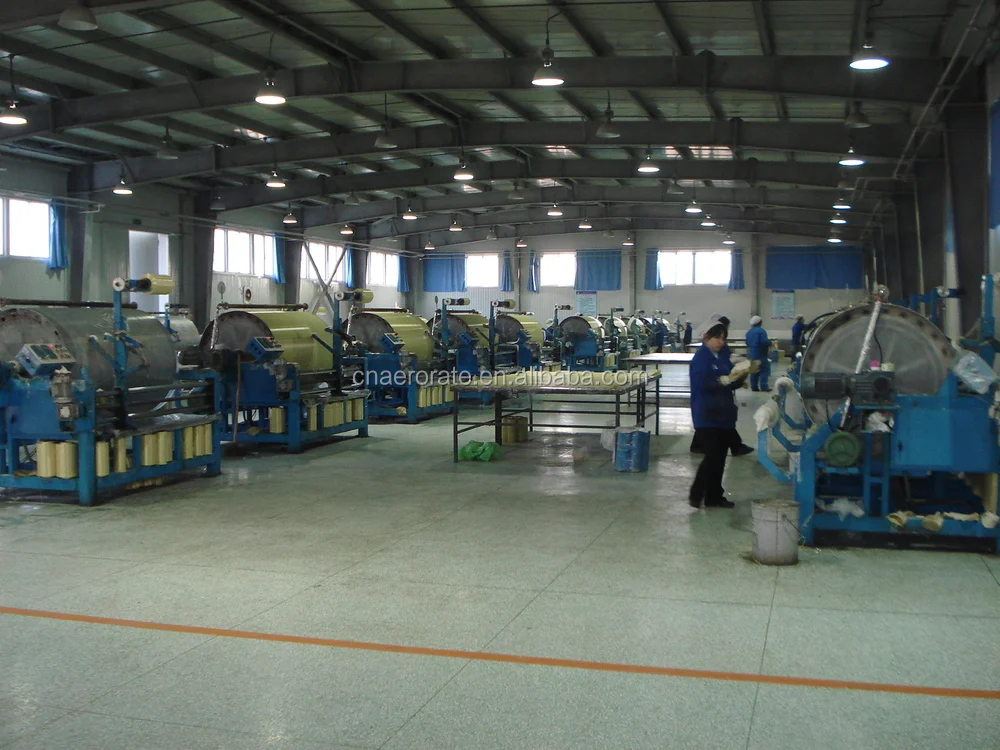

Beijing Aerospace Rate Mechanical & Electrical Engineering CO., LTD, was founded in 1992 and is owned by 101 institute of China Aerospace Science and Technology Corporation, as a high technology-oriented and new tech enterprise, we are professional in high-performance fabrics, fiber reinforced composites and individual protection equipments designing and processing. Moreover, we are the first modern scale production industrial manufacturer of Aramid UD fabrics in China, both of our production and sales are at the top of the individual protection market in Aramid applying area.
Our Aramid fabric and ballistic products have passed through the weapon and equipment quality system authentication of GJB9001B-2009, and already get the “Weapon equipment research and production licenses” awarded by the China's National Defense Science and Industry Bureau. Now we are the member of the Chinese people's Liberation Army General Armaments Department ”Equipment manufacturing unit catalog”, so we have the legitimate qualifications to produce and sell the military equipments.
At present, the main products launched into the market are:Aramid UD Fabric, Aramid/ PE ceramic composite bulletproof plate, Aramid light bulletproof vest, Bulletproof and stab proof vest, Aramid composite bulletproof helmet, Bulletproof shield, Riot suits, Explosion-proof blanket and so on. They all passed the test of General specification for police body armor GA141-2001, the material quality standards of the relevant offices of the China Weaponry Industry Corp and the Ministry of Public Security. PR China. The Aramid bullet proof vest series products passed the NIJ test in international testing organizations---US White Laboratory, reached the international advanced level.
If you have any other questions,please don't hesitate to ask, I will try my best help you!
TradeManager:cnaerorate(Selina)
Skype:selina2585
QQ:958712857
Cellphone:15652539341
AERO-RATE——YOUR CHOICE FOR YOUR SAFETY
AERO-TECH——THE WAY TO ALL
Pure Aramid UD Softe Bullet&Stab Proof Vest
Product Introduction
The soft bullet&stab proof vest of our company is made of special Aramid UD fabric, it's raw materials is high strength and high modulus imported aramid fiber.
It is produced through multi-channel accurate technology process with aerospace special equipment technology and aerospace environmental protection substrate.
As the first softest product of this generation, which made of pure Aramid UD fabric, it solves poor stab resistant performance of Aramid UD fabric by special technology, and overturns the concept that the Aramid UD fabric can’t be used as the stab resistant material,in the meantime,it shows the excellent bullet resistant performance of Aramid UD fabric.
Our product bullet&stab proof vests has an excellent performance and high cost-effective,no matter on the protective performance or the softness and the comfort.In terms of various domestic authorities tests,it is conform to the NIJ0115.00 stab resistant level I &level II,at the same time, it also meets the NIJ 0101.06 ballistic resistant level IIIA.

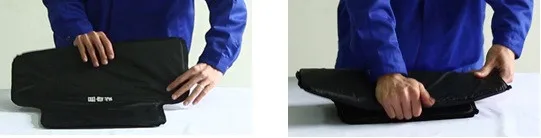

Each bullet&stab proof panel is engineered to provide unparalleled protective performance, while ergonomically designed to follow the body’s natural shape and movement for flexibility and enhanced range of motion. With maximum coverage, stopping power, and all-day comfort, performance is in every detail.
Properties
1.Applying imported Aramid fibers like American DUPONT-KEVLARR or Japanese TEIJIN-TWARONR,with reliable quality and perfect ballistic performance.
2.Good chemical resistance, high heat resistance, negative heat expansion.
3.Applying environmental friendly matrix especially for Aramid, soft and comfortable.
Protection level | (kg/m2) Areal density | (mm) Thickness | According to level |
Stab resistant:NIJ level I Bullet resistant: NIJ level ⅢA | 7.2 | 12 | NIJ0115.00/NIJ0101.06 |
Stab resistant:NIJ level II Bullet resistant: NIJ level ⅢA | 8.1 | 13 | NIJ0115.00/NIJ0101.06 |
