Низкая цена REALAND A-F261 отпечатков пальцев система удар посещаемости терминал для

Описание и отзывы

Характеристики









1.   Brief Introduction

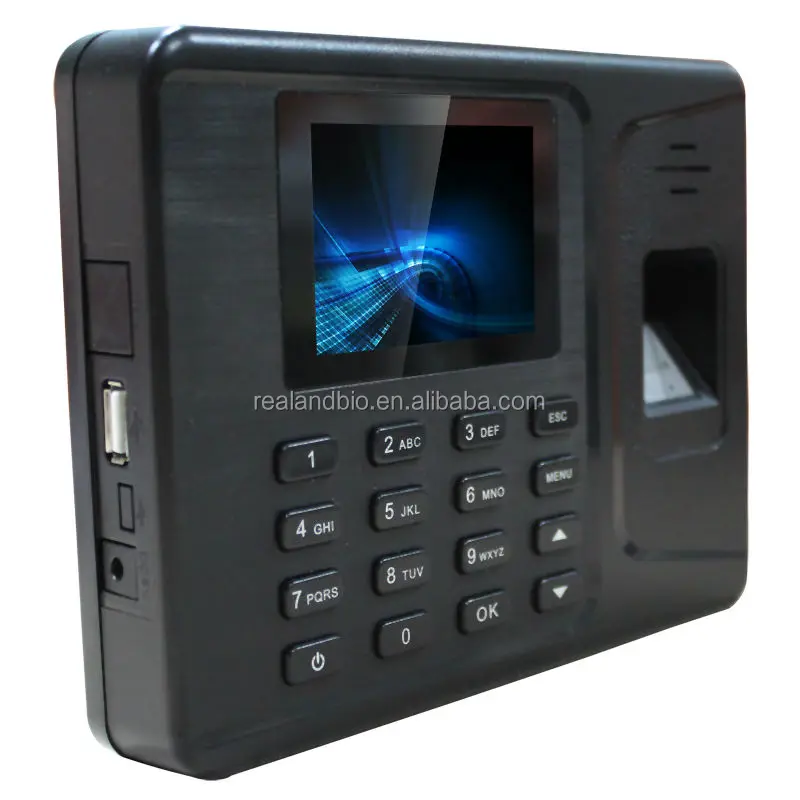

A-F261 is an ultrathin biometric fingerprint & rfid time attendance device, it shows fashionable and elegant. It firstly applies In-Mold Decoration technology in the market, agents/distributors could customize different front case according to yours markets, it also can satisfy diversified products based one mold, so that to differentiate different markets and realize the maximum market share.

Features:

• With the most advanced fingerprint arithmetic in the world, automatically analyze the tiny difference of the latest fingerprints vs. the previous fingerprints and update accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition, the identification time is less than 1 second.
• The device is built-in ID card sensor (optional for IC card), validate freely by Card, fingerprint and password combination, access control is more flexible and secure.
•   2.8 inch TFT color screen.
• Support U disk to download or upload attendance records and fingerprint data ect. User could enroll the fingerprint in one device, and share the enrollment information with other devices through the USB flash memory.
• TCP/IP communication, network connection is simple and convenient, support Push Technology, operate access control networking and data collection & sharing freely
• Supports 11 & 18 digits for user ID registration, user also could enroll mobile number for ID numbers.
• Authentication modes are 1:1 and 1:N, user can register ten fingers, max fingerprint capacity is 1,000 enrollment and 100,000 records.
• Support multi development language(VB, C++, C#, Delphi ect) SDK, and ODM/OEM software development.
• Support English, Germany, Spanish ect different languages.

Functions:





2. Parameter

Model	A-F261
LCD Screen	2.8 inch TFT (320*240)  Color Screen
Fingerprint Sensor Resolution	500DPI (Optical sensor)
Hardware Platform	REALANDR ZDC2911
Algorithm Version	REALANDR RSFv5.1
CPU	ARM926EJ CPU, Running Frequency:  200MHZ

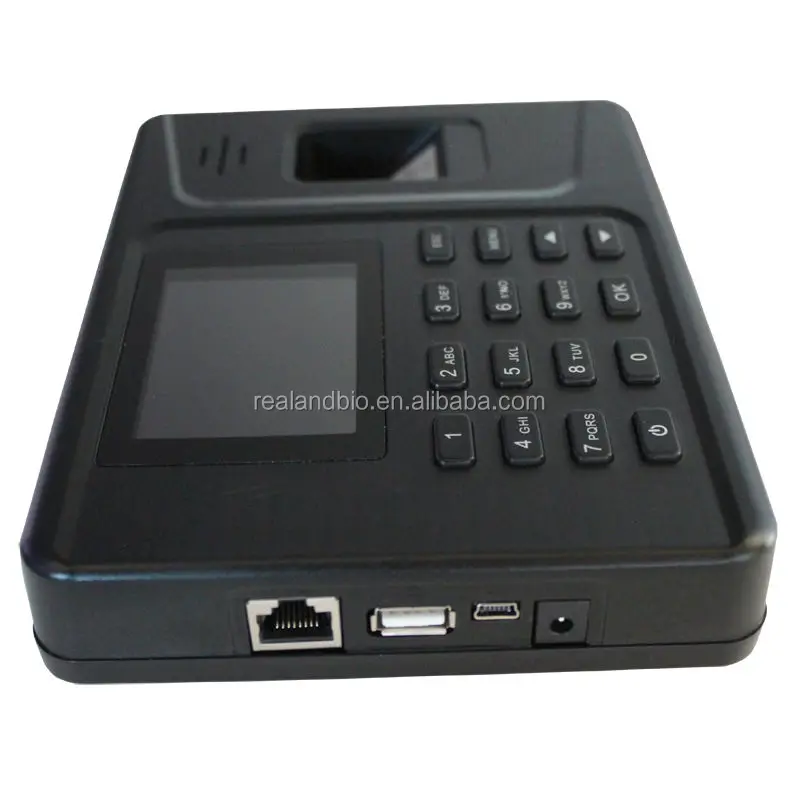

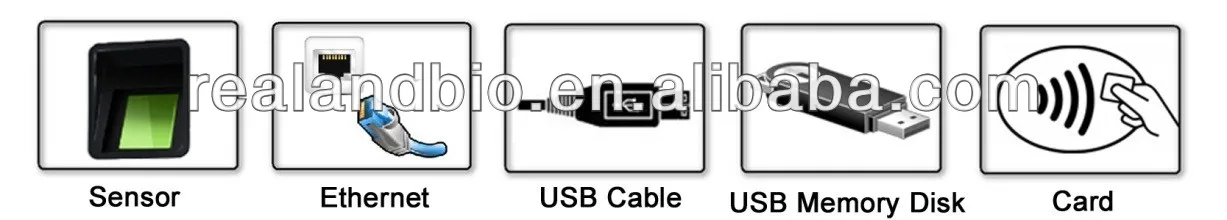

Communication	TCP/IP,  RS485,  USB Memory Disk
User Capacity	1,000
Records Capacity	100,000
Software OS	XP/Win2003/Vista/Win7/Win8 (32bit / 64bit)
Identification Time	< 1 S
Authentication Method	Fingerprint/ RFID Card (125Khz, EM4100)
Language	Chinese / English / Spanish/Portuguese/ German (could customize others)
Bell	Built-in timing bell
Power	DC 5V/0.5A
FRR	<1%
FAR	<0.00001%
Operating Mode	Off-line/On-line
Authentication Mode	1:1, 1:N
Operating environment	Operating Temp: 0°C-50°C, Humidity: 80%
Certificates	CE, Type Inspection Report of Chinese Police Product

3. Application

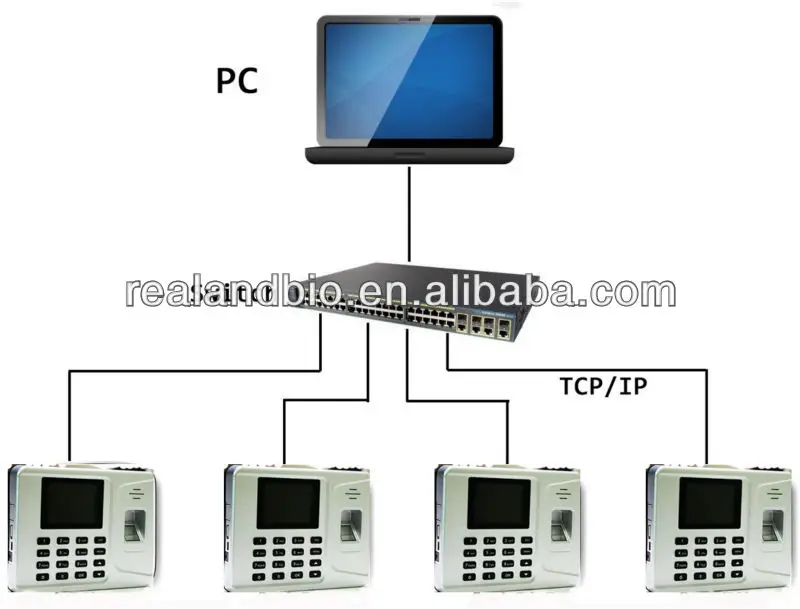

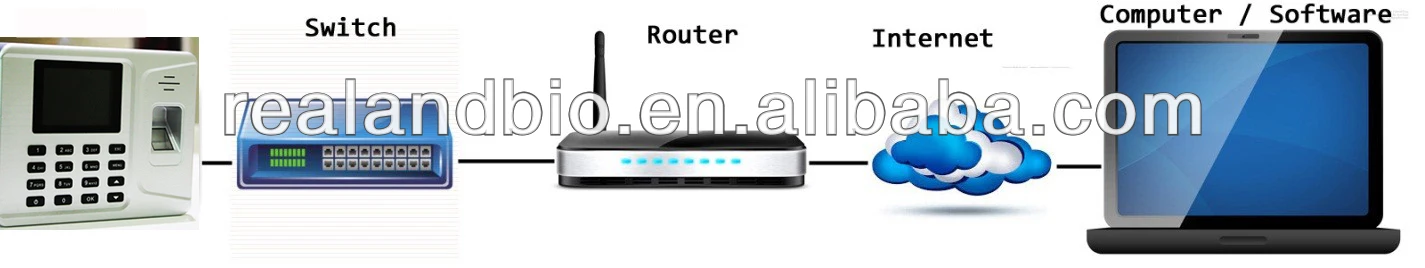

1) Customer can connect the software to the A-F261 device via the WAN network.

2) One software can connect to several A-F261, to share the user info and get the attendance records.



Color Case, Carton Box.

Dimension(L*W*H)mm: Terminal- 173*132*31mm , package- 246*164*71mm ;

Weight: Terminal – 0.328Kg; Package – 0.850Kg .



Sample in stock for quick sample delivery;

Support multi development language(VB, C++, C#, Delphi ect) SDK, and ODM/OEM software development;

Same day response to your any inquiry.



Patent technology: master the core biometrics technology;

Innovative and advanced design: the High-Tech Enterprise granted by government, gain support from the innovative fund of China.

High production capacity: annual capacity is 500 thousands to 1 million pieces.

Partner competition: our guideline “treat each other frankly and honestly, respect and cherish each other.”
