Product Description

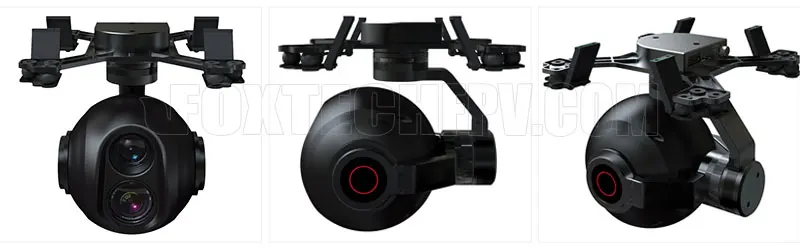

FOXTECH SEEKER-18 IR is a 3-axis stabilized gimbal equipped with a 18X optical zoom camera and a infrared camera.
The 3-axis gimbal adopts the integrated design, the structure is compact and it is easy to be installed.This 3-axis gimbal
adopts intelligent design solution so the gimbal can work once power is added, don't need to debug; The magnetic
encoder can accurately perceive the posture changes in motor motion, and the posture sensor can accurately perceive
the relative position of motor. All these characteristics can let the camera keep stable during the movement, and keeps
the camera at a steady shooting angle even at high speed and intense shaking. The 18X optical zoom camera can easily
capture details over distance, it offers 1080p FULL HD video recording onboard and 720P HDMIoutput, the infrared
camera can take photoes at 640x480 resolution, and the sensitivity is less than 65mk.
FOXTECH SEEKER-18 IR can be applied in many fields like police surveillance and evidence collection, power line
inspection,disaster prevention and mitigation,emergency monitoring and rescue etc.
| Specifications: | |
| Material: | Aviation aluminum alloy,nylon |
| Product size: | 180x178x185mm |
| Weight: | 1050g |
| Working temperature: | - 10 ℃ ~ 45 ℃ |
| Input voltage: | 4s ~ 6s (14.8V ~ 22.2 V) |

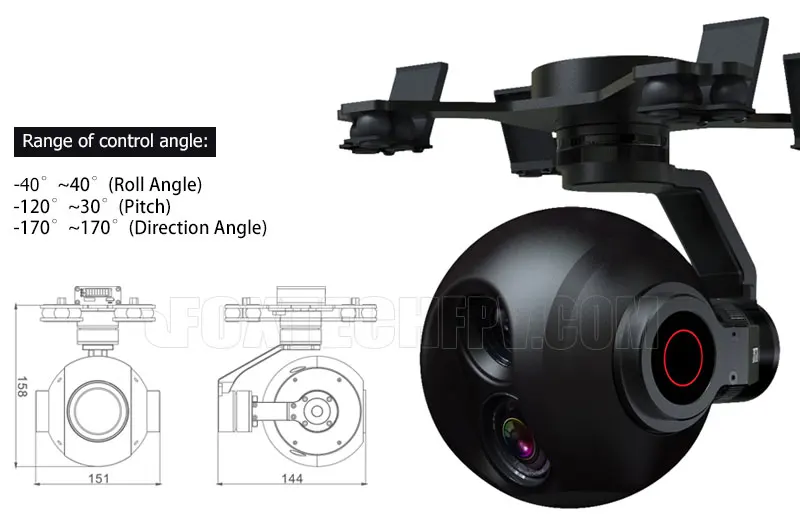

| Range of control angle: | -40°~40°(roll angle),-120°~30°(pitch),-170°~ 170°(direction angle) |
| Control accuracy: | 0.03° |

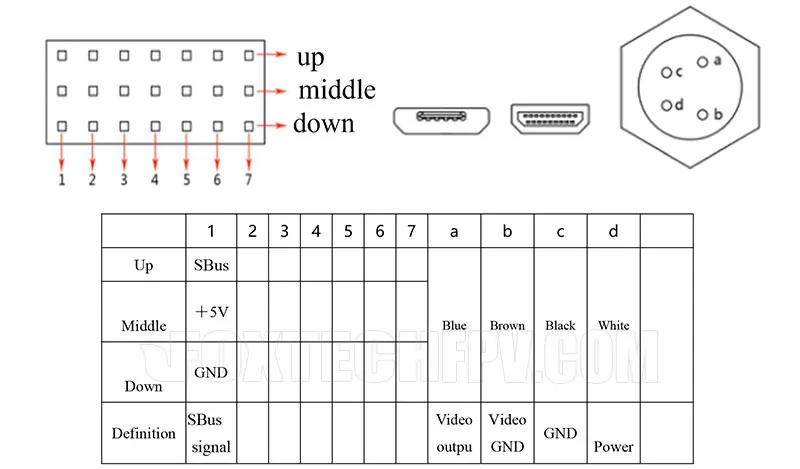

| Control signal: | SBus |

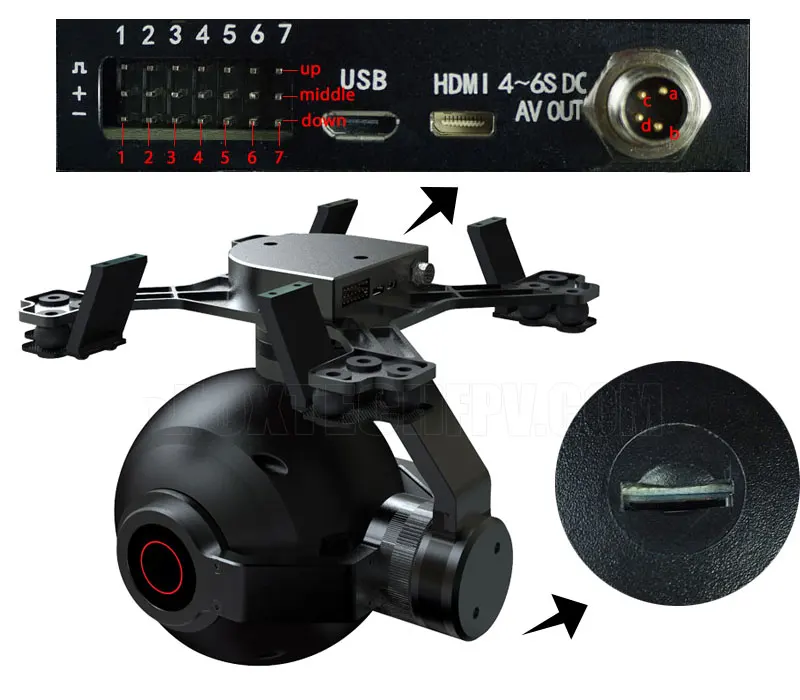

| Output interface: | AV analog output, miro-HDMIoutput |
| Storage: | 2 TF Cards (white light, infrared video record respectively) |
| White Light Camera: | |
| Lens: | 18X optical zoom lens |
| Sensors: | 1/4" 3 megapixel CMOS sensor |
| Video output resolution: | 1280*720@60fps |
| Video storage resolution: | 1080 p |
| Focus time: | < 2 s |
| Automatic white balance: | support |
| Auto gain control: | support |
| Auto color correction: | support |
| Wide dynamic: | support (dynamic range can reach 105dB) |
| Infrared Camera: | |
| Pixel: | 640x480 |
| Pixel-space: | 17μm |
| Types: | Uncooled focal planar micro bolometer |
| Wavelength range: | 8~14μm |
| Thermal sensitivity (NETD): | ≤65mk@30℃ |
| Lens focal length: | 19mm |
| Field angle: | 32.0x24.2° |
| Image output time: | ≤5s |
| Image denoising: | digital filtering |
| Electronic zoom: | 2 times,4 times,8 times,16 times magnification |
| Polarity reversal: | support |

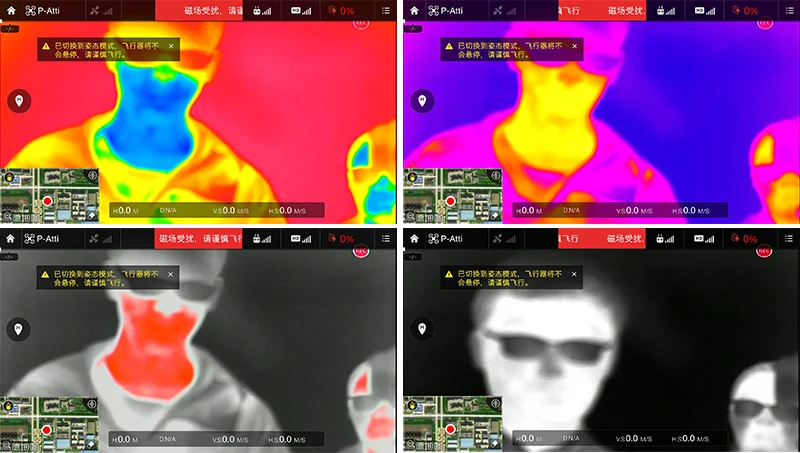

| Palette: | the pseudo color switching Frame |
| Frequency: | 50Hz |
| Extensible temperature measurement functions: | the central point,highest temperature and lowest temperature display function;over temperature alarm |
| Features: |
| IP64 rating,waterproof and dustproof |
| 3-Axis high Stabilized Gimbal System |
| 18X optical zoom,CVBS and 720p/60fps output for video downlink |
| 1080p/30 video recorded for on-board SD card |
| Thermal sensor: 640x480 resolution,CVBS 50HZ(PAL)/60HZ(NTSC) |
| 4 levels thermal zooming: 2X,4X,8X and 16X |
| Your Purchase Includes: |
| 1x Foxtech SEEKER-18 HD 18x Optical Zoom Camera |
| 1x Cable |
| 1x User Manual |
