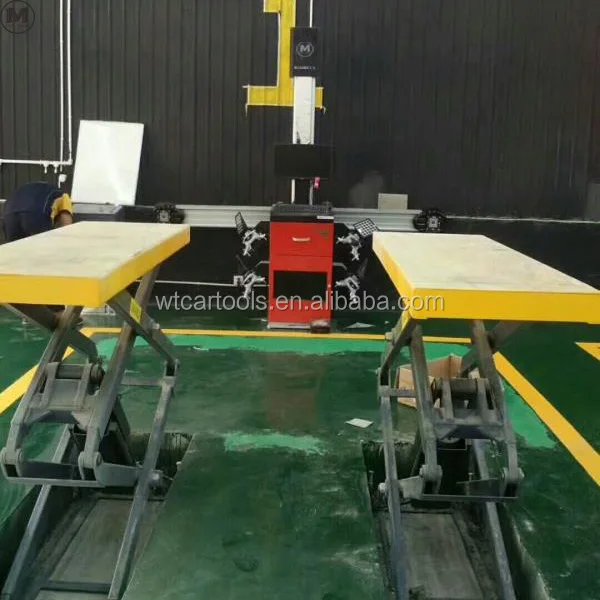

3D Wheel Alignment Garage equipment with Automatic Lift Beam



Feature:

1. Chinese Windows OS, operation process can be easily guided by "Next step" instruction.

2. Exceed 20,000 database around the world and with a lifetime update service.

3. Repeat measurement accuracy is ±0.03,which be a world's leading level.

4. Measurement Angle: Toe, Camber, Caster, S.A.I, thrust angle, Setback angle, Max turning angle, Wheel tread, Wheel base, Wheel rolling radius.

5. Android cell phone and laptop are supported to show the vehicle measurement data, more convenient for operator.

6. Humanized software design, animation video can be used to help technician more quickly complete the operation.

7. Ultra-low chassis and refit vehicle—Volks Wagen and Audi, XLWB and with ESP function vehicle are also can be measured.

8. Secondary jack-up function, which can be used to more conveniently help technician adjust Camber.

 Standard configuration:

. The wheel alignment software could be installed in the Table PC with Android system. Clients         can long-distance operate the wheel alignment measurement  through Bluetooth.

. Parking assistant camera function: independent web camera can guide the vehicle pack in the        specific location.

. Apply high strength plastic target, which is lighter, thinner and stronger.

. Fast installation, suitable for all rims between 12”-23” . Double chuck,  which can install both on      iron and aluminum wheel hub.

5 million high definition camera:

it can also assure accurate alignment measurement when target plates get smaller. Intelligent LED navigation system: the operator doesn’t need to check the screen for the instruction of intelligent LED navigation system and can easily complete wheel alignment operation.

Duel screen is optional:

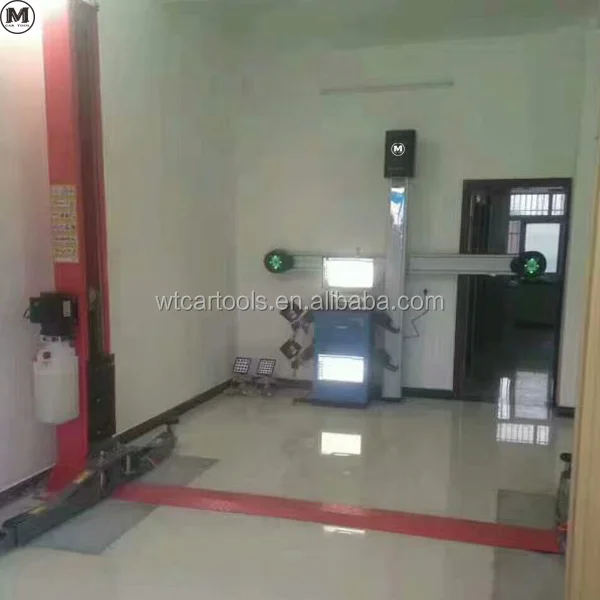

  According to weight of camera beam, the lifting pillar equipped with two pieces of metal counter weight, which can efficiently lower the motor working pressure, thus prolonging the working life. Equipped with low-speed motor aluminum alloy pole, which can achieve stable and unshakable lifting speed. Microcomputer control box support both hand and remote control operation. It can automatically track vehicle’s packing position according to the lift height during operation. Adjusting the height of camera beam to the best shooting position to make sure accurate measurement.

Technical parameters:





ITEMS	Front wheel measurement precision	Front wheel measurement range	Rear wheel measurement precision	Rear wheel measurement range
TOE	±0.02	±20°	±0.02	±20°
CAMBER	±0.02	±15°	±0.02	±15°
S.A.I	±0.02	±26°	x	x
CASTER	±0.02	±26°	x	x
THRUST ANGLE	x	x	±0.02	±5°
