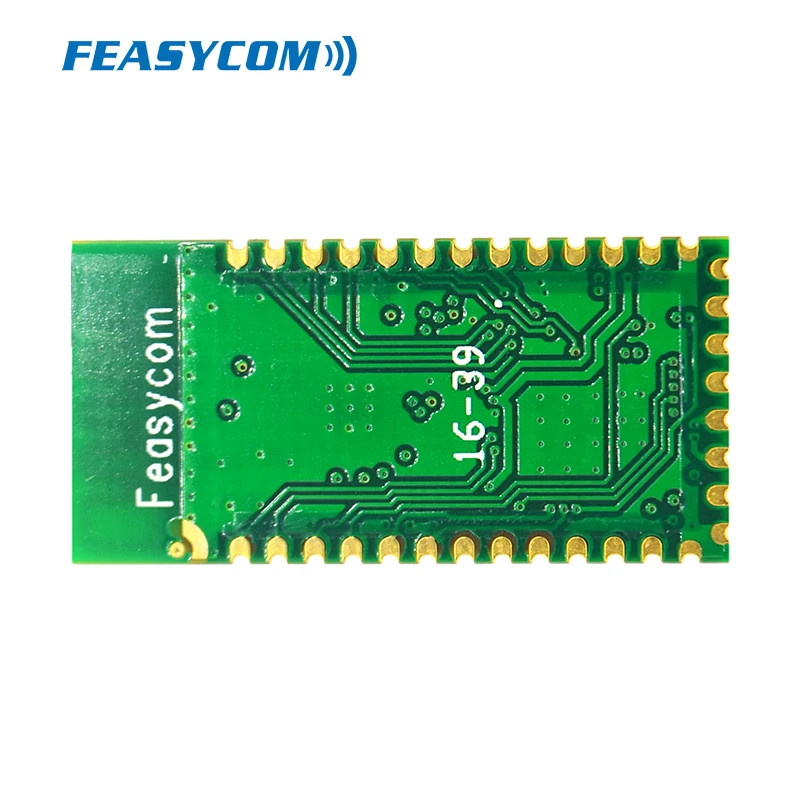

High speed data transceiver Bluetooth 4.2 dual mode module



FSC-BT836 is a smart ready module with BR/EDR & LE support simultaneously. It supports SPP, HID, GATT, and etc. This module integrates a baseband controller and M3 CPU in a small package, so that we can adapt it to many applications.



FSC-BT836 Main Points:

1. Product size: 26.9*13*2.0mm; v4.2 bluetooth dual mode.
2. SPP+BLE+ HID support,hardware & firmware customization accept
3. With built-in antenna, Coverage up to 15m(50ft)
4. Max Transmit Power: 5.5 dBm
5.Application:  Bluetooth Printers, barcode device, Wireless POS,etc









Feature



* Fully qualified Bluetooth 4.2/4.0/3.0/2.1/2.0/1.2/1.1

* Postage stamp sized: 13*26.9 *2mm

* Class 1.5 support(high output power).

* Profiles support: SPP, HID, GATT, etc.

* The default UART Baud rate is 115.2Kbps and can support from 1200bps up to 921Kbps.

* USB, UART, I2C, PCM/I2S, SPI interfaces.

* Support the OTA upgrade.

* MFI Certification



Application



Bluetooth Router, Hub, Gateway

Health & Medical devices

Measurement and monitoring systems

Industrial sensors and controls

Home and Factory Automation

Barcode scanners

Bluetooth printers



Feasycom FSC-BT836 Datasheet:



General Specification
Chipset	Realtek RTL8761
Product ID	FSC-BT836
Dimension	13mm x 26.9mm x 2mm
Bluetooth Specification	Bluetooth V4.2 (Dual Mode)
Power Supply	3-3.6V
Output Power	5.5 dBm
Sensitivity	-82dBm at 0.1%BER
Frequency Band	2.402GHz -2.480GHz ISM band
Modulation	FHSS,GFSK,DPSK,DQPSK
Baseband Crystal OSC	40MHz
Hopping & channels	1600hops/sec, 1MHz channel space,79 Channels(BT 4.2 to 2MHz channel space)
RF Input Impedance	50 ohms
Antenna	Integrated chip antenna
Interface	Data: UART (Standard), I2C Others: PIO, AIO, PWM.USB
Profile	SPP, GATT(BLE Standard) MFI, Airsync, ANCS, iBeacon, HID MAP(optional),OTA (optional)
Temperature	-20ºC  to  +70 ºC
Humidity	10%~95% Non-Condensing
Environmental	RoHS Compliant











Package:



 Feasycom Introduction:



Feasycom focus on the researching and developing of IoT (internet of things) products, including Bluetooth Beacon, Bluetooth Modules, WiFi and LoRa Modules etc.

Feasycom’s engineering and design services include:



SDK

APP Support

PCB Design

Development Board

Firmware Development

Depth Customization

Certification Request
