Suitable Usage

Packing Round bottles into square box for medicine, food-stuff, cosmetic and other industries’

Brief Introduction

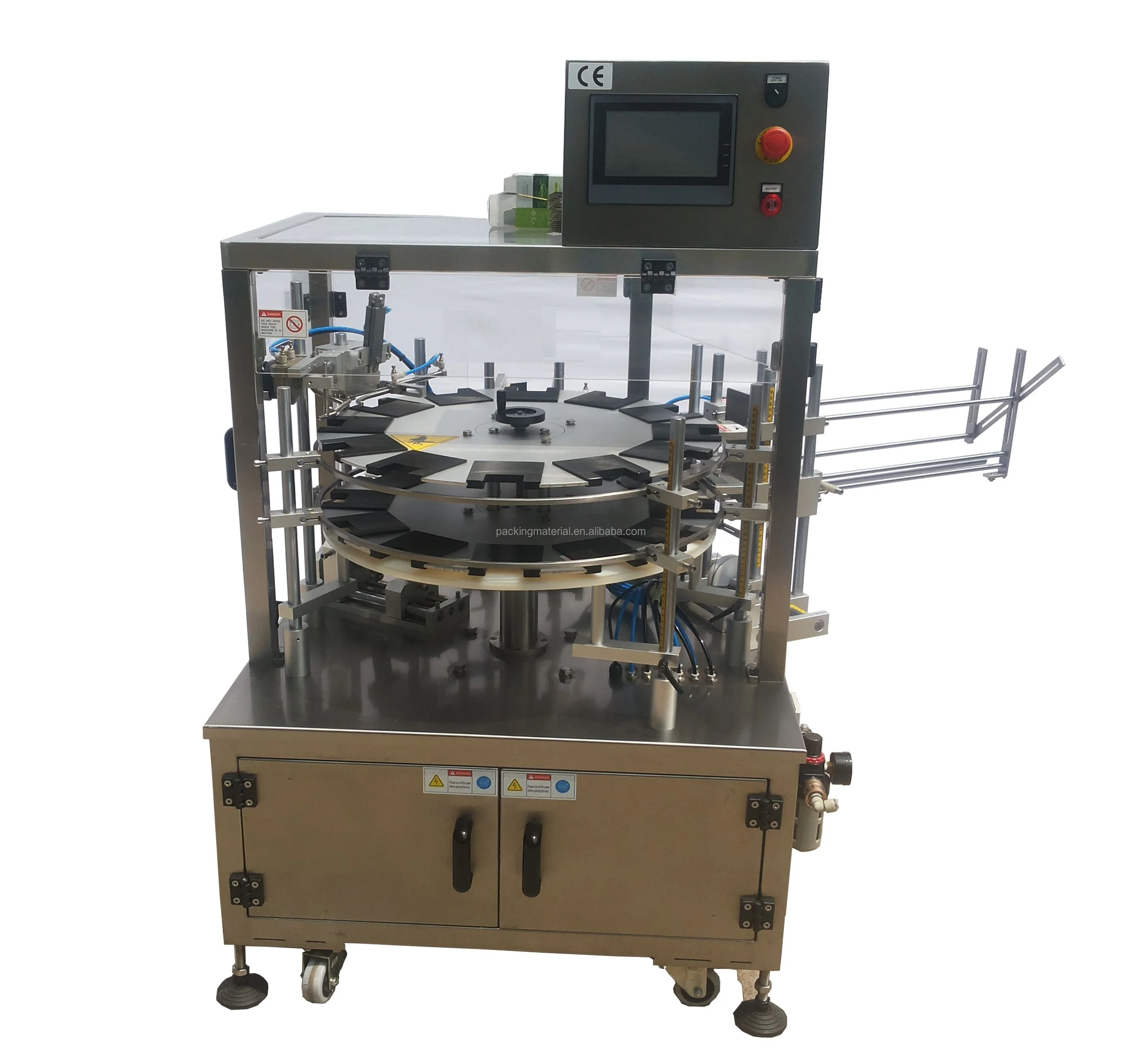

1.     Model CSC-50 semi-automatic cartoning machine (carton-folding-filling-packing) is specialy design to pack small quantities multi-size box.

2.     With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple functions, and is required a short time to change mould.

3.     The machine is made of aluminum alloy with anode treatment. Rust proof long service life cycle and easily clean.

Technical Specification

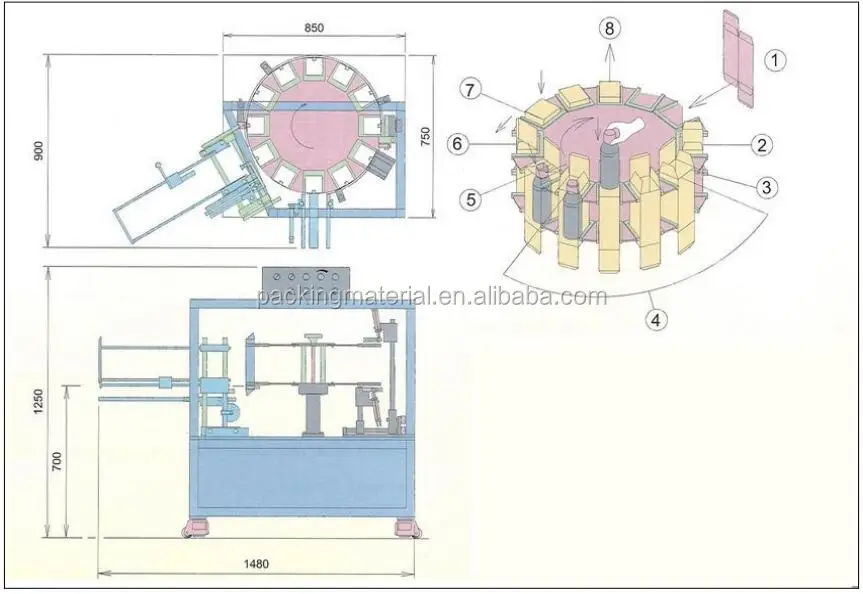

Process

1.     Push box into star wheel

2.     Fold box lower small flap

3.     Stamping code on box(Option)

4.     Product fall into box

5.     Fold box upper small flap

6.     Press both upper and lower big flaps

7.     Flatten both big flaps

8.     Product push out

We are using standard  export plywood cases. To ensure that the transport process will not damage and safety arrived in customers' hands.

Installing and Commission:

We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging&Boarding expenses shall be payable by you. In case the stay of our technician, additional service fee will be charged .

Warranty period:

 One year for fully machine guarantee. And in this year if the machine broken caused by mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
