Цена:2 320,00 $ - 2 490,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


Product Description

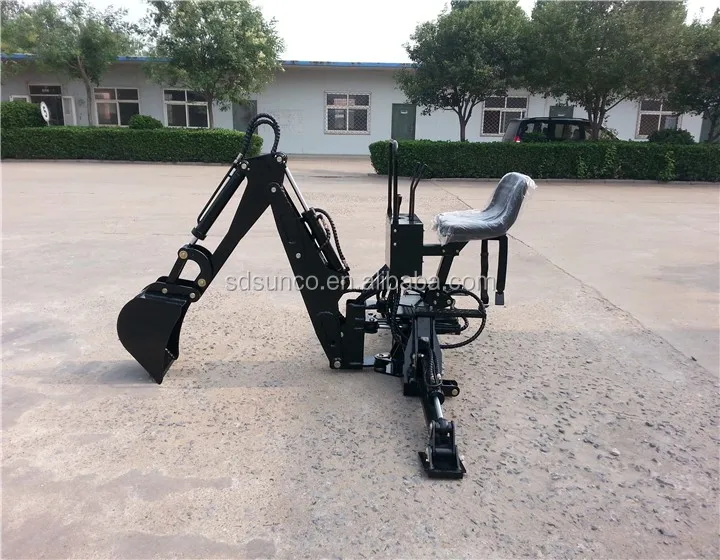

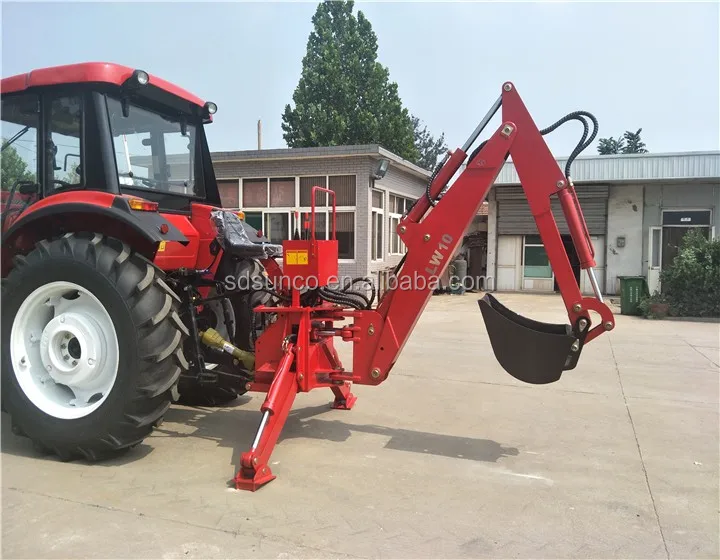

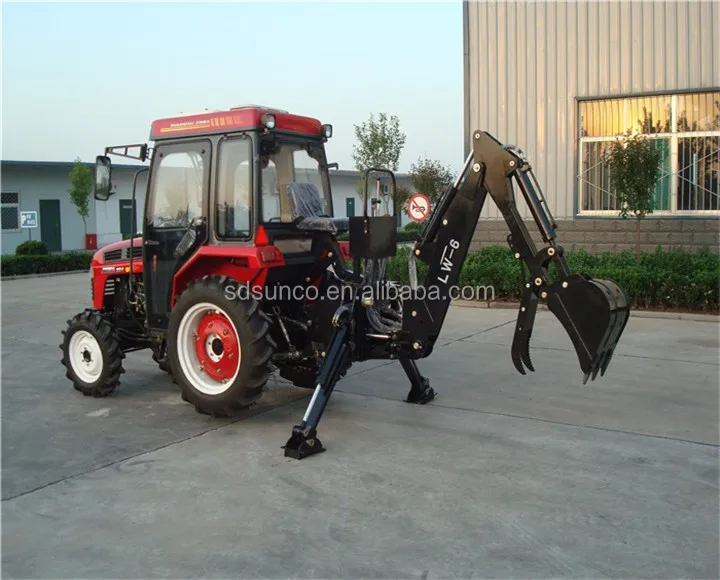

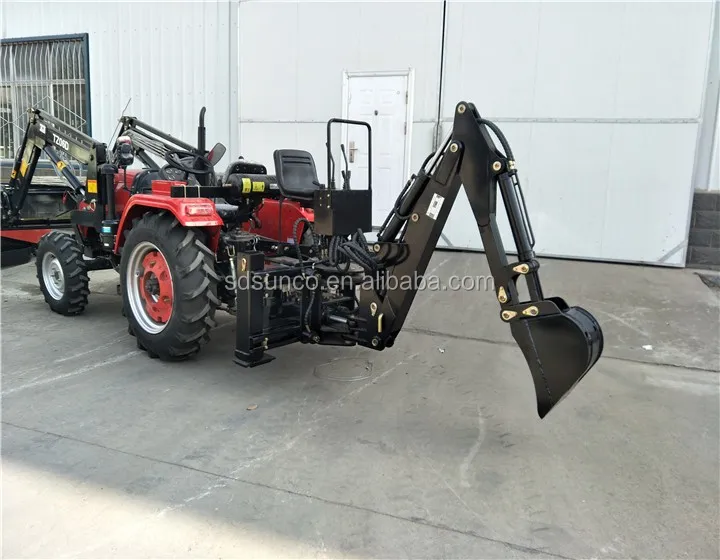

BACKHOE

Mounted on 20-120hp , SAMTRA towable backhoe for tractors is the powerful digging machine on farm land .  LW Series Backhoe Excavator for tractor is widely used in farm, grazing land, construction etc, mainly in ditching, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.
\t

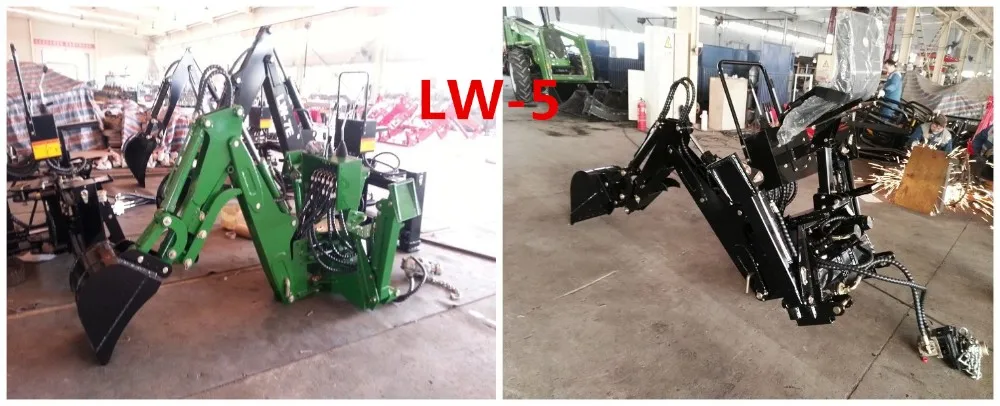

Backhoe Model
\t
\t
LW-5
\t
LW-6
\t
LW-7
\t
LW-8
\t
LW-10
\t
LW-12
\t
Matching Tractor
\t
hp
\t
15~25
\t
20~35
\t
30~55
\t
50~90
\t
70~120
\t
100~180
\t
Max.Digging Depth
\t
mm
\t
1650
\t
2000
\t
2400
\t
2800
\t
3200
\t
3655
\t
Max.Unloading Height
\t
mm
\t
1530
\t
1860
\t
2050
\t
2380
\t
2650
\t
3627
\t
Max.Digging Height
\t
mm
\t
2600
\t
2970
\t
3210
\t
3460
\t
3770
\t
5040
\t
Working Radius
\t
mm
\t
2300
\t
2700
\t
3140
\t
3600
\t
3920
\t
4510
\t
Ground Clearance
\t
mm
\t
450
\t
450
\t
450
\t
500
\t
500
\t
700
\t
Min.Transporting Width
\t
mm
\t
1150
\t
1700
\t
1700
\t
1700
\t
1850
\t
2100
\t
Max.Width of Supporting Legs
\t
mm
\t
2100
\t
2200
\t
2200
\t
2200
\t
2300
\t
2550
\t
Bucket Width
\t
in.
\t
14
\t
14
\t
16
\t
18
\t
20
\t
22
\t
Bucket Capacity
\t
m3
\t
0.03
\t
0.03
\t
0.05
\t
0.06
\t
0.07
\t
0.13
\t
Weight
\t
kg
\t
360
\t
550
\t
560
\t
630
\t
800
\t
1500
\t

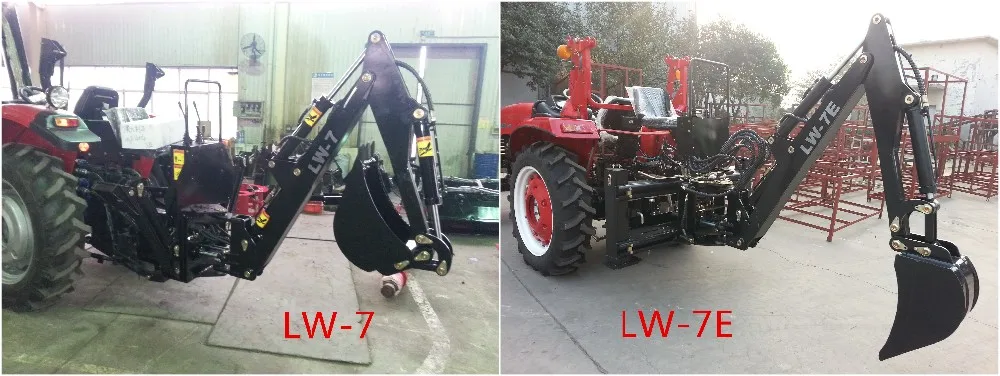

Backhoe model
\t
\t
LW-6E
\t
LW-7E
\t
LW-8E
\t
LW-10E
\t
Matching Tractor
\t
hp
\t
20~35
\t
30~55
\t
50~90
\t
70~120
\t
Max.Digging Depth
\t
mm
\t
2000
\t
2400
\t
2800
\t
3200
\t
Max.Unloading Height
\t
mm
\t
1860
\t
2050
\t
2380
\t
2650
\t
Max.Digging Height
\t
mm
\t
2970
\t
3210
\t
3460
\t
3770
\t
Working Radius
\t
mm
\t
2700
\t
3140
\t
3600
\t
3920
\t
Ground Clearance
\t
mm
\t
450
\t
450
\t
500
\t
500
\t
Side Shift Distance
\t
mm
\t
770
\t
770
\t
1000
\t
1200
\t
Min.Transporting Width
\t
mm
\t
1470
\t
1470
\t
1700
\t
2000
\t
Max.Width of Supporting Legs
\t
mm
\t
1470
\t
1470
\t
1700
\t
2000
\t
Bucket Width
\t
in.
\t
14
\t
16
\t
18
\t
20
\t
Bucket Capacity
\t
m3
\t
0.04
\t
0.05
\t
0.06
\t
0.07
\t
Weight
\t
kg
\t
600
\t
620
\t
700
\t
1000

Main Features

1.use hydraulic transmission
2.compact structure
3.flexibility and convenient operation
4.quick mounting and dismounting
5.Share hydraulic oil with tractor
6.highly standardized hydraulic elements

Certifications
Detailed Images

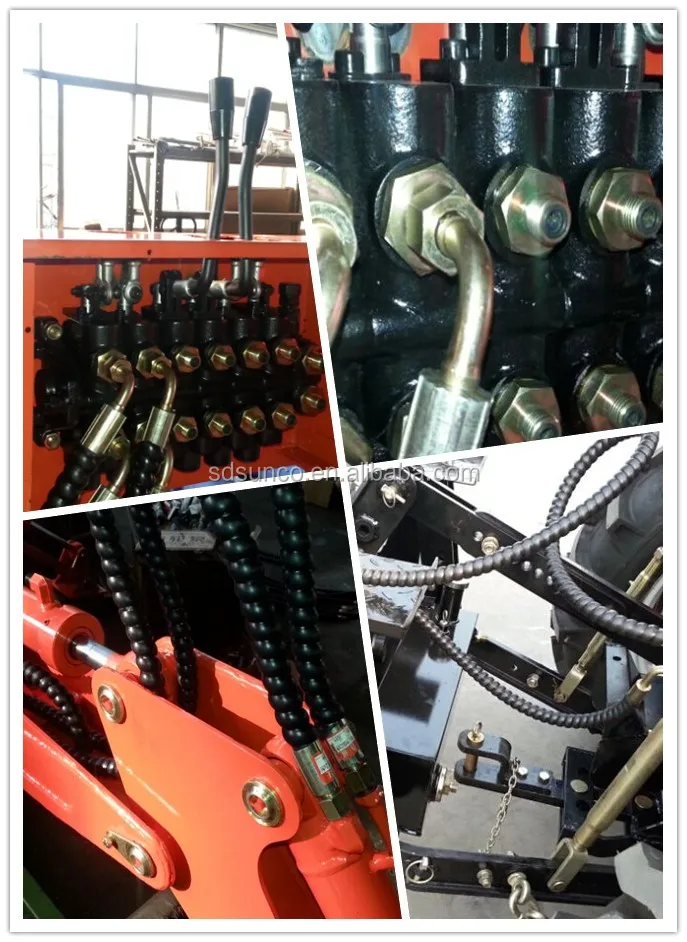

Machine Parts

Name: Valve

Brand: SAMTRA

Original:China

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits.

Main Features

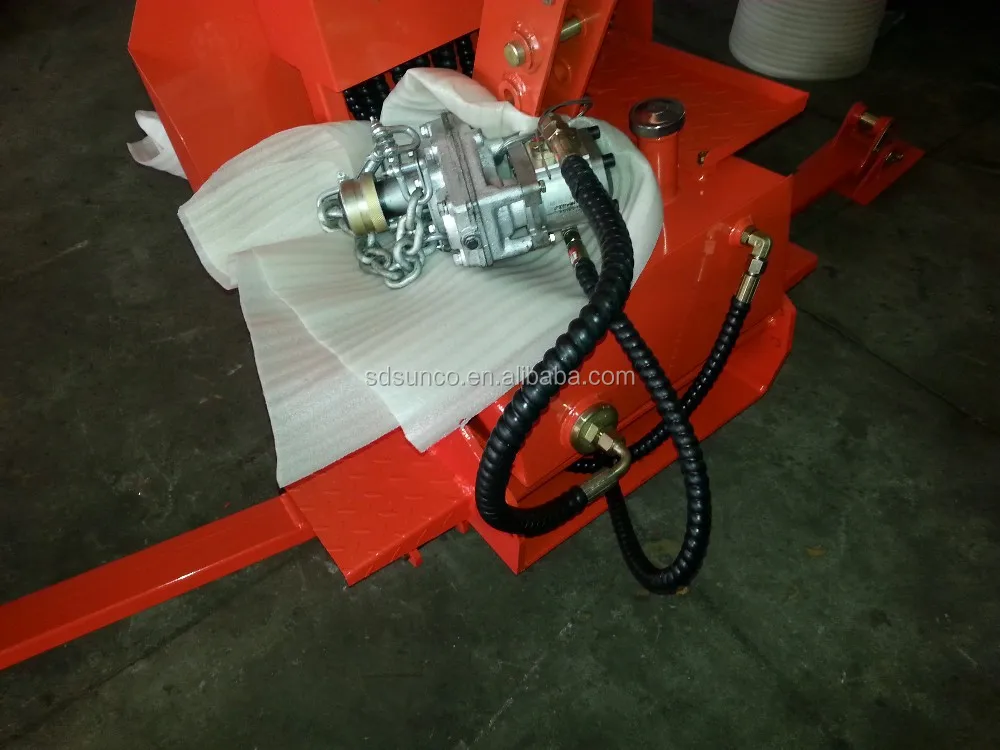

Name: PTO Pump
Brand: SAMTRA
Original:  China

It be equipped with a self-contained hydraulic pump and tank. No need for hydraulics from your tractor. It ensures the proper flow and pressure are achieved at 540 RPM PTO speed.

Machine Parts

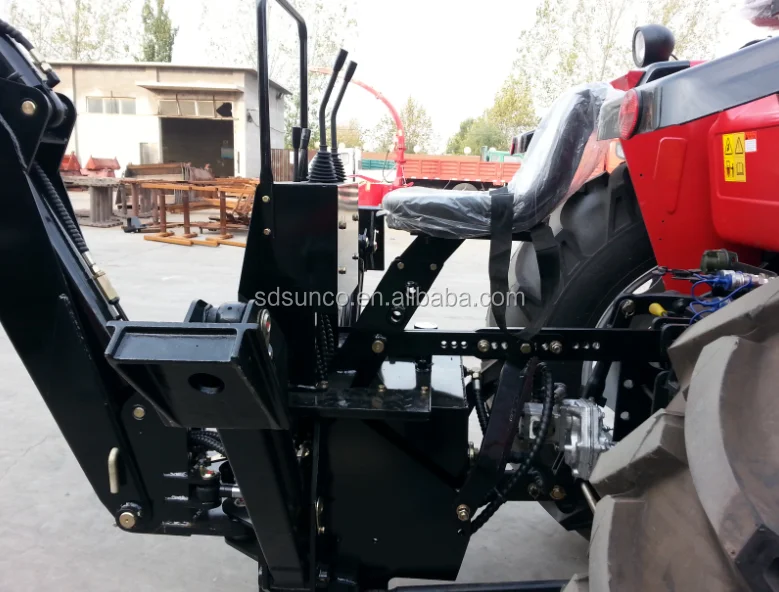

Name: Supporting Brackrt
Brand: SAMTRA
Original: China
New supporting frame 3-point linkage and practical effect, connect the PTO system to your tractor and start.

Main Features

Name: Security lock

Brand: SAMTRA
Original: CHINA
Secure transportation with arm swing back and shear pins in

Our Service

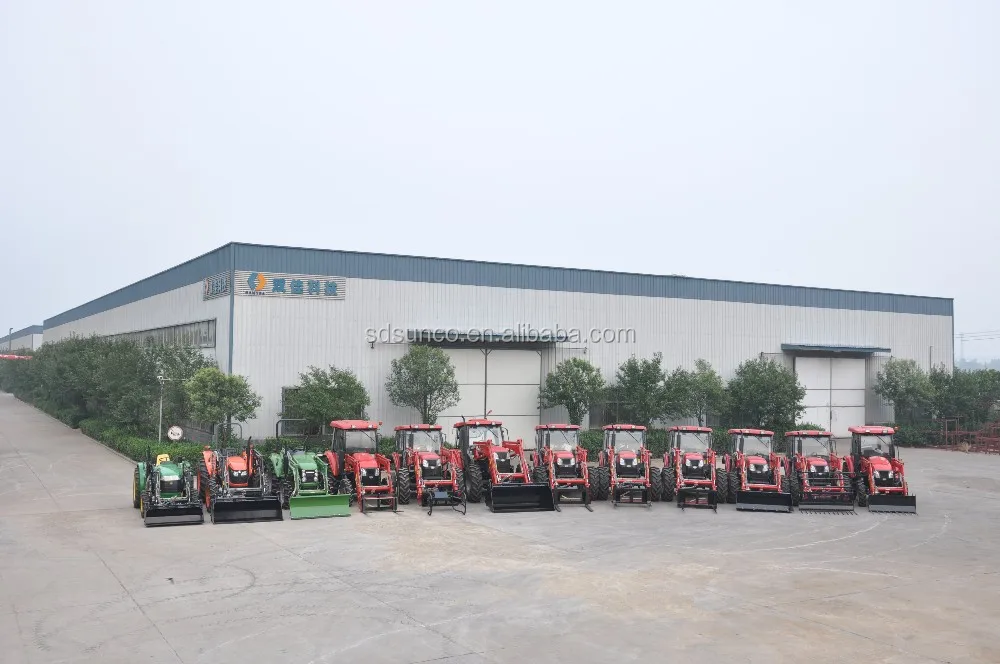

Shandong Sunco Agricultural Equipment Technology Co., Ltd. is subordinate to Shandong Agricultural Machinery Research Institute. It is mainly engaged in development, technique consultation and new product manufacture of tractor, transportation vehicle, harvester, tilling and seeding machinery, as well as infrustructure agricultural machinery, etc.

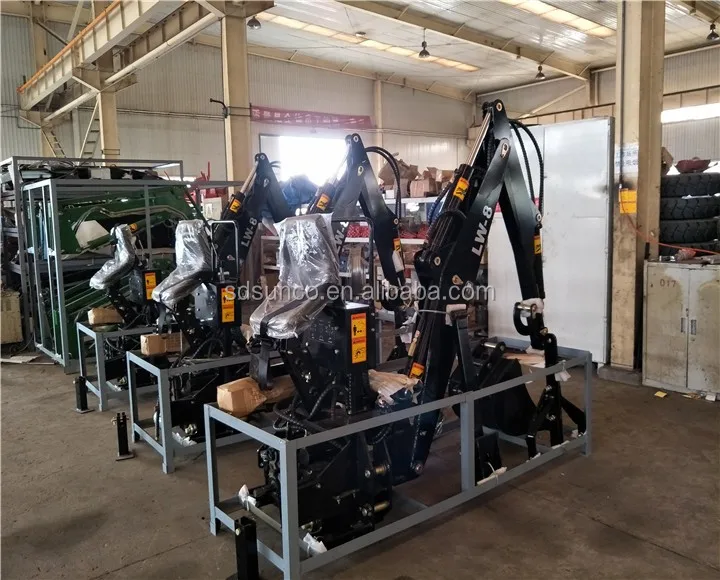

Packing & Delivery
\t
Packaging
\t
Size
\t
2200*750*2000
\t
Weight
\t
620kg
\t



Packaging Details
\t
Packing by steel frame package.
Different model has different packing size
\t
Packaging
\t
Size
\t
2250(L) * 830 (W) * 2200 (D)
\t
Weight
\t
860kg
\t



Packaging Details
\t
Packing by steel frame package.
Different model has different packing size
Related Products

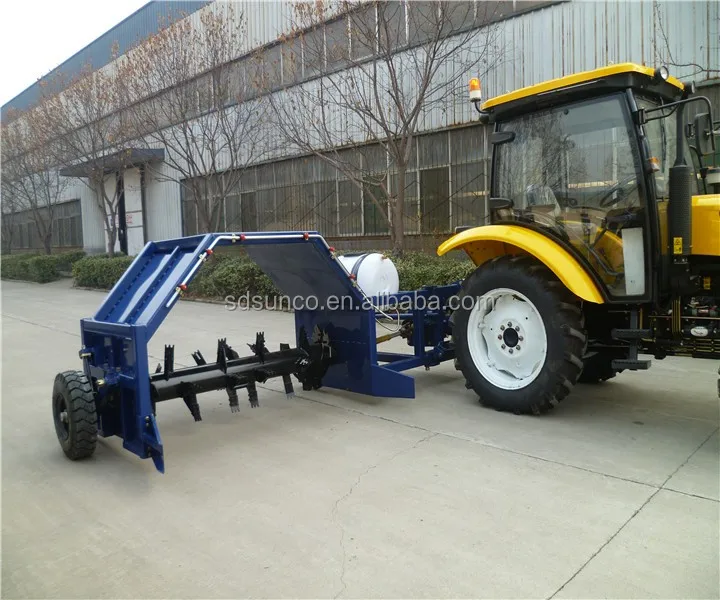

Compost turner

91.8% Response Rate

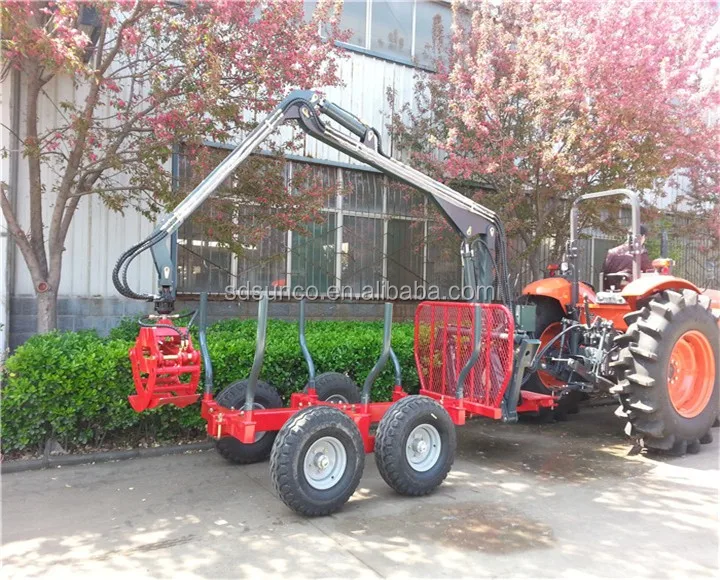

Log trailer with crane

91.8% Response Rate

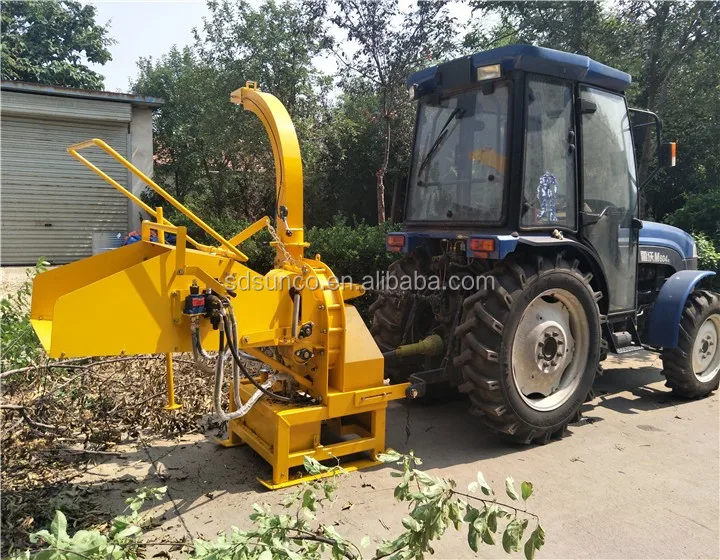

Wood chipper
