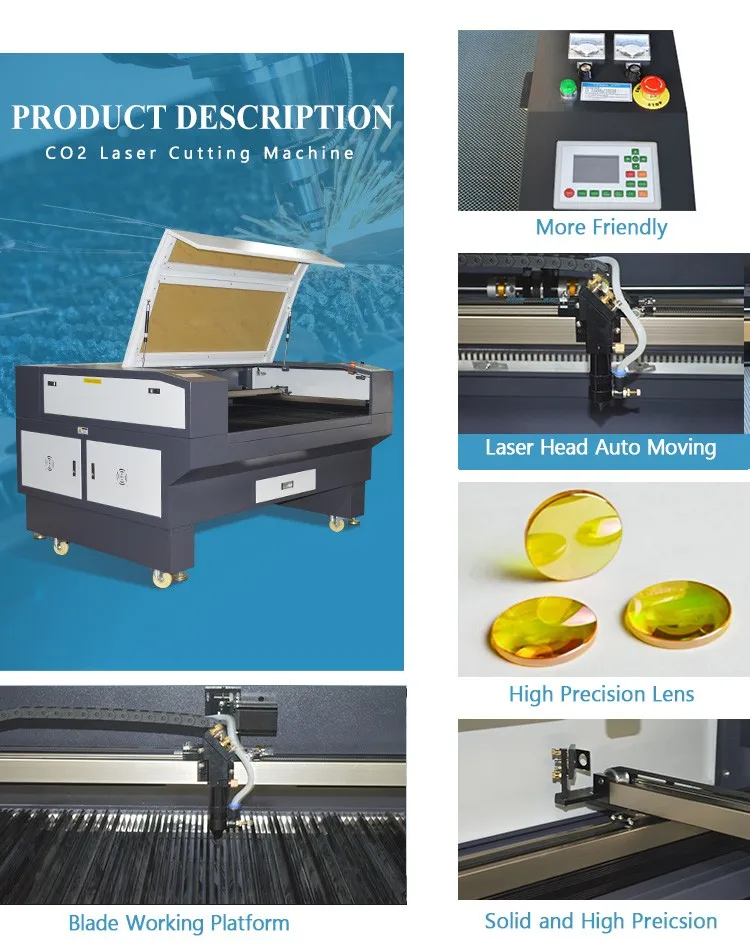

Mactron Co2 Laser Cutting Machine adopts the big size working table to enlarge cutting area and reduce the putting materials frequency, using a high power co2 laser tube generator to ensure the cutting capability for thick materials and improved the cutting speed. large size co2 laser cutting machines are promoted co2 laser cutting systems, especially in mass cutting work, such as big size cloth, textile, leather, acrylic, PVC. Large size laser cutting systems are very popular after promoted, it can work not only for big size materials but also work well for small size cutting and engraving work, it is as the most economical choice for co2 laser cutting engraving machine.
Model | MT-1080D/T/F | MT-1280D/T/F | MT-1610D/T/F | MT-1813D/T/F | |||
Work Area (MM) | 1000 × 800 | 1200× 800 | 1600× 1000 | 1800 ×1300 | |||
Laser Generator | Water cooled Co2 glass sealed laser tube | ||||||
Laser Power | 60W~150W (Optional) | ||||||
Drive Motors | Micro stepping stepper motor system | ||||||
Control System | 64 Bit DSP | ||||||
PC Interface | USB 2.0 Port, USB Disk | ||||||
Cutting Speed | 0-48000mm/min | ||||||
Engraving Speed | 0-64000mm/min | ||||||
Resolution Ratio | <0.025mm | ||||||
Power Supply | AC110V/220V-240V ± 10%, 50/60HZ | ||||||
Location Precision | <0.01mm | ||||||
Operating Temperature | 0°C-45°C | ||||||
Graphic Format supported | HPGL(PLT), JPGE, PCS, TGA, DST, DXP, DXF, DWG, CDR | ||||||
Red Pointer | Optional | ||||||

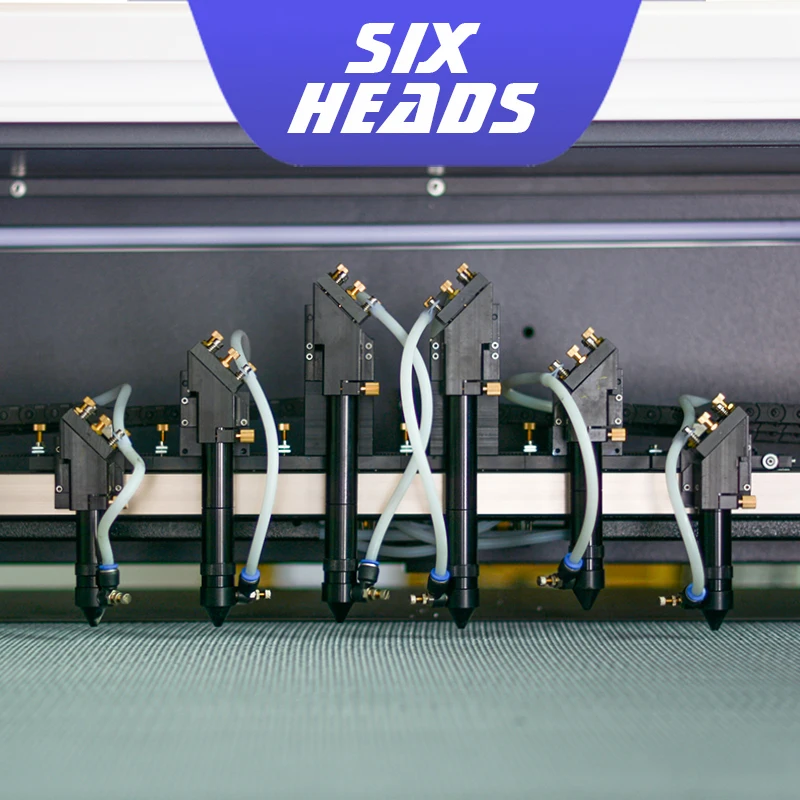

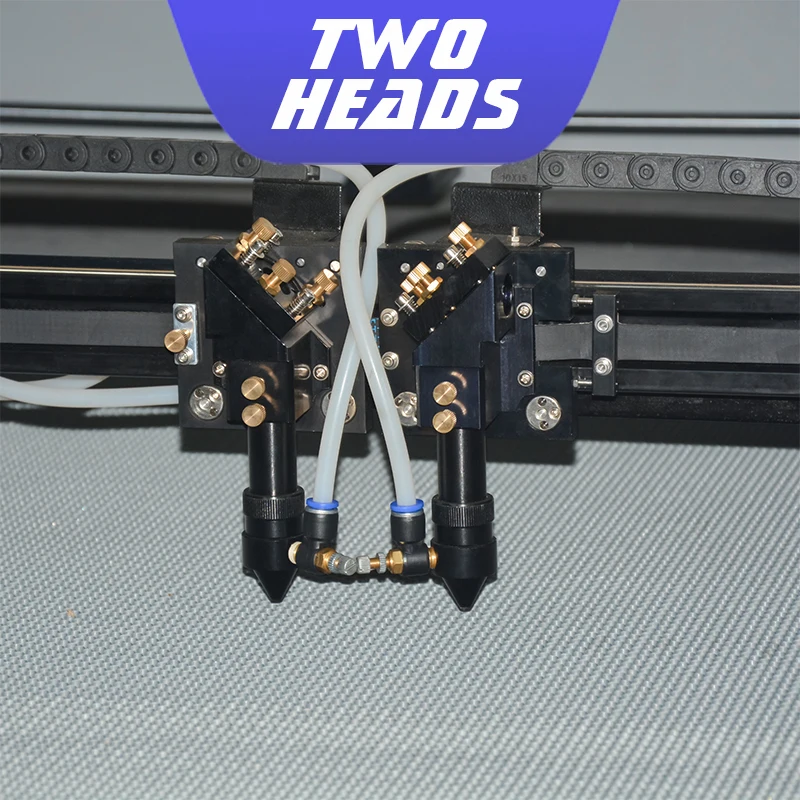

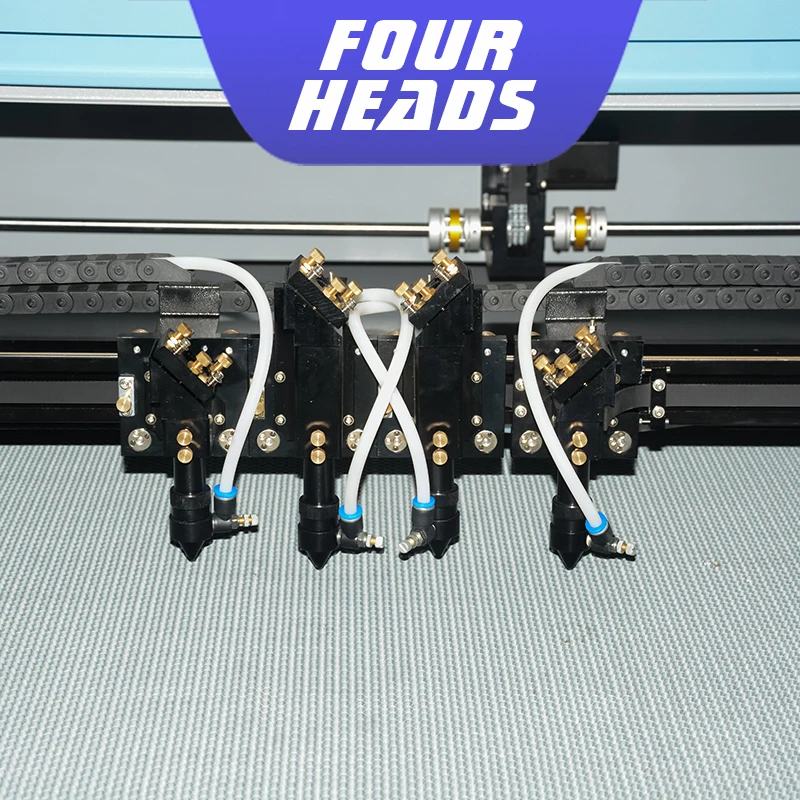

Laser Head | Optional | Optional | Optional | Optional | |||

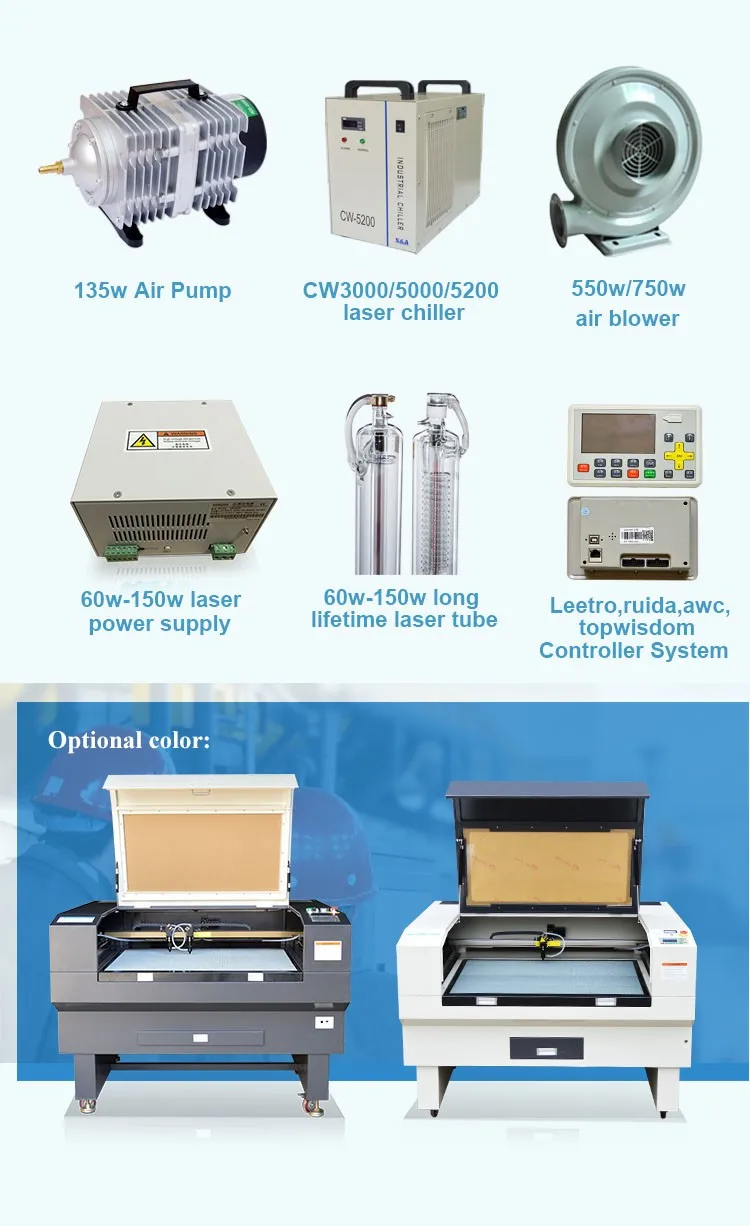

Accessories | Water cooling unit, Air Pump, Exhaust Blower Unit |
Mactron laser cutting machine meets the world-class level of stability, precision, and speed. Due to its high quality and low price this laser cutting machine sells well at both home and abroad Continuous circle cutting and the max circle cutting speed: 30m/min Laser power and speed can be matched automatically to ensure the best effects USB2.0 high-speed port 128 files can be saved for the off-line computer work, which is proper for large quantity and repeat the processing.
Application Material:
Mactron laser cutting machine can be used for both cutting and engraving. It is suitable for almost all non-metal materials such as cloth, leather, wool, acrylic, acrylic, plastic sheet, wooden product, rubber, crystal, ceramic tile, jade.
Application Industry:
Mactron laser cutting machines is suitable for users who have a high requirement about the big size materials cutting and precision of cutting and engraving, and is widely used in industries such as garment , leather, cloth toy, computer embroidery and clipping, electronics, handicraft, advertisement decoration, building upholster, package, printing, paper products, etc.
Applicable Material for Reference | ||||||||||
Mini Size | Engrave | Cut | Material | Engrave | Cut | |||||
Natural Wood | Yes | Yes | Paper | Yes | Yes | |||||
Acrylic | Yes | Yes | Mylar | Yes | Yes | |||||
Glass | Yes | No | Press Board | Yes | Yes | |||||
Double Color Plate | Yes | Yes | Rubber | Yes | Yes | |||||
Bamboo | Yes | Yes | Plywood | Yes | Yes | |||||
MDF | Yes | Yes | Fiberglass | Yes | Yes | |||||
Cloth | Yes | Yes | Painted Metal | Yes | Yes | |||||
Leather | Yes | Yes | Plastic | Yes | Yes | |||||
Marble | Yes | No | Ceramic | Yes | No | |||||
Matte boards | Yes | Yes | Coated Metal | Yes | No | |||||
Stone | Yes | No | Other Materials | Yes | Yes |
Cutting Thickness of Different Laser Power for Reference: | ||||||
Laser Power(w) | Acrylic(mm) | Plywood(mm) | MDF(mm) | |||
40w | 3 | 2 | 1.5 | |||
60w | 8 | 5 | 3 | |||
80w | 12 | 8 | 6 | |||
100w | 15 | 12 | 9 | |||
130w | 20 | 15 | 12 | |||
150w | 25 | 20 | 15 |

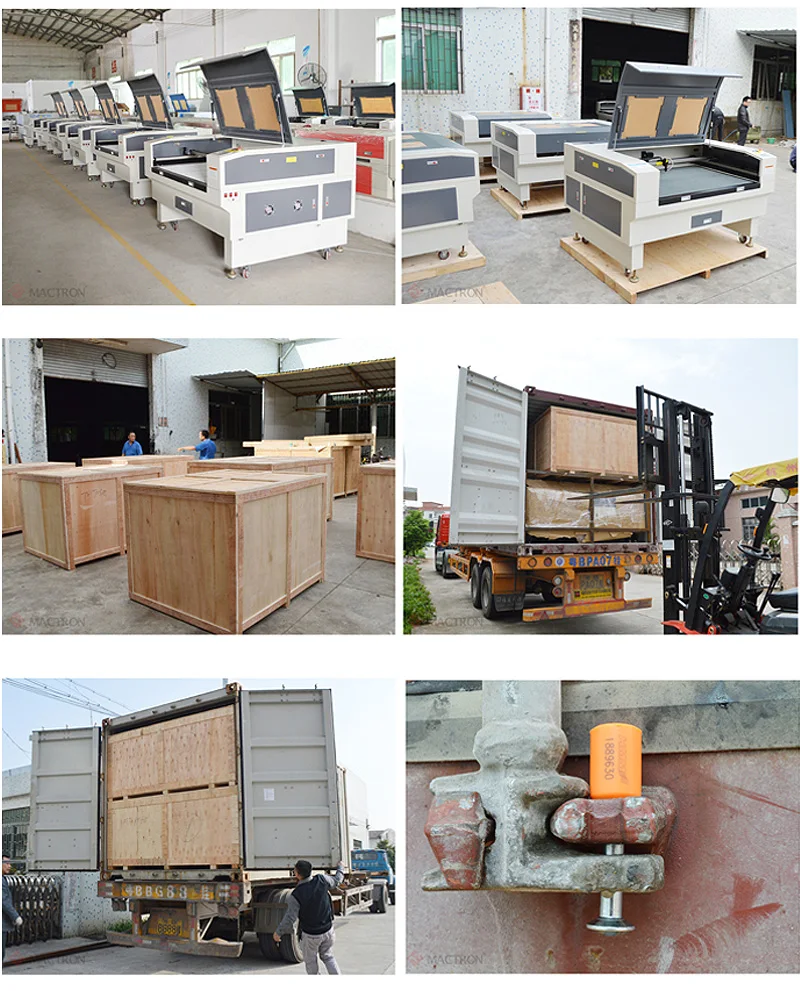

Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
FAQ
1) What are the primary products of your company?
Our primary products include laser marking machine, laser engraving machine, laser cutting machine, laser welding machine, and laser spare parts.
2) Where is your fiber laser equipment applied to?
Our Fiber Laser Marking Machine is suitable for all kind of metal, industrial plastic, electroplates, metal-coated materials, rubbers, ceramics and so on.
3) What are the advantages of your laser equipment?
High quality and precision are the featured properties of our laser marking machine. Our laser marking machine employs the domestic leading "Smart Engraving" technology, which could clearly engrave 2mm characters and 1mm letters on the materials.
4) How to do control the quality when you produce laser equipment?
We introduce international advanced production technology, and strictly implement a series of measures of quality and cost control to ensure the quality of laser marking machine. In addition, all raw materials are strictly inspected in accordance with international standards before they are put into production.
5) Which countries are your laser machinery sold to?
Our laser marking machine sell all over the world, such as United States, Mexico, Brazil, Australia, Singapore, Saudi Arabia, Turkey, India, Italy, UK, Germany, Poland, Spain, Romania and many other countries.
