tsurumi roots blower

---



Email: manager(a)scy-fan.com



Pursue from large scale factory,

Make the business to be satisfactory





Feature:







• IP 55/65







• 50hz/60hz







• Corrosion Proof







• 220v/380v/415v/440v/660v/1140v







• 1450RPM/960RPM/720RPM/590RPM







• High Temperature Proof (up to 500 °C)







• Each fan's impeller has been well dynamic balanced.x



Structure







♦ Impeller Type: Backward/Forward/ radial blade







♦ Driving Mode: Direct/belt/Coupling drivetrain







♦ System Type: Single inlet type, Overhang type.







♦ Cooling Type: Air cooling/Circulating Water cooling







♦ Bearing Lubrication Methods: Grease lubricating/Oil bath lubrication







Motor Brand: ABB / /Baldor / Teco/   Motor

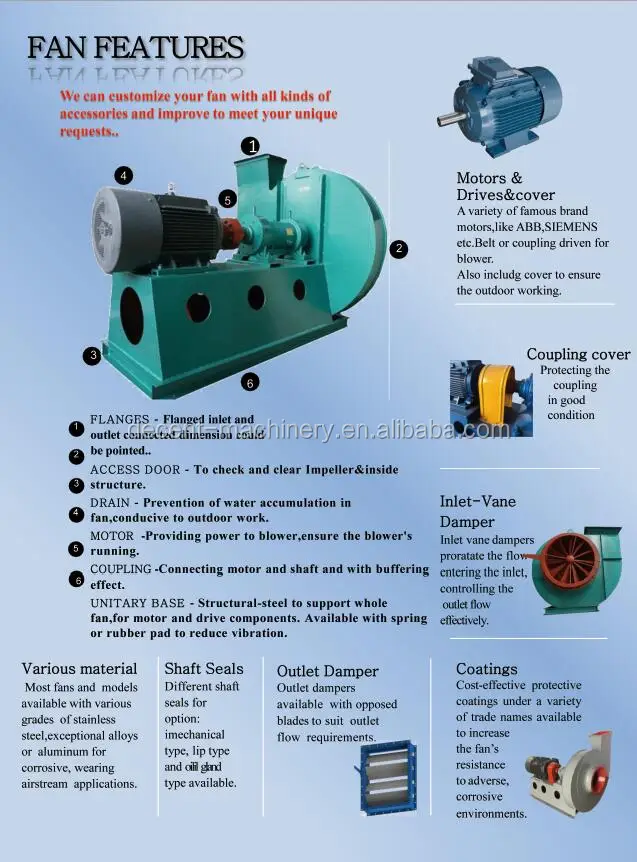

♦ Basic Components:







Motor, Impeller, Impeller cone (Air Inlet), Case, Main shaft,
Bearing, Bearing housing, Pin coupling, Foundation bolt.







 System monitoring Instrument, Lube system, Overhead lube tank...











Industrial sandblaster sandblast machine with big capacity

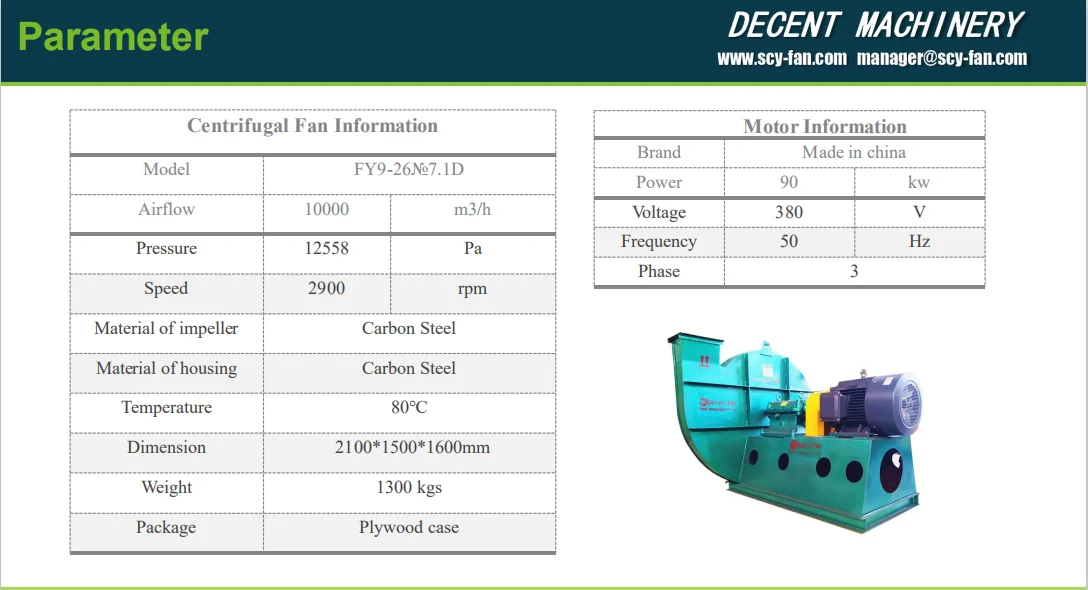

Performance	Pressure range	Pa	2435~14461
	Air flow range	m3/h	2033~1230000
	Impeller diameter	mm	1400~2000
	Speed	rpm	960/1450/2900rpm
Material	centrifugal fan case	Design	Q235, Q345, stainless steel
			45# steel, Q304, SS304,SS316L
	centrifugal fan shaft
	centrifugal fan impeller		Q304, 12Cr1Mov,15Crmov, 15MnV
Medium	10---500°C	Incombustible	Dustiness<80 g/m3
Motor	, ABB, WEG, TECO, LA	3 phase	IP 54,55,56







Application:

• Building ventilation/Oven exhaust/Drying system


• Moisture blow-off/Fume removal/Glass tempering


• Spray-booth exhaust/Air curtains/Cooling


• Dust collection/Air recirculation/Pneumatic conveying


• Combustion air /Food processing
