About Us

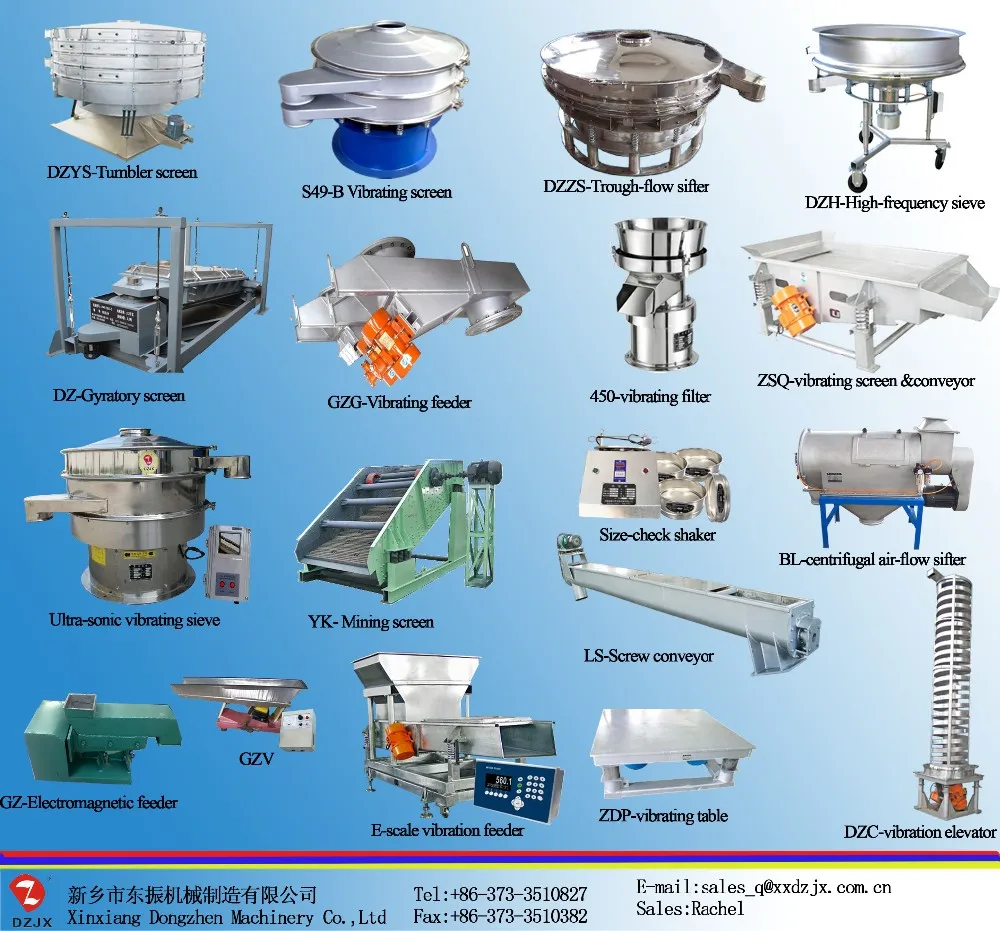

The devices produced by DongZhen covers vibrating screen,vibrating conveyor, and other types of machinery and equipment, having five categories, more than 60 series, more than 800 model specification, customers located in the major north-south of China and products exported to many countrys and region of 5 continents, gaining a high reputation from new and old customers.

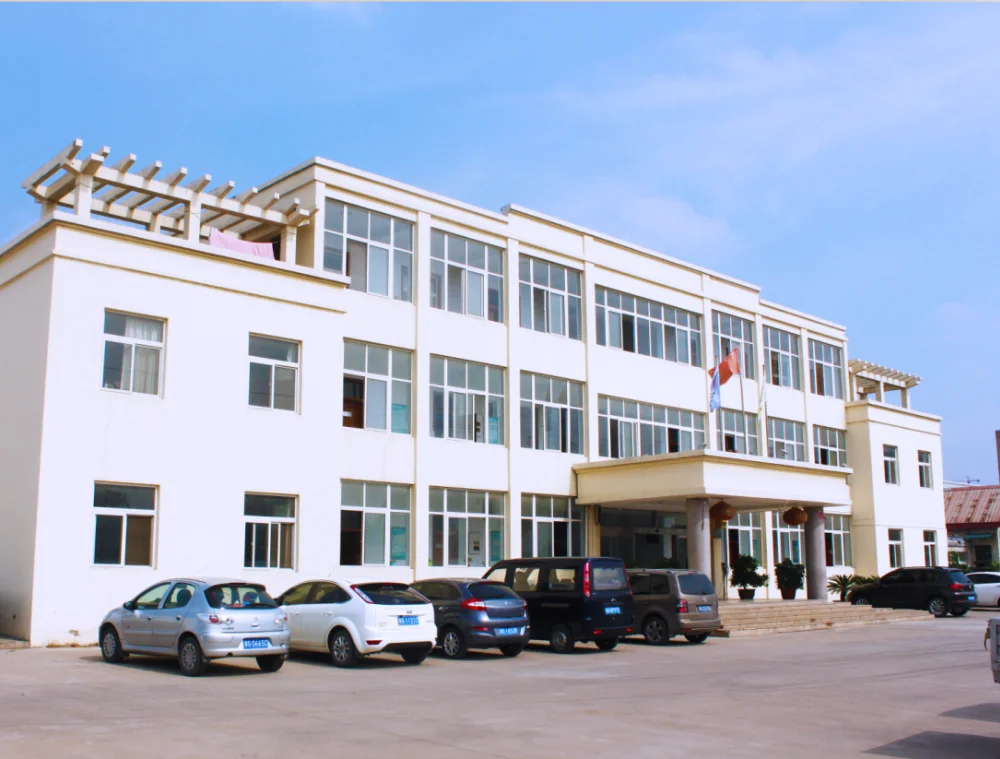

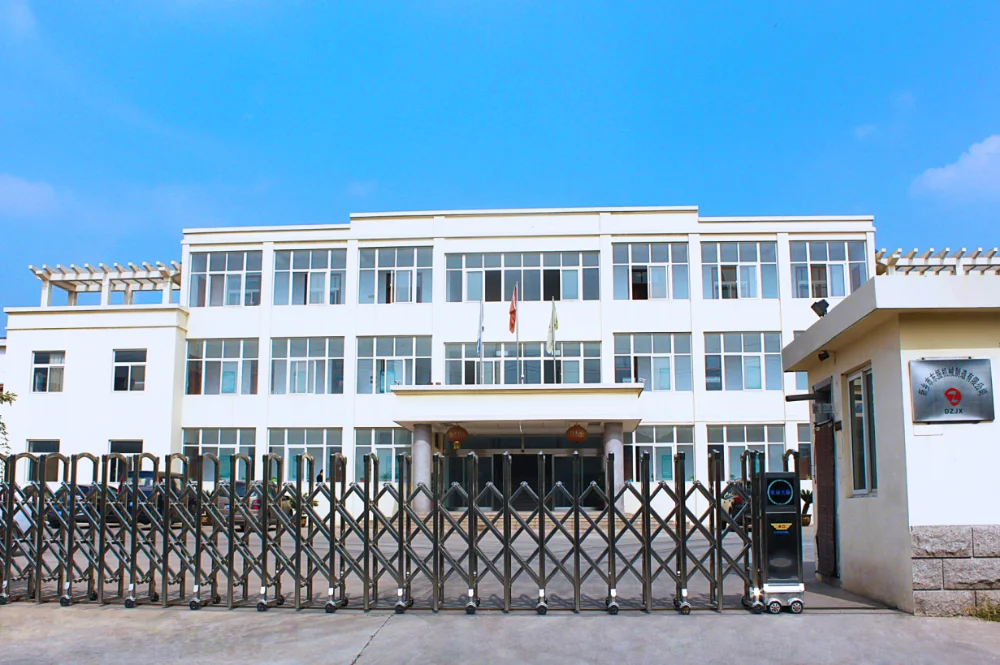

Company Introduction
Xinxiang DongZhen Machinery Manufacturing Co.,Ltd. is an innovative enterprise integrated with technology researching, manufacturing and trading. The enterprise is professional in vibration machines which are widely used in screening and conveying, also specialized in the design, manufacture and the installation of other related supporting products.
The devices produced by DongZhen covers vibrating screen,vibrating conveyor, and other types of machinery and equipment, having five categories, more than 60 series, more than 800 model specification, customers located in the major north-south of China and products exported to many countrys and region of 5 continents, gaining a high reputation from new and old customers.
Product Description

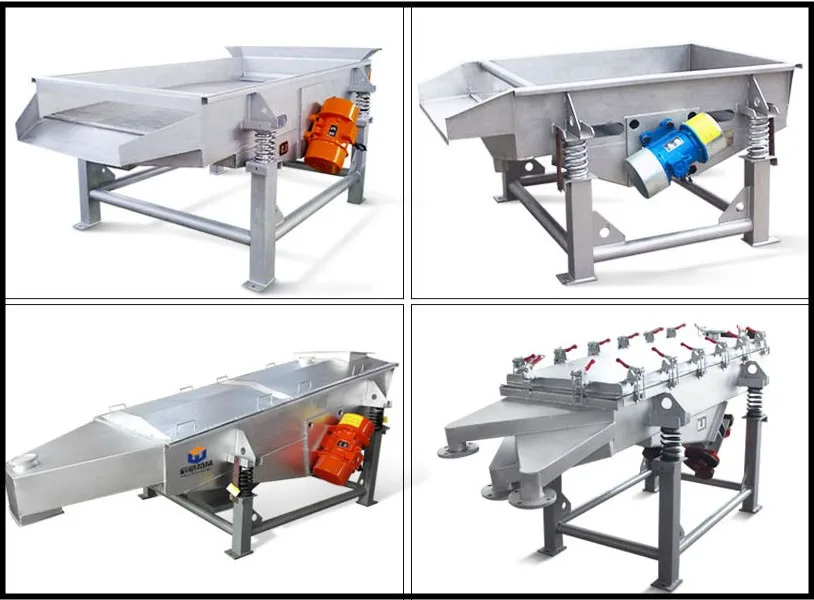

----DZ ZSQ Series Linear Vibrating Screen is a kindly of stadard and universal screening machine. It consists of screen ----------frame(screen box), supporting or hanging device, driving device, vibration isloation and other parts.
----With two vibrating motors mounted on both sides of the machine body, or mounted on the bottom base of the machine body, this make the materials running a straight trace on the sieve to finish the screening work.
----Special custom-made service are available, you just need to tell us your detailed requirements, such as type of material, required processing capacity, mesh size, your local power voltage, Hz, Phase ec.
Introduction of linear vibrating screen:
----DZ ZSQ Series Linear Vibrating Screen is a kindly of stadard and universal screening machine. It consists of screen ----------frame(screen box), supporting or hanging device, driving device, vibration isloation and other parts.
----With two vibrating motors mounted on both sides of the machine body, or mounted on the bottom base of the machine body, this make the materials running a straight trace on the sieve to finish the screening work.
----Special custom-made service are available, you just need to tell us your detailed requirements, such as type of material, required processing capacity, mesh size, your local power voltage, Hz, Phase ec.
----Spare parts for free within 12 months warranty period. Our engineers and sales also provide online realtime supports through Skype, MSN etc.
| Model | ZSQ-520 | ZSQ-840 | ZSQ-1030 | ZSQ-1255 | ZSQ-1650 |
| Dimension(mm) | 500×2000 | 800×4000 | 1000×3000 | 1200×5500 | 1600×5000 |
| Speed(r/min) | 960 | 960 | 960 | 960 | 960 |
| Granularity(mm) | 0.074-60 | 0.074-60 | 0.074-60 | 0.074-60 | 0.074-60 |
| Amplitude | 4-8 | 4-8 | 4-8 | 4-8 | 4-8 |
| Deck | 1-4 | 1-4 | 1-4 | 1-4 | 1-4 |
| Power(kw) | 2×0.75 | 2×1.5 | 2×1.9 | 2×2.2 | 2×3.0 |

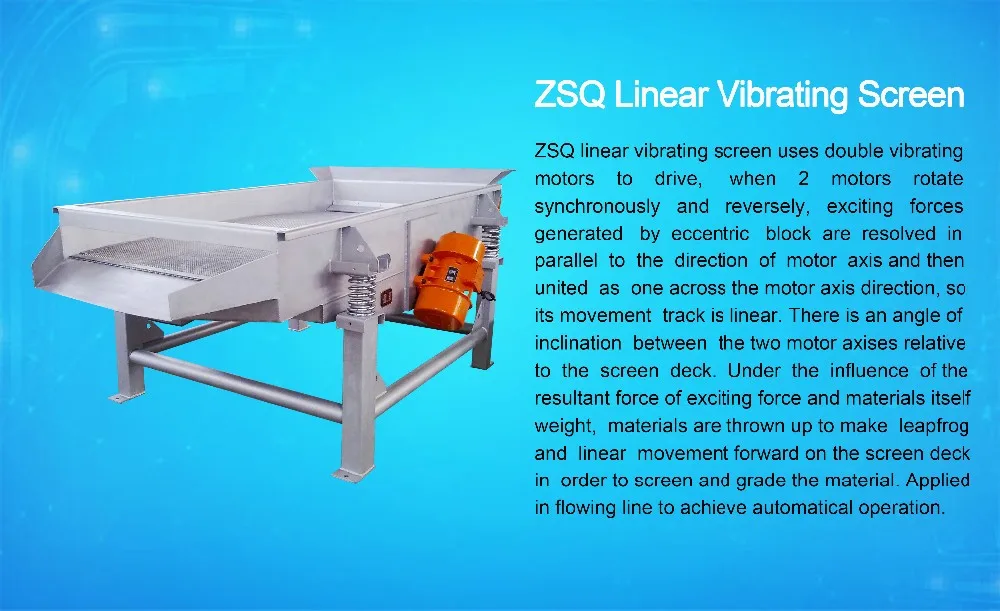

Operating principle
ZSQ series linear vibrating screen using the excitation force of vibration motor as vibration source, its
working principle is that two of the same type and specification do synchronous vibration motor reverse rotation, the line form, a periodic alternating exciting force to drive the sieve box, led screen surface, and then make materials was put up on screen, do jumping movement forward at the same time, several kinds of specifications of the screen by multilayer sieve on content and undersize content, finally respectively from their respective discharging mouth eduction, complete screening operation.

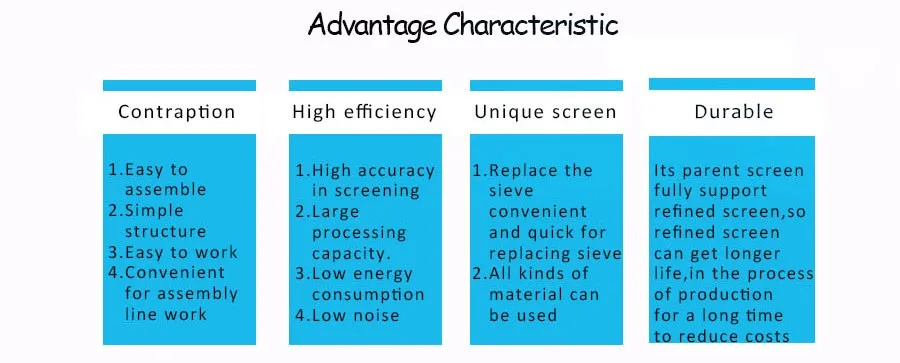

1. Precision design: Compact design and simple structure, it is easy to assembly, operate and maintain, ideally suited for automatical operation in production line.
2. High screening efficiency: With high precision, large processing capacity, low noise and energy consumption, fully sealed design and no dust polution.
3. Unique screen design: Unique screen structure, cleaned and its screen mesh is easy change (3-5 minutes), suitable for variety of screens(nylon, pp)
4. Durable structure: The coarse screen mesh fully supports the fine mesh, which can extend the life of the fine mesh, and reduce the cost of screen mesh.

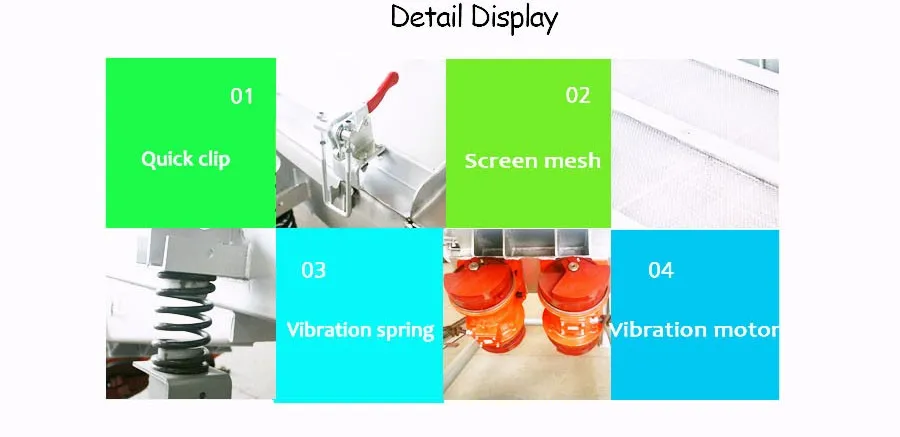

Detailed Images

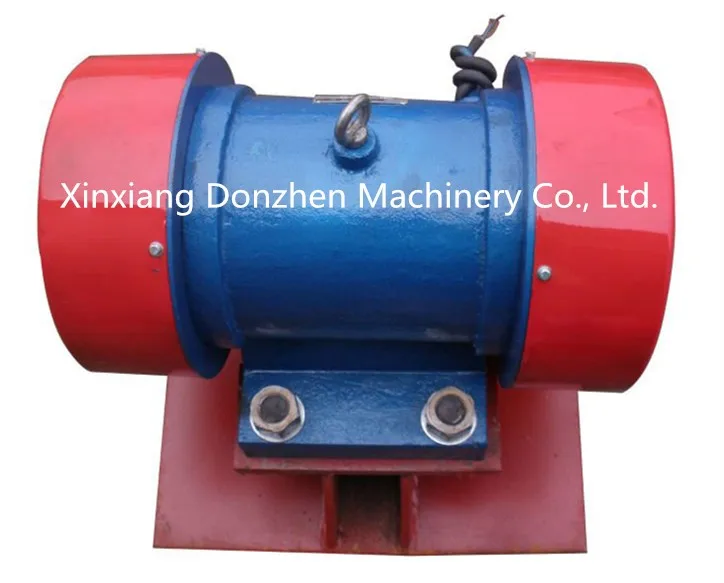

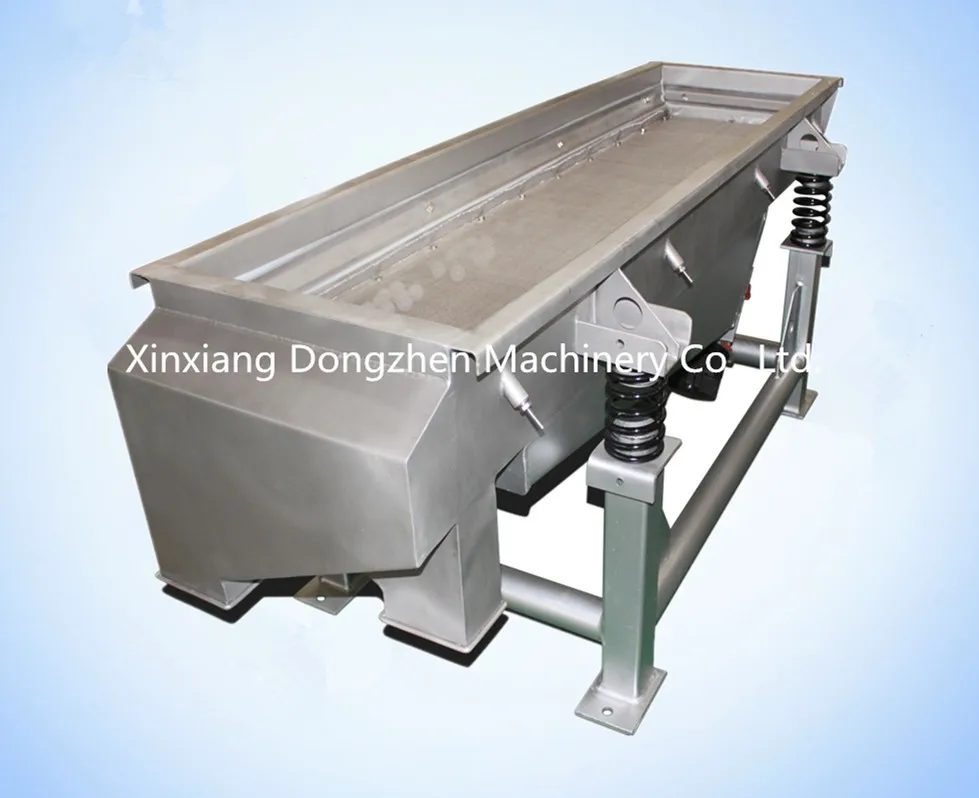

Name: Horizontal machine
Brand: DZJX
Original: China

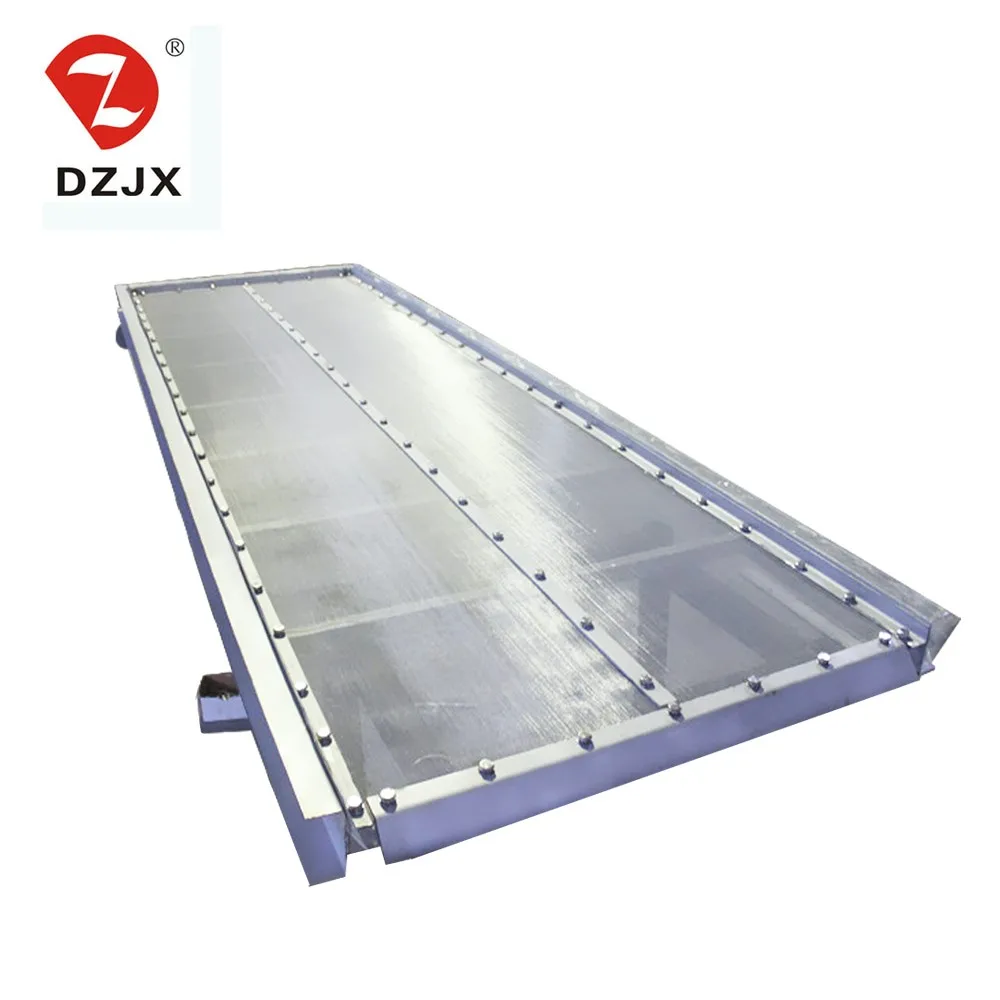

Name: Screen frame
Brand: DZJX
Original: China

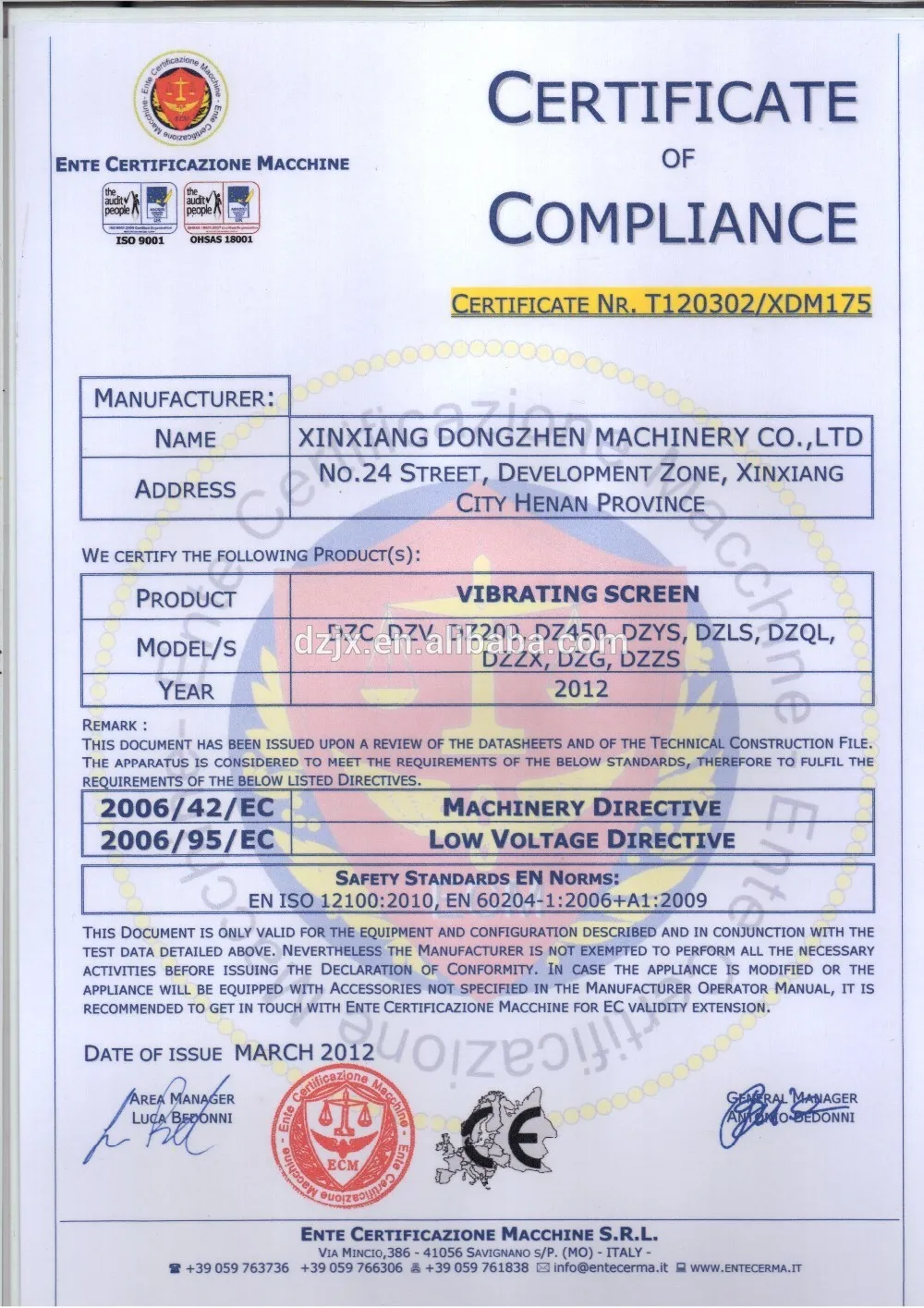

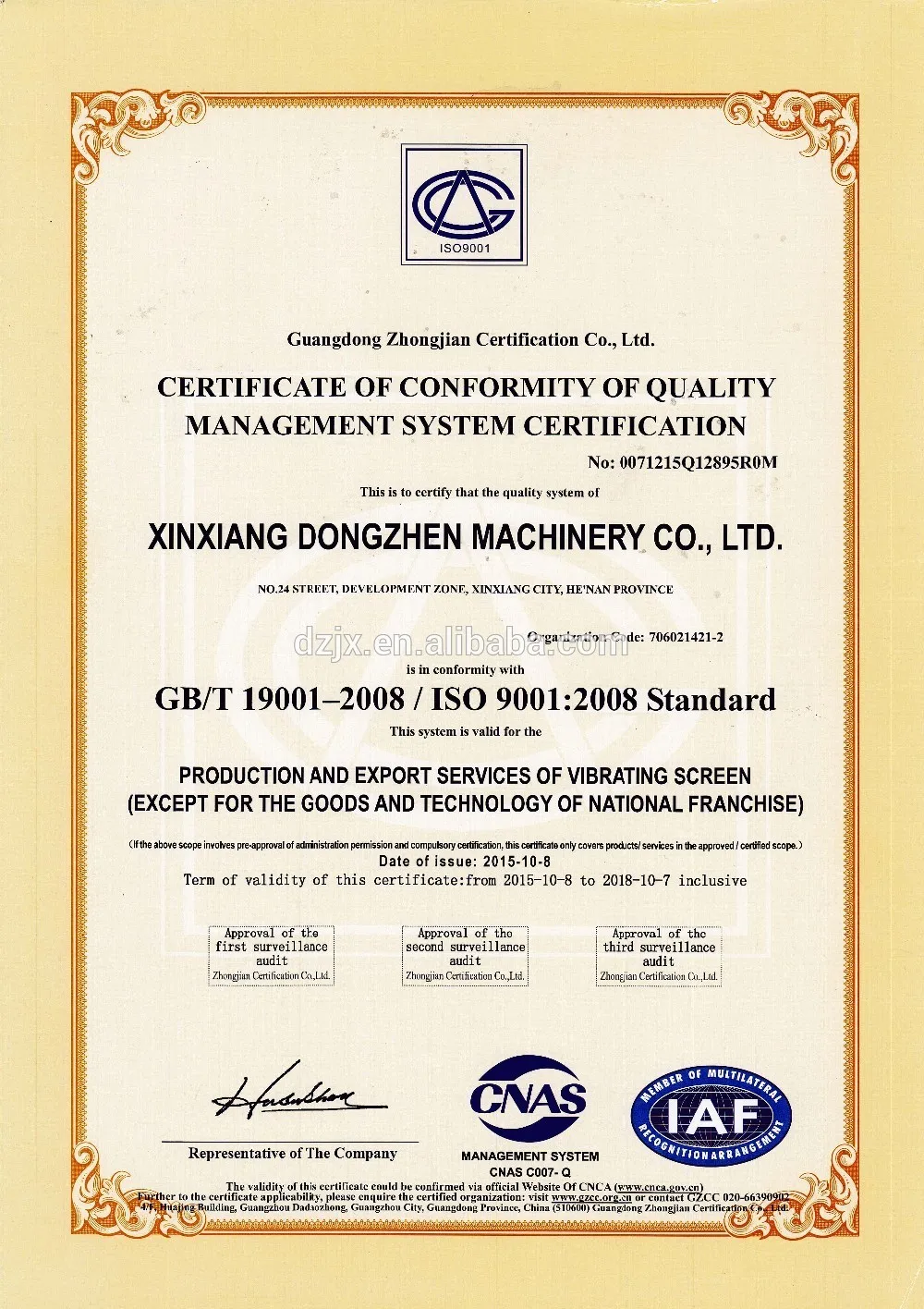

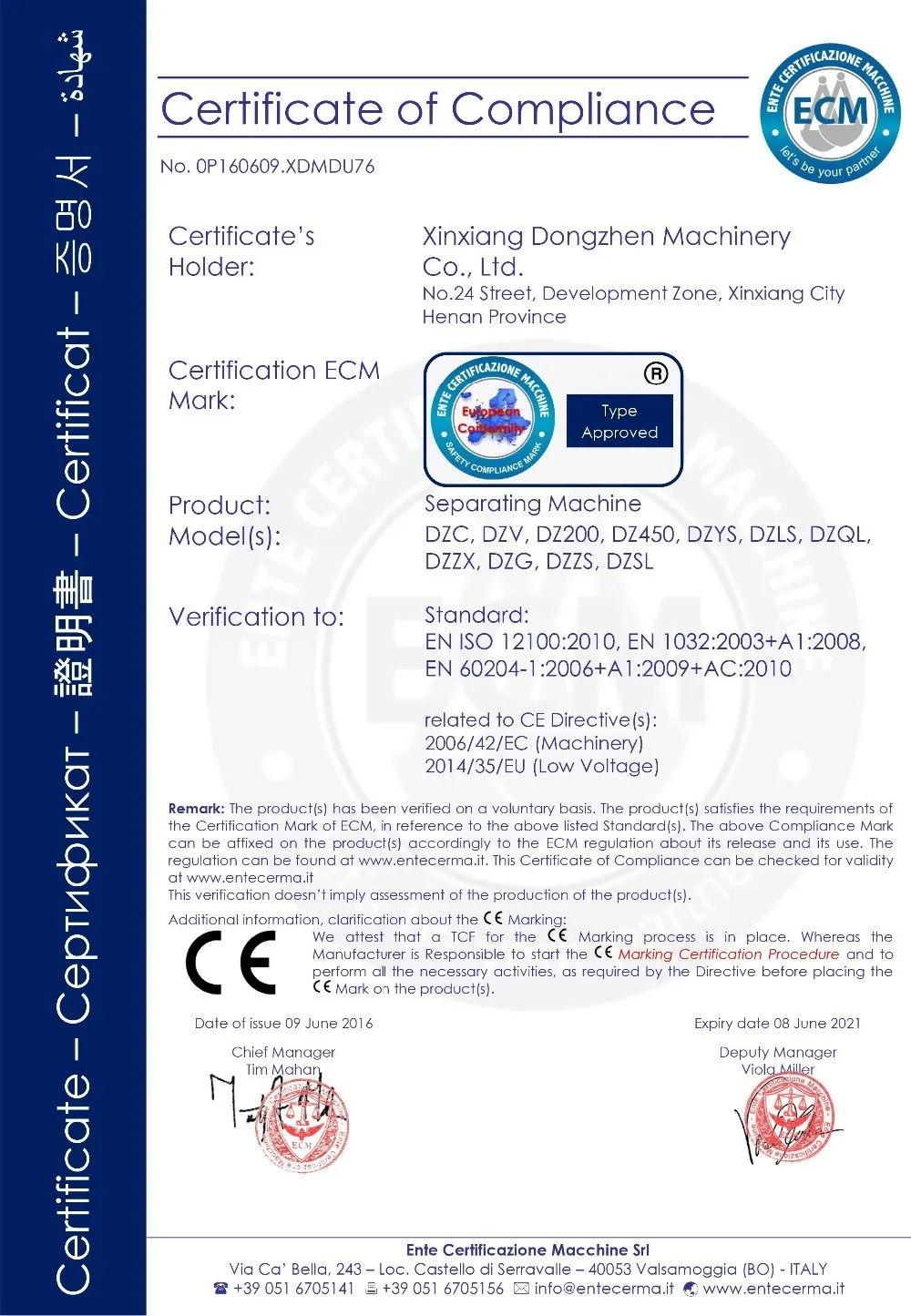

Certifications

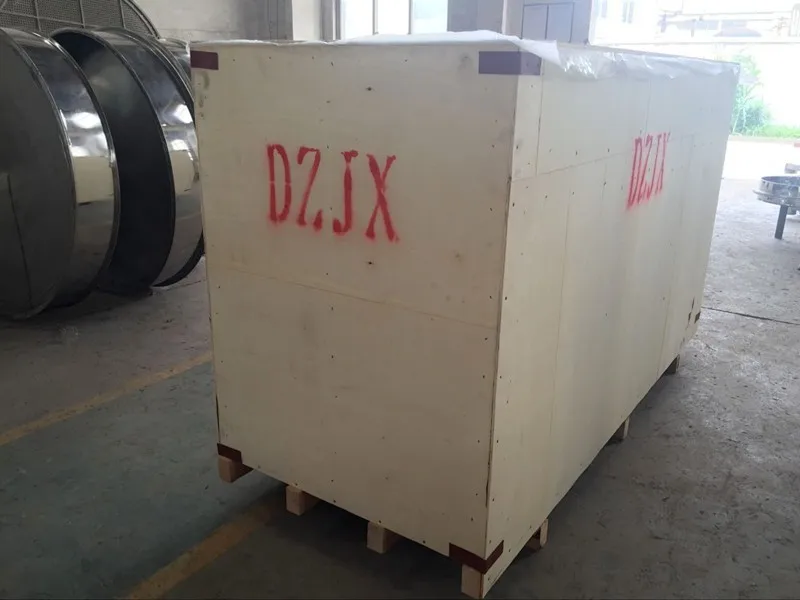

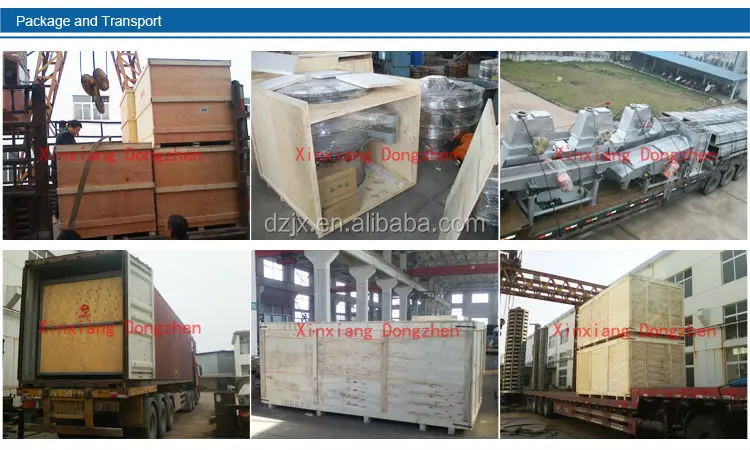

Packing & Delivery
| Packaging | |
| Size | As per order |
| Weight | As per order |
| Packaging Details | Wooden case covering a list of Vibrating screener machine , intruction manual and necessary spare. |
