Профессиональное оборудование для производства титанового порошка HDH с

Профессиональное оборудование для производства титанового порошка HDH с

Категории: Промышленные печи >>>
Поставщик: Easyfashion,Metal,Products,Trade,Co.,Ltd.

Цена:50 000,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Product Description

Ⅰ. Brief Description

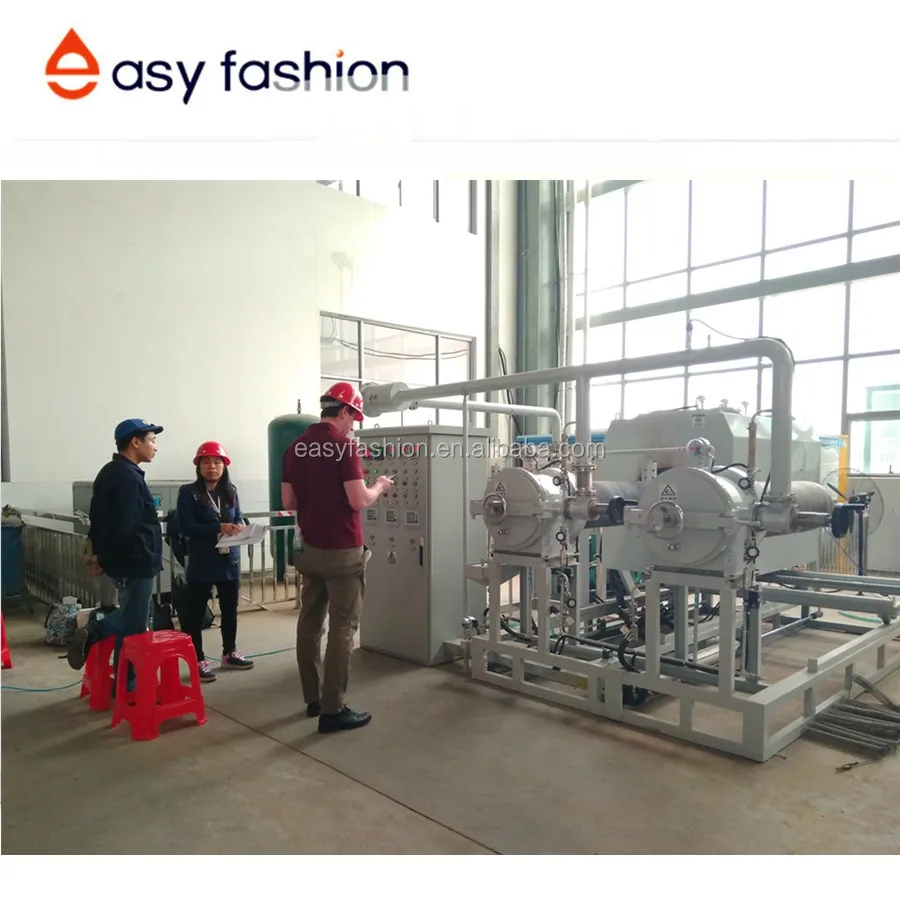

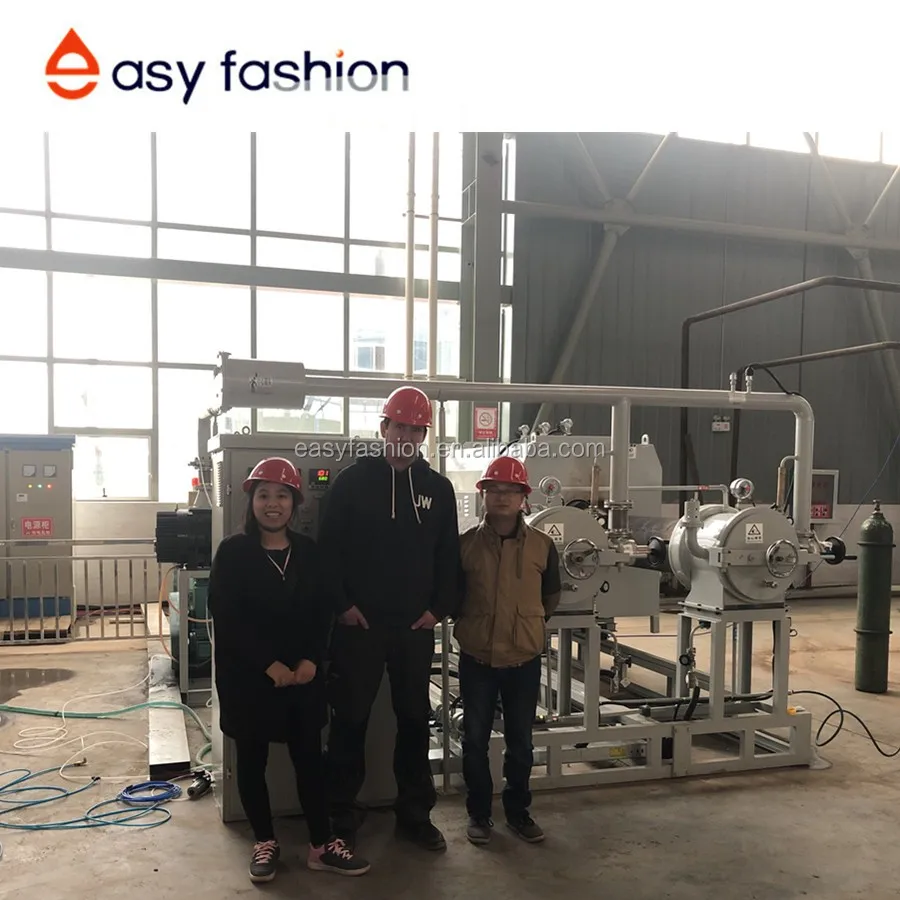

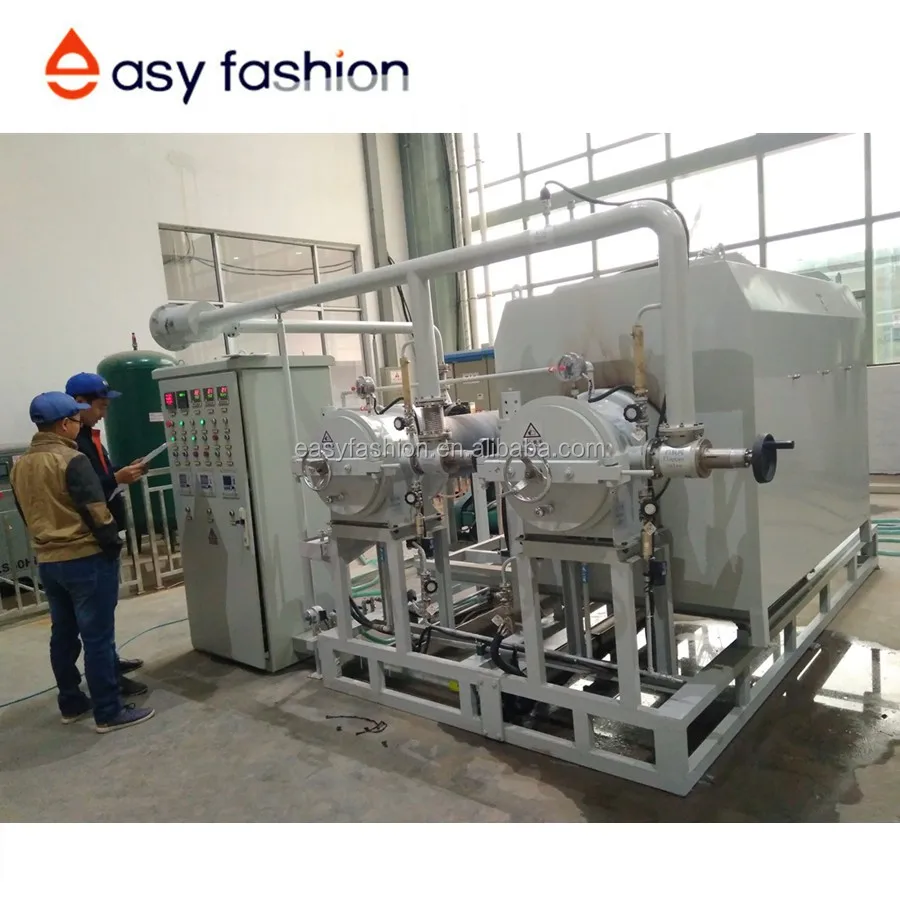

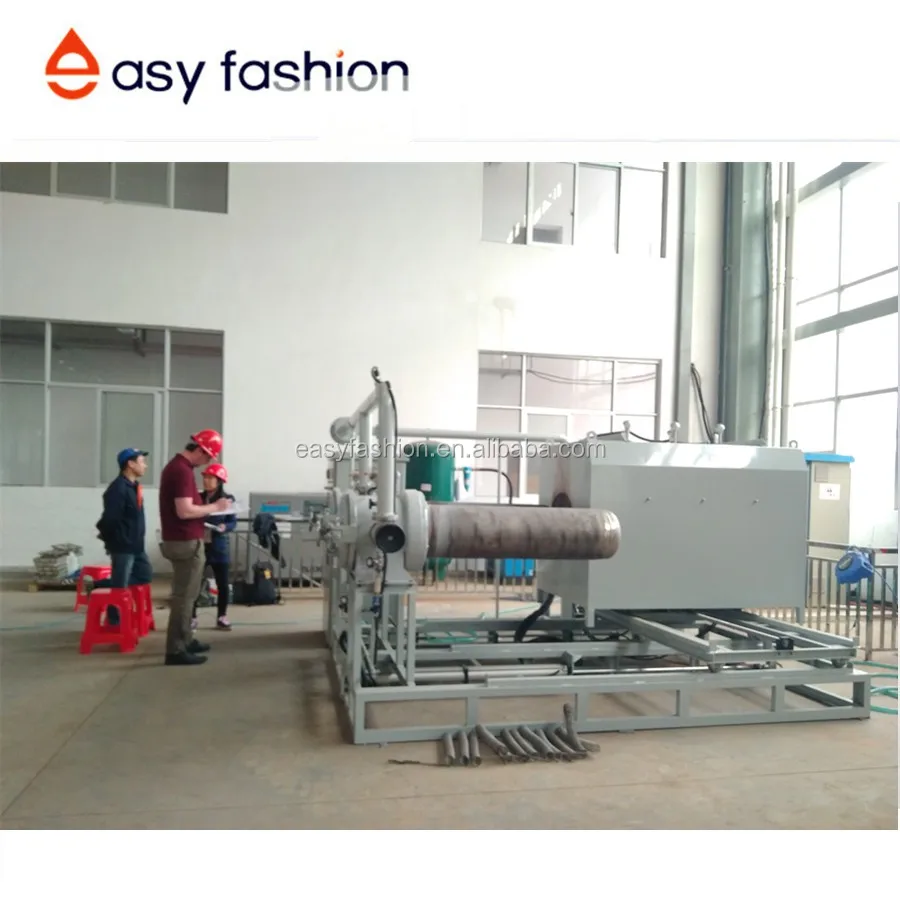

This vacuum hydrogenation dehydrogenation furnace(HDH furnace) adopts hydrogenation - dehydrogenation (HDH) process to produce Ti powders. Working condition is vacuum or hydrogen gas based on User's production requirements. Combining with siever or ball miller, the User can produce Ti powder with different sizes.

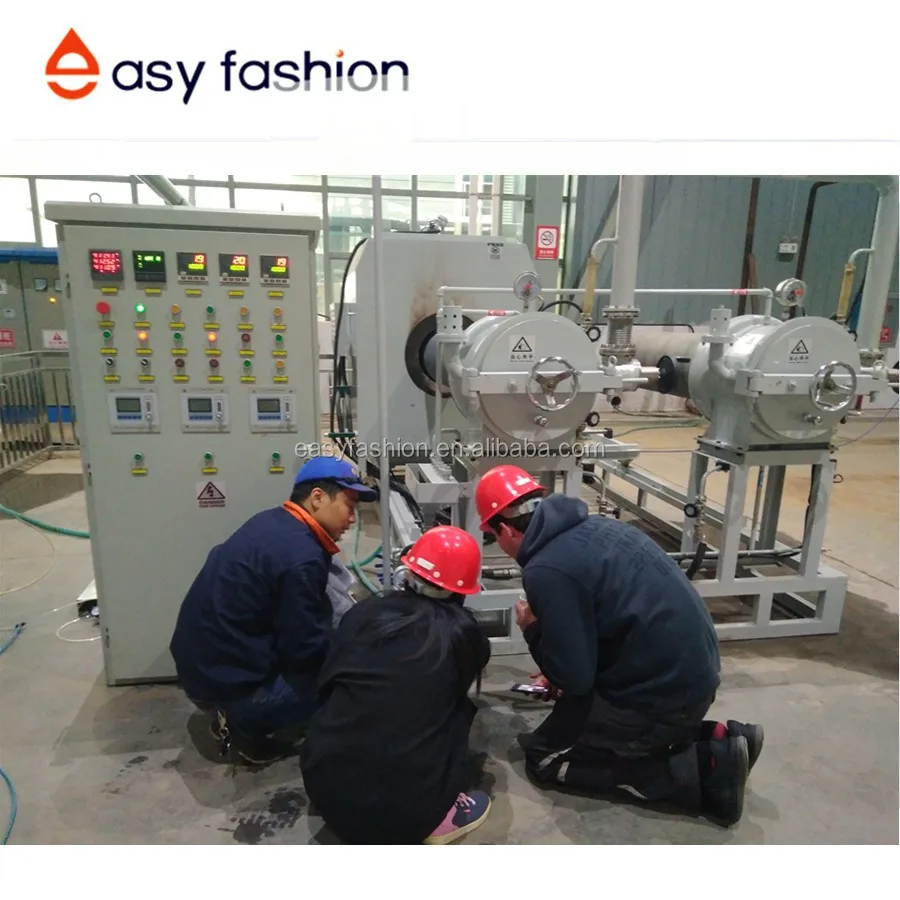

Ⅱ. Main Technical Specifications and Pictures

\t Item	\t Specifications
\t Rated loading capacity	\t Sponge Ti: 45~50KG; Ti powders: 35~40KG
\t Rated power	\t ~380V 50HZ 3Phase (When voltage in User's site is over 400V, transformer or voltage stabilizer will be equipped accordingly.)
\t Rated heating power	\t 20kW (adjustable)
\t Rated temperature	\t 950°C (temperature rising time about 1 hour)
\t Max. temperature	\t 1000°C
\t Ultimate vacuum of unloading furnace in cold state	\t ≤6.7 ×10-1Pa
\t Pressure rising rate	\t 50Pa/24h
\t Overall dimension	\t About 3230mm×3200mm×2122mm (L×W×H) (Remark: actual dimension will be confirmed.)
\t Effective loading size in heating zone	\t φ300mm×1000mm
\t Temperature uniformity	\t ±5°C
\t Temperature control precision	\t 0.2 grade
\t Rated filling pressure	\t ≤0.2 MPa
