Complete Mining Gold Ore Mineral Processing Plant Equipment

Product Description

Overview of Flotation Processing Plant

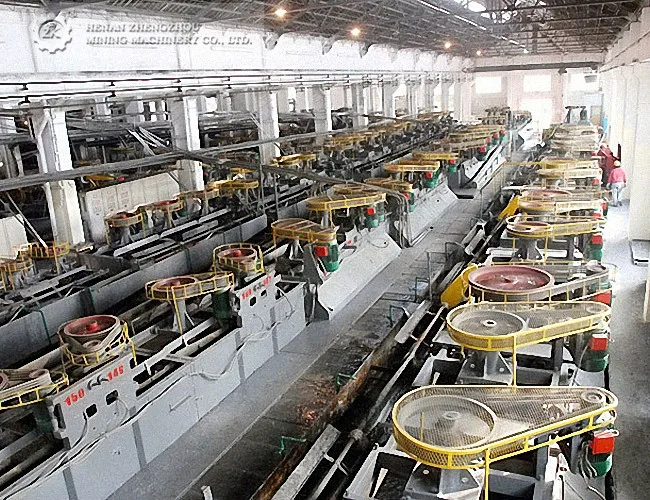

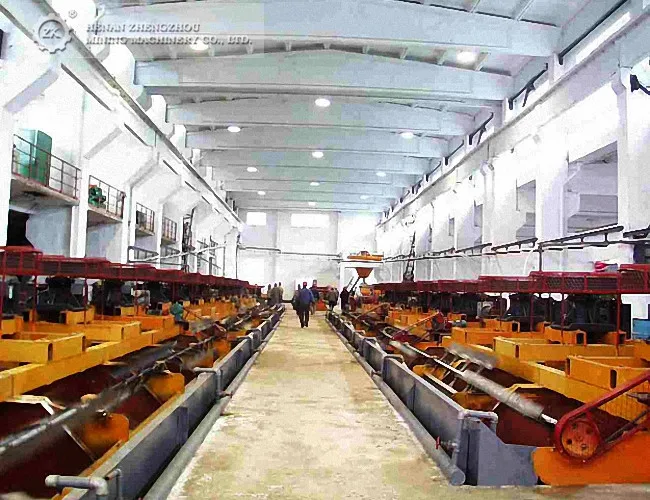

	Flotation Processing Plant
Overview	Copper Ore beneficiation line is mainly composed of jaw crusher, ball mill, spiral classifier, magnetic separator, flotation machine, ore concentrator and dryer machine combining with ore feeder, bucket elevator and belt conveyor which formed a complete ore beneficiation production line.
Advantage	1.Low noise in construction site, high air quality. 2.High crushing efficiency with excellent production performance. 3.Our components are all purchasing from famous brands, with good wear resistance.

Brief Introduction of Flotation Processing Plant

Henan Zhengzhou Mining Machinery Co., Ltd. offers turnkey solution for Ore Dressing Plant. We are one of the leading project suppliers for Ore Dressing Plant and we work closely with our customers to fulfill their specific needs for a customized packaged solution. Specialized in the fabrication of these machines for decade and this enables us to be in a leading position in the field of Ore Beneficiation Machinery.

Complete Mining Gold Ore Mineral Processing Plant Equipment

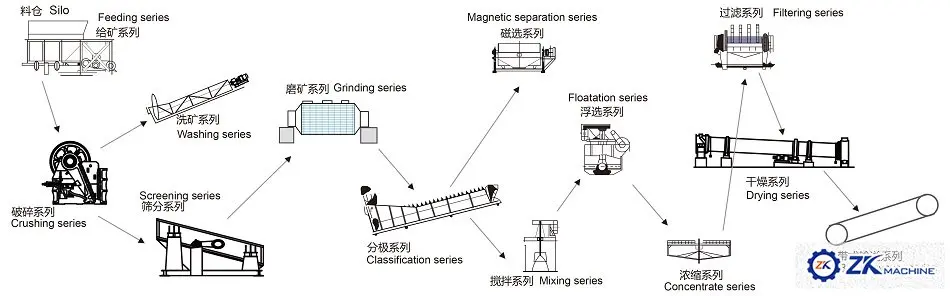

Process Technology

Raw material ores is exploited from mountain are big size,so it is necessary to crush firstly,in this process,the raw materials will be feed into primary crusher by feeder,then come into secondary crusher.The materials will go into screen after first and secondry crusher, the suitable size material (≤25mm) will go to next step. Oversize (>25mm) material will go back to secondary crusher to crush again. This forms a closed crush circuit.

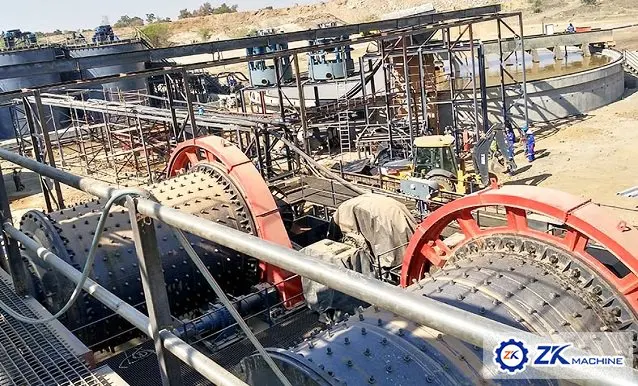

In this process, material will be grinded into suitable sizes (about 200 mesh) for beneficiation. After grinding material will come to classifier. In classifier, suitable size material will go to next step. Coarse material will go back to ball mill for grind again. This process is a closed grind circuit.
In this process, materials will be separated by flotation, magnetic separator or gravity concentrating machine. We will get the materials that we need.
After beneficiation, there are some residual water in ore concentration. So we have to carry on concentrate dehydration to meet the requirements of transportation and smelting.

Complete Mining Gold Ore Mineral Processing Plant Equipment

500 TPD Ore Processing Line Equipment List for Your Reference

Equipment	Size	QTY (set)	Power (kW)	Remarks
Chute feeder	980×1240	1	7.5
Jaw crusher	PE400×600	1	30	Cast steel rack
Jaw crusher	PEX250×1000	2	37	Cast steel rack
Swaying feeder	600×600	1	2.2
Rotary ball mill	GM2.1×4.0	1	245
Spiral classifier	FLG-2000	1	18.5
Magnetic separator	CTB900×1800	1	4	2500gs
Magnetic separator	CTB750×1800	2	3	1400~180gs

1000 TPD Ore Processing Line Equipment List for Your Reference

Equipment	Size	QTY (set)	Power (kW)	Remarks
Chute feeder	980×1240	1	7.5
Jaw crusher	PE600×900	1	75	Cast steel rack
Fine jaw crusher	PEX250×1200	2	37	Cast steel rack
Vibrating feeder	DZ-5	2	0.75×2/set
Ball mill	GM2.7×3.6	1	475
Spiral classifier	FLG-3000	1	30
Magnetic separator	CTB-1024	1	5.5	2500gs
Magnetic separator	CTB-1021	2	4/set	1400~1800gs

Complete Mining Gold Ore Mineral Processing Plant Equipment

Why Choose Us

Henan Zhengzhou Mining Machinery Co., Ltd (ZK) was found in 1956. After half century development, it becomes a comprehensive modernized enterprise, including the business service such as scientific research, design, develop, manufacture, sales, installation, test and training.

We are China Top 5 Mining Equipment Manufacturer
