Product Details

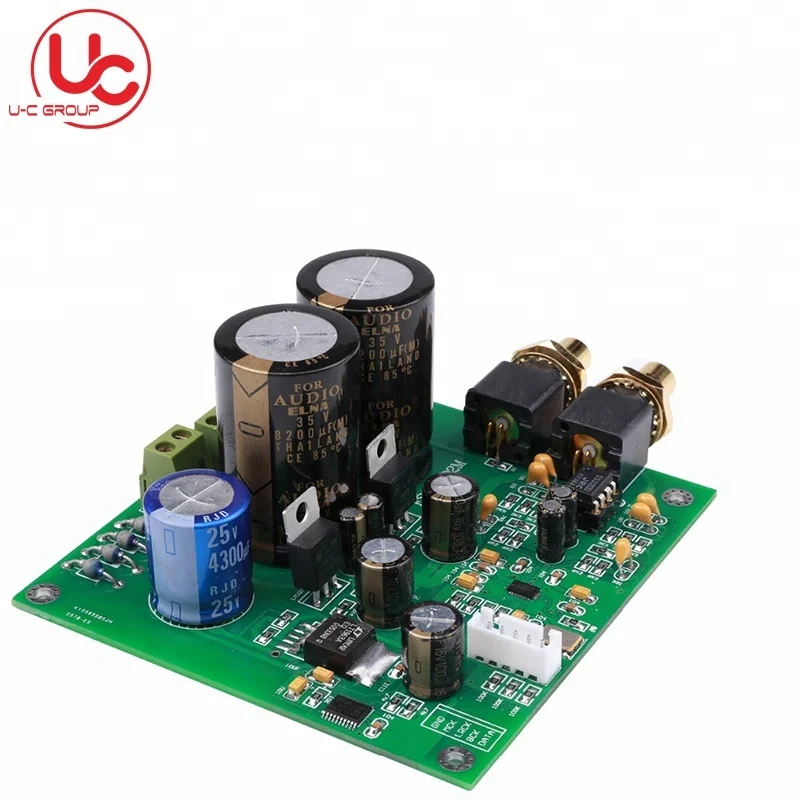

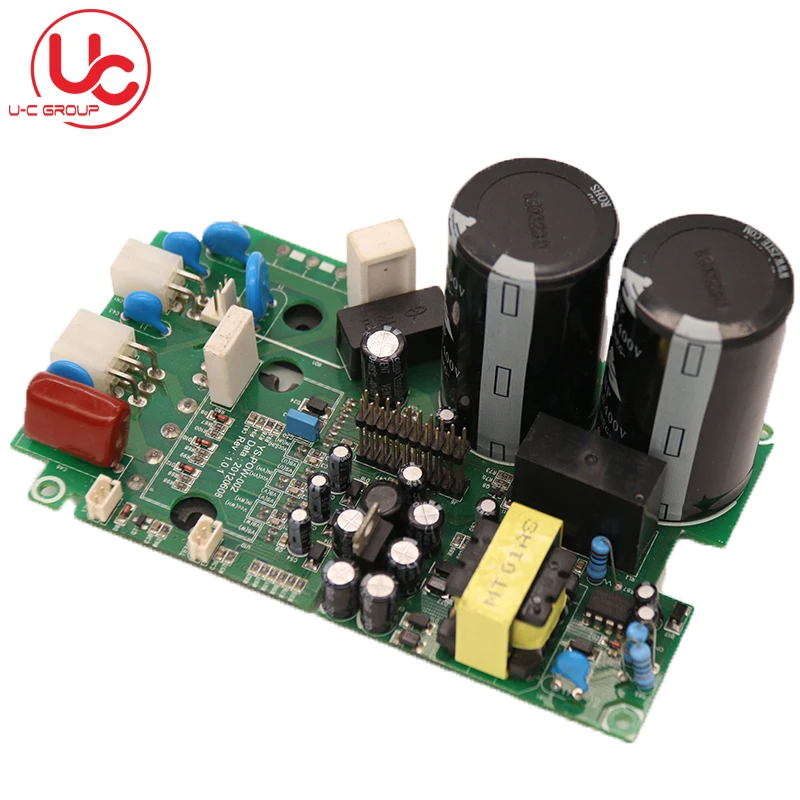

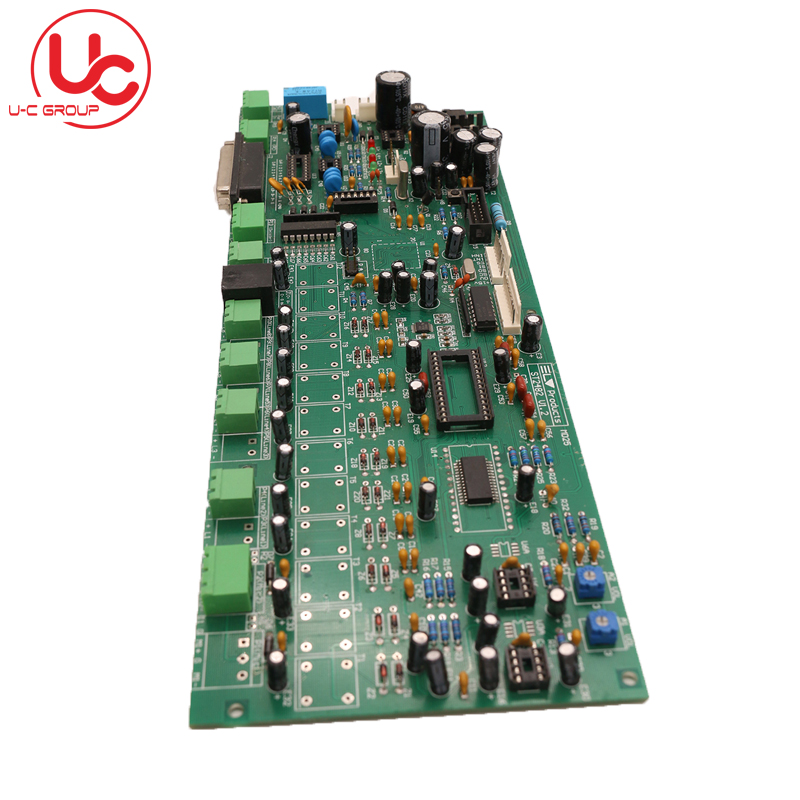

Custom-Made OEM Electronic PCBA Assembly Manufacturer


U-C Group Limited is Electronic PCB & PCBA manufacturer

Specifications:
1.Fast and one-stop service
2.Accept PCB design,clone and OEM/ODM service.
3.PCB+Components+PCBA
4.Quote within 24 hours with China and US office.

PCB Technical Capacity

\t
Layers
\t
Mass production: 2~58 layers / Pilot run: 64 layers
\t
Max. Thickness
\t
Mass production: 394mil (10mm) / Pilot run: 17.5mm
\t
Material
\t
FR-4 (Standard FR4, Mid-Tg FR4,Hi-Tg FR4, Lead free assembly material) , Halogen-Free, Ceramic filled , Teflon, Polyimide, BT, PPO, PPE, Hybrid, Partial hybrid, etc.
\t
Min. Width/Spacing
\t
Inner layer: 3mil/3mil (HOZ), Outer layer: 4mil/4mil(1OZ)
\t
Max. Copper Thickness
\t
UL certificated: 6.0 OZ / Pilot run: 12OZ
\t
Min. Hole Size
\t
Mechanical drill: 8mil(0.2mm) Laser drill: 3mil(0.075mm)
\t
Max. Panel Size
\t
1150mm × 560mm
\t
Inner layer: 3mil/3mil(HOZ), Outer layer: 4mil/4mil (1OZ)
\t
Inner layer: 3mil/3mil (HOZ), Outer layer: 4mil/4mil(1OZ)
\t
Aspect Ratio
\t
18:1
\t
Surface Finish
\t
UL certificated: 6.0 OZ / Pilot run: 12OZ
\t
Special Process
\t
Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity, Hybrid, Partial hybrid, Partial high density, Back drilling, and Resistance control.

PCBA Technical Capacity

\t
SMT
\t
Position accuracy:20 um
Components size:0.4×0.2mm(01005) -130×79mm,Flip-CHIP,QFP,BGA,POP
Max. component height:25mm
Max. PCB size:680×500mm
Min. PCB size:no limited
PCB thickness:0.3 to 6mm
PCB weight:3KG
\t
Wave-Solder
\t
Max. PCB width:450mm
Min. PCB width: no limited
Component height:Top 120mm/Bot 15mm
\t
Sweat-Solder
\t
Metal type :part, whole, inlay, sidestep
Metal material:Copper , Aluminum
 Surface Finish:plating Au, plating sliver , plating Sn
Air bladder rate:less than20%
\t
 Press-fit
\t
Press range:0-50KN
Max. PCB size:800X600mm
\t

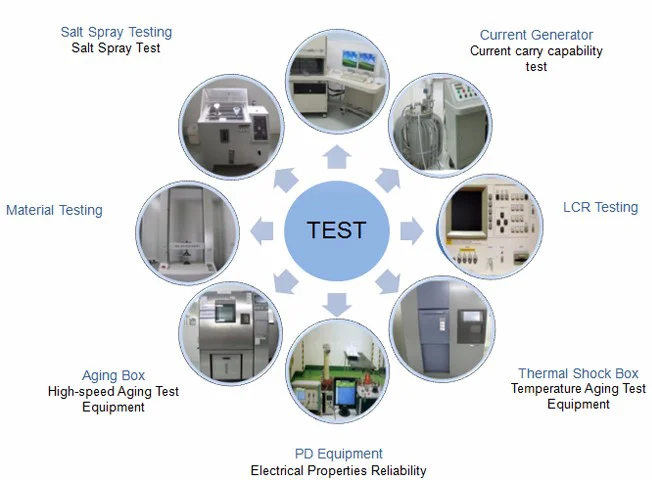

 Testing
\t
ICT,Probe flying,burn-in,function test,temperature cycling
Related Product

PCB


LED Driver


PCBA


Our Service


Our Company

U-C Group Limited is an electronic PCB & PCBA manufacturer, founded in 2010.
With high quality, quick-turn assembly and competitive price.

With the qualified, experienced and dedicated team of professionals.
Meet the requirments from the customers--OEM and ODM services.
Introduce the new products to markets in the first time.
Offer a full suite of innovative design services.

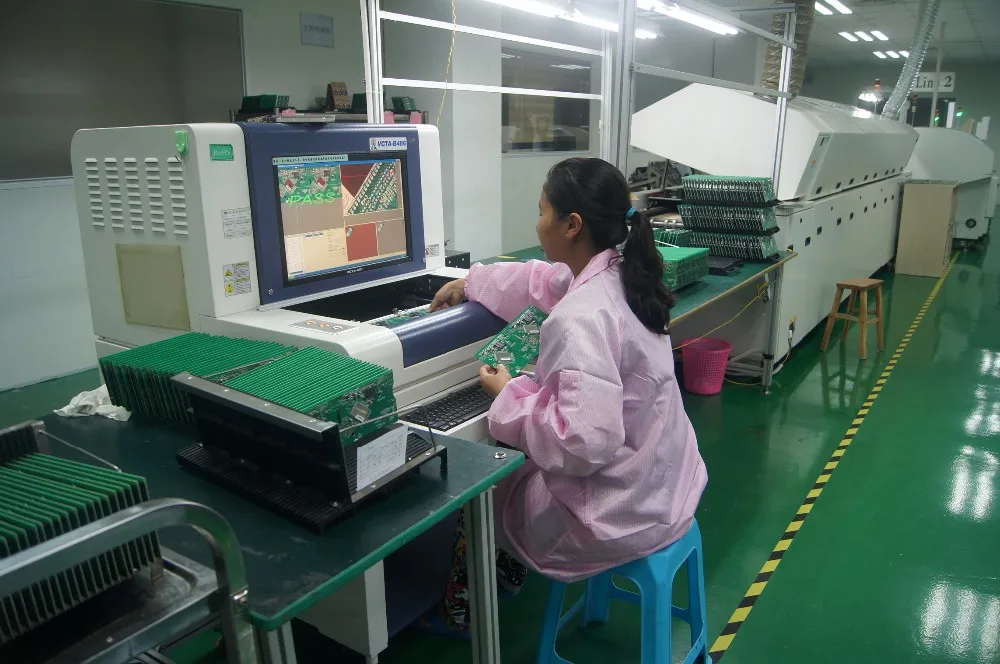

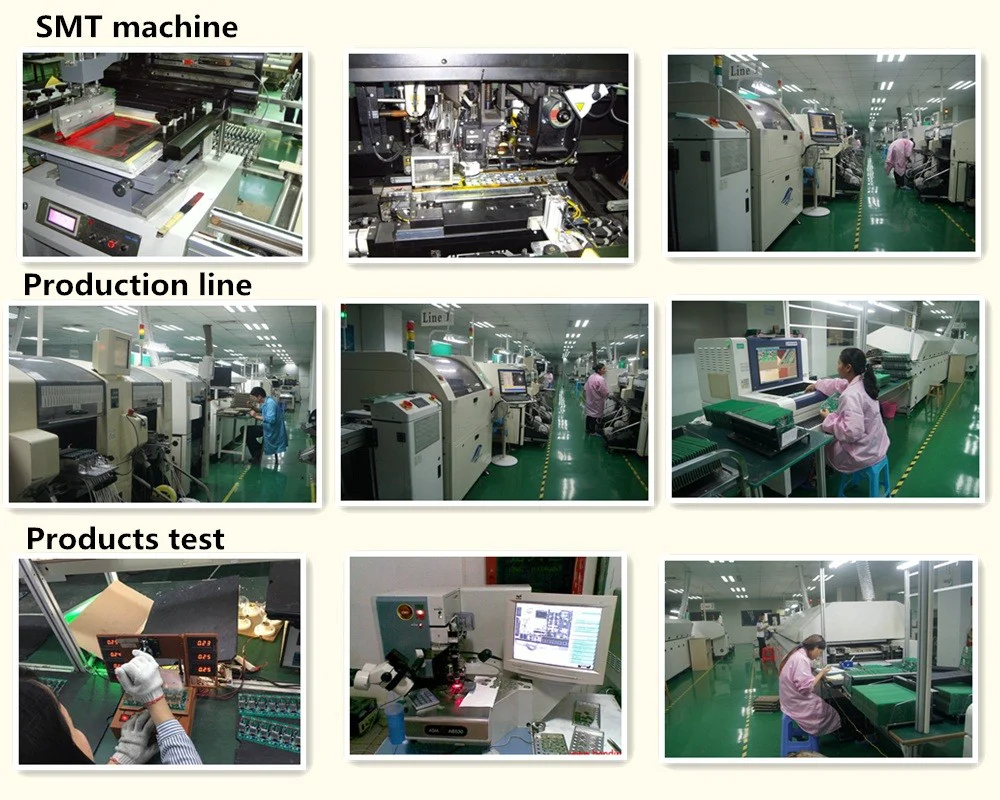

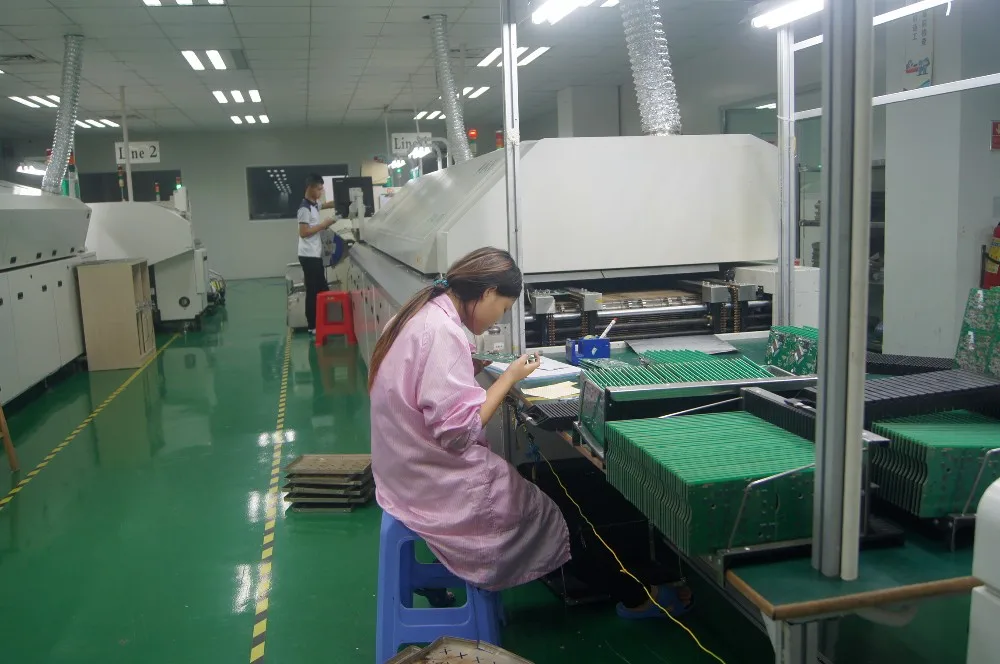

Factory Show
Packing
Package:

Each products with ESD bags (or on your request).
Provide the hard outer packing carton, to protect the goods during transport.

Transport:
Sample: 2~3 weeks by DHL,UPS,FedEx etc.
Order: 3~4 weeks (depend on the quantity of order)


The best shipping cost we can get from professional shipping company if with long-term cooperation.

Payment

Paypal, Western Union,T/T, Alipay, Secure Payment in Alibaba.

FAQ

Q: Are you manufacturer?
A: Yes we are manufacturer.


Q: Do you provide samples?
A: Yes we can provide free samples, price and shipping cost open for negotiation.

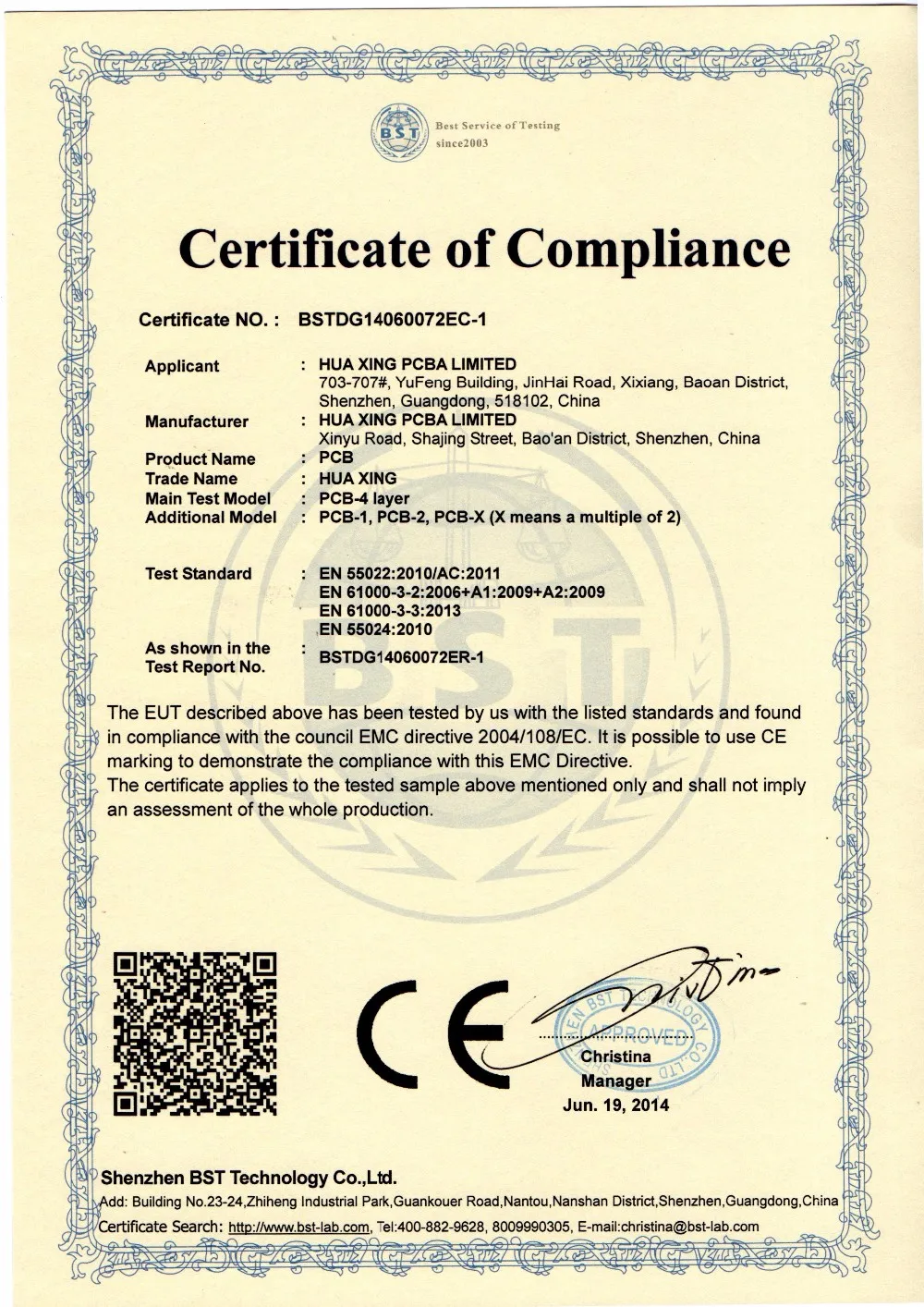

Q: What certificates does this product have?
A: We have CE, FCC, ROHS certified.


Q: What about OEM and ODM?
A: We accept OEM and ODM orders, MOQ is open for discussion.


Q: What is depvery terms and time?
A: We use FOB terms and ship the goods in 7-30 days depend on your order quantity, customization.

Contact us

Welcome to Contact Us for Future Business Relationships and Mutual success!
