Product Description

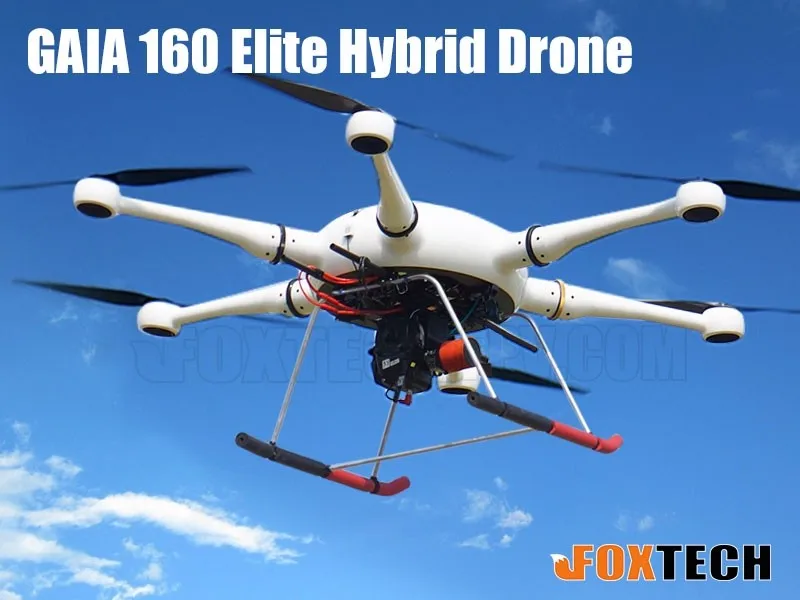

GAIA 160 Hybrid Drone Pixhawk RTF Combo

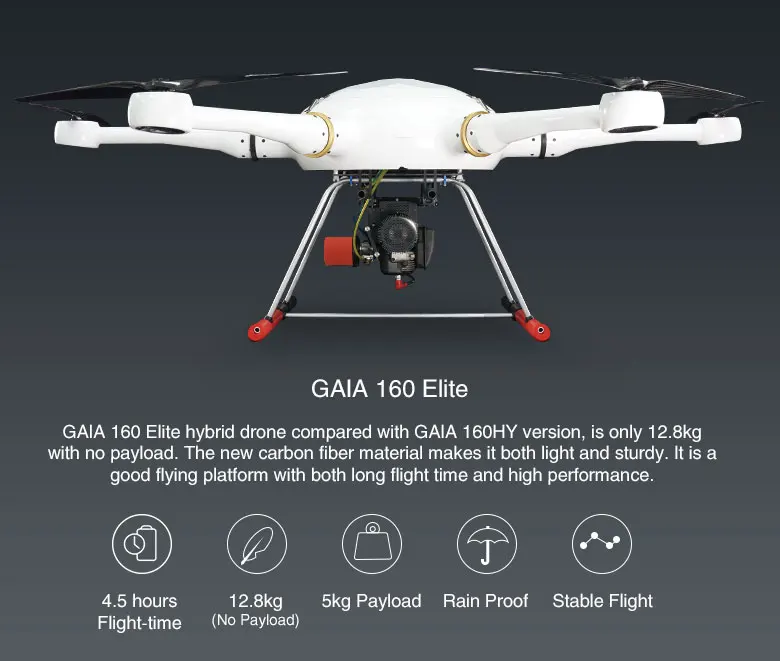

This version is both lighter and stronger, it weighs only 12.8kg with
no payload. The high strength and high performance makes the drone adaptive to extreme weather conditions,
e.g 17m/s wind, -40℃ low temperature, +40℃ high temperature, heavy rain, fog etc. The closed fuselage structure
protects GAIA 160 from the rain and dust, and also protect other load equipments like flight control and battery.
| Specifications: | |
| Version | Gaia 160 |

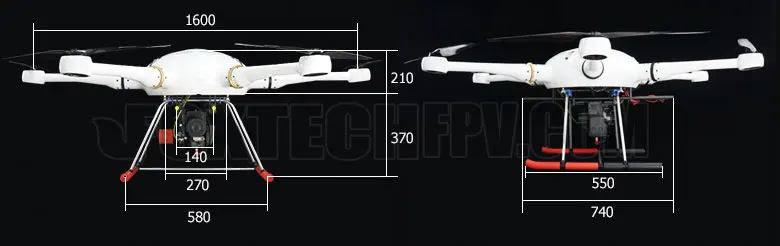

| Wheelbase | 1600mm |
| No payload weight | 12.8kg |
| Max take-off Weight | 20kg(Fuel 2kg, Payload 5kg) |
| Flight time | 4.5hours(7L Fuel) |
| Voltage | 48V |

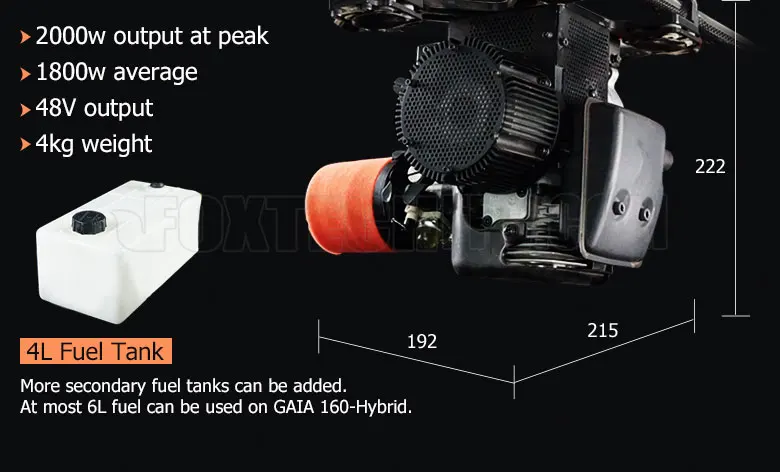

| Generator output | 1.8kw(continuous), 2kw(max) |
| Generator weight | 4kg |
| Fuel tank | 4L |
| Fuel consumption | 1.5L/H(Max) |
| Back up battery | 2x 6S 5000mah |
| Features: |
| Gaia 160 has good power redundancy. Hexa-copter can still fly or land in case one propeller or motor is gone. |
| Gaia 160's main body is made of full carbon fiber featuring light weight and high strength. It adapts to extreme weather conditions, e.g 17m/s wind, -40℃ low temperature, +40℃ high temperature, heavy rain, fog etc. |
| Gaia 160 uses cutting edge technologies on the power system, its motors, ESCs and propellers are all optimized and tested for long duration and long range flight. |

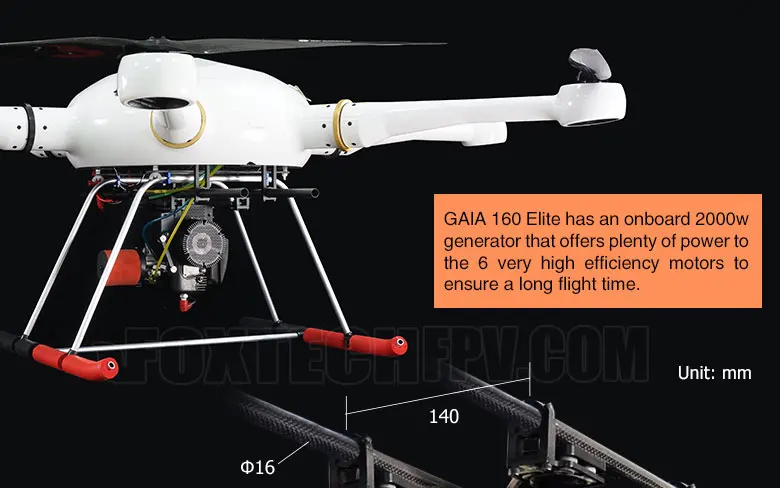

| Gaia 160's generator module is isolated from other electric equipments giving advantages for maintenance, working stability and safety. |
| Gaia 160 uses flight controllers with triple redundancy. 3X IMU, 3X GPS and 3X Mag sensor. Both A3 PRO and Pixhawk 2.1 are all proved reliable and widely used on professional drones. |
| All Plugs used on Gaia 160 are anti-spark type, all wires are optimized for long duration flight. |
| Gaia 160 is rain-proof, it’s possible to fly in mid moderate rain. |
| Your Purchase Includes: (Pixhawk RTF Combo) |
| 1x GAIA 160 Frame |
| 1x 2000W Generator |
| 1x 4L Fuel Tank |
| 1x Generator Control Unit |
| 6x T-MOTOR U8 Lite KV85 |
| 3x Foxtech 2880T |
| 6x T-MOTOR Flame 60A ESC |
| 1x Pixhawk 2.1 Standard Set with Here 2 GNSS |

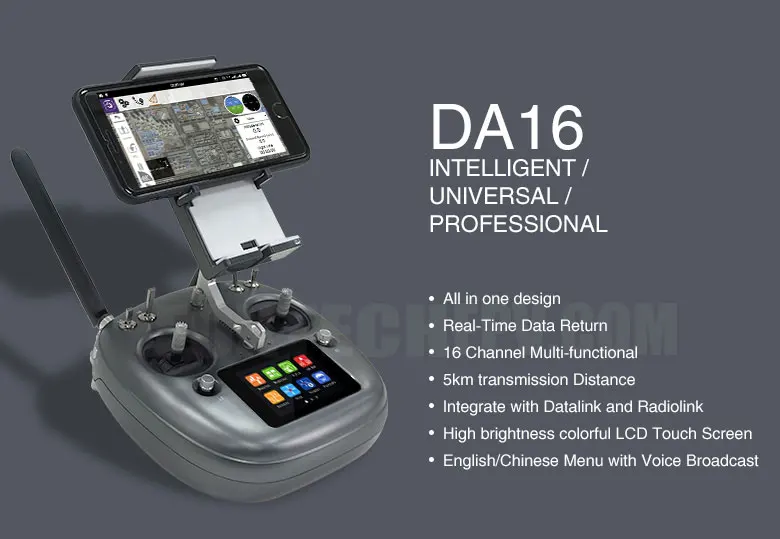

| 1x Foxtech DA16+ 16-Channel Radio Controller |
| 2x Foxtech 6S 5000Mah Battery |
| 1x Plug/Cable/Wires/Shrink Tubing etc |
| 1x Tools(fuel mixer, generator starter with 3s lipo etc.) |
| 1x Assembly and Fly Test Package |
