Product Description

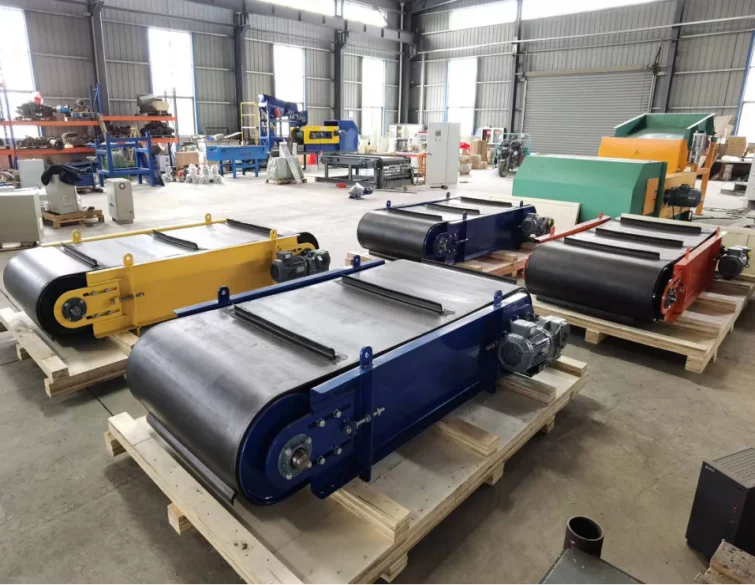

QJRCY-L Magnetic Separation/ Metal Recycling/ Iron Removal (overband magnet) offer superior strength and reliability and are designed for separation of ferrous metal from kinds of belt conveyed products. The advanced design and construction make overband magnets (crossbelt magnets) ideal for use in recycling, fire shredding, wood chip, and demolition applications.


Magnet System
Permanent Magnet
Frame Material
Steel Frame
Drum Bearing
UCFC
Discharge Belt
EP100 10mm thickness
Belt Cleats
Vacunized Rubber or SS 304
Gearbox
KA helical-bevel gear units
Motor
IP 55
Standard Color
RAL 5015
Power Supply
Client's Site Specs


Features:
1. Overband Magnetic Separator provide deep reaching magnetic circuit design to penetrate heavy product burdens.
2. Strong magnetic field intensity, high gradient and strong attractive force.
3. The unique stainless steel plate-armored belt can protect the belt from damage by sharp ferromagnetism material...
4. Non-excitation and self-cleaning will bring us energy saving and convenience in operation.
5. Overband Magnetic Separator has self-adjustment function and the special sealed bearing block ensure the stable
working of suspended overband magnetic separator in harsh environment.
6. Safe specification meets the international standard.


Support Frame
Stainless Steel Frame will under sand blasting before painting process
Drums Welding
High Thickness Shell and Strong Welding to make sure it endure all life span
Drum Finishing
Perfec Lathing after welding make sure the surface is clean and even welding seam is ourstandingly pretty


Shaft
Drum shaft is connect to drum via shaft capt lockers, not welding.
Bearing
Robust bearing and drum support plate
KA helical-bevel gear units
KA helical-bevel gear ensure the high effiency and long life span

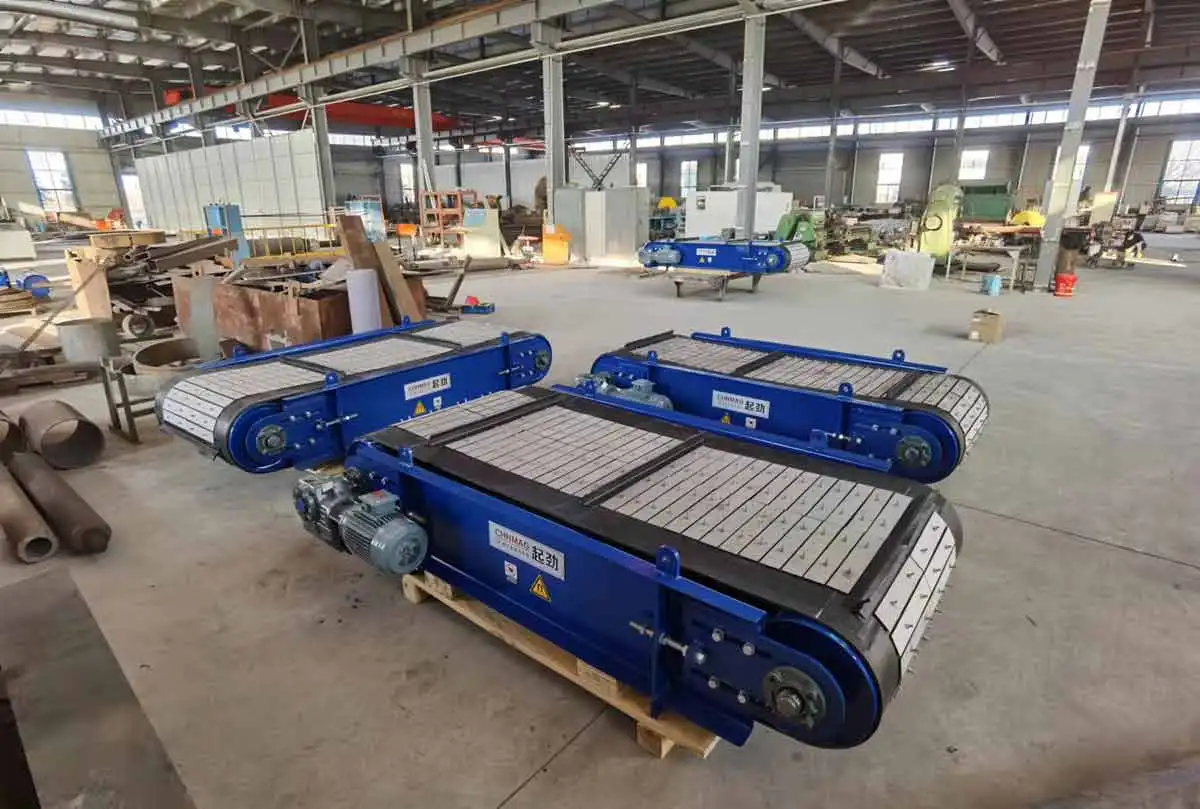

Optional Stainless Steel Armoured Belt to protect discharge belt damage from the large sharp metals.
Optional Hydraulic Dive motor to replace the standard electric gearbox motor.








Related Products




Packing&Shipping




Company Introduction


Since founded in Year 2002 , our company devoted to manufacturing high-end permanent magnetic equipment and magnets. Our company covers an area of 15,000sqm with modernized workshops and we have successfully designed and built several magnetic separation lines in more than ten countries such as America, Thailand, Mexico, the Philippines, Indonesia, Europe etc. Our magnetic separators have been exported to more than 70 countries and commonly applied in raw material recovery, metal recycling industry, waste industry, refuse processing and mining industry to select magnetic materials out of material stream or to purify material.
Our major products are eddy current separator, over band magnetic separator, magnetic drum and suspended magnets. All these equipment can be designed and manufactured in accordance with the specific requirements of our customers.




Exhibition
