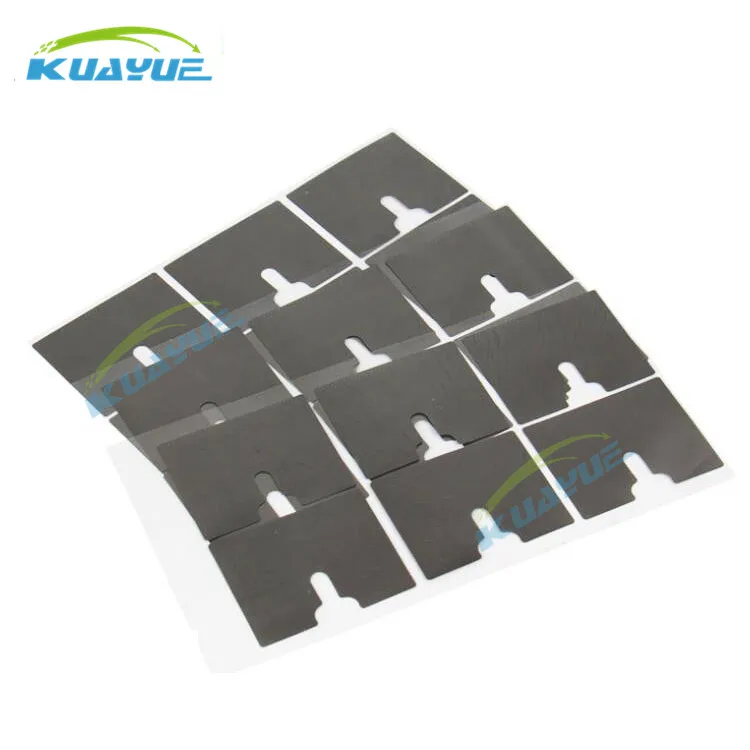

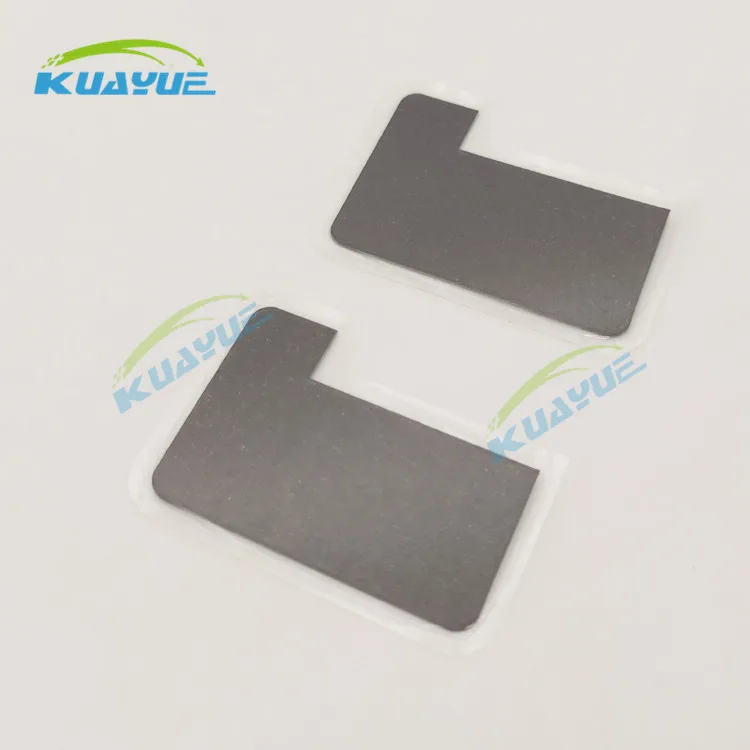

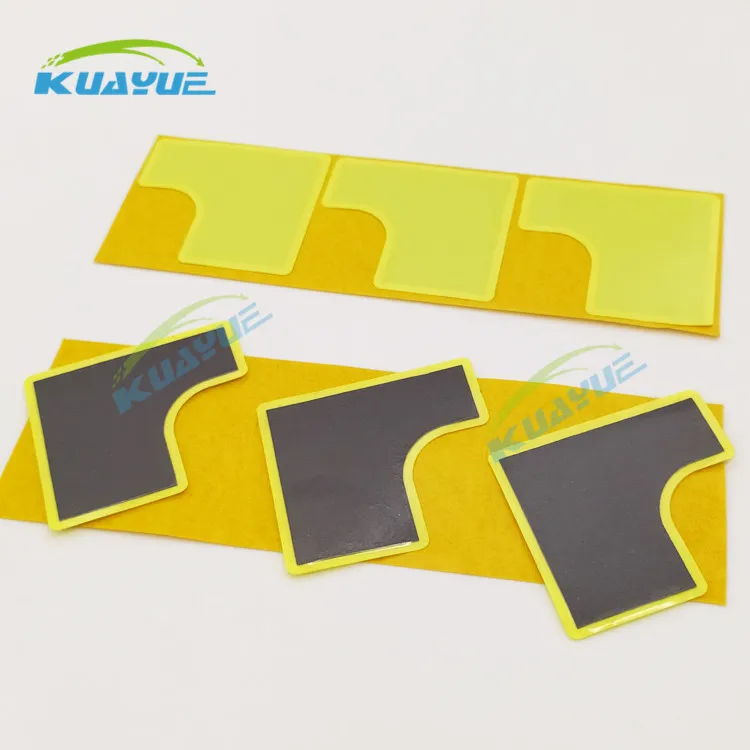

Thermal Conductivity Graphite Carbon Sheet Plates for Heat Spreading



GSB graphite sheet product data

	Test items		Test Value	Unit	Test criteria
	Material quality		Natural graphite
	Colour		black		Visual
	Thickness		0.2-1.0	mm	ASTM D374
	Thermal conductivity	Vorizontal direction	300	W/m.k	ASTM D5470
		Vertical direction	>8
	Thermal diffusivity		9-10	cm2/s	AC calorimeter
	Density		1.5	g/cm3	ASTM D792
	Specific heat		0.85	50CJ/gk
	Heat resistance temperature		140	℃	EN344
	Tensile strength	Horizontal direction	20-30	Mpa	ASTM D412
	Voltage resistance	Vertical direction	0.1-0.4	Mpa
			1200	V	ASTM D149







1. Features: the surface can be combined with metal, plastic, adhesive and other materials to meet more design functions and needs.
2. Low thermal resistance: the thermal resistance is 40% lower than aluminum and 20% lower than copper.
3. Light weight: 25% lighter than aluminum and 75% lighter than copper.
4, high thermal conductivity: graphite radiator can be smoothly attached to any plane and curved surface, and according to customer requirements for any form of cutting.
