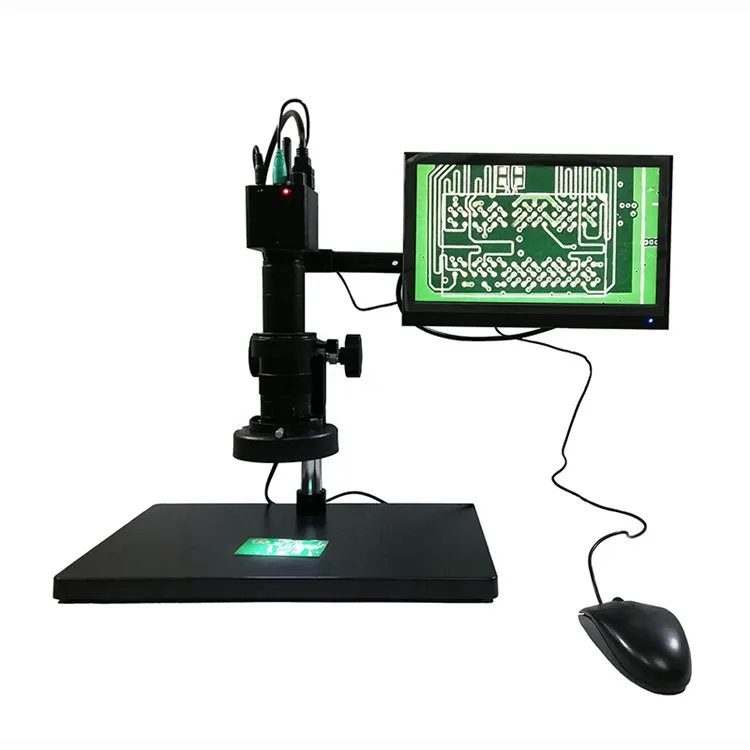

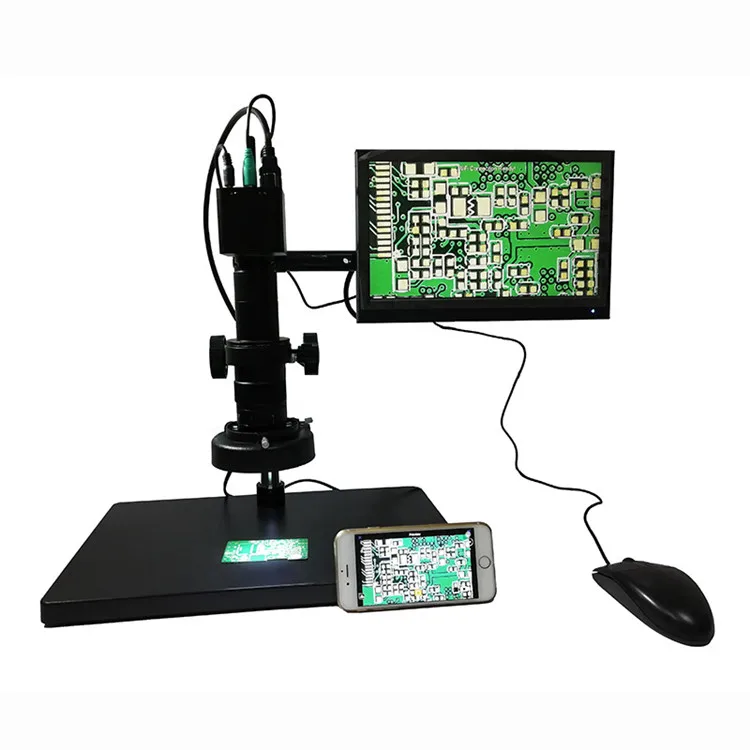

VMS14M33 промышленный электронный видеомикроскоп с цифровой камерой 11 6 дюймовый

*  1080P/30FPS(FHD);720P/60FPS(HD),  no flaky and no ghosting

*  Professional image processing DSP, 3D noise reduction, color reproduction;

*  Picture, Video, Playback

*  Support  mouse operation + measurement function.

*  Support HDMI+USB (UVC free drive) +WIFI (optional) output display

*  Support 1X ~ 16X zoom (including 2X intelligent zoom), clear and smooth

*  Support full screen freeze, left and right, up and down 1/4 of the same screen.

*  Support grid, and position, color, thin or thick are adjustable.

*  Support AE lock, exposure compensation function

*  Supports automatic, manual and calibration white balance

*  Supports color, black and white, retro special effects

*  Wide dynamic, contrast, saturation, resolution are adjustable

*  Support image horizontal mirror, vertical flip

*  Support function customization, App development with SDK.

*  Support large icon operational interface, single button operation, simple and easy to use.

*  Supports infrared remote control operation, microphone recording, buzzer prompt

*  Support 4GB ~32GB TF card.

*  5V ~ 12V power supply design, wide voltage input.

*  Industrial specifications, metal shell, durable, stable

Specifications

Digital Camera

Version	14M Local Mouse Operation + WIFI Version
Image sensor	14MP 1/2.33 inch Panasonic
Pixel size	1.43um x 1.43um
Picture resolution	4320x2430(16:9),4320x3240(4:3)
Video resolution	1080P/30FPS, 720P/60FPS
HD MI resolution	720P/60FPS
USB resolution	1080P/20FPS,720P/30FPS,WVGAP/60FPS

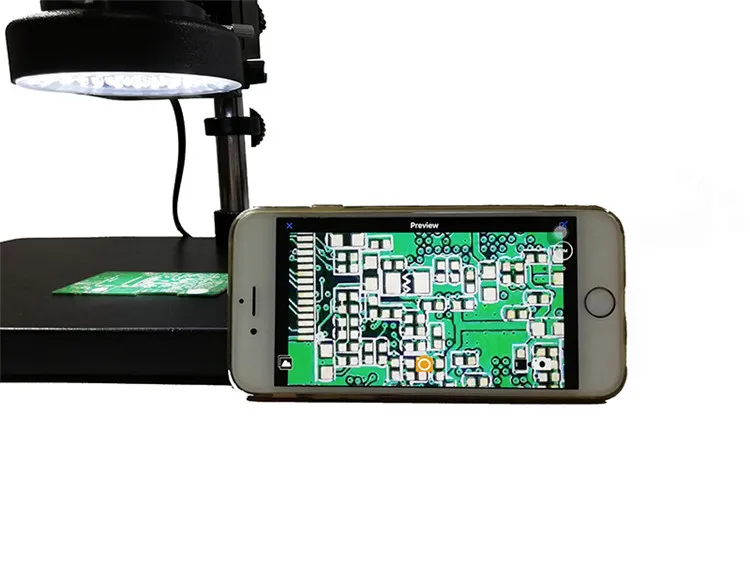

WIFI output	720x360@30fps,Support Andriod / iOS(optional)
Zoom	1X~16X Infinite magnification
Exposure control	AE lock, exposure compensation (10 levels adjustable)
White balance	Automatic, manual (R, G, B 10 levels adjustable), calibration cooperation
Image control	contrast, saturation, resolution 10 levels for option
Screen freeze	full screen, left and right, up and down, 1/4.
Grid	8 groups, position, color, thickness adjustable
Measurement	point, line, circle, angle
Language	English, Simplified Chinese, Traditional Chinese
Mouse interface	PS/2, recommend to use the original mouse (Optional)
IR Remote	Max 5 meters
WIFI antenna	SMA(Optional), max 10 meters
HD MI port	TYPE-A
USB port	TYPE-B USB2.0
Memory card	Max support 32G TF card
Lens	Suitable for C mount or or CS mount
Microscope dimension	L195 * W125 * H25 (mm)
Microscope	435g(With WIFI)

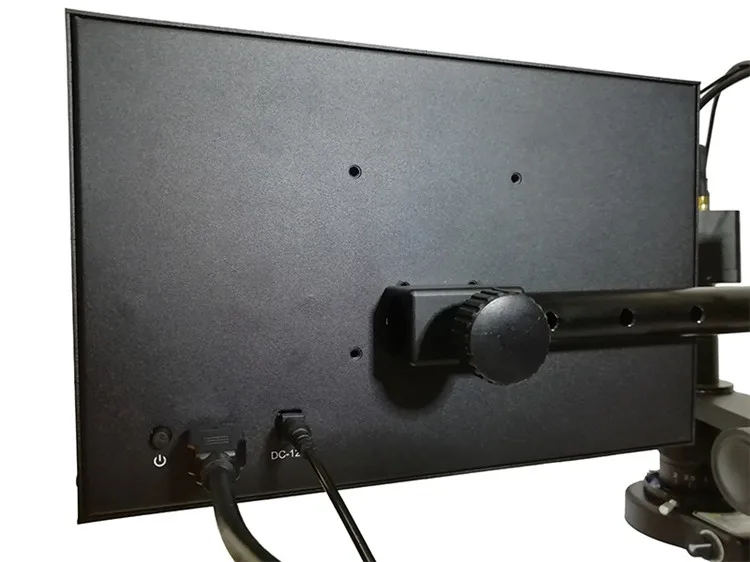

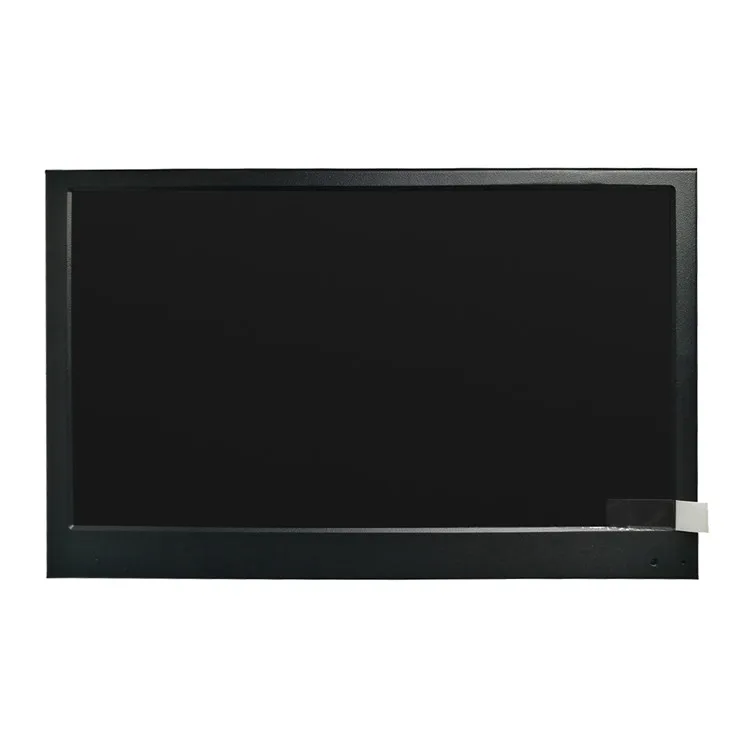

Display

Model	B116-HD
Size	11.6"
Dot pitch	0.0445×0.1335 mm
Panel Type	IPS panel
Backlight	LED
Backlight Life	30,000 hrs
Resolution	1920*1080
Acpect Ratio	16:9
Contrast	1000:1
Brightness	350 nits
Viewing Angle (H/V)	178/178
Response Time	6 ms
Display Color	16.2M
Operating Temperature	0~50℃
Storage Temperature	-20~60℃

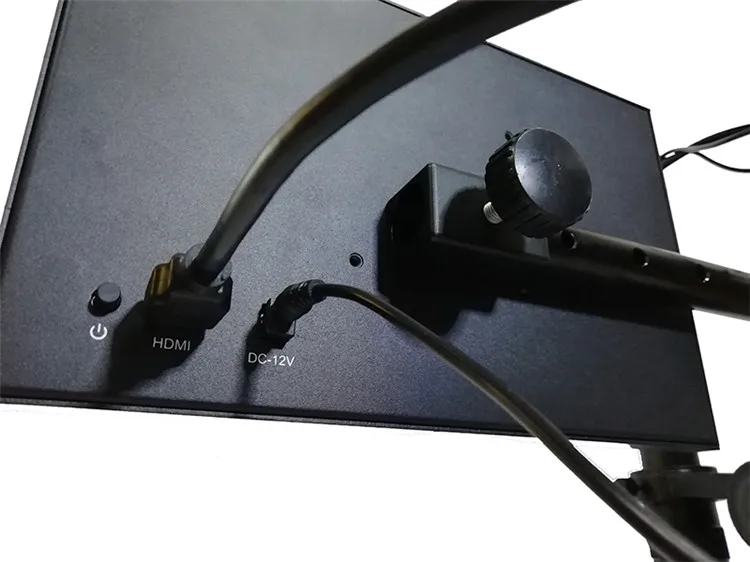

Video Inputs/Outputs	HDMI
Audio Inputs/Outputs	N/A
Touch	NO
Material	Aluminum alloy case

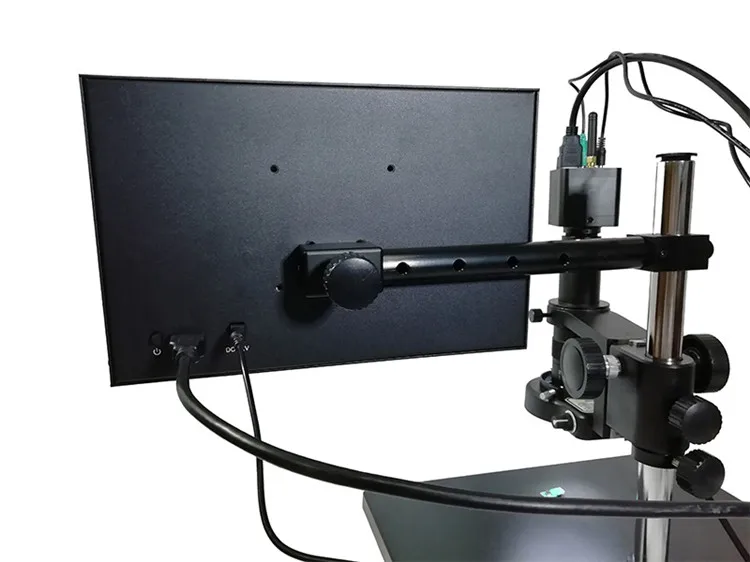

Installation	VESA mount
Power Requirement	DC 12V
Control	Remote control
Product Size	28.4*18.1*1.6 CM
Net Weight	0.54 KGS

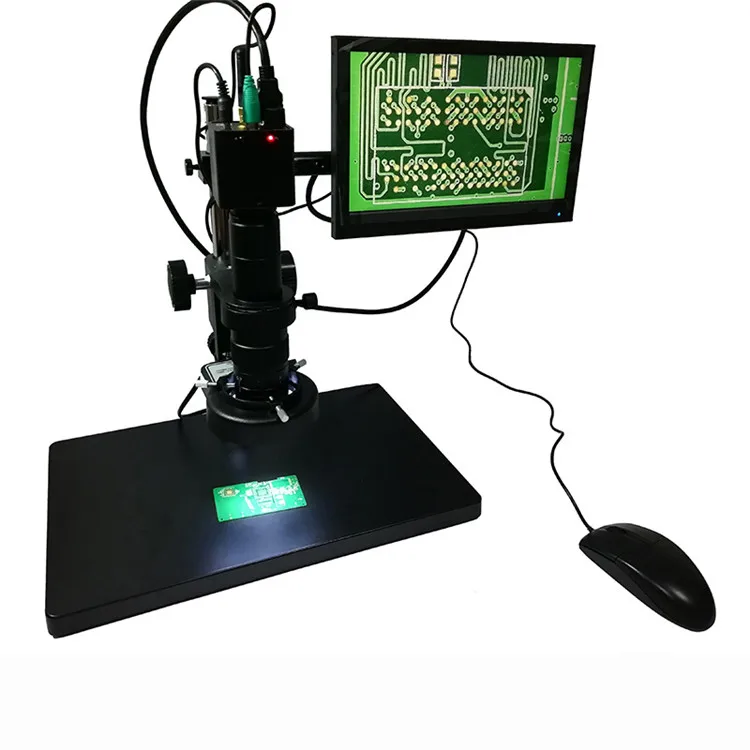

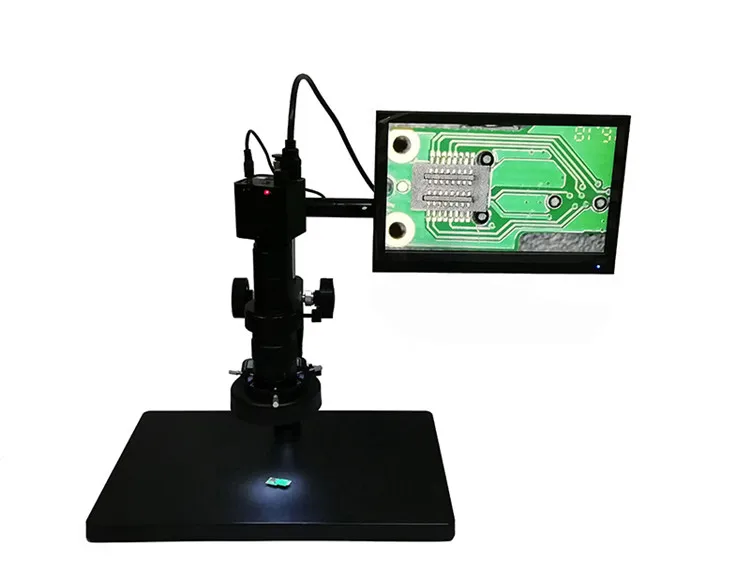

Detailed Images
