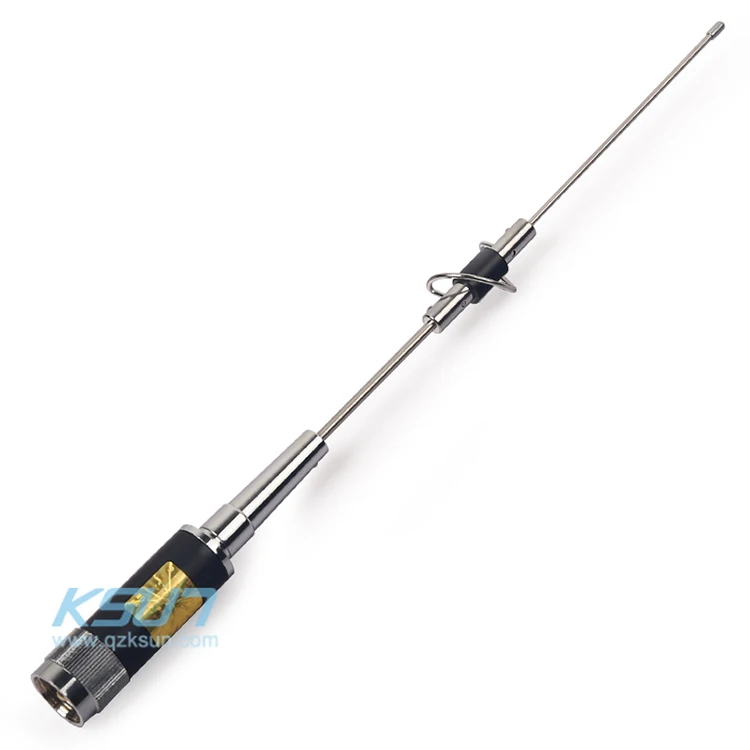

Genuine Car Radio Antenna CR-77 UV Double Band 29cm Short Mini Car Radio Antenna



Product Description




Product Description:

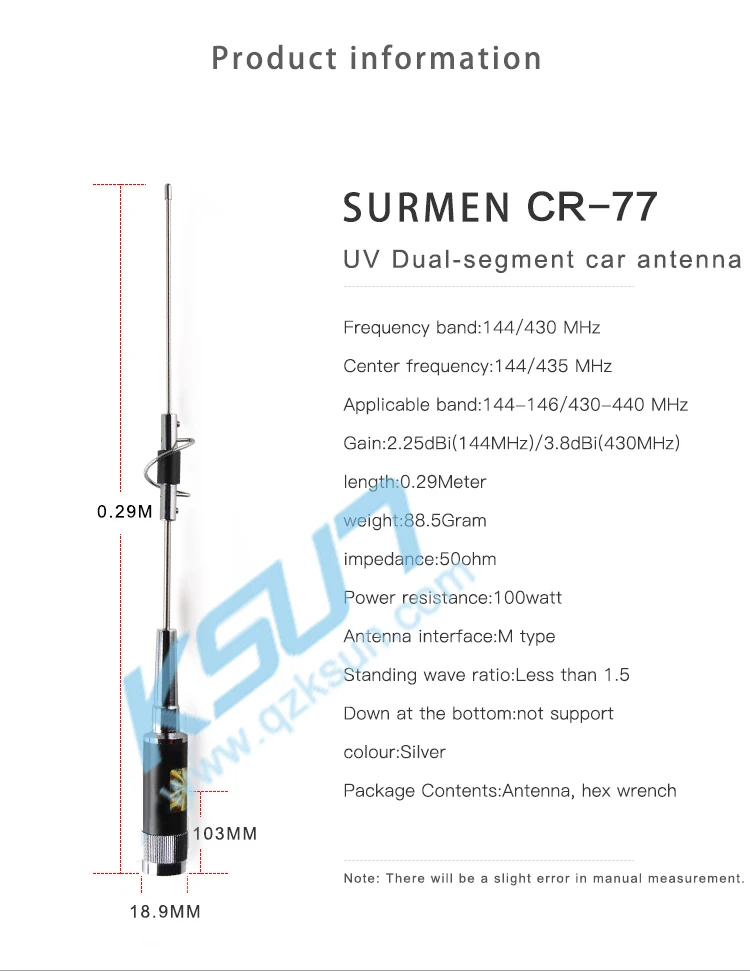

Specification
Frequency Range144/430MHz
Center frequency145/435MHz
Applicable frequency144-146/430-440MHz
Gain2.25dBi (144MHz)/3.8dBi (430MHz)
RadiationOmni
PolarizationVertical
Maximum Power Input-watts100W
V.S.W.RLess than 1.5
Impedance50ohm
Diameter1.89cm
full length29cm
The base length103cm
Weight88.5g

Click here to send an inquiry!!! ♥♥♥


Product Details:


.jpg




Click here to send an inquiry!!! ♥♥♥





Our Services












































Warranty:
1. Ensure your products are packed meticulously.
2. 100% QC inspection before shipment
3. 12 months for radio, 6 months for accessories, excludes damaged by human
4. Quality service & after-sales for all our customers
5. OEM & ODM service offered
6. We focus on RF Connectors & RF adapters & RF Cable Assembly & Antenna
7. We have a vigorous and creative R & D team with the fullest mastery of the core technology. We commit ourselves to the development of high performance connect production, and dedicate ourselves to achieving a leading position in connector innovation and production.
8. Our custom RF cable assemblies are built-in and shipped worldwide
9. RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
10. If you require a special RF Connector or RF Cable assembly configuration not found here, you can create your own RF cable assembly configuratiion by calling our sales department.
Payment Terms:
Payment: Paypal, T/T, Western Union, MoneyGram (please do not believe anybody by E-mail say our bank change thank you)




Company Information









     BUXUN Electronic Technology CO., LTD


is China's leading professional wireless communication equipment manufacturer Our company is a radio manufacturer with independent research, development and production. It mainly produce hand-held walkie-talkies for emergency communication and car radios, and other related accessories.  Our company's product line is rich, and we developed to produce the walkie-talkies for markets demand, including IP67 waterproof technology, voice encryption technology, shake and shake, digital voice encryption technology, Beidou intercom technology, and can develop as meet the company according to user demand. Independent development for customers under the premise of R&D requirements. Our company is a company that strives for excellence and quality. With customer experience as the core, after-sales service is the foundation of survival.










Packaging & Shipping







FAQ


Trouble-Shooting Guide





































ProblemSolution
What is standing wave ratio?

The standing wave ratio is a value indicating whether the antenna and the radio wave transmitting station match. If it is equal to 1, it means that the radio wave transmitted to the antenna does not have any reflection, and all are emitted, which is the most ideal situation. If the value is greater than 1, it means that a part of the electric wave is emitted back and eventually becomes heat, causing the feeder to heat up.


Is the antenna standing wave guaranteed to be less than 1.5?The antenna is strictly tested by the comprehensive tester. The standing wave meets the technical parameters provided by the manufacturer (less than 1.5) in the applicable frequency range of the antenna, but the test result is affected by many factors such as frequency, antenna installation method, position, feeder, etc. Said standing wave can be used normally below 2.0
What is the power rating of the antenna?

Antenna power resistance indicates the maximum power that the antenna can withstand, and is related to the antenna material and physical size, such as the coil diameter of the resonant coil and the thickness of the vibrator. When selecting an antenna, please ensure that the radio transmission power does not exceed the antenna's power consumption, so as to avoid antenna damage. The use of the hand platform in the car needs to be used with an external car antenna. There is no such thing as the power of the hand platform is small and the car antenna cannot be driven.


How to choose long and short antennas?As far as the amateur antenna products on the market are concerned, the length of the antenna is usually proportional to the effect. The effect of the long antenna is better than that of the short antenna. Generally speaking, two antennas with a difference of 5-6 cm are not particularly obvious, but mainly The difference in the design of the structure, but the difference is 10-20 cm, the effect has a great relationship with the length. If you use the 144MHz band, it is recommended to select an antenna with a length of 70cm or more. The effect will be better.
 About the samples Policy

As each day we have so many samples to send, it won't be a small amount. So our company have the rules that the freight and sample cost should be paid by our customer.And once we receive your order, we'll return this money to you. I hope you could undertand us.


What's your delivery time?

Within 12working days upon receive 100%TT deposit.


How is your quality guaranteed??

A: Our quality warranty for one year,  problem antennas could be replaced. But in generally speaking, our antenna quality is very good, there will be no problem, customers no need to worry.
