Цифровой Реле Давления Пневматические детали пружинный возвратный пневматический

Цифровой Реле Давления Пневматические детали пружинный возвратный пневматический

Категории: Valves >>>
Поставщик: COVNA,Industry,Automation,Co.,Ltd.

Цена:20,00 $ - 25,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Specifications

◀ High Tensile Epoxy Coated Spring Sets

High tensile spring sets provide high performance in fail safe and emergency shut down operations.

NAMUR Mounting ▶

Direct mounted solenoid connections according to NAMUR standards.

◀ ISO 5211 Bottom Mounting Connection

Base drilling, for valve mounting, and centering, according to ISO 5211/DIN 3337 standards.

High Visibility Position Indicator ▶

The indicator is to remain on the actuator for continuous indication when limit switch is not being used.

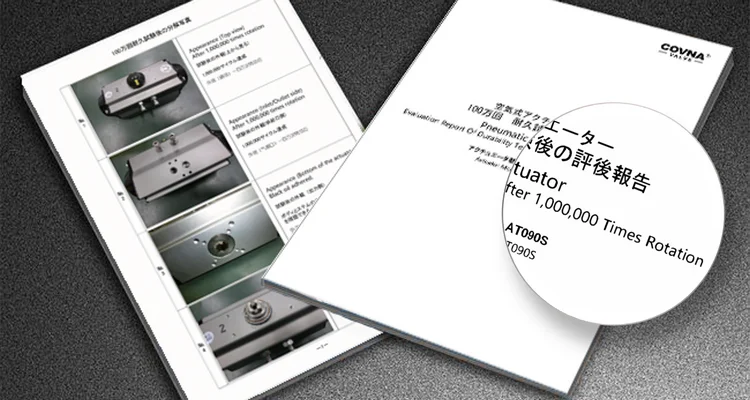

Evaluation Report On 1,000,000 Times Rotation

▼

\t Item	\t Double Acting Pneumatic Actuator Air Actuator
\t Acting Mode	\t Double Acting, Spring Return (Single Acting) are Available
\t Air Supply Pressure	\t 2.5 to 8bar
\t Output Torque	\t 14 to 1170Nm
\t Lifespan	\t 1,000,000 (1 Million) Times
\t Angle of Rotation	\t 90° ±4°
\t Shell Material	\t Aluminum Alloy Extruded
\t Applicable Media	\t Filtered, Dry Compressed Air, Non-Corrosive Medium
\t Ambient Temp.	\t Standard Type: -20 to +80°C (-4 to 176°F)
\t Optional Accessories	\t Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
\t Application	\t Food & Beverage, Refining, Desalination, Petrochemical, Chemical, Pharmaceutical, Textile, Pulp & Paper, Mining, Marine and Power Industries
\t Lubrication	\t There is no need for lubrication for standard type under normal operating conditions. Special lubricants should be used under low or high temperature operating conditions.

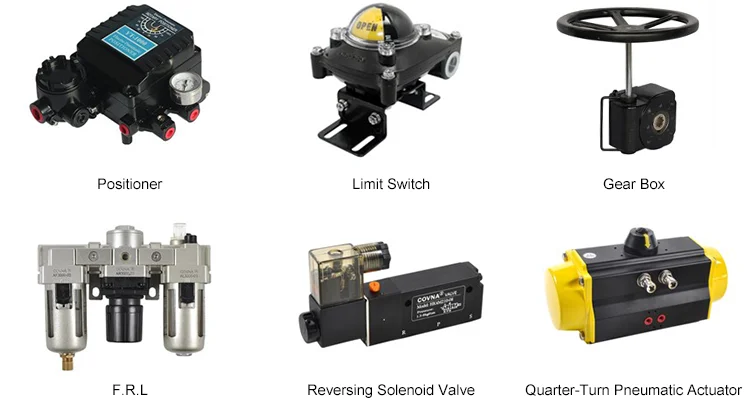

▋ Accessories

▋ Principles of Single Acting & Double Acting Actuators

Principle of Single Acting Actuator (Spring Return)

CCW

Air to port A forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.

Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A.

Air to port B forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.

Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A.

Principle of Double Acting Actuator

CCW

Air to Port A forces the pistons outwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port B.

Air to Port B forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port A.

Air to Port A forces the pistons outwards, causing the pinion to turn clockwise while the air is being exhausted from Port B.

Air to Port B forces the pistons inwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port A.

Production Flow

CNC Sawing

Sawing with accuracy and precision.

CNC Machining

Advanced CNC machine from German.

Semi-finished Products and Components

Partly finished products, waiting for further processing.

Lasering

Lasering production batch and model info.

Actuator Assembly

Assembled by qualified engineers.

Final Quality Control

100% tested before shipping.

About COVNA

COVNA - Solve your technical questions with solid experience

We are COVNA Automations, one of the top manufacturers of quarter turn actuators and automatic control valve products in Dongguan, China with 18 years experience. Our industrial experience will be useful in your business and projects.
