Product Description
• Fits Narrow, Medium, or Wide Stile Doors
• Three Architectural Finishes

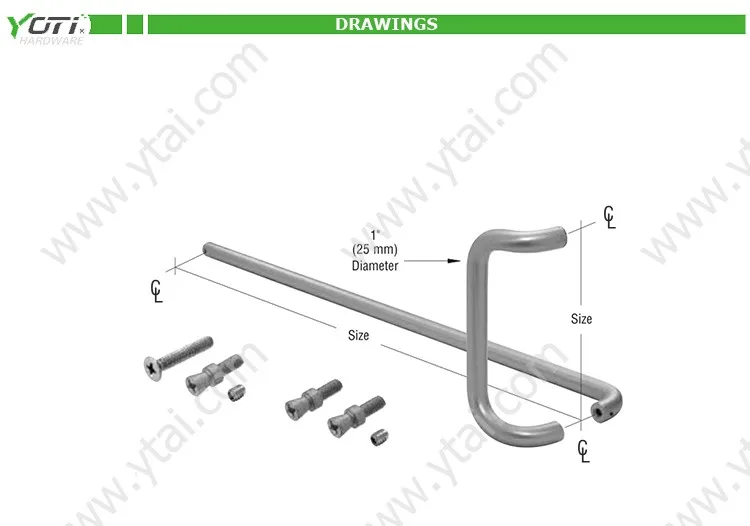

PR032&PR034 Push Bars and Pull Handles are made of 1" (25 mm) diameter solid extruded aluminum. The Pull Handles measure 9", 12", 14", or 16" (229, 305, 356, or 406 mm) lengths and the Push Bars are available for 36", 42", or 48" (914, 1067, or 1219 mm) doors. The projection height is 2-1/2" (63.5 mm) from the face of the door. NOTE: Push Bar and Pull Handle are ordered separately.
Push Bar Mounting
One 1/4"-20 Phillips Head Machine Screw,
One 1/4"-20 Threaded Shoulder Bolt and
One Set Screw for Single MountApplication
Pull Handle Mounting
Two 1/4"-20 Threaded Shoulder Bolts and Four Set Screws for Single Mount Application
PUSH BARS FOR SINGLE ACTING DOORS
Clear Aluminum Anodized Yoti P.N. | Dark Bronze Anodized Yoti P.N. | Size |
PR034C-33" | PR034D-33" | 33" (838 mm) |
PR034C-39" | PR034D-39" | 39" (991 mm) |
PR034C-45" | PR034D-45" | 45" (1143 mm) |
PULL HANDLES
Clear Aluminum Anodized Yoti P.N. | Dark Bronze Anodized Yoti P.N. | Size |
PR032C-9" | PR032D-9" | 9" (229 mm) |
PR032C-12" | PR032D-12" | 12" (305 mm) |
PR032C-14" | PR032D-14" | 14" (356 mm) |
PR032C-16" | PR032D-16" | 16" (406 mm) |
