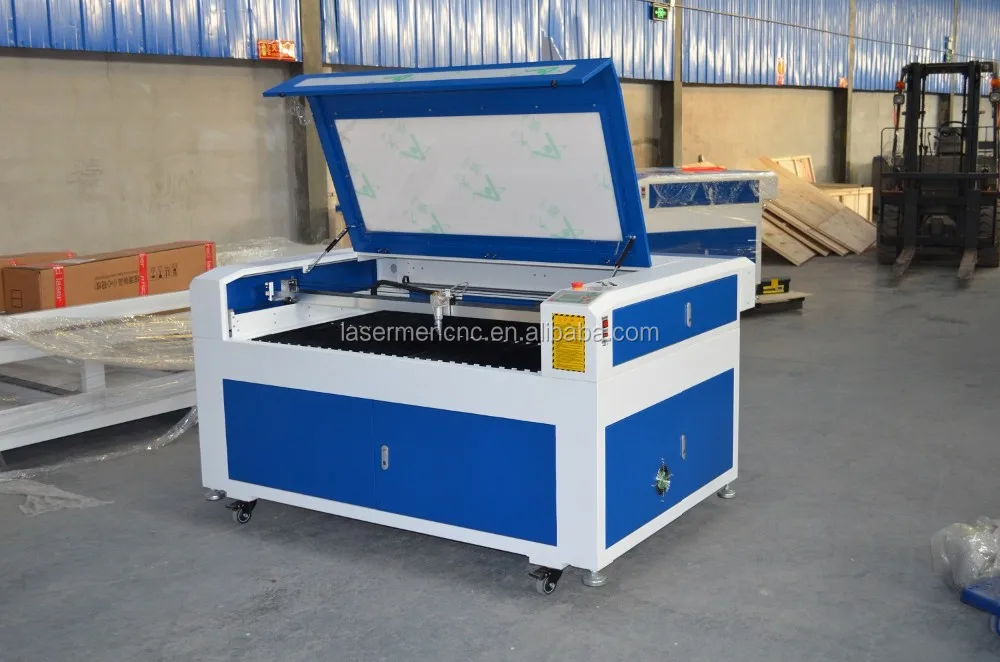

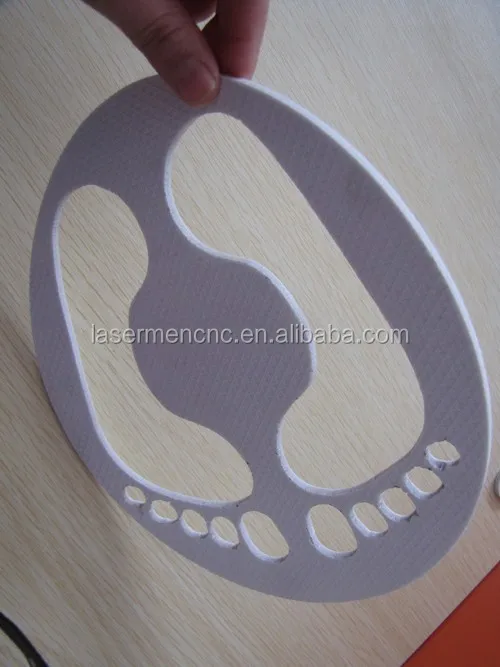

car mat foam EVA board mat laser cutting engraving machine LM-1390
Machine Features
1.Imported high-precision linear guide rail transmission makes the optical laser path and movement more stable, and better cutting effects.
2.Advanced DSP control system, high speed, easy operation, high cutting speed.
3.Motorized up-down table optional to allow customers to process thick materials. Red dot and auto focusing optional for easy operation and better working efficiency.
4.We can make double or more laser heads to improve work efficiency.
Applicable Materials
Wood products, paper, plastic, rubber, acrylic, bamboo, marble, double-color sheets, glass, wine bottles and other non-metal materials
Application Industries
Advertising signs and boards, arts and crafts, awards and trophies, paper-cutting, architectural model , lights and lamps, printing and packaging, electronic appliances, photo frames and albums, garment leather and other industries.
Machine models | LM-1390 laser cutting machine price |
Working area | 1300*900mm |
Laser type | Sealed CO2 glass laser tube, wavelength 10.6um |
Laser power | 60W/80W/100W/150W/180W |
Cooling mode | Pure circulating water cooling |
Control system | DSP offline control system, laser power software 0-100% adjustable |
Max. engraving speed | 0-60000mm/min |
Max cutting speed | 0-30000mm/min |
Repetition accuracy | ≤±0.01mm |
Min. letter | Chinese: 2.0*2.0mm; English: 1.0*1.0mm |
Working voltage | 110V/220V, 50Hz~60Hz |
Working condition | Temperature: 0-45℃, humidity: 5%-95% (No condensation) |
File formats | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, support AutoCAD, CoreDraw software |
acrylic cutting
rubber engraving
plywood cutting

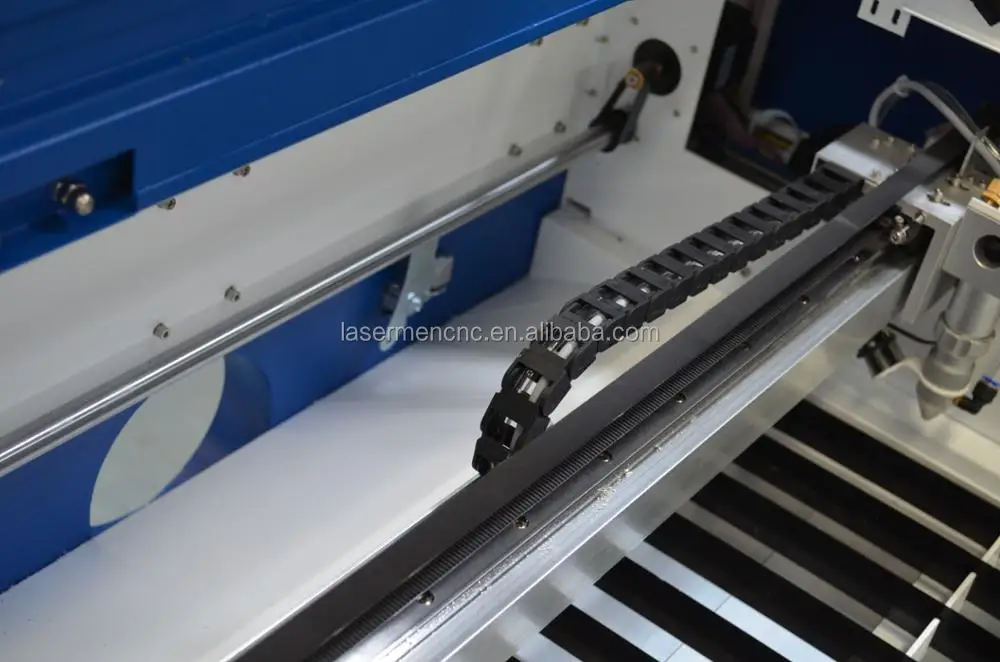

Taiwan square linear, belt transmission
We use Taiwan square linear rail and belt transmission, can get high precision effect

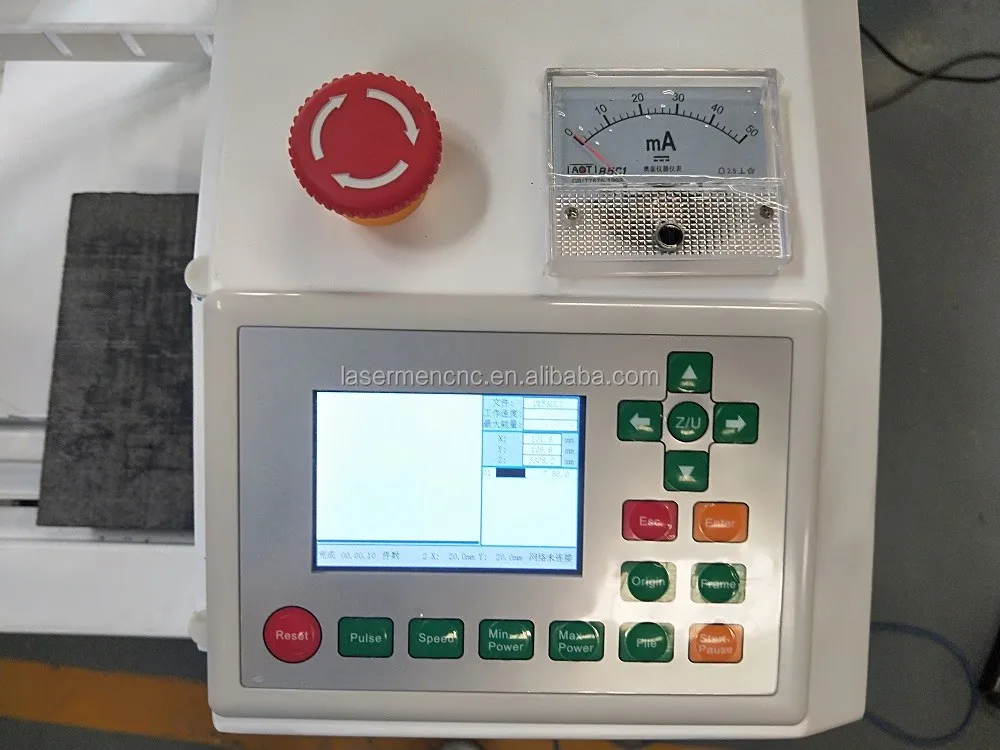

Front Operation Panel
The processing file will be showed on this screen, and you also can set the processing parameter here, besides panel, there are also Emergency switch and Ammeter, you can find machine working state

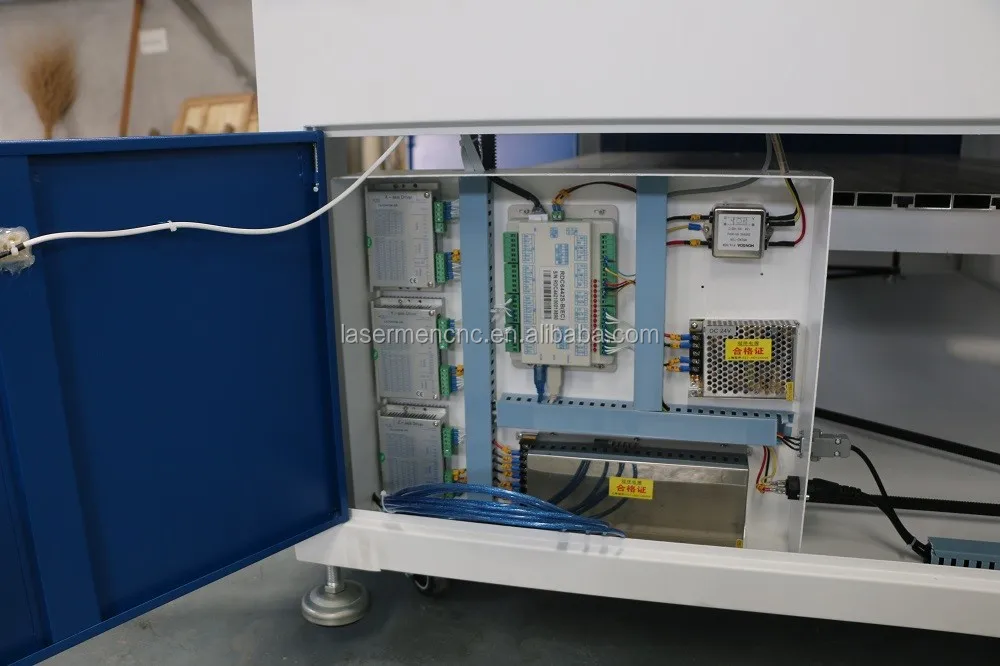

Ruida control system
Ruida USB controller. USB interface, support online/offline working, English language system, adjustable cutting speed and power.

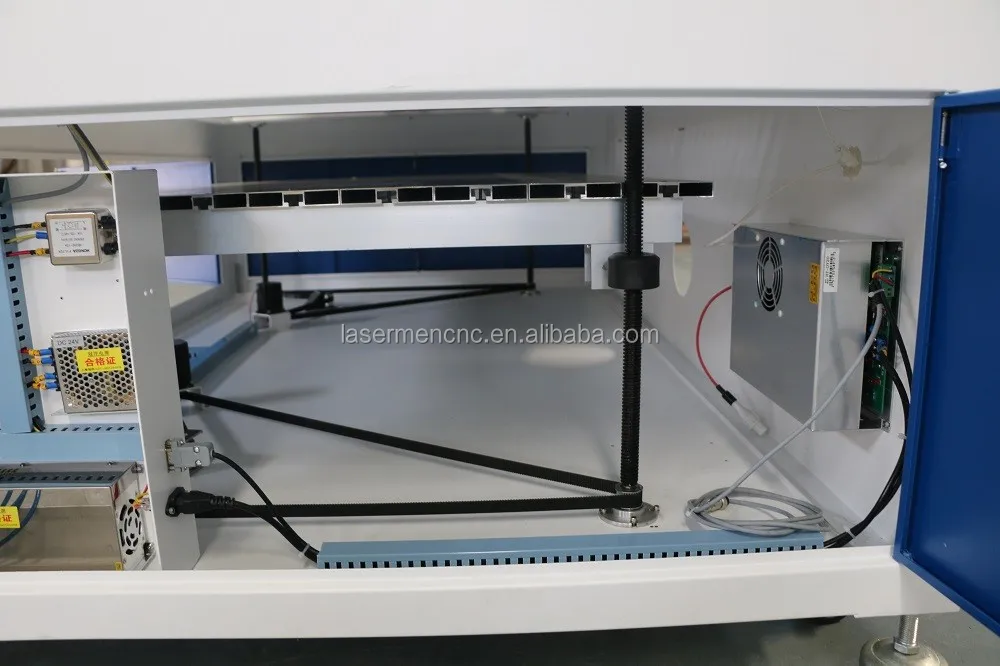

Laser power supply
40W~180W, good quality and stable output to extend the laser tube service time.

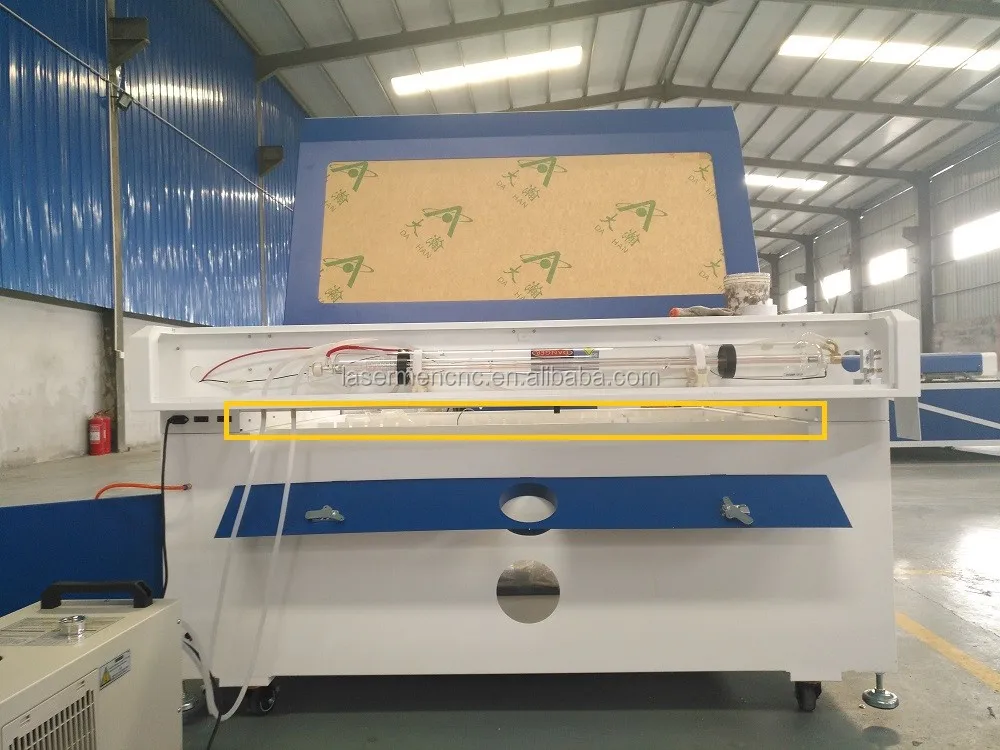

CO2 laser tube
CO2 laser tube power available: 60w, 80w, 100w, 130w, 150w, 180w.
60w, 80w, 100w are able to do both good engraving and cutting. 130W and above are for cutting. Stronger laser power cuts thicker.
Water cooling system
water pump / water chillers
S&A brand water chillers, best in china, it is used to cool the laser tube. Different chiller models are available for different wattage laser tubes: CW-3000, 5000, 5200, etc.
Motor
High accuracy Stepper motor
Second mirror set
high quality mirror set, easy to align laser path
Laser head
high precision laser head, can get fine cutting and engraving effect

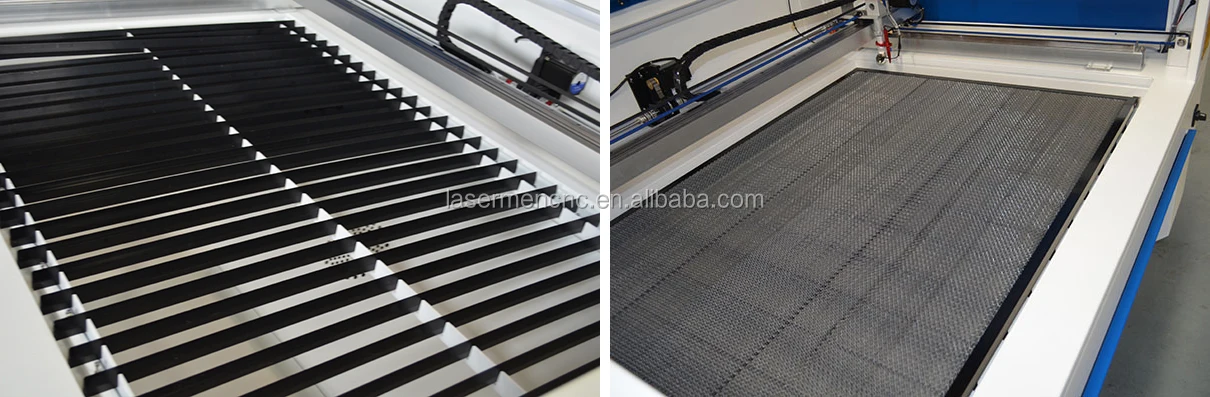

Aluminum table
It is for holding hard and sheet materials, such as acrylic, plastic, wood, plywood, mdf, pvc, stone, glass
Alternative table: honeycomb table
It is for soft materials, such as paper, cardboard, cloth, fabric, foam, PET, flag, banner, etc

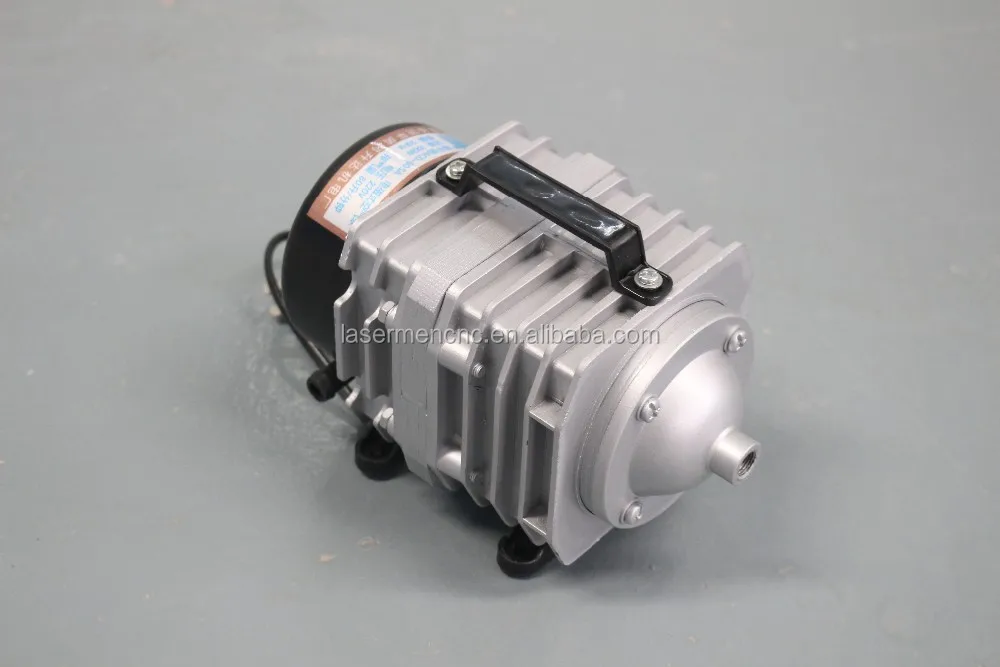

Air pump
(1). Push fumes away from the focal lens to protects the lens from contaminants which could damage the lens.
(2). Blow compressed air to the material during engraving and cutting, cools the material, protect it from burning.
Exhaust fan
Exhaust fan removes smell, smoke and dust caused during engraving and cutting, protecting the machine user healthy.
Rear opening allowing long material to pass through
Machine allowing working area is 1600x1000mm, but material longer than 1000mm is able to pass through this rear opening.
