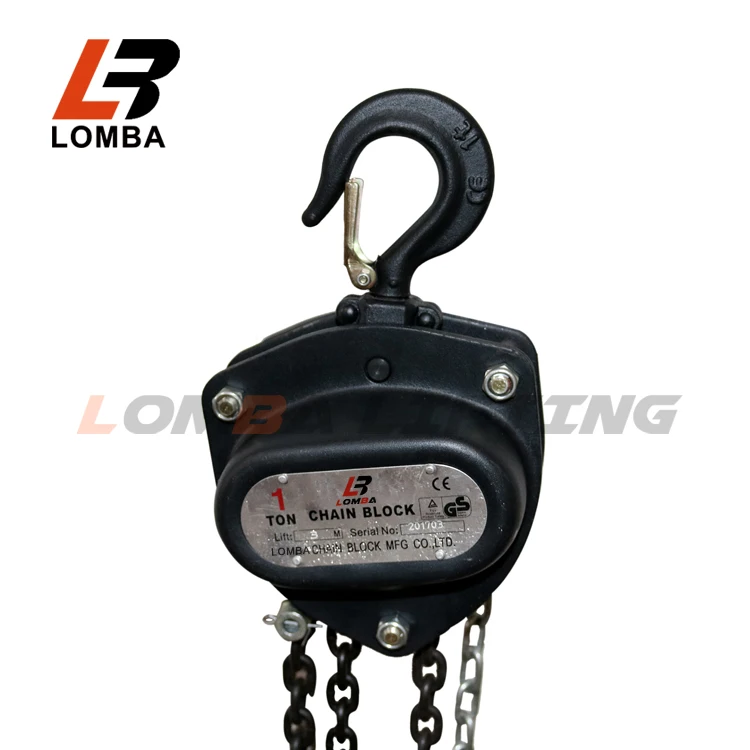

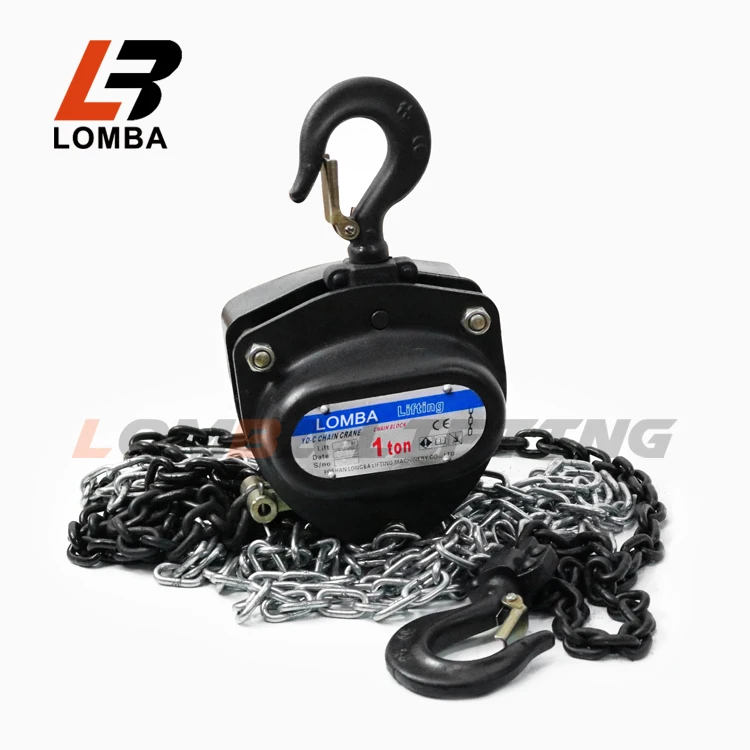

SLH-D Hot Sale Manual/hand chain pulley block Stage Hoist





Technical Benefits



1. Automatic double pawl braking system;

2. Light weight robust construction;

3. Low effort to lift maximum load;

4. Fully forged hooks;

5. Fully machines lift wheel;

6. ISO high grade alloy chain;

7. Zinc plated hand chain as standard;

8. Double cover protection;

9. Durable baked enamel paint protection;

10. Overload protection device available upon request.



Model		YD-C050	YD-C100	YD-C150	YD-C200	YD-C300	YD-C500
Capacity(kg)		500	1000	1500	2000	3000	5000
Lifting height(m)		2.5	2.5	2.5	2.5	3	3
No. of falls		1	1	1	1	1	2
Load chain Dia. x Pitch(mm)		5x15	6x18	7x21	8x24	10x30	10x30
Hand chain		5x23.7-18
Force(N)		240	250	265	335	372	380
Net weight(kg)		9.3	12.2	16.5	19.5	32	43
Dimensions(mm)	A	148	172	196	210	255	280
	B	132	151	173	175	189	205
	C	23	26	29.5	34	37.5	41
	D	35	40	45	50	55	65
	Hmin	345	376	442	470	580	690
